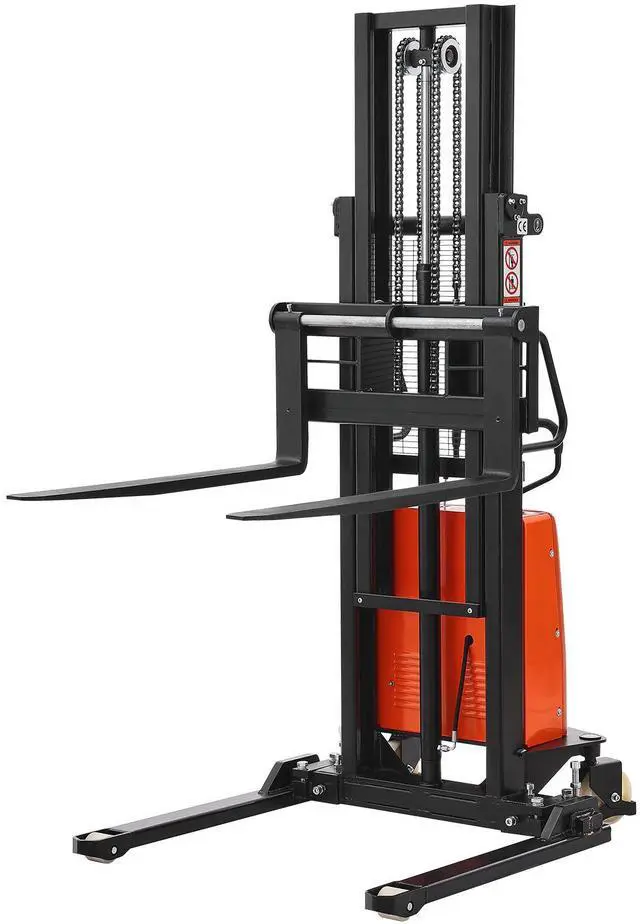

Semi Electric Pallet Stacker, 3300 lbs Load Capacity, Pallet Lift Stacker Forklift with Straddle Legs, 96.06 Inches Lifting Height & 8.3-33.86 Inches Adjustable Fork Width, Orange & Black
- Powerful Performance: This semi-electric pallet stacker is made from high-strength carbon steel and can hold up to 3300 lbs! With a 1.6 kW motor, it effortlessly lifts forks from 2.36 to 98.42 inches, ideal for efficient heavy-duty stacking
- Flexible Adjustments: The compact design of the stacker forklift easily fits into narrow spaces. The forks adjust from 8.3 to 33.9 inches wide, the leg span from 44.1 to 59.8 inches, and the mast height adjusts between 74.17 and 122.24 inches for various pallets
- Easy to Maneuver: With 4 durable nylon wheels and a 54.33-inch turning radius, moving the pallet lift stacker is a breeze, even in tight spaces. Plus, anti-collision protection on the rear wheels keeps everything secure
- Simple & Secure Operation: New to stackers? No worries! The intuitive control lever, emergency stop button, foot brake, and metal security guard make it easy and secure to operate
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Item Model Number: QSS15-SL-25
Load Capacity: 3300 lbs / 1.5 T
Main Material: PC + Carbon Steel
Power Type: Semi-electric (Electric lift, manual movement)
Lifting Speed (Loaded/Unloaded): 0.7 m/s / 0.1 m/s
Lowering Speed (Loaded/Unloaded): 0.11 m/s / 0.09 m/s
Low Fork Height: 2.36 in / 60 mm
High Fork Height: 98.42 in / 2500 mm
Fork Width Range: 8.27 - 33.86 in / 210 - 860 mm
Fork Width: 3.85 in / 98 mm
Fork Thickness: 1.4 in / 35 mm
Fork Length: 45.27 in / 1150 mm
Adjustable Leg Width: 44.09 - 59.84 in / 1120 - 1520 mm
Frame Top Height: 74.17 - 122.24 in / 1883.9 - 3105 mm
Turning Radius: 54.33 in / 1380 mm
Product Weight: 1214.75 lbs / 551 kg
Product Dimensions: 74.13 x 44.09 x 74.17 in / 1883 x 1120 x 1884 mm (Note: This size is for when the frame is at its lowest and legs are at their narrowest)
Package Content
1 x Pallet Stacker
2 x Forks
2 x Cross legs (Pre-installed with 3 bolts and washers)
