1080P 4K HDMI Capture Card USB 2.0 Digtal Video Recorder Box Donglefor Game Live Streaming Broadcast Support Local Loop

1080P 4K HDMI Capture Card USB 2.0 Digtal Video Recorder Box Dongle for Game Live Streaming Broadcast Support Local Loop

Description:

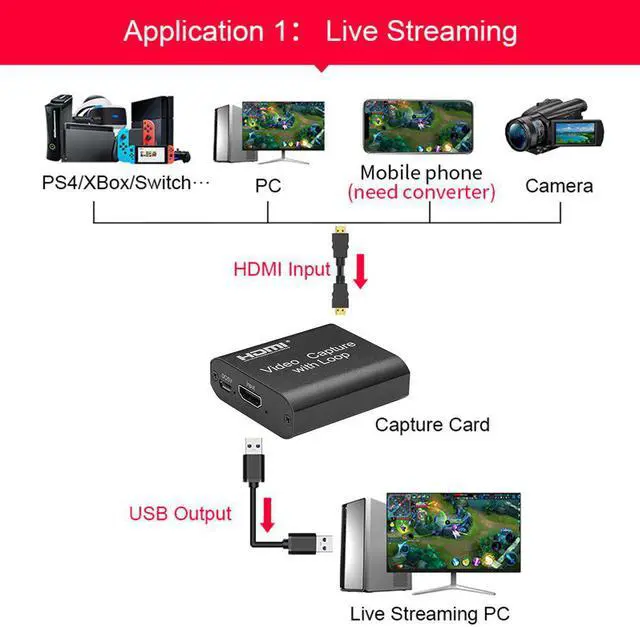

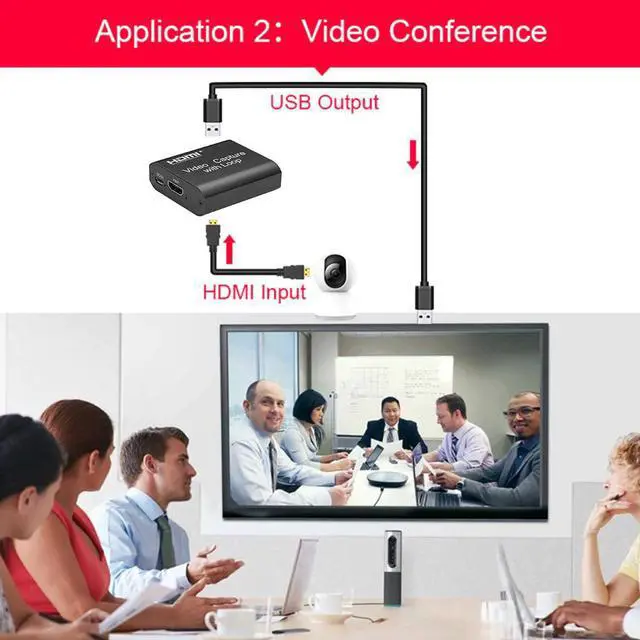

This capture card can capture HDMI video and HDMI audio at the same time, and can transmit audio and video signals to a computer and smart phone for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.

Feature:

Support HDMI local loop out.

Support maximum input resolution up to 4K.

Support maximum output resolution up to 1080P.

When using standard AWG26 cable, the input transmission distance is up to 15 meters (1080P and below resolution).

Support most acquisition software, such as VLC, OBS, Amcap, etc.

Support for Windows, Android and MacOS.

Conforms to USB video UVC specifications.

Conforms to USB audio UAC specifications.

Specification:

DMI Resolution: Highest Input Support 4K

Video Input Format: 8/10/12-Bit Color Depth

Video Output Mode: YUV, JPEG

Video Output Resolution: Maximum Output Resolution 1080P

Support Audio Format: L-PCM

Input Cable Length: 15 Meters, AWG26 HDMI Standard Cable

Maximum Working Current: DC 0.7A/5V

Operating Temperature Range: -10~+55

Size: 58 X 55 X 18mm/2.28 X 2.17 X 0.71"

Note:

1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

2. Please allow 1-3mm measuring deviation due to manual measurement.

1 X HDMI Capture Card
