TP-Link AV600 Powerline WiFi Extender - Powerline Adapter with N300 WiFi, Power Saving, Ethernet over Power(TL-WPA4220 KIT)

Ships from United States.

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • WiFi powerline adapter provides up to 600Mbps Ethernet over power, up to 300Mbps WiFi. Ideal to be Ethernet extender who can easily go over the walls
  • As network adapters supporting HomePlug AV, easy to add multiple adapters and works under 110-240V
  • Power saving automatically reduces power consumption by up to 85%
  • Microsoft Windows 2000 / XP / 2003 / Vista / 7 / 8 , MacOS , Linux
  • Data encryption by 128-bit AES to make the network safe and private.Modulation Technology: OFDM (PLC)
  • Industry Leading Support: 2-year warranty and free 24/7 technical support. Support Email: USsupport@tp-link.com

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
c0l_logo_tp-link

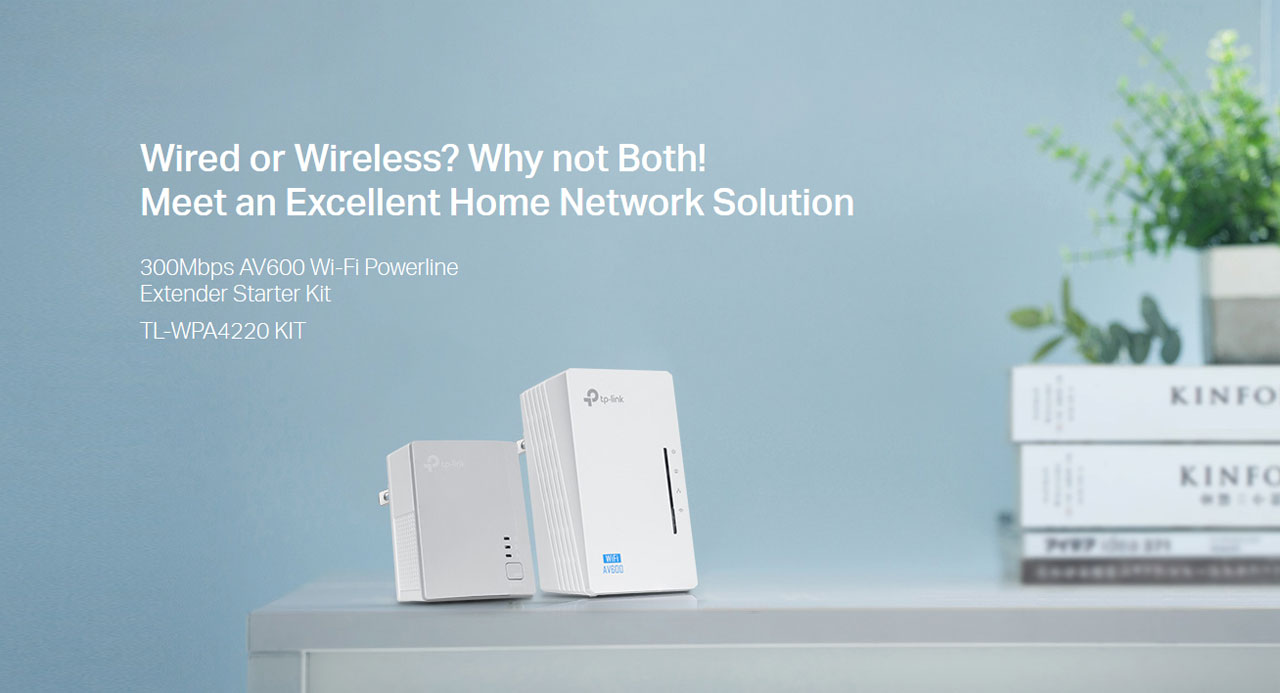

c0_TL-WPA4220KIT

Consisting of TL-PA4010 nano powerline adapter and TL-WPA4220 Wi-Fi powerline extender, this kit allows you to extend your home network by up to 300 meters over existing electrical circuit. Installation is easy—plug the nano adapter into an outlet and connect it to the home router using an Ethernet cable, then plug the Wi-Fi powerline extender (larger unit) into a wall outlet in your desired room. Press the ‘Pair’ buttons on both units to create a secure connection between them, with up to 600 Mbps bandwidth.

The TL-WPA4220 Wi-Fi powerline extender complies with 802.11 b/g/n, providing up to 300 Mpbs wireless speed. A Wi-Fi Clone button allows you to copy SSID and password of the home router with a simple press. Two 10/100 Mbps Ethernet ports are ideal for wired devices like set top boxes, game consoles, TVs and more.

* Powerline adapter and extender need to be connected to the same electrical circuit.

c1_ports_TL-WPA4220KIT

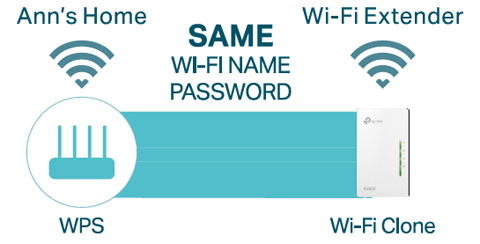

1_Wi-Fi Clone

Simple Setup with Wi-Fi Clone

Copy your wireless network name (SSID) and password from your router instantly by pressing the Wi-Fi Clone button.

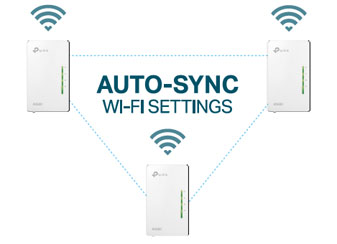

2_Wi-Fi Move

Settings in Sync with Wi-Fi Move

Any changes made to network settings will be automatically applied across the entire network.

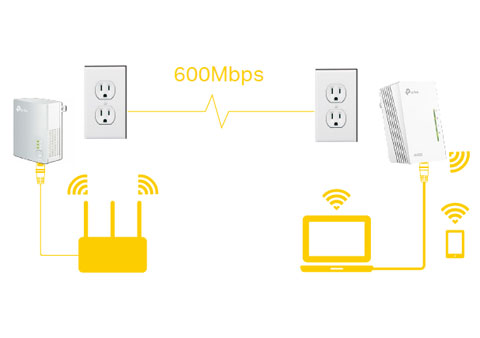

3_600 Mbps

600 Mbps over Powerline

HomePlug AV standard provides up to 600 Mbps high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming.

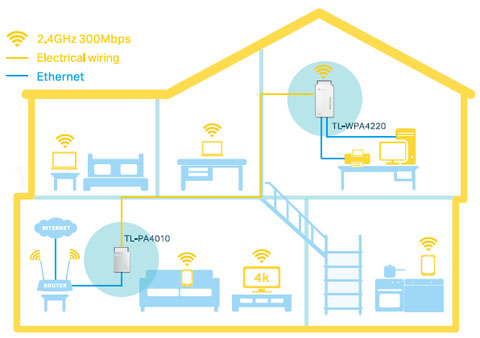

4_300 Mbps Wi-Fi

300 Mbps Wi-Fi

Extend 300 Mbps wireless connections to previously hard-to-reach areas of your home and office.

 5_Powerline Management

Powerline Management on Your Smartphone

The tpPLC Utility and tpPLC app make it easy to control wireless network settings, set schedules for Wi-Fi availability and even control the LED indicators on your adapters from any iOS or Android device. You can download the tpPLC app for iOS and Android devices. You can download the intuitive new tpPLC Utility for your PC at www.tp-link.com/en.

Speed

  • Wireless N Standard—Wi-Fi speed of up to 300Mbps
  • HomePlug AV—Provides up to 600Mbps high-speed data transmission over a home’s existing electrical wiring
  • Multiple Ethernet Ports—Create faster connections with PCs, consoles, STB and more
  • Speed Optimization—Supports IGMP managed multicast IP transmission, optimizing IPTV streaming

Ease of Use

  • Wi-Fi Clone—Allows powerline extenders to copy the network name (SSID) and password from your router with one simple touch
  • Wi-Fi Move—Automatically adopts Wi-Fi settings from your existing powerline network
  • TP-Link tpPLC—Allows you to easily manage your network using the intuitive tpPLC App or the tpPLC Utility
  • Plug, Pair and Play—Set up your powerline network in minutes

Security

  • Pair Button—Provides a connection with 128-bit AES encryption, at the touch of “Pair” button
  • Parental Controls—Manage when and how connected devices can access the internet
  • Encryptions for Secure Network—WPA-PSK/WPA2-PSK encryptions provide active protection against security threats

Range

  • 300 meters Range—Up to 300 meters/1000 feet range over existing electrical wiring

* The terms “AV600” and “300Mbps” are derived from applicable specifications and refer to the theoretical maximum physical-layer data transfer rate. Those terms are used on this product solely to indicate its compatibility with other “AV600” or “300Mbps” powerline devices. Actual data speeds vary and may be limited by the product’s Ethernet port and other network conditions such as data traffic, electrical noise, and wiring issues. For better performance, powerline devices should be deployed on the same electrical circuit and rated for the same HomePlug standard. A minimum of two powerline devices are required to establish a powerline connection. If you are uncertain about your network conditions, you should consult an IT professional to assist in selecting a networking product.

* Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications along with the number of connected devices were defined according to test results under normal usage conditions. Actual wireless transmission rate, wireless coverage, and number of connected devices are not guaranteed, and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition.


Learn more about the TP-Link TL-WPA4220KIT

Model

|
Brand
TP-Link
Model
TL-WPA4220KIT

Details

|
Standards
HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
Wireless Data Rates
Up to 300Mbps
Security
Powerline Security:128-bit AES
Wireless Security:WEP, WPA / WPA2, WPA-PSK / WPA2-PSK Encryption
WPA/WPA2
WPA2
Interface
Ethernet Port
LED
PWR, PLC, ETH, Wi-Fi / Wi-Fi Clone
Button
Pair, Reset, Wi-Fi / Wi-Fi Clone
Power
Maximum: 7.608W (220V / 50Hz)
Typical: 7.216W (220V / 50Hz)
Standby: 4.610W (220V / 50Hz)
System Requirements
Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
Dimensions
1.60" x 3.70" x 2.10"
Weight
0.95 lb.

Feature

|
Features
Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network

HomePlug AV standard providing up to 500 Mbps high speed data transmission over a home’s existing

electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming

Extend 300 Mbps wireless connections to previously hard-to-reach areas of your home and office

Two Ethernet ports allow your TVs, game consoles, or PCs connect to the Internet

Up to 300-meter range over the household power circuit

Easy to install, just plug in and play

128-bit AES encryption easily at a push of "Pair" Button

Supports IGMP managed multicast IP transmission, optimizing IPTV streaming

Environmental

|
Operating Temperature
0°C - 40°C (32°F - 104°F)
Operating Humidity
10% - 90%, Non-Condensing
Storage Temperature
-40 degree C~70 degree C (-40 degree F ~158 degree F)
Storage Humidity
5%~90% non-condensing

Package Contents

|
Package Contents
Powerline Ethernet Adapter TL-WPA4220 & TL-PA4010
6.5 ft. (2 m) Ethernet cable (RJ45)
Resource CD
Quick Installation Guide

Additional Information

|
Date First Available
January 16, 2014
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details
  • Return Policies
  • We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1, 2019 and December 24, 2019 you will have until January 31, 2020 to return your product. There's nothing additional that you have to do!
    • Return for refund until: January 31, 2020
    • Return for replacement until: January 31, 2020
  • This item is covered by Newegg.com's Extended Holiday Return Policy.
Ownership: 1 week to 1 month
Verified Owner
1/ 5
Very difficult to troubleshoot 1/12/2018 12:16:08 PM

Pros: Great price. I have 2 switches and a cable modem from TP-Link and all have worked flawlessly - great value.
Newegg customer service - they took this thing back and provided stellar customer service as always.

Cons: If you want to add a separate wi-fi network to your existing network - this will work great. If you want to integrate these with your existing wi-fi network (extend it) - good luck. They have attempted to make this idiot-proof by making everything 'magically' just happen with a button push. So if you want to clone your existing wi-fi settings (extend your network) and that fails - there is no UI, no logs - no way to troubleshoot the problem. You can download the 'app' from TP-Link - which allows you to manually clone your own wi-fi settings - however if that does not work, again there is no log file, no management UI, nothing to help you figure out why it did not work.
-Lack of administrative abilities
-App lacks any real administrative abilities
-Troubleshooting 'help' consists of videos and instructions that are all identical - i.e. 'just push this button and wait for the magic'
-Separate wi-fi option results in replacement of existing wi-fi settings - documentation does not warn you of this - anywhere.

Overall Review: I easily created a distinct wireless network with these devices and had strong coverage. That is not what I wanted, however, and that new wireless network blew away and replaced my existing network -which resulted in having to factory reset my router and rebuild my network. The documentation failed to mention this - so be careful.

0 out of 1 people found this review helpful. Did you?
Manufacturer Response:
Hi Jonathan,

Thank you for sharing your experience with our TL-WPA4220 Powerline Wi-Fi Extender Kit. We're sorry to hear you decided to return the product; we would've appreciated the opportunity to follow up with you and address your concerns. In your case, we would've recommended using the TL-WPA4220 KIT Utility - not the tpPLC Utility - to access the product's management interface and manually clone your router's SSID. The utility can be downloaded from our official website below.

Windows - http://static.tp-link.com/resources/software/TL-WPA4220KIT_V1_Utility.zip
Mac - http://static.tp-link.com/res/down/soft/TL-WPA4220_KIT_V1_MAC_Powerline_Scan_Utility.zip

For future reference, our Support Team is always happy to listen, and answer any questions you might have about our products. Please feel free to e-mail USSupportTeam@TP-Link.com and we'll gladly have a Support Agent follow up with you directly.

Best Regards,
TP-Link Customer Support
Ownership: 1 month to 1 year
Verified Owner
1/ 5
Apparently only works at extremely short distances 2/27/2017 11:19:41 AM

Pros: - Very easy to set-up
- The utility you can download to check connection speed/status is great

Cons: - Can't be used to span long distances. The specs say 300 meters, which is reasonable, but I have mine only 75 feet apart and was told by customer support this is "too far" and that I should try plugging them in in the same room.
- Because of this distance, I only get around 20Mbps, which is very slow.

Overall Review: Was hoping this would solve the issue of my WiFi not reaching one corner of my house. I'll likely end up returning this and just get a wifi repeater instead

Did you find this review helpful?
Manufacturer Response:
Hello Edward,

Thank you for your review and feedback.

Please bear in mind that the theoretical maximum channel data transfer rate of Powerline Adapters is derived from HomePlug AV specifications. Actual data transfer rate will vary from network environment variables including: distance between adapters, network traffic, noise on electrical wires, building material and construction, quality of electrical installation and other adverse conditions.

We also recommend making sure that both adapters are plugged directly into wall outlets; no surge protectors or power strips, as these will disrupt the signal.

Our Support Team is always available and happy to help. Please feel free to contact us anytime using the information below, and we'll gladly follow up with you.

We thank you again for your feedback and hope you will continue to consider TP-Link for your future network needs.

Best Regards,

TP-Link Customer Support
(866) 225-8139
USSupportTeam@TP-Link.com
Ownership: more than 1 year
Verified Owner
5/ 5
Great for home networking 6/23/2016 12:40:22 PM

Pros: The powerline side data is GREAT. WIFI works fantastic as well

Cons: No complaints

1 out of 2 people found this review helpful. Did you?
1/ 5
Poor instructions, conflicts with router IP and knocks out the original LAN 1/14/2016 9:40:38 AM

Pros: They are small. I did get a decent signal strength.

Cons: No CD was in the package. Poor, TINY, instruction book that you can barely see. No way to access their online settings for the device was ever listed anywhere in the instructions. The numbers on the devices are so small you better have really good eyesight. In using a wifi analyser app on my phone I can see 2 distinct signals with the same name and password. No devices are able to connect to either one. There are no instructions on how to resolve this even though it seems to be the common problem with this device.

Overall Review: Unless their support can fix this for me I'm not recommending this to anyone. Too difficult to resolve router conflicts and extremely cryptic on how to get to the web interface. I plug directly into the device and still not able to get a web site to configure it.

0 out of 1 people found this review helpful. Did you?
Manufacturer Response:
Hello Customer,

We are sorry to see that you are having some issues with this device.

The kit should come with a CD containing the utility software, and you may download the utility from our site if you are missing the CD.

You may find it at: http://www.tp-link.us/download/TL-WPA4220KIT.html#Utility

One issue that you may see is that your Router and the TP-Link may have the same IP address (192.168.1.1). This may cause some issues to connect, but may be easily changed.

If you are still having issues and would like further assistance then please feel free to contact our support team directly.

Best Regards!

TP-LINK Support Team
ussupportteam@tp-link.com
Ownership: more than 1 year
Verified Owner
4/ 5
Had some issues 10/5/2015 10:31:25 AM

Pros: works for a while.

Cons: works for a while.

Overall Review: It appears, but I have not proved, that the wireless access point stops working after some period of time. It *appears* what has happened is that the wireless connection went down, my Android phone will merrily switch to the main router, but my daughter's iPhone 6, would not, and instead switched to cellular data, and racked me up some GB of data.

For the record, I mirrored the SSID and password of the main router, but put this device on another channel.

I have since gave it another SSID and pw, and still had issues, so I just unplugged it, save this problem for winter when i am looking for something to do.

What ever happened, unplugging both units and plugging them in clears the issue.

My router is Asus RTN16 (or something like that), running DD-WRT.

No issues noted with a Rosewill adapter, Android phones, or Chromebooks, just the iPhone. But they might have just switched to the main router. Again, I would have to play around, and it would also require me to take a risk that the iPhone would start hitting the cellular connection (when I least expect it), and it would require my daughter to keep track of it. In other words, probably never.

I was detecting the wireless connection going down with the Android app "Wifi Analyzer" by farproc. I have read that an app on the iTunes store has the same name but is not from the same author.

Consider the above *unproven*, it might have been what happened, then again the truth might be something else.

Did you find this review helpful?
Ownership: less than 1 day
Verified Owner
5/ 5
Better than expected 10/1/2015 3:56:19 PM

Pros: Fast installation; achieves same speed on any circuit

Cons: "blinking light" status not explained well in instructions

Overall Review: Though all I cared about was that this would extend to the other end of the hall on the same circuit, it works equally well anywhere in this two-story house, including an addition. There must be some wiring gotcha that some others are encountering.

Did you find this review helpful?
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Works excellent 9/26/2015 10:43:04 AM

Pros: Simple installation, works as advertised. Does NOT have to be on the same circuit or even panel. Wi-FI signal excellent, speed throughput good, stable reliable wi-fi signal.

Cons: Cloning function is iffy at best, but easily circumvented by simply logging to the device and setting the network parameters manually.

Overall Review: I've set up a couple of these for friends to get Wi-Fi in their metal clad barns several hundred yards away from their main home. I just did the same with my new barn. My barn is 250' away and I get 3ms latency to the device via the powerline out there. Wi-Fi signal is outstanding in the barn, speed tests of transferring files from my local network server indicate around 50mbps of actual file transfer speed. Reliable solid signal, I've never had to reset or re-setup these.
Not sure why some people say has to be on the same circuit, mines setup through a circuit in the main panel to a circuit in a subpanel, no problems whatsoever. It's possible they won't work or work degraded through AFCI breakers (AFCI is required for bedroom circuits of homes built after around 2003), I have none of those to test, they also do not work via surge suppression or voltage regulating equipment like most powerstrips and UPS's. They do work just fine through GFCI protected circuits. They won't work through street/pole/power company transformers. (between neighboring homes) (Actually they will if you have a neutral leg pulled from the transformer which most newer homes would , but it's severely degraded and mostly unusable)
This is the third one of these I've setup in different homes and I've not had a single issue with any of them.

Did you find this review helpful?
Ownership: 1 month to 1 year
Verified Owner
2/ 5
Difficult Setup, Problematic WiFi 9/13/2015 12:11:07 PM

Pros: The connection over power works fine and is fast enough for me.
The price was reasonable for the kit.

Cons: Setup was much more difficult than anticipated.
Pairing the devices wasn't bad, but I had to reset the device multiple times to get an IP.
The internet-based software was difficult to access at times.
Wifi is not easy. I primarily used (the wifi) it as a standalone access point, and was eventually able to get most of my devices connected (signal strength was reasonable), but couldn't get my phones and a few laptops to connect. We have all Moto G devices from various generations, but couldn't get any of them to establish a connection. Even with all security disabled, no luck. It sits at 'acquiring IP' -- maybe this is a problem with the phones, but it is the only trouble I've had with wifi and I have accessed tons of different ones.

Overall Review: If I wasn't willing to restart tons of times, start the setup process over from scratch, and didn't have a spare wireless access point I didn't mind using, I'd have sent this back. I was *that* close. Since I was able to work around the issues, I didn't want to go back to only weak wifi signal for my primary PC during the exchange time (since the wired connection over power worked relatively easily).

I'll try as a wifi clone/extender one more time (since that seems to be the focus with this device) and update this if that works and fixes my various device connection issues.

Maybe I got a lemon (good reviews, otherwise), but if not...I wouldn't recommend this. Go D-Link even if it is $20 more.

1 out of 1 people found this review helpful. Did you?
ICON Loading...
Selected Items
This product is available at a lower price from other sellers.
  • Add to Wish List

Best Sellers

  • xtremetech

    857 (91% Positive)

    Sold by: xtremetech Email This Seller
    Ask xtremetech about:
    • TP-Link AV600 Powerline WiFi Extender - Powerline Adapter with N300 WiFi, Power Saving, Ethernet over Power(TL-WPA4220 KIT)
    • We won't share your email with anybody. We'll only use your
      email to contact you
    • Submit

    Shipped by: Newegg

    Ships from United States.
    On-Time
    Delivery
    95.35%
    Product
    Accuracy
    96.40%
    Customer Service
    SATISFACTION
    94.19%

    View All Seller's Reviews

  • TELeasy

    758 (79% Positive)

    Sold and Shipped by: TELeasy Email This Seller
    Ask TELeasy about:
    • TP-Link AV600 Powerline WiFi Extender - Powerline Adapter with N300 WiFi, Power Saving, Ethernet over Power(TL-WPA4220 KIT)
    • We won't share your email with anybody. We'll only use your
      email to contact you
    • Submit

    Ships from United States.
    On-Time
    Delivery
    82.97%
    Product
    Accuracy
    87.66%
    Customer Service
    SATISFACTION
    72.93%

    View All Seller's Reviews

  • HDD Shop

    10 (100% Positive)

    Sold and Shipped by: HDD Shop Email This Seller
    Ask HDD Shop about:
    • TP-Link AV600 Powerline WiFi Extender - Powerline Adapter with N300 WiFi, Power Saving, Ethernet over Power(TL-WPA4220 KIT)
    • We won't share your email with anybody. We'll only use your
      email to contact you
    • Submit

    Ships from United States.
    On-Time
    Delivery
    100.00%
    Product
    Accuracy
    100.00%
    Customer Service
    SATISFACTION
    100.00%

    View All Seller's Reviews

  • Compare offers from more sellers
Are you an E-Blast Insider?

Subscribe Newegg e-Blast
PayPal
Shop without retyping payment details. Secure shopping made faster.
Check out with PayPal.

This item is eligible for Newegg Premier benefits. Are you a Newegg Premier Member? If not, sign up today and get:

  • Free 3-day-or-less shipping on eligible items, discounts on 2- or 1-day delivery
  • Free shipping on returns using labels available on our website
  • No re-stocking fees
Sign-in

Condition Guidelines

The following guidelines apply to all product categories unless otherwise indicated within specific categories.

  • New : This means the product will ship as received by the manufacturer, sealed, with all advertised components, and with the manufacturer warranty.
  • Refurbished : This means the product was tested and repaired as required to meet the standards of the refurbisher, which may or may not be the original manufacturer. Any exceptions to the condition of the item outside the manufacturer’s information should be provided in the listing, up to and including warranty details.
  • Open Box : Newegg only guarantees your receipt of the Open Box product with the purchase of this item. Any accessories MAY OR MAY NOT be included. Newegg will NOT send you any missing accessories, even if it is required to use all of the item’s functions.Open Box items usually do not come with manufacturer or vendor warranty or technical support. However, warranty support may be available if an item was never registered by a previous owner. Please contact the manufacturer to check.
  • Used - Like New : This means that the product has been opened, possibly used but is in perfect condition with no signs of cosmetic or functional defect. Product may includes warranty, and accessories found with the original product. Product may or may not be in the original packaging. Returned items with minor packaging defects fall under this category.
  • Used - Very Good : This means that the product has been opened, may show slight signs of use and cosmetic blemish, and may be missing minor accessories, but remain in excellent condition. Product does not come with warranty unless stated otherwise in product description.
  • Used - Good : This means that the product has been used, may show clear signs of use and may be missing minor accessories, but remain in good condition. Product does not come with warranty unless stated otherwise in product description.
  • Used - Acceptable : This means that the product shows clear signs of use, cosmetic defect, and may be missing minor accessories and manual, but remain in working condition. Product does not come with warranty unless stated otherwise in product description. Functionality issues beyond signs of use should be disclosed in product description.
Price Available at Checkout
Why can’t we show you details of this product?

Some manufacturers place restrictions on how details of their products may be communicated.

If the Adobe Reader does not appear when you click on a link for a PDF file, you can download Adobe Reader from the Adobe web site.

Your Personal Data

Newegg’s website and online services use cookies and similar technology for a number of reasons: Some technologies allow the site to function. These functional cookies are required to use the site and complete purchases. Another set of technologies improve the browsing experience and personalize it. Here are all the details about Newegg’s Cookie and Privacy Policies. Please select and accept your settings before you continue. Thank you.

Your Personal Data

Newegg’s website and online services use cookies and similar technology for a number of reasons: Some technologies allow the site to function. These functional cookies are required to use the site and complete purchases. Another set of technologies improve the browsing experience and personalize it. Here are all the details about Newegg’s Cookie and Privacy Policies. Please select and accept your settings before you continue. Thank you.

Your Personal Data

To use this third-party content we need your approval to share your data with them. Here are all the details about Newegg’s Cookie and Privacy Policies. Please accept if you wish to continue with third-party features. Thank you.
