Auto-Ranging True RMS Digital Multimeter 6000 Counts & Backlit LCD Display, Measures AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Duty Cycle, Diode, Continuity

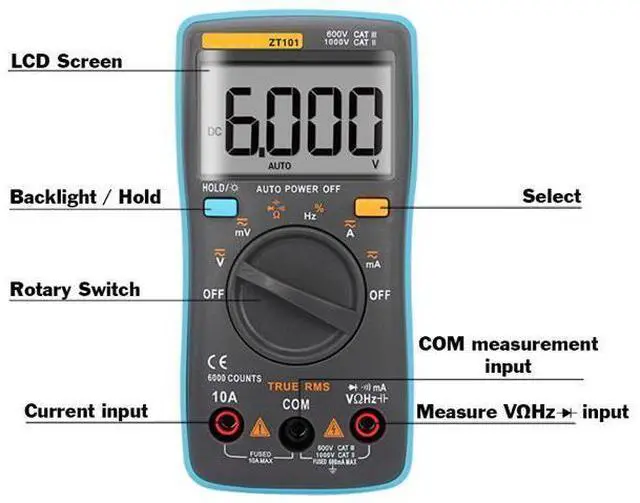

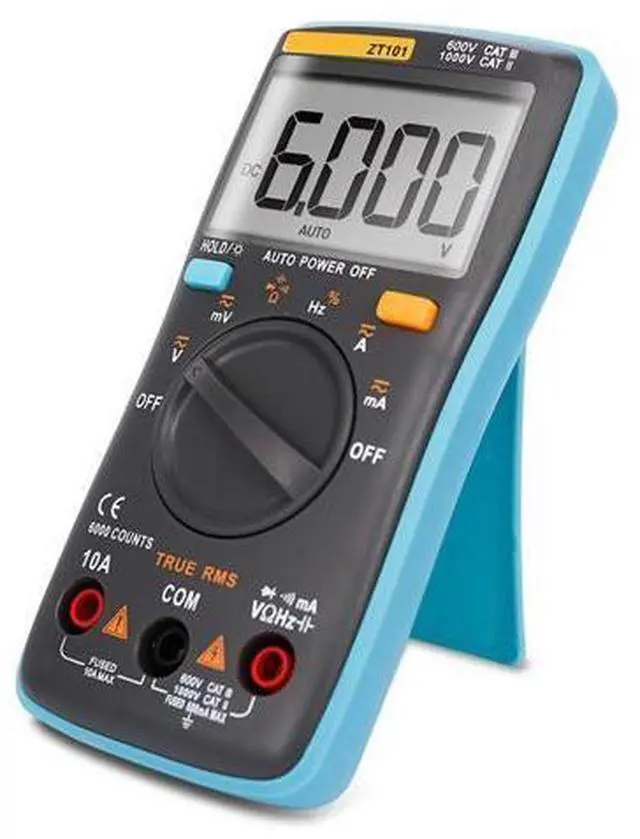

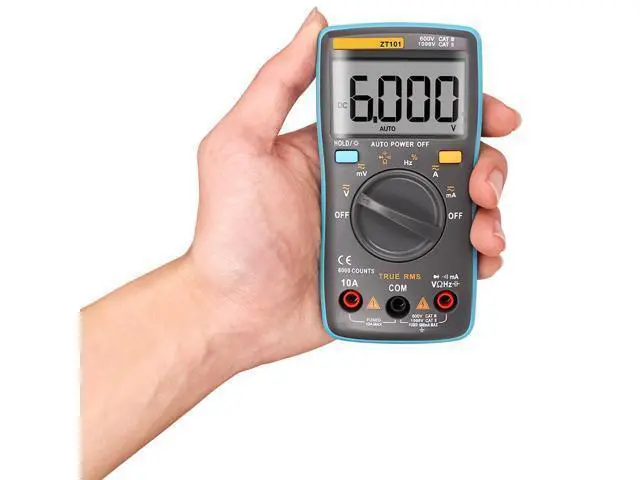

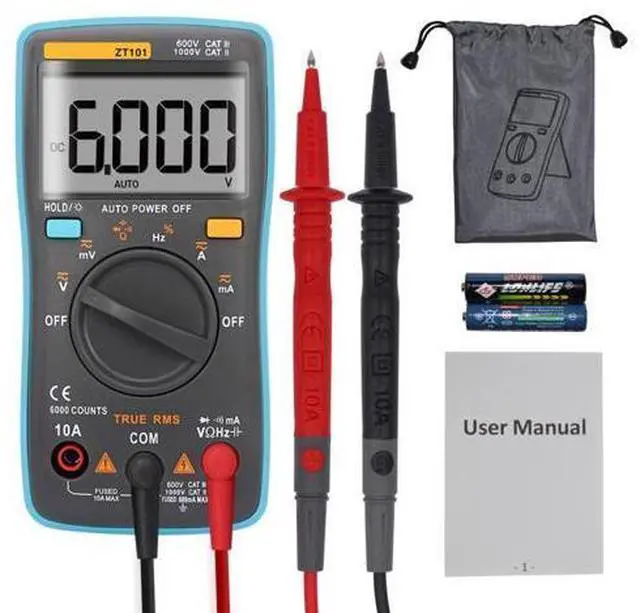

The ZT101 is a battery powered, True RMS auto-ranging digital multimeter with 6000 counts and backlit LCD display. It can be used to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode, and continuity. It is compact and lightweight for carrying in your hand or pocket and also features a fold out stand for easy viewing. It is powered by 2x AAA batteries (included) and comes with leads, drawstring carry bag, and instruction manual. Measures 2.55" x 1.25" x 5.11" and weighs about 4 ounces ( 4.5 ounces with batteries).

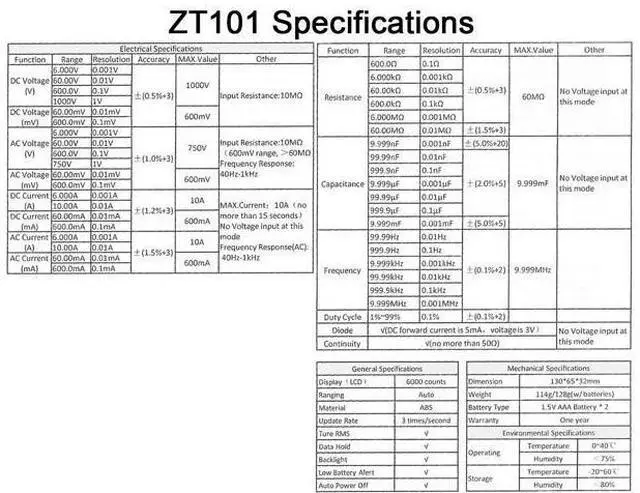

Specifications

: DC
voltage measurement range: 1000V to 0.1 mV
AC voltage measurement range: 750V to 0.1 mV
DC current measurement range: 10A to 0.1 uA
AC current measurement range: 10A to 0.1 uA
Resistance measurement range: 0.1 to 60MO
Width ratio measurement range: 1% to 99%
Frequency measurement range: 10MHz to 1Hz
Capacitance measurement range: 6000uF to 10pF
Display: 6000 counts
Ranging: Auto True RMS measurement
Material: ABS
Update Rate: 3 times/second Data Hold Backlight Low Battery Alert Auto Power Off
Measurement mode: Double-integral style A/D transform Polarity automatic recognition 10A large current measurement, mA level small current measurement
