Waveshare Compute Module IO Board with PoE Feature Composite Breakout Board for Developing with Raspberry Pi CM3 / CM3L / CM3+ / CM3+L
Limited time offer, ends 07/04 By PixelCore
- The Compute Module PoE Board is a development board which you can plug a Raspberry Pi Compute Module into, and make use of the resources of Pi more flexibly. With the PoE (Power over Ethernet) feature, and versatile onboard peripheral interfaces, it is suitable for evaluating the Raspberry Pi compute module, also is an ideal choice for end products.; Raspberry Pi GPIO header, for connecting sorts of Raspberry Pi HATs 10/100M auto-negotiation Ethernet port, with PoE enabled 4x USB ports, allows connecting more USB devices 2x CSI camera interfaces Onboard HDMI / DSI interfaces for connecting displays; Onboard USB TO UART, for serial debugging Cooling fan interface, auto run on power up OR controlled by IO pins Adopts isolated SMPS (Switching Mode Power Supply); Power supply: micro USB port / PoE Ethernet port PoE power input: 37V ~ 57V DC in PoE power output: 5V 2.5A DC out; Network standard: 802.3af PoE standard Dimensions: 114mm x 84.4mm Mounting hole size: 3.2mm
+
+

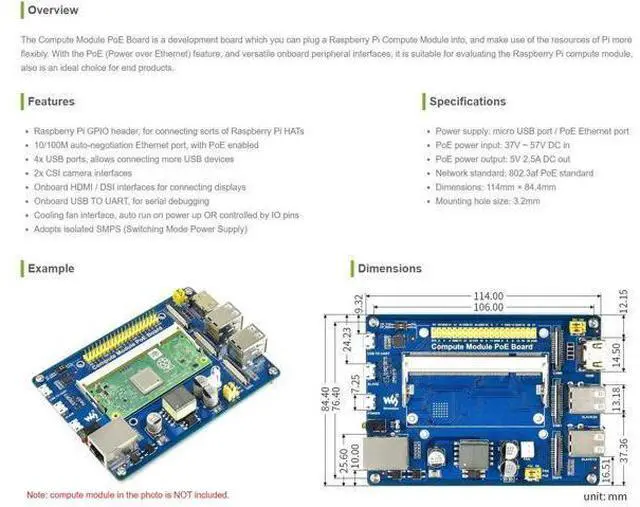

Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

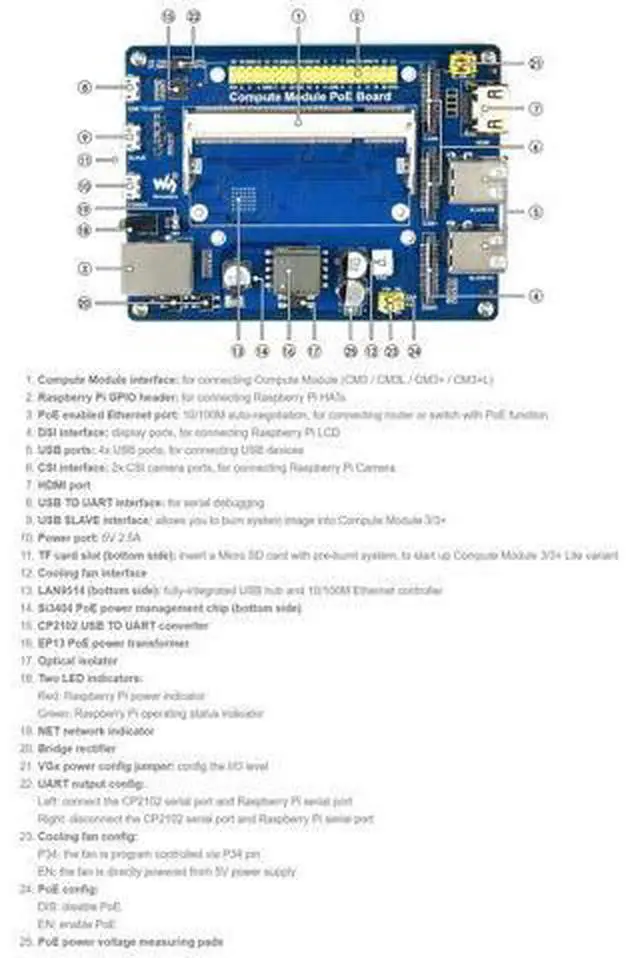

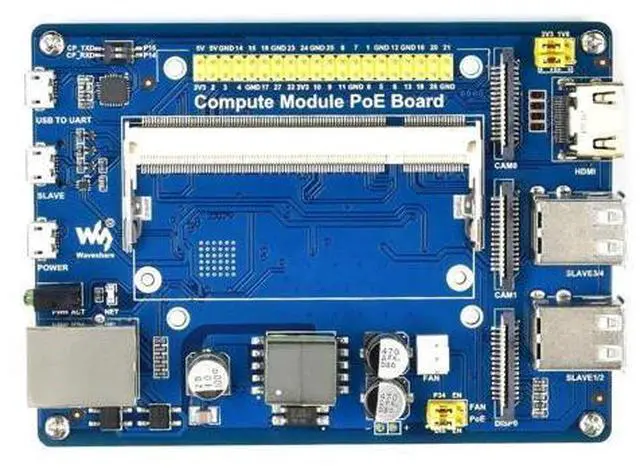

The Compute Module PoE Board is a development board which you can plug a Raspberry Pi Compute Module into, and make use of the resources of Pi more flexibly. With the PoE (Power over Ethernet) feature, and versatile onboard peripheral interfaces, it is suitable for evaluating the Raspberry Pi compute module, also is an ideal choice for end products.; Raspberry Pi GPIO header, for connecting sorts of Raspberry Pi HATs 10/100M auto-negotiation Ethernet port, with PoE enabled 4x USB ports, allows connecting more USB devices 2x CSI camera interfaces Onboard HDMI / DSI interfaces for connecting displays; Onboard USB TO UART, for serial debugging Cooling fan interface, auto run on power up OR controlled by IO pins Adopts isolated SMPS (Switching Mode Power Supply);
Power supply: micro USB port / PoE Ethernet port
PoE power input: 37V ~ 57V DC in
PoE power output: 5V 2.5A DC out;
Network standard: 802.3 af
PoE standard Dimensions: 114mm x 84.4 mm
Mounting hole size: 3.2 mm
Power supply: micro USB port / PoE Ethernet port
PoE power input: 37V ~ 57V DC in
PoE power output: 5V 2.5A DC out;
Network standard: 802.3 af
PoE standard Dimensions: 114mm x 84.4 mm
Mounting hole size: 3.2 mm
