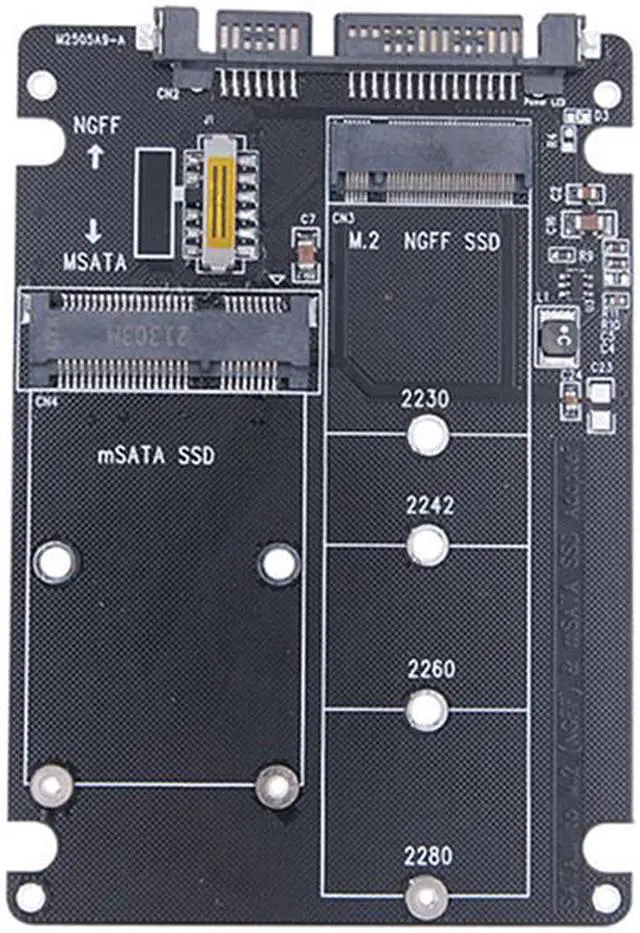

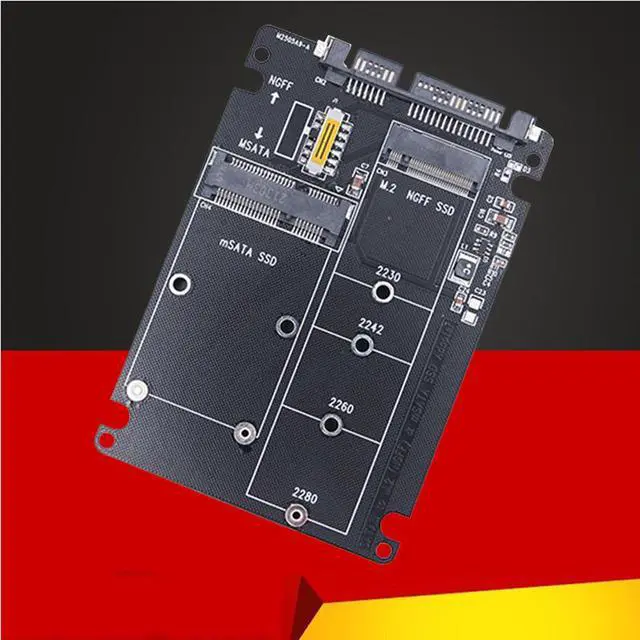

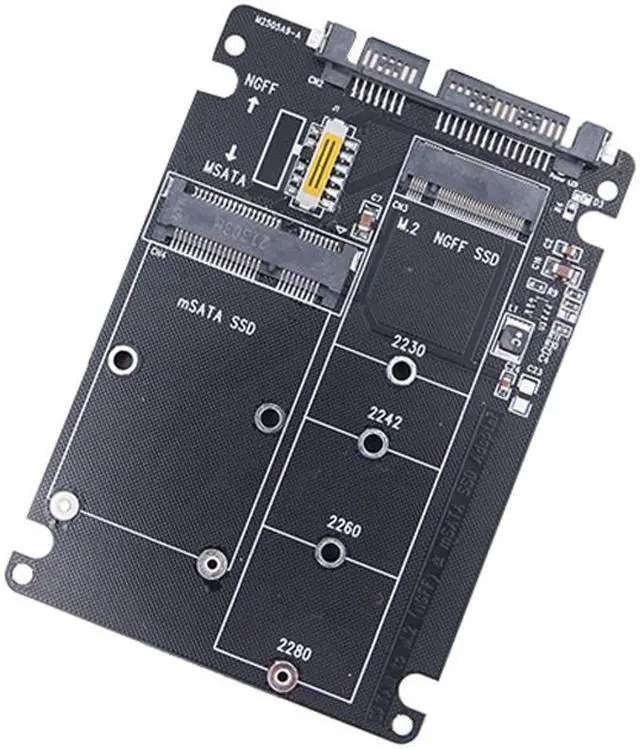

Weastlinks M.2/mSATA to SATA Adapter M.2 NGFF mSATA SSD to SATA3.0 2.5" Adapter mSATA/M2 SSD Converter Riser Board Card 6Gbps For PC Laptop
- Convert M.2 SATA Protocol SSD or MSATA SSD into SATA2.5"/3.5" hard disk.
- Fully compatible with SATA3.1 standard.
- Not compatible with PCI Express M.2 protocol, and does not support NVME SSD.
- M.2 SATA SSD and MSATA SSD allow input voltage of 3.3V, maximum current of 3A, and the speed is related to the SSD itself.
- Support M.2 SATA SSD of 22x80mm 22x60mm 22x42mm 22x30mm.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Feature:
1. Convert M.2 SATA Protocol SSD or MSATA SSD into SATA2.5"/3.5" hard disk;
2. Fully compatible with SATA3.1 standard;
3. Not compatible with PCI Express M.2 protocol, and does not support NVME SSD;
4. M.2 SATA SSD and MSATA SSD allow input voltage of 3.3V, maximum current of 3A, and the speed is related to the SSD itself;
5. Support M.2 SATA SSD of 22x80mm 22x60mm 22x42mm 22x30mm;
6. Support full-height and half-height size MSATA SSD.
7. Switch toggle design: NGFF mode switch up; MSATA mode switch down.
Warm Tips:

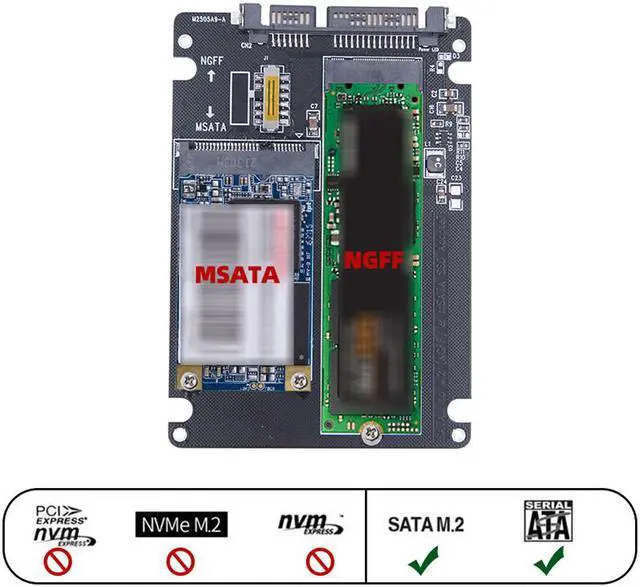

?NVME hard drives are not supported;
? You can insert two SSD at the same time, but Only one SSD can be recognized at a time, manual switch to msata or ngff mode,
The NGFF part is only applicable to B-key or B/M-key interfaces, not support M-key NVME interfaces.
Packing List:

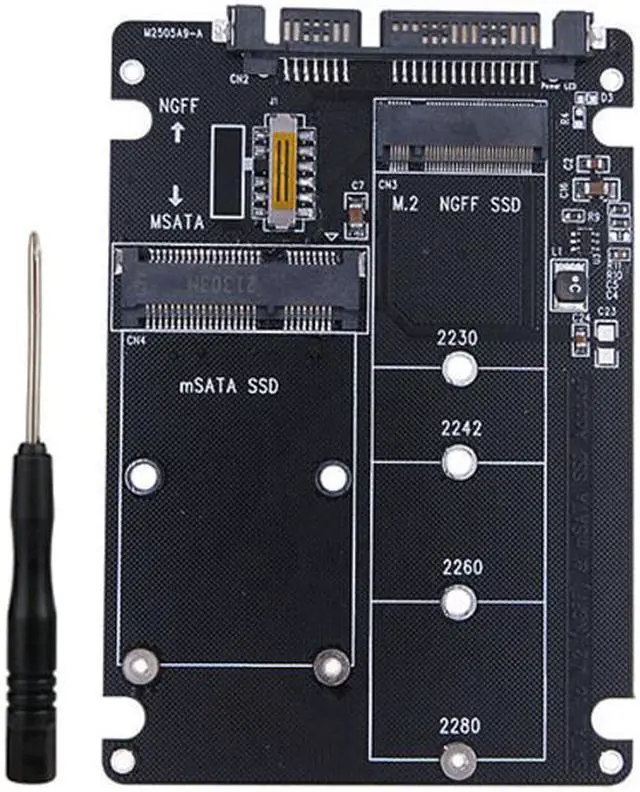

1 x mSATA/M.2 SSD Adapter
1. Convert M.2 SATA Protocol SSD or MSATA SSD into SATA2.5"/3.5" hard disk;
2. Fully compatible with SATA3.1 standard;
3. Not compatible with PCI Express M.2 protocol, and does not support NVME SSD;
4. M.2 SATA SSD and MSATA SSD allow input voltage of 3.3V, maximum current of 3A, and the speed is related to the SSD itself;
5. Support M.2 SATA SSD of 22x80mm 22x60mm 22x42mm 22x30mm;
6. Support full-height and half-height size MSATA SSD.
7. Switch toggle design: NGFF mode switch up; MSATA mode switch down.
Warm Tips:
?NVME hard drives are not supported;
? You can insert two SSD at the same time, but Only one SSD can be recognized at a time, manual switch to msata or ngff mode,
The NGFF part is only applicable to B-key or B/M-key interfaces, not support M-key NVME interfaces.
Packing List:
1 x mSATA/M.2 SSD Adapter
