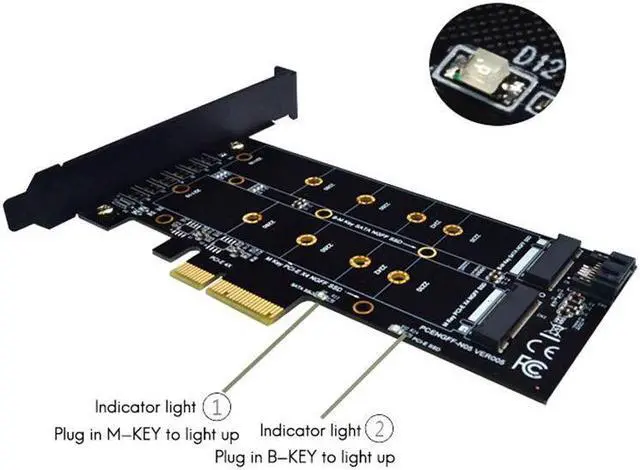

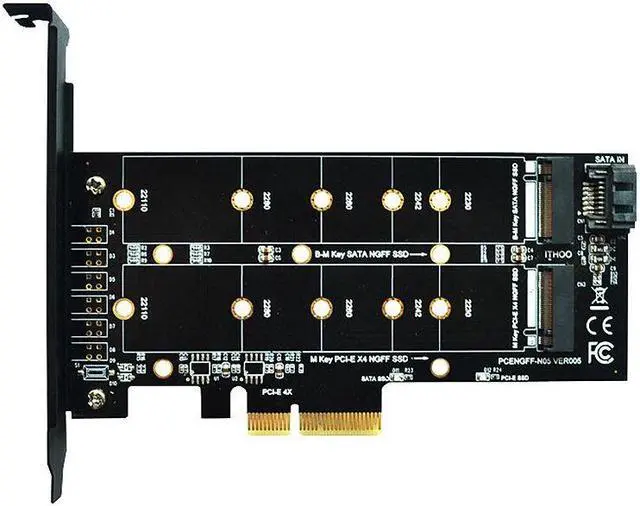

Weastlinks M.2 NVMe SSD NGFF to PCIE X4 Adapter Card M Key-B Dual Interface Expansion Card Supports 20110 SSD
- This riser card uses differential wire pair routing and supports PCI-E 3.0 4X signals.
- M.2 NGFF to PCI-E X4 adapter card, use this adapter card to convert the ordinary PCI-E X4 interface to M.2 NGFF interface and connect to the motherboard through a SATA cable, which can be connected to the SSD of the SATA protocol.

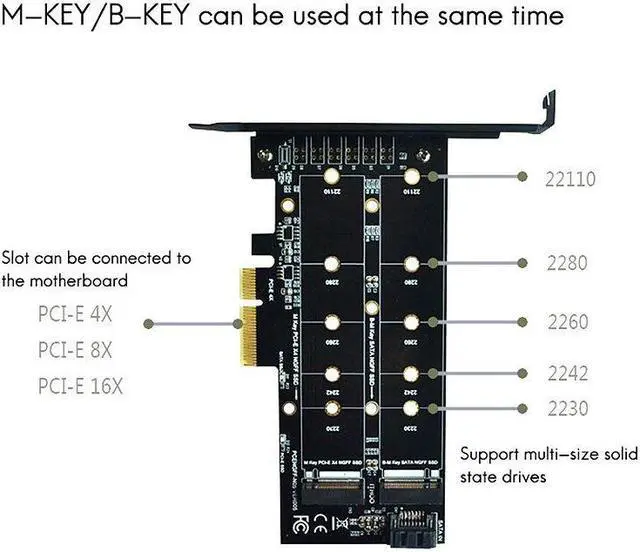

- There are 5 fixed holes on it, which are 22x32mm, 22x42mm, 22x60mm, 22x80mm, 22x110mm.
- Plug and play, simple operation and easy to use.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
1. This riser card uses differential wire pair routing and supports PCI-E 3.0 4X signals.
2. M. 2 NGFF to PCI-E X4 adapter card, use this adapter card to convert the ordinary PCI-E X4 interface to M. 2 NGFF interface and connect to the motherboard through a SATA cable, which can be connected to the SSD of the SATA protocol. There are 5 fixed holes on it, which are 22x32mm, 22x42mm, 22x60mm, 22x80mm, 22x110mm.
3.

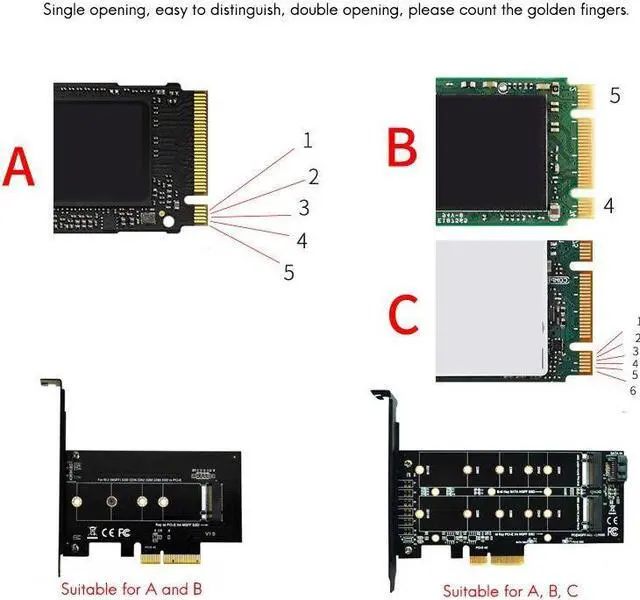

The following slots: Support M. 2 of NVME protocol for Samsung PM961, 960EVO, SM961, PM951, sm951, 600P, Liteon T10, etc. M. 2 of the SATA protocol is not supported.
The upper slot: Support SATA protocol M. 2 KEY-BM

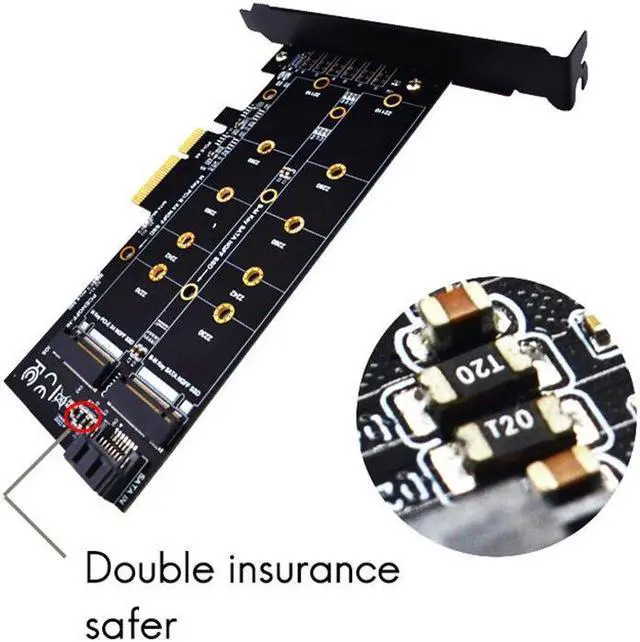

4. Equipped with metal baffle to make the riser card firm and stable
5. Plug and play, simple operation and easy to use

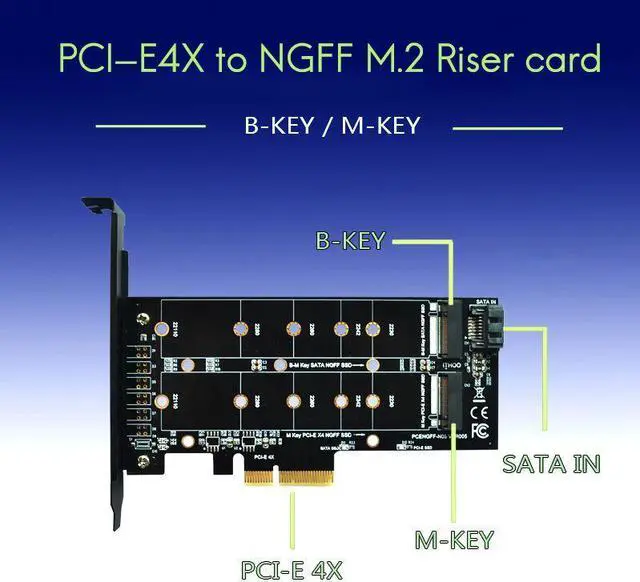

Product name: PCI-E 4X to M. 2 Key M+B dual interface adapter card
Product model: PCENGFF-N03
Product interface: PCI-E 1X PCI-E 4X
Data transmission speed: 10000 (MB/s)
Support system: compatible with WIN7/WIN8/WIN 8.1 /WIN10 system
colour: Black
Material: PCB+metal

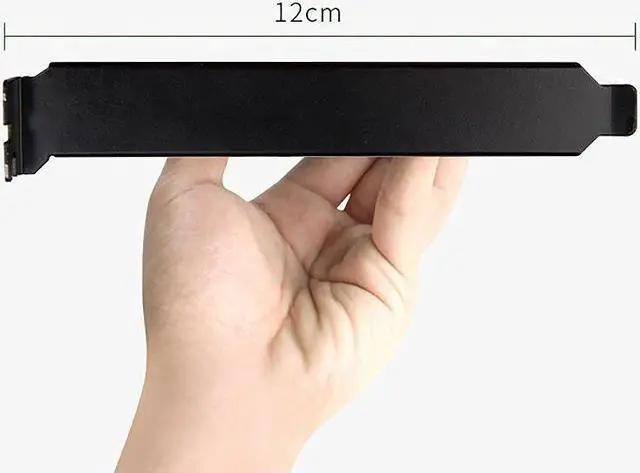

size: Bezel: 12cm
Package included:
1 x Adapter card
1 x SATA 3.0 data cable
1. This riser card uses differential wire pair routing and supports PCI-E 3.0 4X signals.
2. M. 2 NGFF to PCI-E X4 adapter card, use this adapter card to convert the ordinary PCI-E X4 interface to M. 2 NGFF interface and connect to the motherboard through a SATA cable, which can be connected to the SSD of the SATA protocol. There are 5 fixed holes on it, which are 22x32mm, 22x42mm, 22x60mm, 22x80mm, 22x110mm.
3.
The following slots: Support M. 2 of NVME protocol for Samsung PM961, 960EVO, SM961, PM951, sm951, 600P, Liteon T10, etc. M. 2 of the SATA protocol is not supported.
The upper slot: Support SATA protocol M. 2 KEY-BM
4. Equipped with metal baffle to make the riser card firm and stable
5. Plug and play, simple operation and easy to use
Product name: PCI-E 4X to M. 2 Key M+B dual interface adapter card
Product model: PCENGFF-N03
Product interface: PCI-E 1X PCI-E 4X
Data transmission speed: 10000 (MB/s)
Support system: compatible with WIN7/WIN8/WIN 8.1 /WIN10 system
colour: Black
Material: PCB+metal
size: Bezel: 12cm
Package included:
1 x Adapter card
1 x SATA 3.0 data cable
