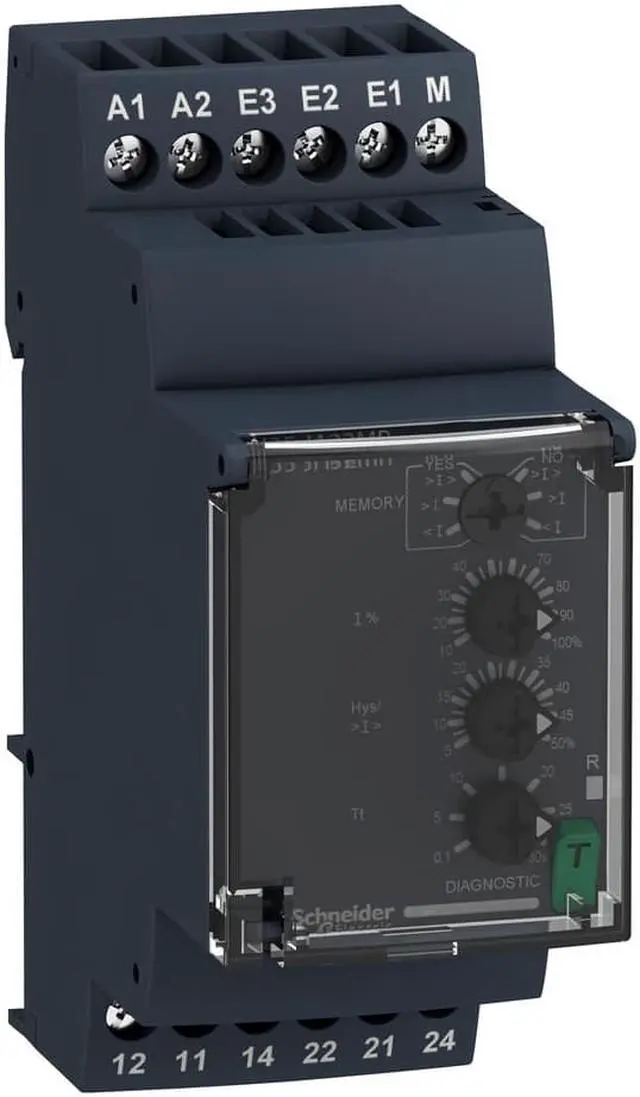

RM35JA32MR Schneider Electric Current Control Relay
- Range of Product
- Harmony Control Relays
- Product or Component Type
- Current control relay
- Relay Type
- Current control relay
- Relay name
- RM35JA
- Relay monitored parameters
- Overcurrent or undercurrent in window mode
- Overcurrent or undercurrent detection
- time delay
- Adjustable 0.1...30 s, +/- 10 % of the full scale value on crossing the threshold Tt
- Switching capacity in VA
- 2000 VA
- Minimum switching current
- 10 mA 5 V DC
- Maximum switching current
- 8 A AC
- Maximum power consumption in VA
- 3.5 VA
- Measurement range
- 0.15...1.5 A E1-M terminals
- 0.5...5 A E2-M terminals
- 1.5...15 A E3-M terminals
- 150 mA...15 A current AC/DC 50/60 Hz
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This Harmony RM35-JA relay allows monitoring of current control in single phase networks. This modular multi function single phase current control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers.
It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
