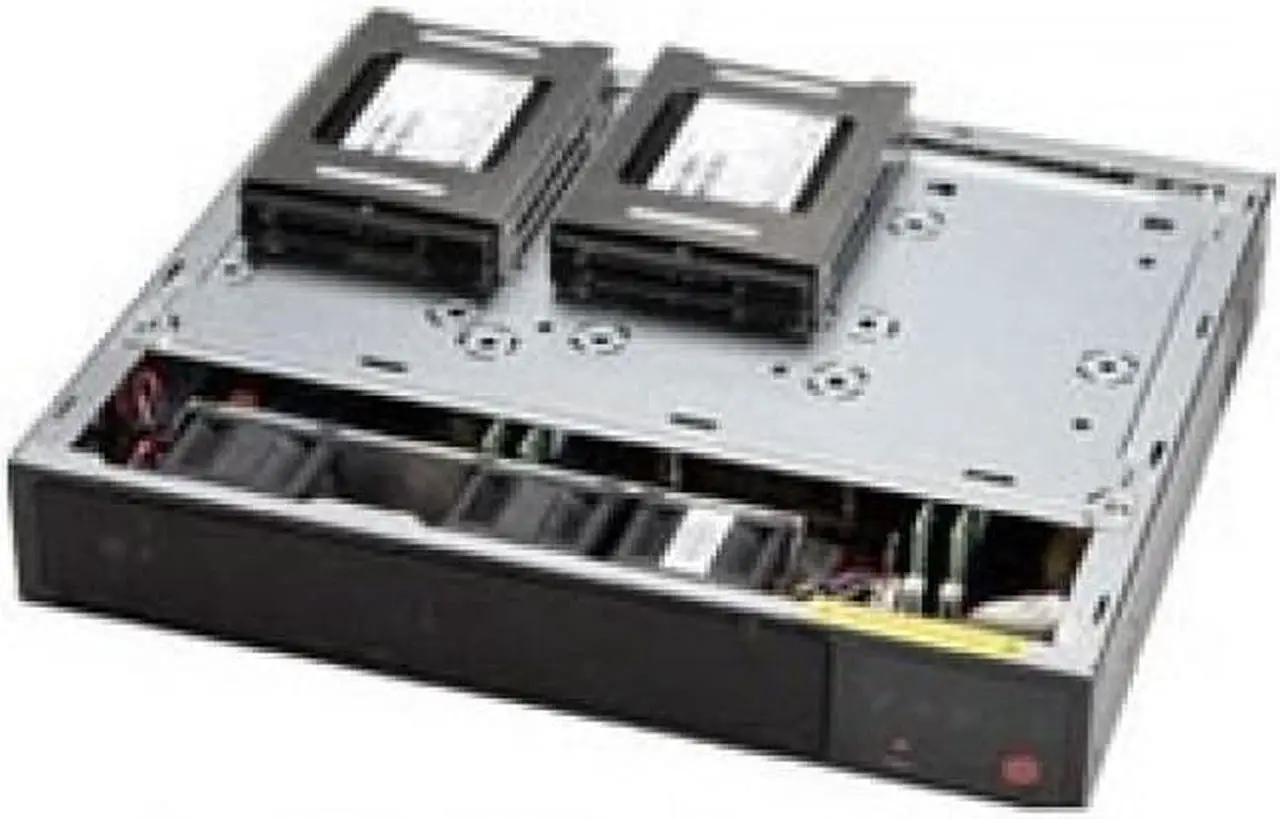

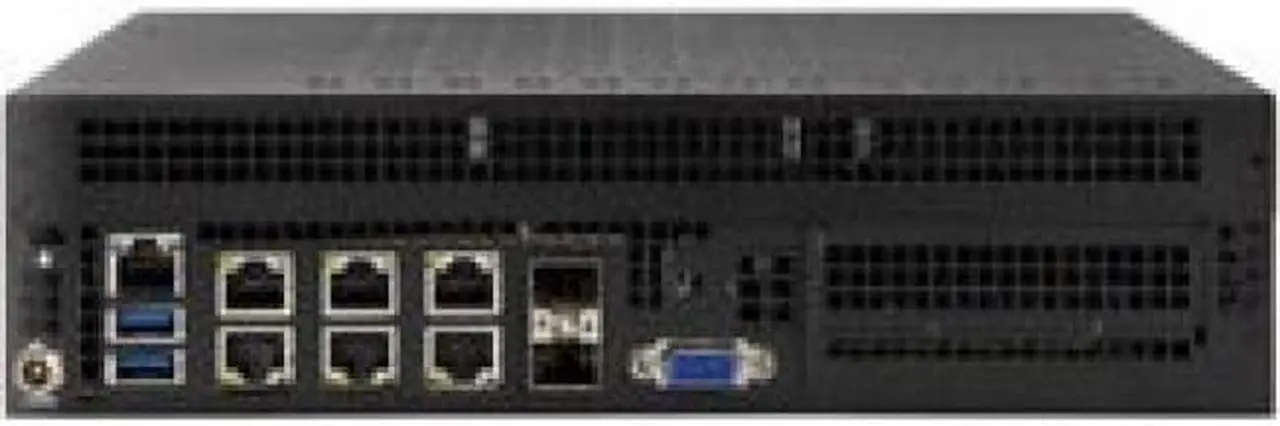

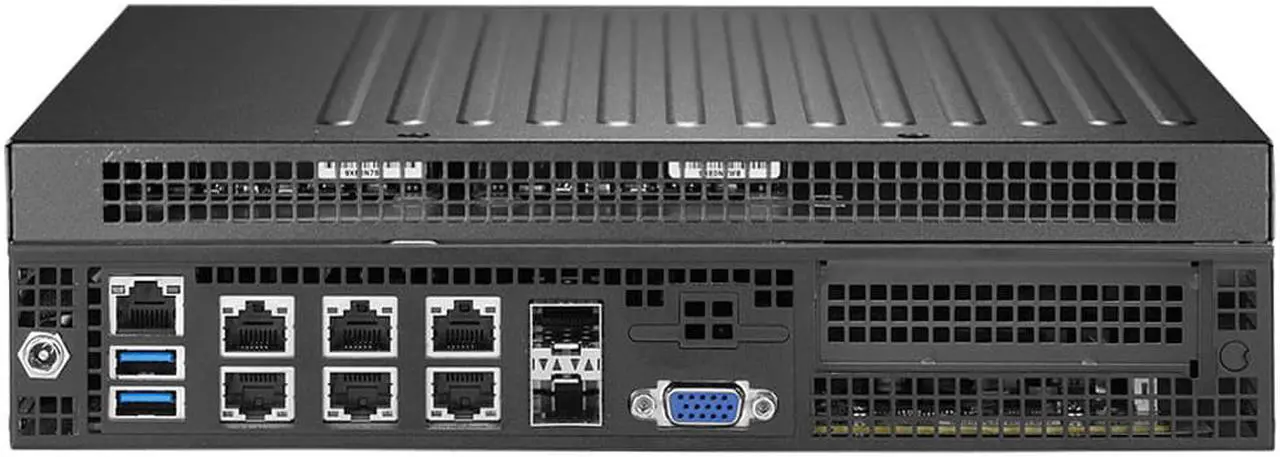

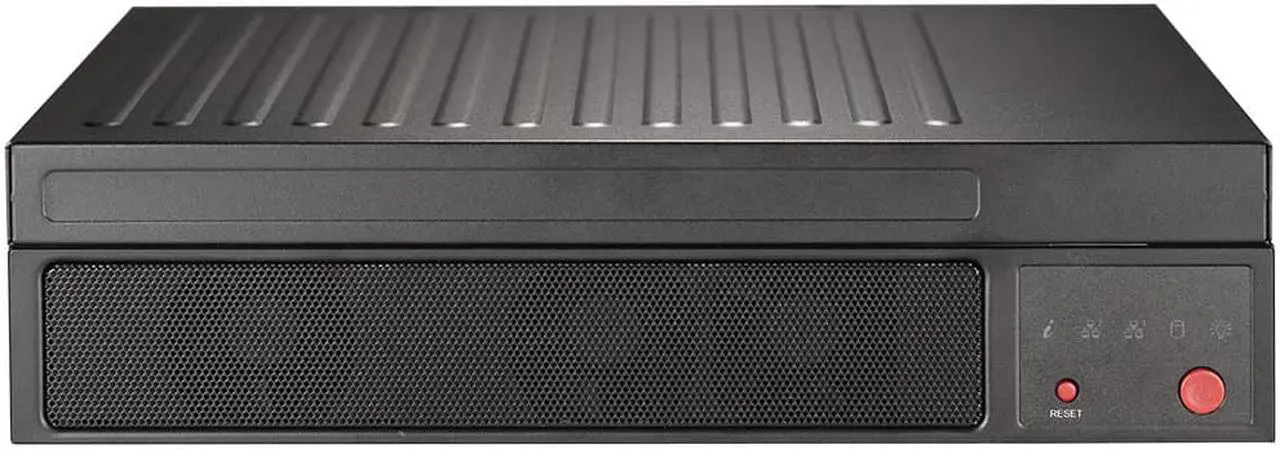

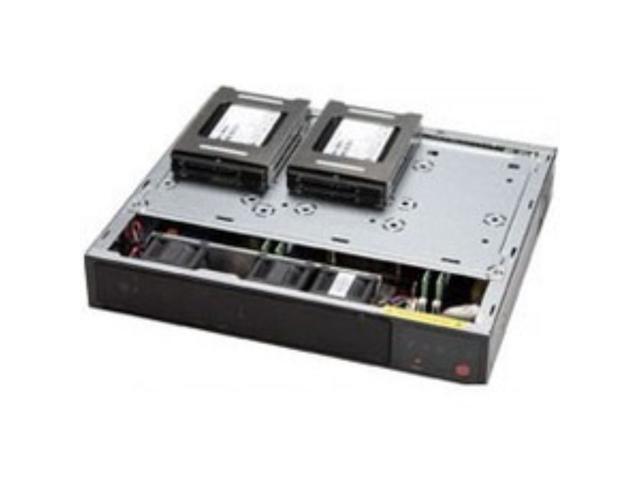

Supermircro SYS-E301-9D-8CN8TP Xeon D-2146NT 8-Core Networking PC, 4x GbE, 2x 10GBase-T, 2x 10G SFP+, IPMI

Be the first to review this product...
  • Intel Xeon D-2146NT 2.3 - 3.0 GHz 8-Core Processor
  • Up to 512GB DDR4 ECC LRDIMMs
  • Supports 4 x 2.5" Drive Bays up to 7mm Height, 1 x M.2 2280 slot, 1 x M.2 2242 slot
  • PCI-E 3.0 x8 Low Profile Slot
  • Quad GbE LAN, 2 x 10GBase-T, 2 x 10G SFP+, and IPMI
  • Compact 1.5U Form Factor: 10" x 2.6" x 8.9"
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
MAIN OVERVIEW FEATURES: Processor
Manufacturer: IntelProcessor
Type: XeonProcessor
Model: D-2146NTProcessor
Core: Octa-core (8 Core)
Memory Technology: DDR4 SDRAM
Number of Total
Memory Slots: 4Controller
Type: Serial ATA/600Graphics
Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500Ethernet
Technology: 10 Gigabit EthernetMaximum
Power Supply Wattage: 180
WPackage Contents: SuperServer E301-9D-8CN8TP (Black) 1 x Super X11SDV-8C-TP8F Motherboard 1 x Embedded Server BOX for Flex-ATX, Mini-ITX 1U Height 2 x Dual 2.5" Fixed HDD Bracket for E301 1 x MINI SAS HD-4 SATA, 6G, INT, 20CM, 20CM SB, 30AWG 3 x 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M 1 x 180W DC Power Adapter with US Power Cord 18AWG 6ft 1 x PWR EXT, 1X4F/P 2.50 TO 4x SATA POWER, 40CM, 22AWG, RoHS
Environmentally Friendly: YesEnvironmental
Certification: RoHSForm
Factor:
CompactHeight: 2.60"
( 66.04 mm)Width: 10" (254 mm)
Depth: 8.90"
( 226.06 mm)Weight (Approximate): 1.56 kgLimited
Warranty: 1 Year
