Alphacool Eisstation VPP - Solo Reservoir, D5 (Pump Not Included)

With the Alphacool Eisstation, you get a compact reservoir that fits into nearly any case. It comes in three different versions. A DDC, a D5, and a DC-LT version are available.

The cap is made of sturdy Nylon
Three versions for all current pumps
Numerous mounting options
Illuminated logo and LED mounting options

Mounting possibilities:
The installation options are numerous and comprehensive. The Eisstation can be screwed onto a 2.5” SSD bracket. It can also be mounted in a 3,5” bay. In either case, the special decoupling screws included with the Eisstation are used for mounting it. This minimises the transfer of vibrations to the case, lowering the operating volume significantly. Another installation option is the included Velcro fastener. One part of the Velcro is glued to the bottom of the Eisstation, while the other part is glued to the case. Then all that’s left is to press the Eisstation’s bottom against the corresponding Velcro on the case. The size of the Velcro ensures secure positioning even during transport.

Connection possibilities:

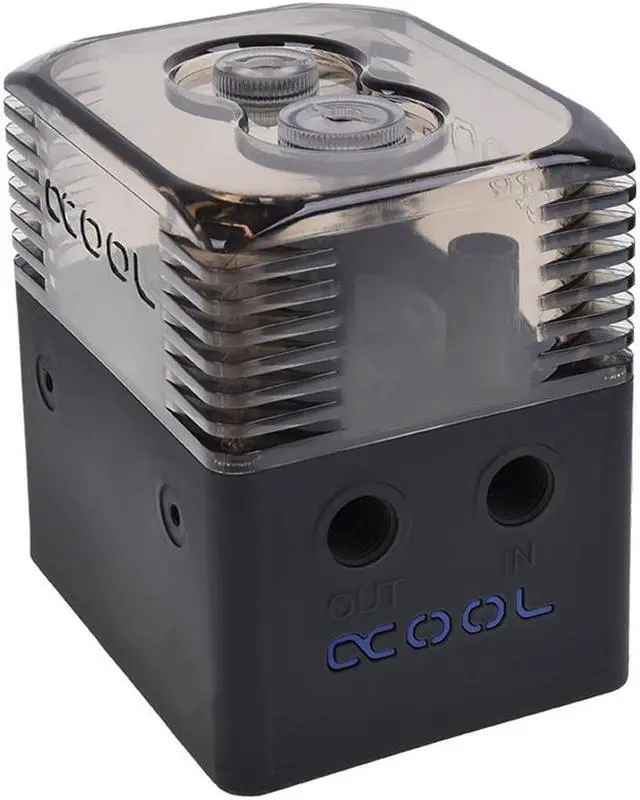

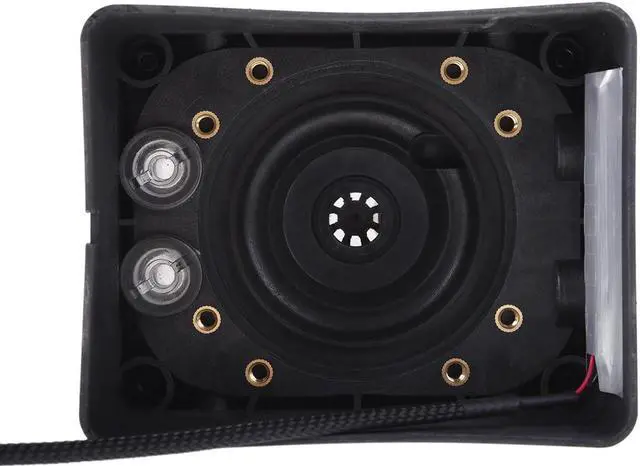

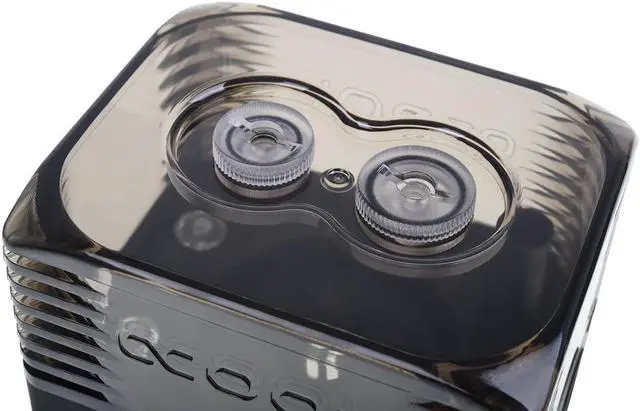

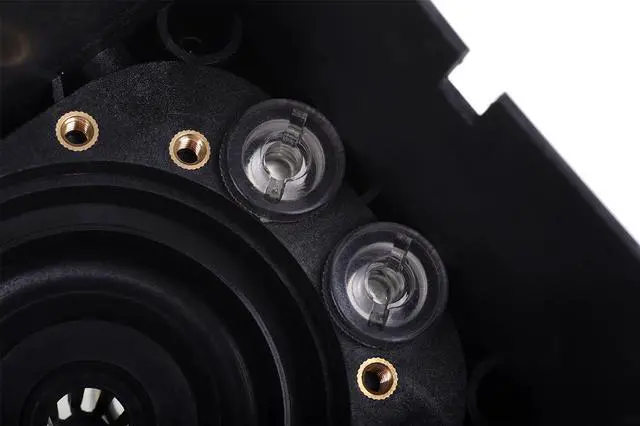

There are four possibilities for connection. An IN and an OUT with G1/4 threads are located on the top, with the illuminated logo. The logo’s colour can be changed with the optional modding kit. In the cap, there is one G1/4” and one G3/8” connection available. The G3/8” connection, with its larger size, simplifies filling the Eisstation and can also serve as a lighting module for 5mm LEDs. Two additional 5mm LED places can be found in the bottom of the reservoir and illuminate the water-filled portion from below.

Dimensions (LxWxH): 102 x 82 x 105mm
Capacity: 250ml
Material: Nylon / PMMA
In / Out: G1/4"
Connections: 3x G1/4" and 1x G3/8"
Power connection LED Logo: 3 Pin
Lighting modules: 4x for 5mm LED's
Scope of Delivery
