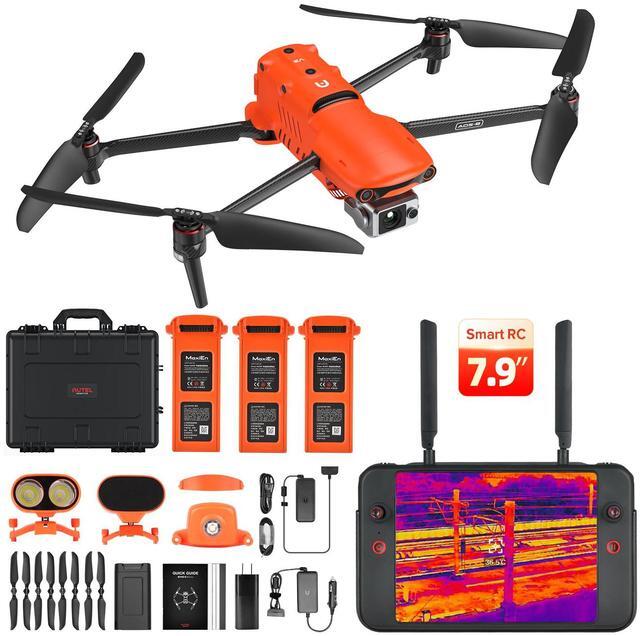

Autel Robotics Evo II Dual 640T V3 Thermal Camera Rugged Bundle Thermal Drone with 640x512 Thermal Imaging with 1/1.28" RYYB CMOS 8K Sensor, 38Mins Flight Time 16x Digital Zoom 50 Megapixels

Feature-Packed

The Autel EVO 2 Pro 6K Enterprise Bundle comes packed with everything you need to perform enterprise field operations.
- SkyLink 2.0 Video Transmission
- 360° Obstacle Avoidance
- Moonlight Algorithm 2.0
- Included Modular Accessories
- Centimeter-level Positioning with RTK

Powerful Hybrid Sensor Payload

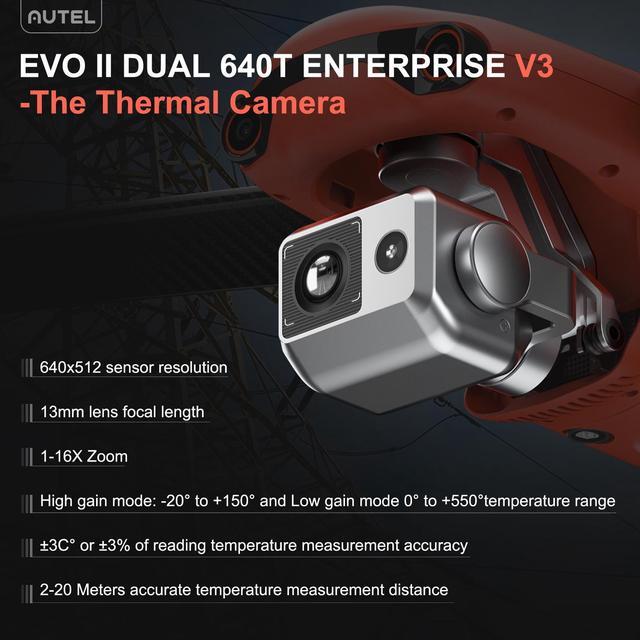

640x512 30Hz Thermal Imaging Sensor
Equipped with 640x512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, it is easy to observe distant targets. The system uses a new image processing algorithm, making thermal imaging details clearer and more discernible than competition with the similar resolution and hardware.

. 8" RYYB CMOS Sensor
Equipped with a. 8" RYYB CMOS sensor, featuring moonlight algorithm 2.0 that provides excellent noise suppression in limited lighting conditions, further enhancing its 50 megapixel camera to give users more details for better forensics and analysis. Detect, identify, classify subjects in low light situations and proceed with certainty.

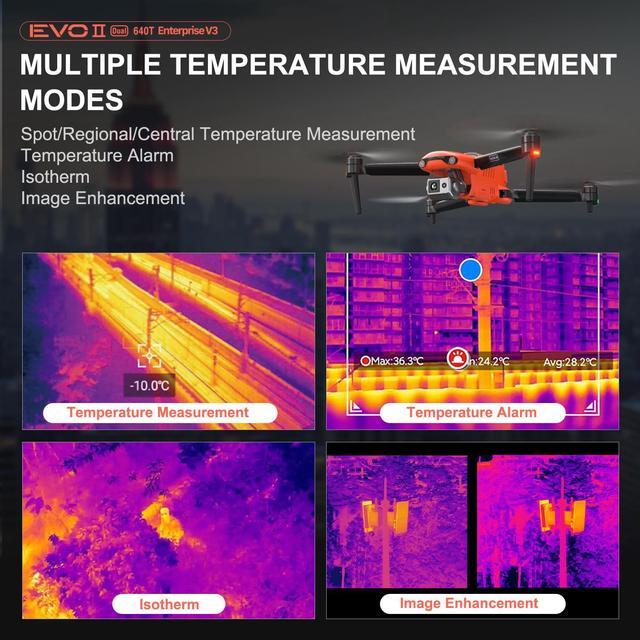

Multiple Temperature Measurement Modes

Spot Temperature Measurement
Displays the temperature of a selected object with just a tap of the screen.

Regional Temperature Measurement
Displays the maximum, minimum, and average temperature of a selected area.

Central Temperature Measurement
Displays the temperature in the center area of the screen.

Temperature Alarm
Alerts the user when the temperature of an area reaches a predetermined threshold.




Isotherm




Detects any objects within a specified temperature range.

Image Enhancement

Allows the user to adjust the image brightness, contrast, and image details in real time.

SkyLink 2.0 Video Transmission

The EVO 2 RTK V3 Series V3 is upgraded with Autel's all new SkyLink 2.0 Video Transmission technology.

- Fly farther with HD video transmission up to 9.3 miles (15km)
- Obtain critical details with QHD video within 0.6 miles (1km)
- Support tri-band communication and can automatically frequency hop for maximum anti-interference capability.

*900MHz is only applicable for FCC countries.

42 Minutes of Flight Time

Large propellers and revised flight algorithms gives the EVO 2 Enterprise V3 the longest flight time in its category.

Extended Thermal Vents

The EVO 2 Enterprise V3 has additional thermal vents for additional heat dissipation, prolonging battery life.

Longer Carbon Fiber Arms

Carbon fiber arms and longer propellers provide additional rigidity and flight stability to the EVO 2 Enterprise platform.

360° Obstacle Avoidance

Equipped with 12 visual optical sensors, which integrates 19 sets of sensors including the main camera, ultrasonic wave, and IMU to build a 3D map of the drone and its surroundings in real time. The sensors are strategically placed to minimize blind spots on the drone so V3 can automatically stop near obstacles.

*Please refer to the manual for details on obstacle avoidance and its limitations, which may or may not work in limited lighting

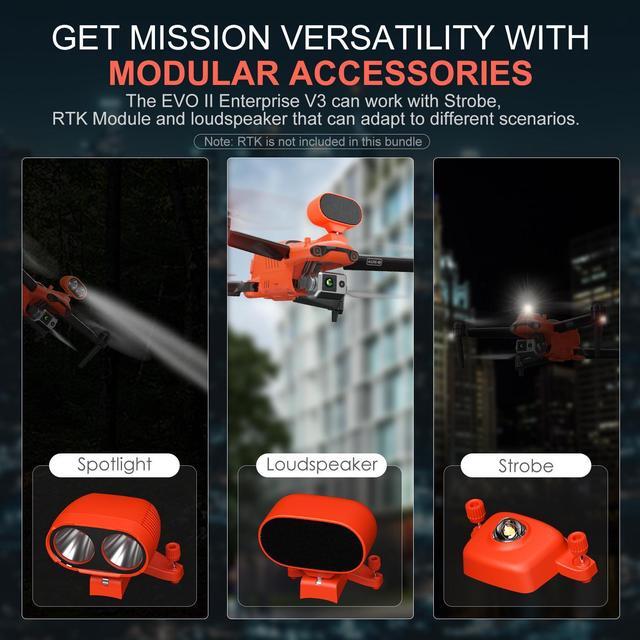

Mission Versatility

With an expanded selection of accessories at its disposal, the EVO 2 Enterprise V3 can evolve from a simple imaging tool to a multifunctional flight platform that can adapt to different scenarios.

Spotlight
Produces a powerful long distance aerial light when searching or shooting at night.

Loudspeaker
Enables effective on-site communication through long-distance live broadcasts and pre-recorded audio loops.

Strobe
Indicate the location of the aircraft at night to avoid air traffic collisions.







Autel Smart Controller V3

Autel's Smart Controller V3 features a 7.9 -inch, 2000nits high-brightness screen that is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 9.3 miles (15km) away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party Apps and an IP43 rating ensures all weather performance.


Live Deck 2

The Autel EVO 2 Pro 6K Enterprise V3 supports multi-port HDMI real-time output to meet the requirements of projection monitoring and live streaming with Live Deck
2.
The Live Deck 2 features:
1080P/60FPS Video Stream Capability
Three Auto-Switch Bands
7.45 mile (12 km) Transmission Range
5-Hour Battery Life
IP43 Resistance


Applications

The Autel EVO 2 Pro 6K Enterprise Bundle was tailored for the following commercial applications:

Public Safety - Assess threats from a safe distance, patrol an area during an investigation, or gather intelligence.
Powerline Inspection - Zip between transmission towers to quickly spot structural damage or overheating electrical elements, saving time and labor costs.
Traffic Supervision - Monitor traffic flow over a larger area and crack down on traffic violations to improve safety for everyone on the road.
Search and Rescue - Quickly locate missing persons by using automated mission modes to cover larger search areas in situations where every second counts.
Firefighting - Soar above the flames to identify hotspots, locate victims, and monitor changing conditions, reducing the risk for crew members on the ground.
Mapping - Create cost-effective 3D maps of an area using high-resolution images up to 2cm GSD* with an vertical accuracy of 1cm and a horizontal accuracy of 1.5 cm.


Applications for 640T Thermal drones
Search Rescue

Wildlife Management
Wildlife Hunting
Roof Inspection
Line Inspection

CatchSuspects






Thermal Drones In Search and Rescue operations

Autel EVO II 640T Thermal Drone is a versatile and reliable tool for search and rescue operations. With its high-resolution thermal imaging camera, long flight time, and accurate positioning capabilities, this drone is designed to assist search and rescue teams in finding and rescuing victims in a timely and effective manner.

The high-resolution thermal imaging camera on the Autel EVO II 640T provides clear images of targets, making it easier to identify and locate the target for rescue. Additionally, the drone has the capability to store infrared images, allowing search and rescue teams to analyze and evaluate the images after the operation.

The Autel EVO II 640T also has a long flight time, ensuring that the drone can be used for extended periods without the need for a recharge. This is especially important in search and rescue operations, where the drone may need to fly for hours in order to cover a large area.


GPS
1. The Autel EVO II Dual 640T is equipped with GPS functionality that provides real-time data and location information for the device. This GPS feature allows the drone to accurately determine its location, altitude, speed, and direction of flight. Additionally, it can also be used to create a flight plan, record flight data, and automatically return to its starting point in case of a lost signal or low battery.
2. The GPS system can also be used to perform precision hovering, automatic landing and take off, and other advanced flight functions. With the help of GPS, the Autel EVO II Dual 640T can provide stable and safe flight performance, making it a reliable and efficient tool for aerial photography and mapping applications

3. The user-friendly interface on the Autel EVO II 640T makes it simple and easy for search and rescue teams to operate the drone. The intuitive controls and simple navigation features allow teams to focus on the task at hand, w
