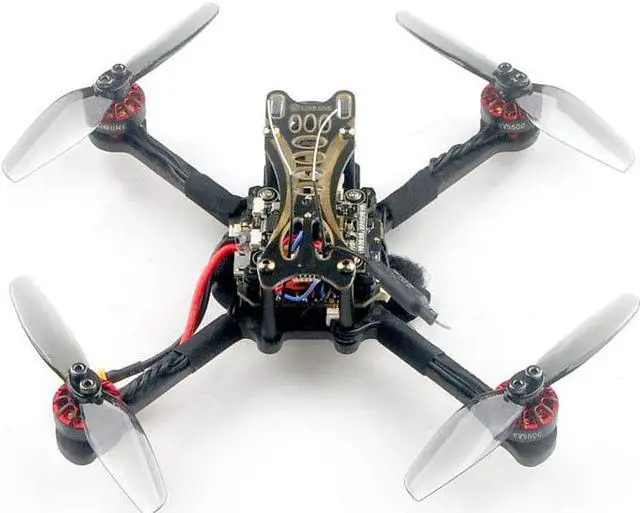

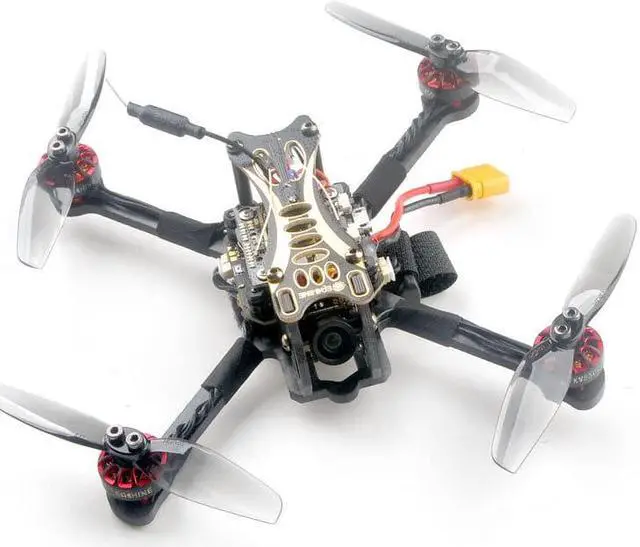

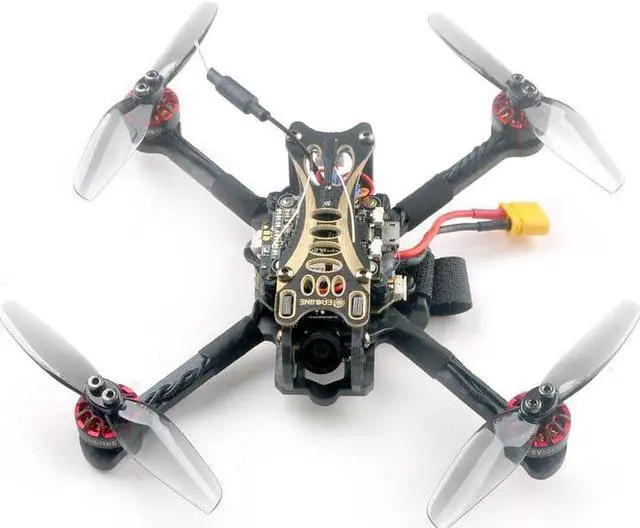

Novice-III V2 135mm 2-3S 3 Inch FPV Racing Drone RTF & Fly more w/ 5.8G 40CH EV800 Goggles 2.4GHzT-lite CC2500 Radio Transmitter Caddx Ant ECO 2.1mm Cam

USA / CZ warehouse V1.0 version(

ER8 2.4G Radio Control and Caddx EOS2 Camera

)

was

sold out on Oct. 12.

V2.0 version coming soon.

V2.0 Upgrade:

2.4GHz T-lite CC2500 Radio Transmitter

Caddx EOS2 4:3 FPV Camera

User Manual, Download

V1.0

User Manual, Download, V2.0

Note: Please follow the user manual to unlocd the motor when you going to flying. It doesn't need bind. RTF version has completed this step.

Specifications:

Brand Name:

Item Name: Novice-III 2-3S Toothpick RTF & Fly more

Wheelbase: 135mm

Size: 115mm*110mm*40mm

Weight: 62g(without battery)

Features:

New toothpick F4 flight controller

Internal SPI D8/D16 receiver (Dual antenna and with PA)

Powerful and smoothly and long flight time (about 8~10 Mins)

Led Strip ready

Built-in Buzzer ready

New design 1203 KV5500 motors

Camera Angle adjustable

VTX power switchable 25mw~400mw

Smartaudio ready , change VTX bands, powers, channels via OSD

720P DVR ready (Analog 1280*720)

Real Ready to fly

Compatible both for 2s-3s Lipo/LIHV

Spare parts specifications:

Motor

Mode: EX1203

KV options: KV5500

Configu-ration:9N12P

Stator Diamter:15mm

Stator Length:3mm

Shaft Diameter: 1.5mm

Motor Dimension(Dia.*Len):15mm*15mm

Weight(g):4.5g

Flight controller

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Board size: 28.5 * 28.5MM

Power supply: 2-4S battery input (DC 8V-17V)

Built-in 12A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in D8/D16 SPI receiver

Built-in 2.4G Power Amplification

Built-in Betaflight OSD(SPI Control)

Built-in Current meter Max 70A

Built-in 5V 1.5A BEC
