$380.99
Meet Your Seller

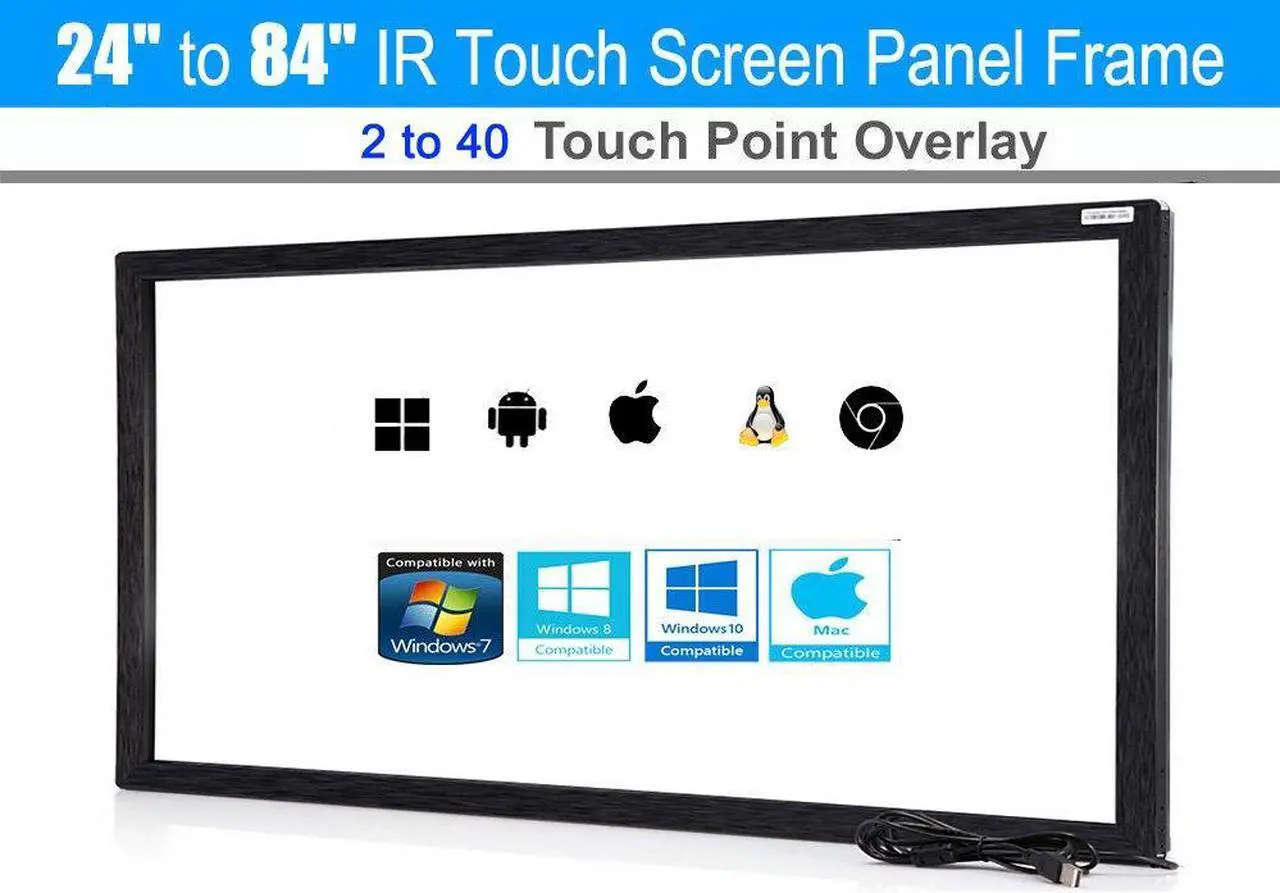

Chengying 60 inch 10 Point Multi-Touch Infrared Touch Frame, ir Touch Panel, Infrared Touch Screen Overlay

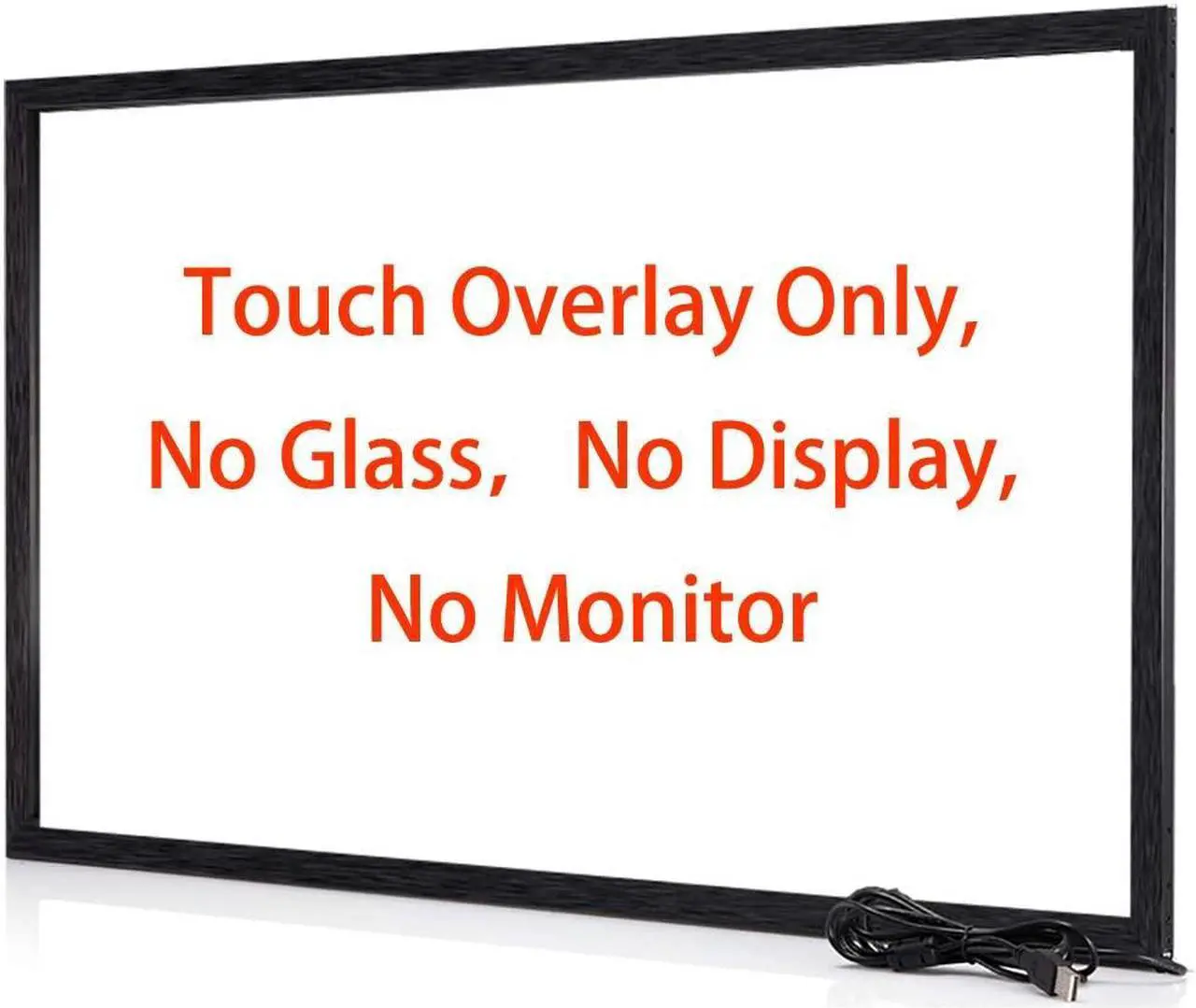

- No display, No monitor, No screen. This Touch Overlay is not a display, it is a touch pointing device, Touch function overlay only.
- Needs to be installed in front of your monitor or TV screen. Easy to install, Easy Integration. Can work with 2k 4k 8k monitors, but not for curved displays.
- Needs to be used with a computer, USB connection. Fully compatible with Windows OS, Fully compatible with Poly Conference System.
- Enterprises and schools: Education whiteboard, Conference touch machine, Advertising machines, Interactive touch tables, Command Center and Boardroom, Digital Signage, Kiosk, Exhibitions, Automatic retail machines, Checkout machines, Express
- For product developers, Re-development Provide: free SDK, support C/C++. Protocols: HID,TUIO,Flash.
+
+
Overview
Specs
Reviews
ApplicationThis product can be used in a variety of machines: Education Whiteboard; Conference machine; vending machine; Digital Signage; Kiosk; Exhibitions; Command Center and Boardroom; Touch TV; SPECIFICATION
Size: 20
to 800 inchRatio: 16:9
Dimension: 19mm width, 9.5 thickness (frame only, without glass, without
screen)DurabilityResolution: 32768*32768, Supports 2K 4K 8K monitorsNumber of
Touch Points: 10Minimum
Touch Object: 5mmTouch
Activation Force: No minimum touch pressure requiredTouch
Durability: UnlimitedLinearity
Deviation: +-1mmFault
Tolerance: Workable even 75% sensors are damagedFrames per
Second: Up to 450 fpsTypical
Response Time: 3-10msLight
Transmission: 100% without glassOperating
Systems: Driver free for Windows7, Windows8, Windows10, Native Android. Need to install the HID driver in Mac OS. (Does not support Smart TV system, Raspberry
Pi)Protocols: HID, TUIO, FlashRe-development
Provide: free SDK, support C/C++, C#, Java etc. ElECTRICAL
Power Supply: Single
USB ConnectionLow Power Consumption: Operating <=2W, Stand
By <= 250mWESD: Contact Discharge 8kV, Air Discharge 15kV, 15kV on USB connector pinsENVIRONMENT
Operating Temperature: -20degC~70degCStorage
Temperature: -40degC~85degCOperating
Humidity: 10%~90%RH(Non-condensing)Storage
Humidity: 10%~90%RH
Certification: FCC, CE,
ROHS
Warranty: 1 yearCOMPANY PRODUCTION
Chengying Technology Co., Ltd is a professional manufacturer and supplier of touch screen overlay. We can provide 15 inches to 800 inches infrared touch frame, include 2, 4, 6, 10, 12, 16, 32, 40 touch points series product. Please feel free to contact us for inquiries about customized products
Size: 20
to 800 inchRatio: 16:9
Dimension: 19mm width, 9.5 thickness (frame only, without glass, without
screen)DurabilityResolution: 32768*32768, Supports 2K 4K 8K monitorsNumber of
Touch Points: 10Minimum
Touch Object: 5mmTouch
Activation Force: No minimum touch pressure requiredTouch
Durability: UnlimitedLinearity
Deviation: +-1mmFault
Tolerance: Workable even 75% sensors are damagedFrames per
Second: Up to 450 fpsTypical
Response Time: 3-10msLight
Transmission: 100% without glassOperating
Systems: Driver free for Windows7, Windows8, Windows10, Native Android. Need to install the HID driver in Mac OS. (Does not support Smart TV system, Raspberry
Pi)Protocols: HID, TUIO, FlashRe-development
Provide: free SDK, support C/C++, C#, Java etc. ElECTRICAL
Power Supply: Single
USB ConnectionLow Power Consumption: Operating <=2W, Stand
By <= 250mWESD: Contact Discharge 8kV, Air Discharge 15kV, 15kV on USB connector pinsENVIRONMENT
Operating Temperature: -20degC~70degCStorage
Temperature: -40degC~85degCOperating
Humidity: 10%~90%RH(Non-condensing)Storage
Humidity: 10%~90%RH
Certification: FCC, CE,
ROHS
Warranty: 1 yearCOMPANY PRODUCTION
Chengying Technology Co., Ltd is a professional manufacturer and supplier of touch screen overlay. We can provide 15 inches to 800 inches infrared touch frame, include 2, 4, 6, 10, 12, 16, 32, 40 touch points series product. Please feel free to contact us for inquiries about customized products
