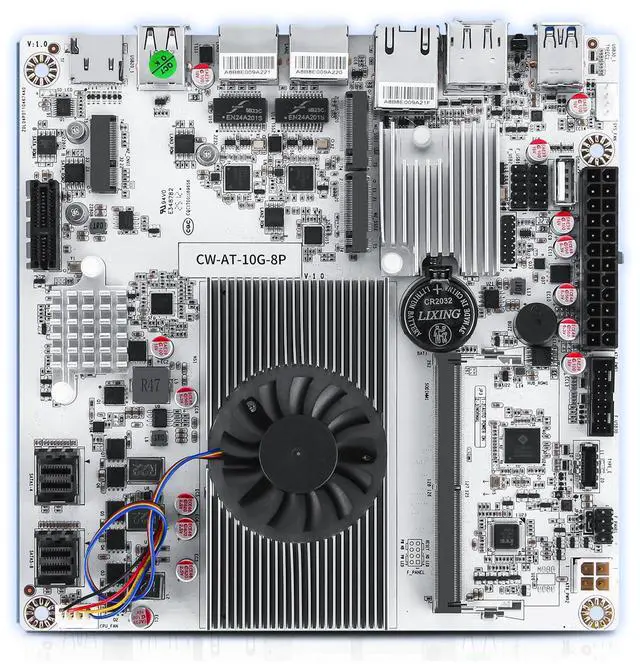

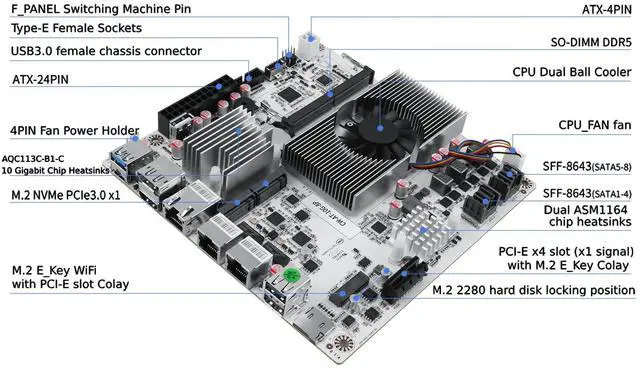

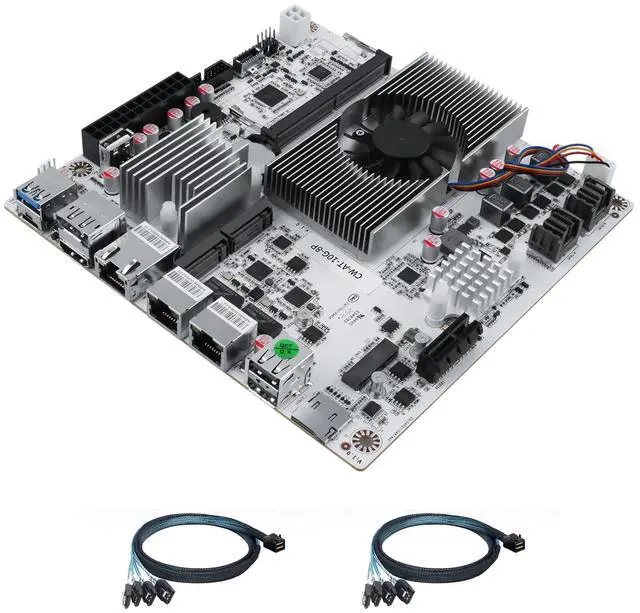

StoneStorm 8-Bay NAS Mini-ITX Motherboard with fan, 10GB AQC113C NIC, Dual 2.5GbE port, DDR5 MAX 48G, Dual M.2 NVMe 2280, PCI-E x4, Type-C 10Gbps, Dual 4K Display, TF slot (N305 with 2 SFF-8643 cable)
- Powerful Processor: 8-Bay NAS board is compatible with Intel N305 8 Core 8 Threads, 6MB Cache, up to 3.8GHz, it's 6.7" x 6.7" mini-ITX form factor, integrated UHD graphics card, basic TDP is 6W, and it supports Windows 10/11, Linux
- Large Capacity: 1* DDR5 slots (non-ECC memory), Supports 4800MHz frequency by default (compatible with 5200MHz/5600MHz, but will automatically downclock to 4800MHz), RAM supports up to 48GB. Expandable to 8* SATA via 2* SFF-8643 cable, and 2* M.2 NVMe 2280 PCIE3.0x1, stable and ultra-fast transfer speed
- 10GB Network Speed: This NAS motherboard has 1* 10GB AQC113C network chip on board (Since some systems are still not compatible with this AQC113C 10GbE NIC chip, please confirm or consult with the seller about whether the system you will use is compatible with this NIC before purchasing) and 2* i226 2.5GbE ports to deliver a secure, stable and fast network connection for professional network security firewall appliance and multimedia use
- Ul
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Motherboard
Memory:
-1 * SO-DIMM DDR5 slots
-Supports 4800MHz frequency by default (compatible with 5200MHz/5600MHz, but will automatically downclock to 4800MHz)
- Maximum capacity: 48GB
Storage:
-8 * SATA3 via 2* SFF-8643 adapter cable
-2 * M. 2 NVMe PCIE 3.0 1x (2280)

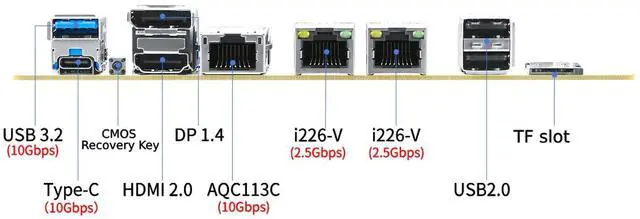

Network Ports:
-1 * AQC113C 10GbE
-2 * i226-V 2.5G bE
Graphics Card:
-HDMI 2.0: 4K@60Hz
-DP 1.4: 4K@60Hz
Specifications
:Memory:
-1 * SO-DIMM DDR5 slots
-Supports 4800MHz frequency by default (compatible with 5200MHz/5600MHz, but will automatically downclock to 4800MHz)
- Maximum capacity: 48GB
Storage:
-8 * SATA3 via 2* SFF-8643 adapter cable
-2 * M. 2 NVMe PCIE 3.0 1x (2280)
Network Ports:
-1 * AQC113C 10GbE
-2 * i226-V 2.5G bE
Graphics Card:
-HDMI 2.0: 4K@60Hz
-DP 1.4: 4K@60Hz
