MakerFocus Wireless Tracker Supports GPS Galileo Multi-System Joint Positioning ESP32-S3 WiFi Bluetooth SX1262 UC6580 with 915MHz LoRa Antenna, 0.96-inch LCD Display for Meshtastic Arduino

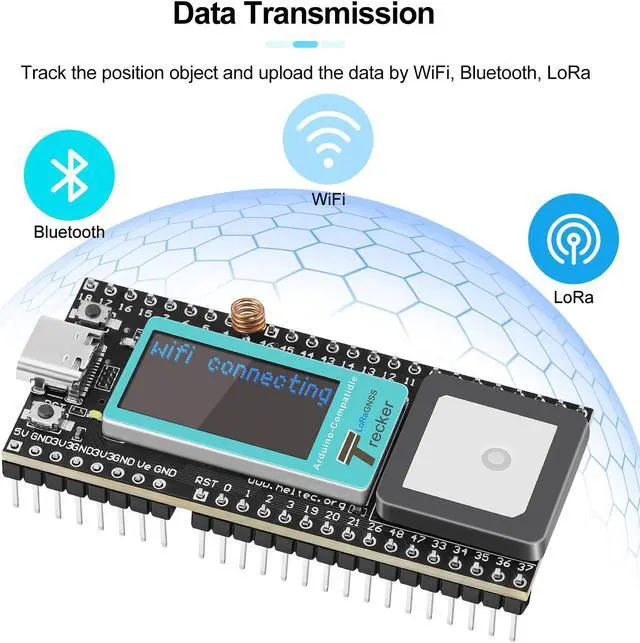

- Main Function: Based on ESP32-S3FN8, integrates UC6580 and SX1262 to provide fast GNSS solution for IoT, Wireless Tracker supports L1 + L5/L2 and GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning, can track any object and upload the data by WiFi, Bluetooth, LoRa
- Perfect Design: Low power design of dual frequency multi system based on 22nm technology. Onboard WiFi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa and GNSS use. Low power consumption, multi data transmission methods and interfaces to facilitate your development and application
- Applications: Perfectly compatible with Arduino, GPS module can be widely used in development such as bicycle sharing services, tracking pets or livestock, locating vehicles, tracking children, etc
- Power Supply: Onboard SH1.25 battery interface, you can power ESP32 development board with battery whose plug is Micro JST1.25. You can use Type-C interface to power it as wel
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Feature:
1. ESP32-S3FN8+SX1262+UC6580 chipset, supports WiFi, LoRa, Bluetooth, GNSS
2. Low power design of dual frequency multi system based on 22nm technology
3. Support L1 + L5/L2 and GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning
4. Support Ar duino development environment

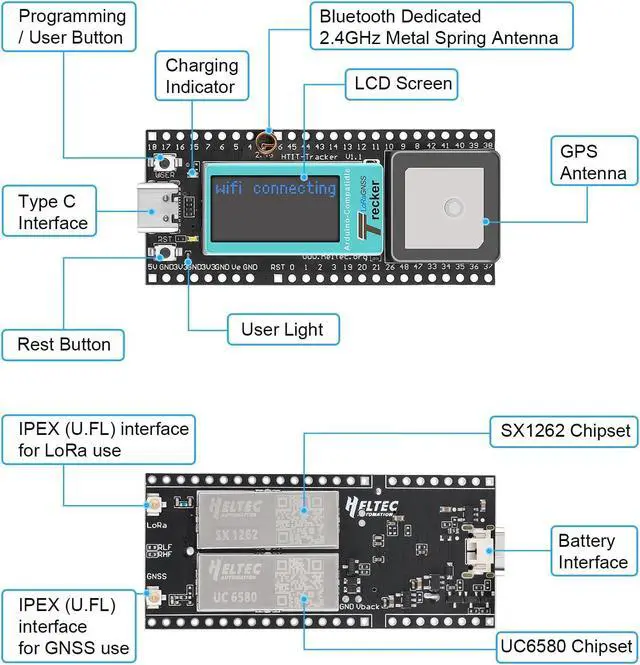

5. Onboard WiFi, Bluetooth dedicated 2.4GH z metal spring antenna, reserved IPEX (U. FL) interface for LoRa and GNSS use
6. Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures
7. Onboard SH 1.25 -2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching)
8. Onboard 0.96 -inch 160*80 dot matrix LCD display, which can be used to display debugging information, battery power, and other information
Parameter:
Master Chip: ESP32-S3FN8
LoRa Chipset: SX1262
GNSS Chipset: UC6580
Frequency: 863-923MHz
Max TX Power: 21 +- 1dBm
Receiving Sensitivity: -139dBm
WiFi: 802.11 b/g/n, up to 150Mbps
Bluetooth: Bluetooth LE: Bluetooth 5, Bluetooth mesh
Interface: Type-C USB; SH 1.25 lithium battery interface; 2 * IPEX (U. FL) interface
Battery: 3.7V lithium battery power supply
Operating Temperature: -20-70
Dimension: 65.48 * 28.06 * 13.52 mm

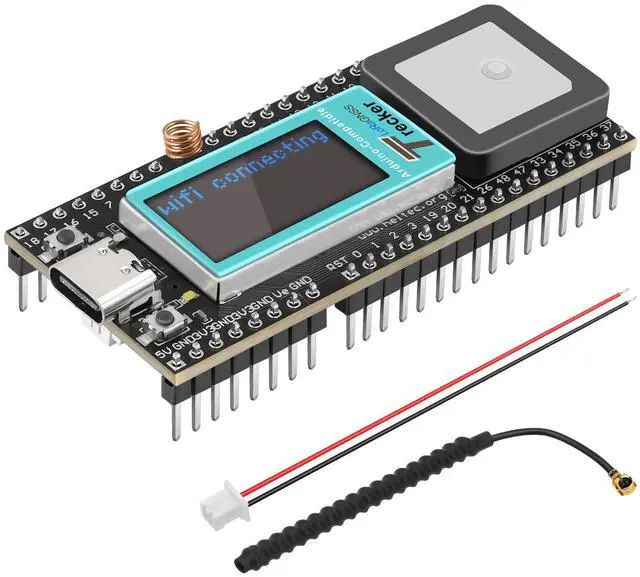

Package Content:
1 * Wireless Tracker
2 * Pin Header
1 * Power Cord
1 * Antennae
1. ESP32-S3FN8+SX1262+UC6580 chipset, supports WiFi, LoRa, Bluetooth, GNSS
2. Low power design of dual frequency multi system based on 22nm technology
3. Support L1 + L5/L2 and GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning
4. Support Ar duino development environment
5. Onboard WiFi, Bluetooth dedicated 2.4GH z metal spring antenna, reserved IPEX (U. FL) interface for LoRa and GNSS use
6. Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures
7. Onboard SH 1.25 -2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching)
8. Onboard 0.96 -inch 160*80 dot matrix LCD display, which can be used to display debugging information, battery power, and other information
Parameter:
Master Chip: ESP32-S3FN8
LoRa Chipset: SX1262
GNSS Chipset: UC6580
Frequency: 863-923MHz
Max TX Power: 21 +- 1dBm
Receiving Sensitivity: -139dBm
WiFi: 802.11 b/g/n, up to 150Mbps
Bluetooth: Bluetooth LE: Bluetooth 5, Bluetooth mesh
Interface: Type-C USB; SH 1.25 lithium battery interface; 2 * IPEX (U. FL) interface
Battery: 3.7V lithium battery power supply
Operating Temperature: -20-70
Dimension: 65.48 * 28.06 * 13.52 mm
Package Content:
1 * Wireless Tracker
2 * Pin Header
1 * Power Cord
1 * Antennae
