Specifications
: chip

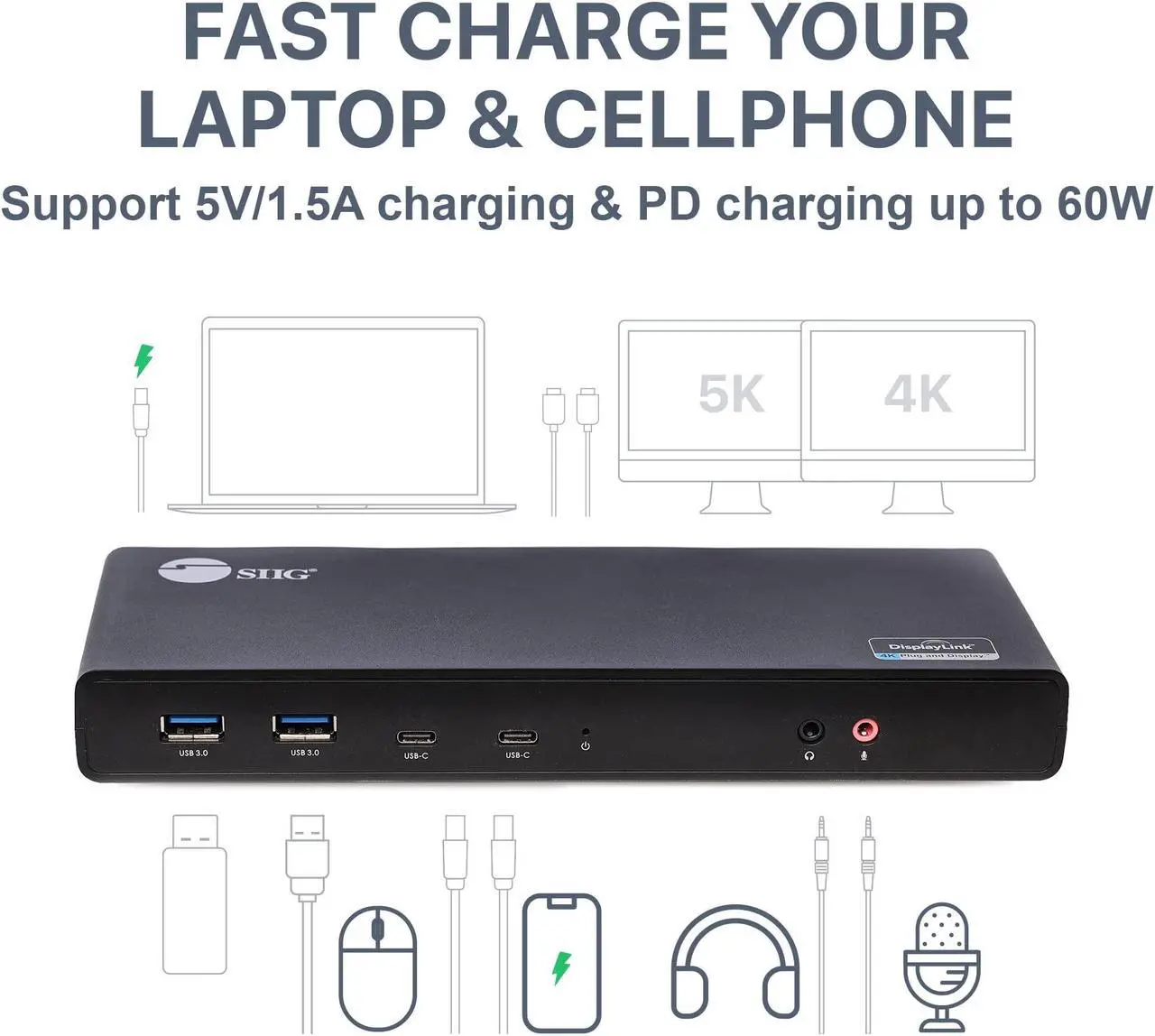

set: display Link 6590 + FL5002 + Gl3523 -compliant with universal Serial bus 3.1 Gen 1 specification and backward compatible with USB 2.0 -supports USB 3.1 Gen 1 data transfer rate up to 5Gbps -integrated DP 1.2 /DP++ interface -integrated HDMI 2.0 interface -support 5.1 channel surround sound (HDMI/DisplayPort signal) -USB power Delivery up to 60W -supported video cable length: HDMI - up to 5M (max); DisplayPort - up to 3M (max)
Gigabit Ethernet: -supports up to 1000 Mbps data transfer rate and is backward compatible with 10/100 Mbps -supports IEEE 802.3 x Full duplex operation -Compatible with IEEE 802.3, 802.3U -supports crossover detection

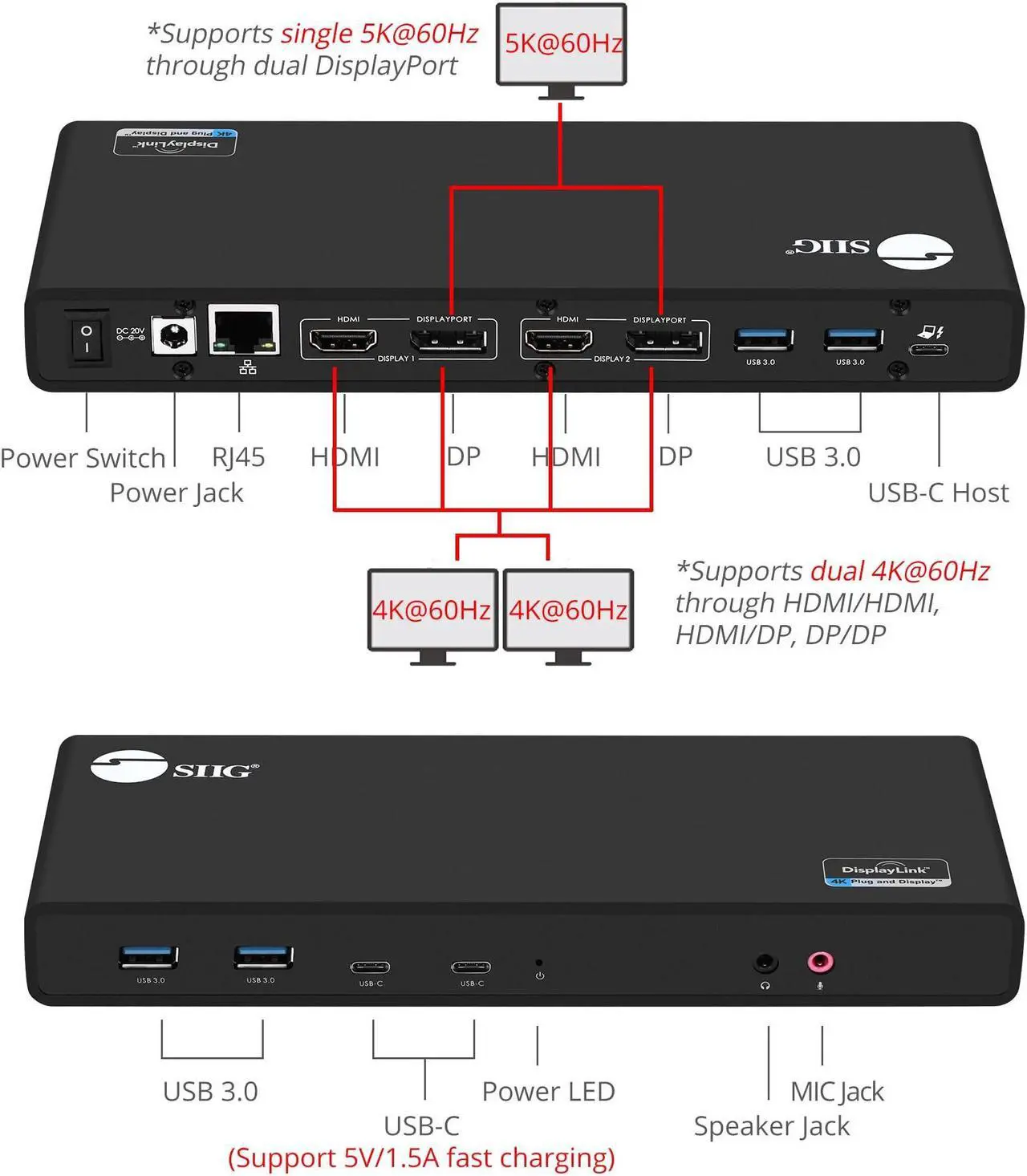

& auto-correction resolution: -support resolution up to 5K/ 4K/ 1080p/ 1080I/ 720p/ 480p -dual 3840X2160@60Hz (4K) through DP + HDMI, HDMI + HDMI, or DP + DP outputs -single 5120x2880@60hz through dual
DisplayPort connection Note: in order to support 5K output, you must connect both DisplayPort outputs to a single 5K

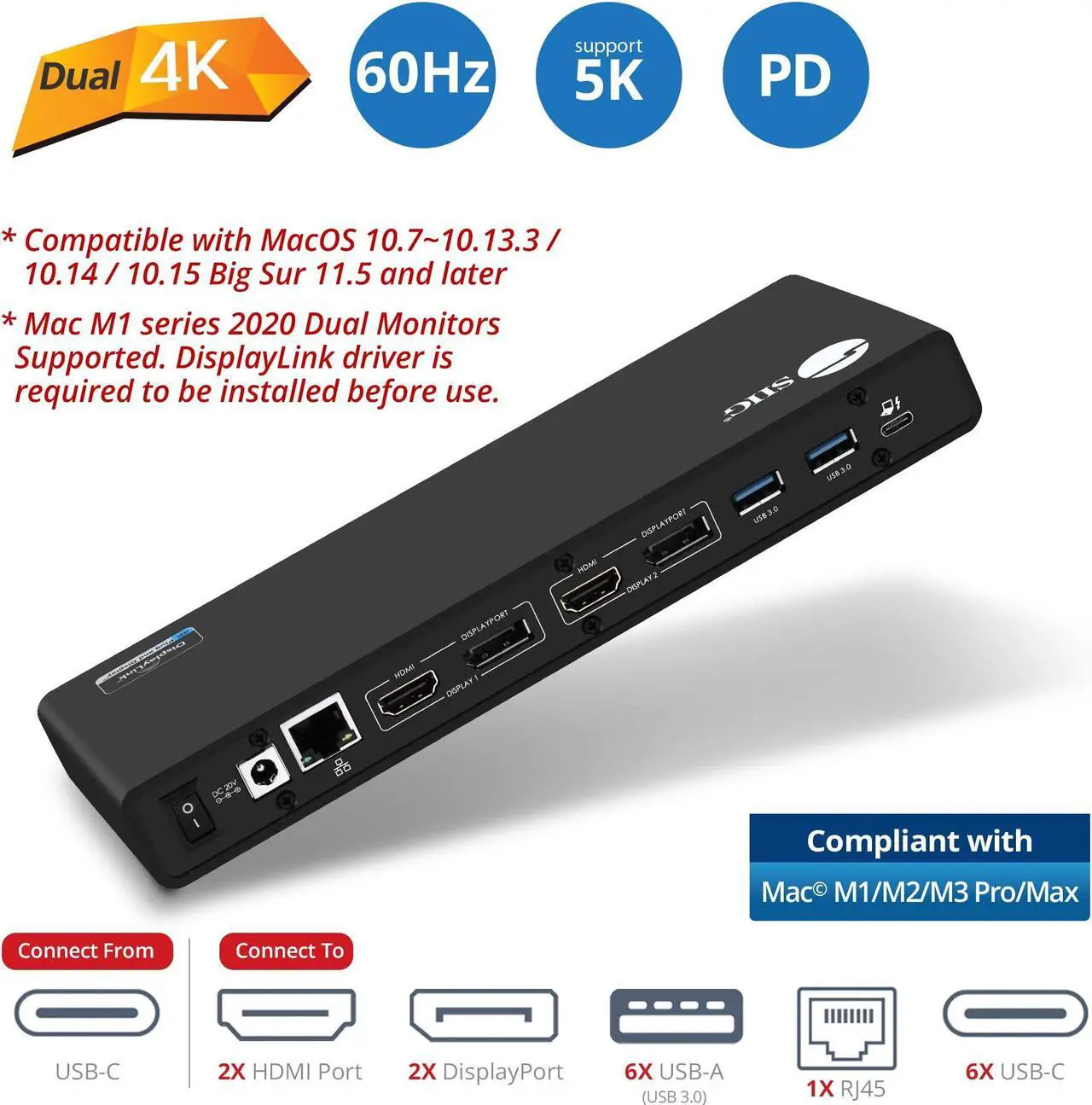

DisplayPort TV/monitor requirements: -PC computer or laptop with an available USB PD USB-C port (Thunderbolt 3 compatible) -Intel Core I5 3.0GH z CPU or higher and standalone GPU -Windows 10 (32-/64-bit)/ 8.1 (32-/64-bit)/ 8 (32-/64-bit)/ 7 (32-/64-bit) -Mac OS X 10.13 to 10.7 (Note: our adapter does not out with Mac OS 10.13. 4 to 10.13. 6 Update, Apple discontinued support for video over USB on the update. It's recommended to upgrade to Mojave 10.14 and driver V 5.0 or stay with 10.13. 3 or earlier. )
-Note: Linux
not supported package content: -USB 3.1 Type-C Dual 4K docking station with power Delivery -power adapter (DC 20V/5a) -USB-C (M) to USB-C (M) cable -driver CD -user
Reference guide warranty: this USB 3.1 type C dual 4K docking station comes with a 2 year warranty.
