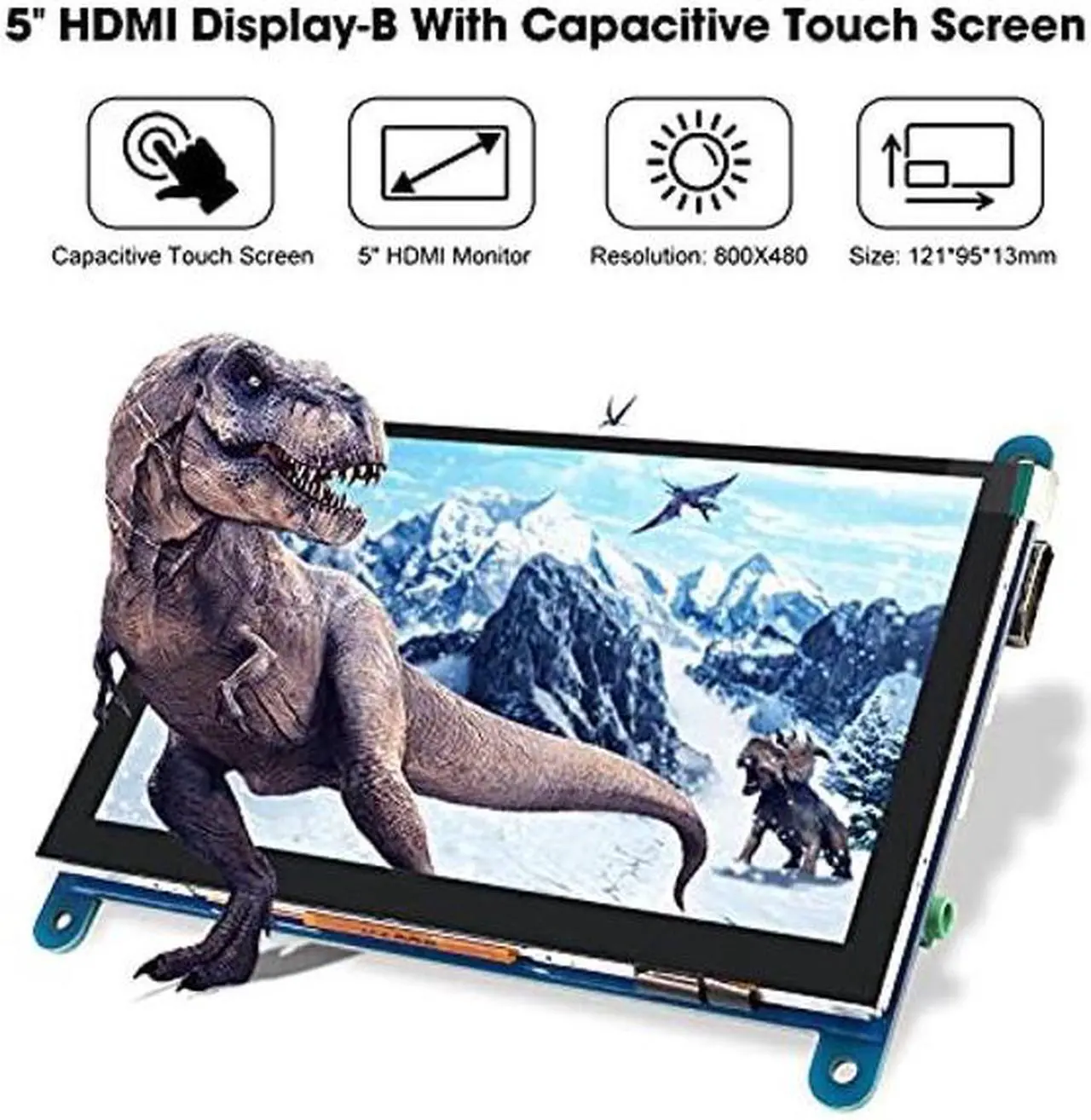

Product Parameters:
Size: 5 inch
Resolution: 800x 480 (dots)

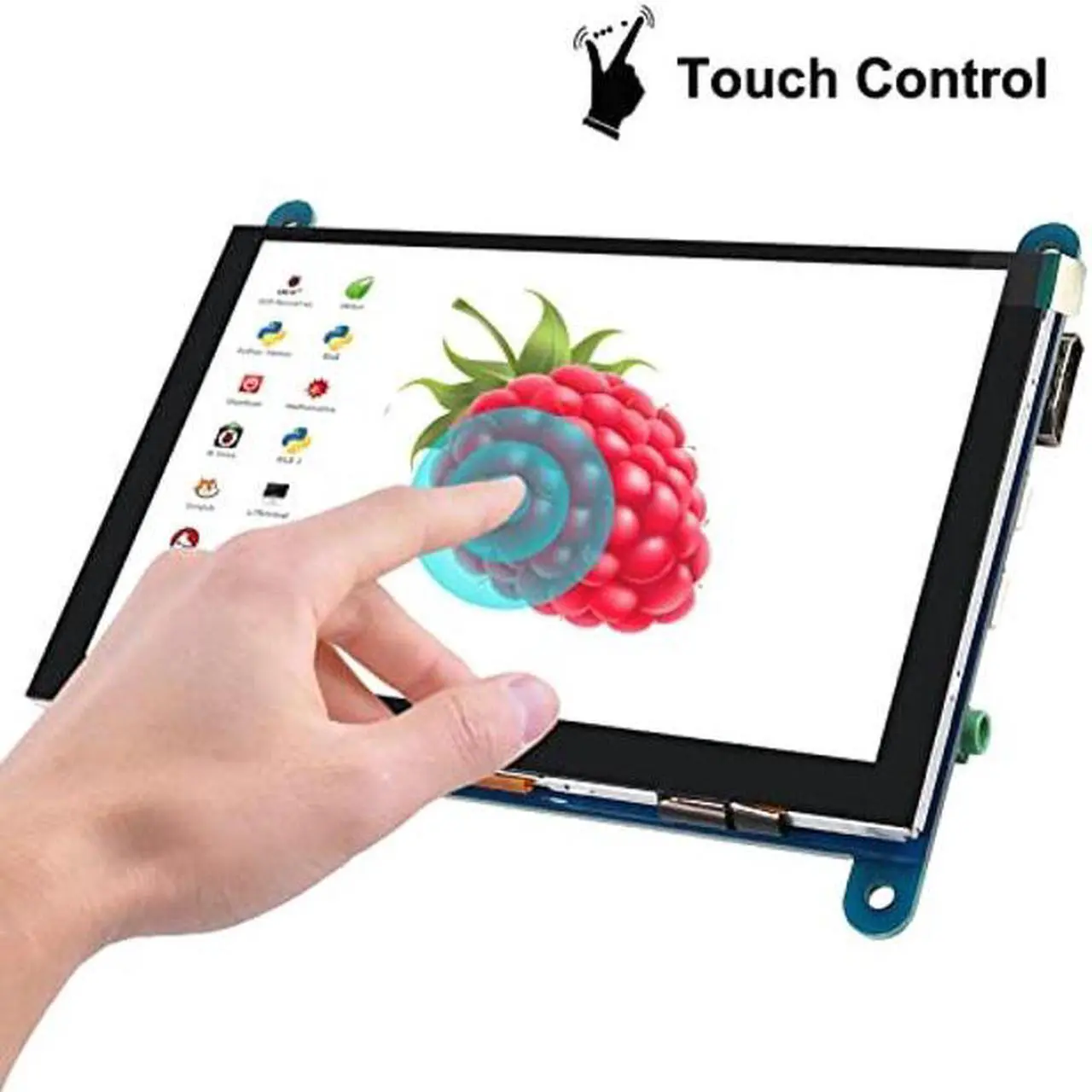

Touch: 5 point capacitive touch
Audio output: support
Dimensions: 121.11 * 95.24 (mm)
Power Dissipation: 0.30A *5V

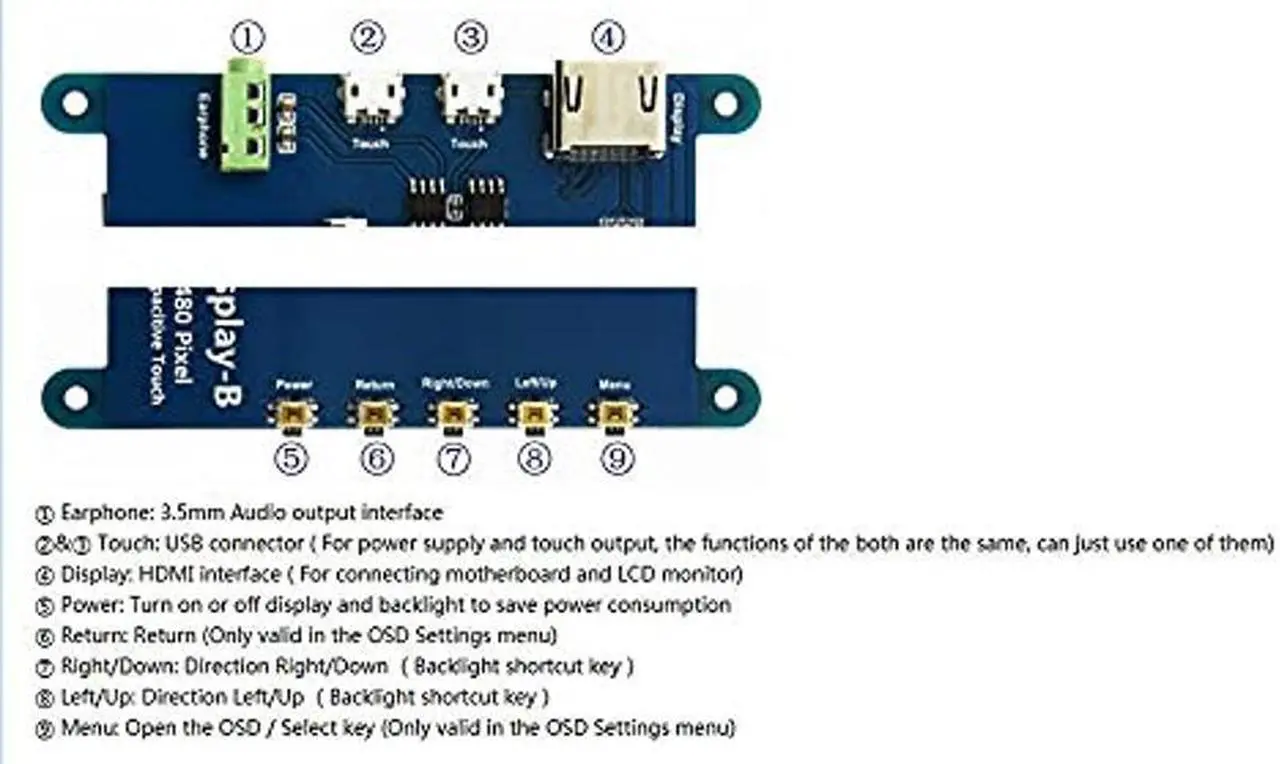

How to use as PC monitor: Connect the computer HDMI output signal to the LCD HDMI interface by using the HDMI cable Connect the LCD's USB Touch interface (Either of the two MicroUSB) to the USB port of the device If there are several monitors, please unplug other monitor connectors first, and use LCD as the only monitor for testing.
How to use with Raspbian/Ubuntu Mate/Win10 IoT Core System:
Step 1, Install Raspbian official image Download the latest image from the official download. Install the system according to the official tutorial steps.
Step 2, modify the "config. txt" After the programming of Step1 is completed, open the config. txt file of TF card root directory and add the following code at the end of the file, save and eject
Micro SD Card safely: hdmi_force_edid_audio=1 max_usb_current=1 hdmi_force_hotplug=1 config_hdmi_boost=5 hdmi_group=2 hdmi_mode=1 hdmi_mode=85 hdmi_drive=1 hdmi_cvt 800 480 60 6 0 0 0

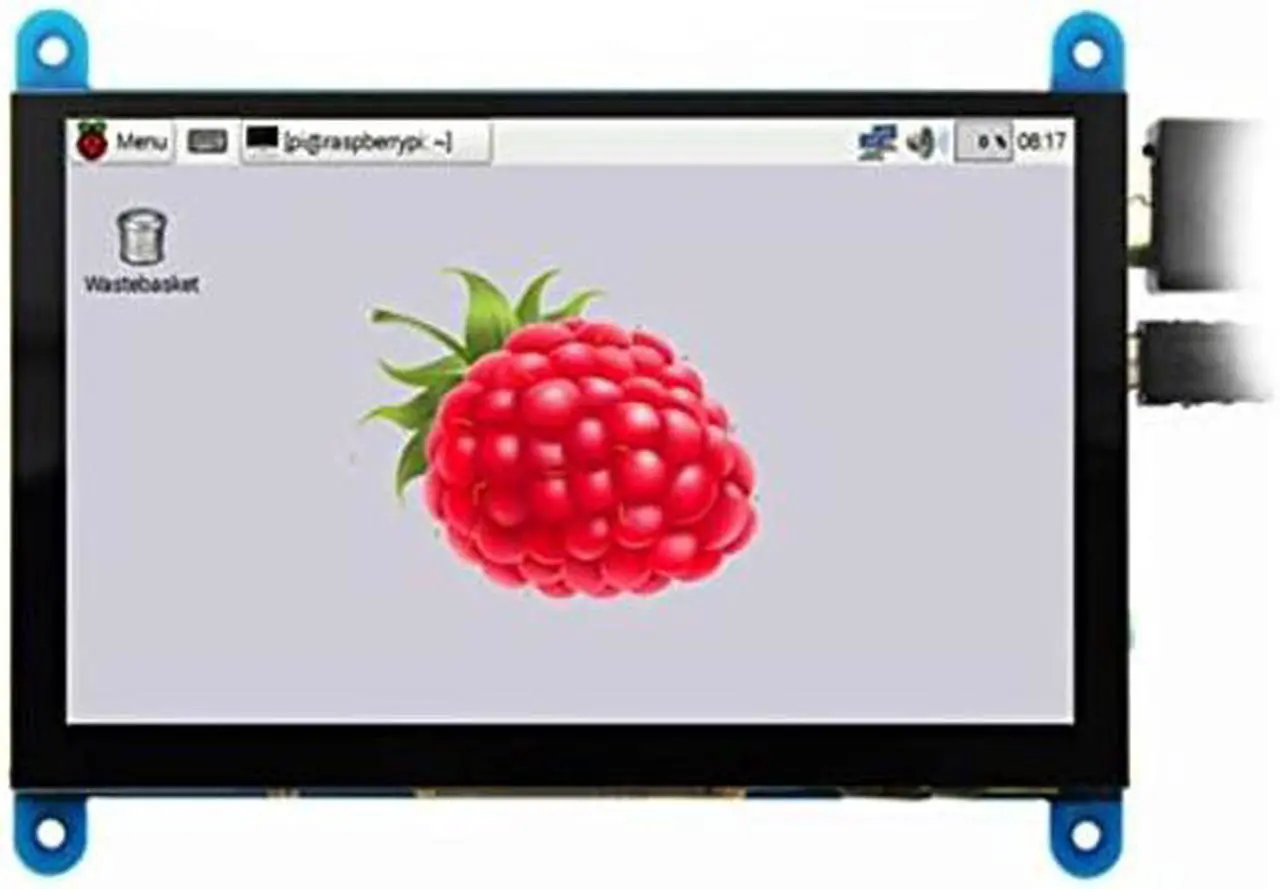

Step 3, Drive the 5inch HDMI Display-B with the Raspberry Pi Insert the TF Card to Raspberry Pi, connect the Raspberry Pi and LCD by HDMI cable; connect USB cable to one of the four USB ports of Raspberry Pi, and connect the other end of the USB cable to the USB port of the LCD; then supply power to Raspberry Pi; after that if the display and touch both are OK, it means drive successfully (please use the full 2A for power supply).
Package include: 1 x 5 inch display kit
