Functions: Power
supply: The PoE power supply is designed for power supply and data transfer for bridge, the PoE adapter is included, the Cat5 Ethernet cable is Connect Bridge and PoE adapter, the wireless bridge, the DC power supply is not required, so there is no DC power supply in the package.
Installation instructions: The mounting bracket is not included. This mounting bracket or DIY bracket is recommended.

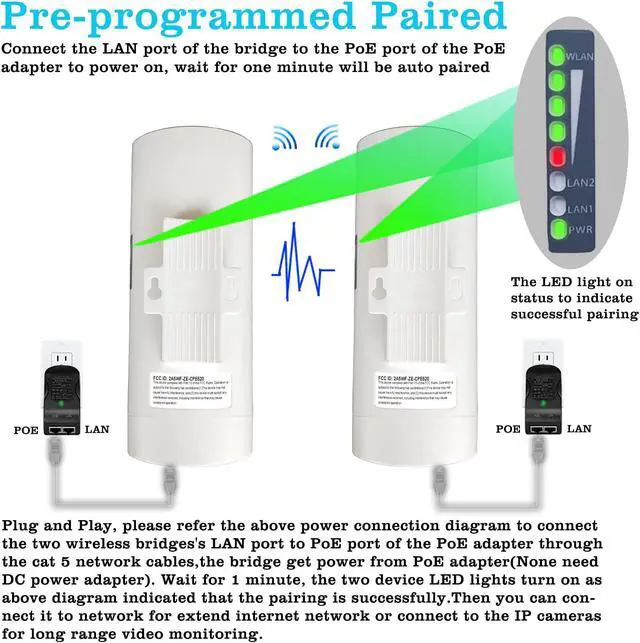

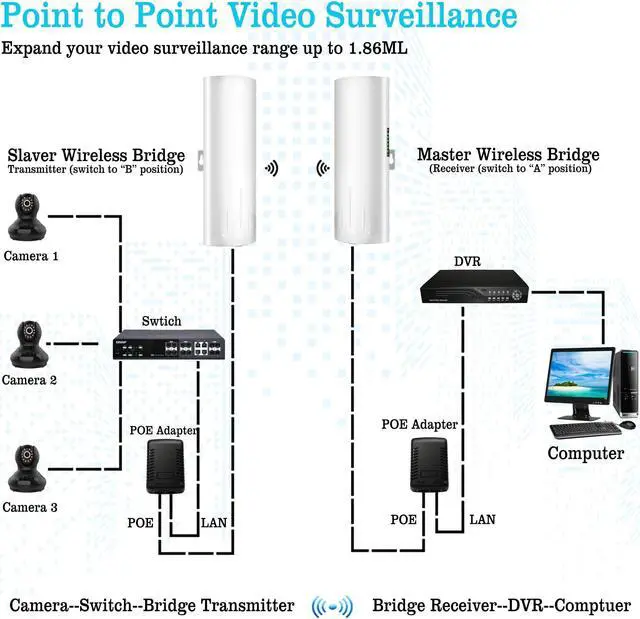

CPE pairing: The wireless bridge is pre-programmed, the switching on both devices is automatically paired, which is recommended for beginners to use the pre-programming connection. It is also the support of the DFU connection (e. g. point-to-multipoint) that requires specialist knowledge. You need to read the user manual and connect the wireless bridge to your computer to configure it.
User manual: We will constantly update the user manual, you can contact us via to get the latest manual. The paper manual in the package serves as a reference.
Parameters:

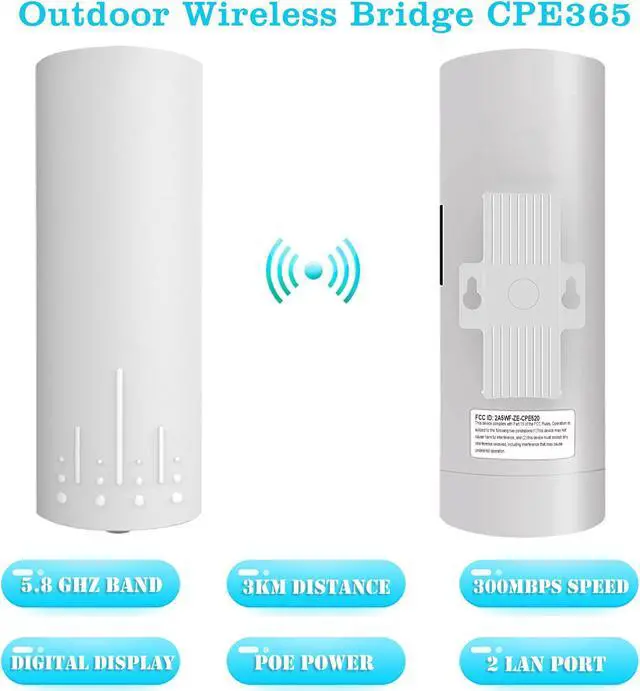

Model: CPE365.
Wired interface: 10/100 Mbit/s LAN x
2.
Data rate:
11a: 54 M, 48 M, 36 M, 24 m, 18 m, 12 m, 9 M, 6
Mbps 11n: 7.2 M, 14.4 M, 21.7 M, 28.9 M, 43.3 M, 57.8 M, 65 M, 72.2 M, 14.4 M, 28.9 M, 43.3 M, 57.8 M, 86.7 M, 115.6 M, 130 M, 130 M, 130 M, 130 M, 130M, 130 m, 130 m, 144.4 Mbps.
Power supply: POE 24 V 0.5 A.
Waterproof: supported.
Dustproof: supported.
Working temperature: 4 ~ 158 degF.
Storage temperature: 22 ~ 176degF.
Item dimensions: 6.89" x 3.62" x 2.36"
Item weight: 1.43 lbs
Package Includes: 2 x CPE365 Wireless Bridge 2 x PoE power supply. 2 x metal tyres. 1 x user manual (English language)
