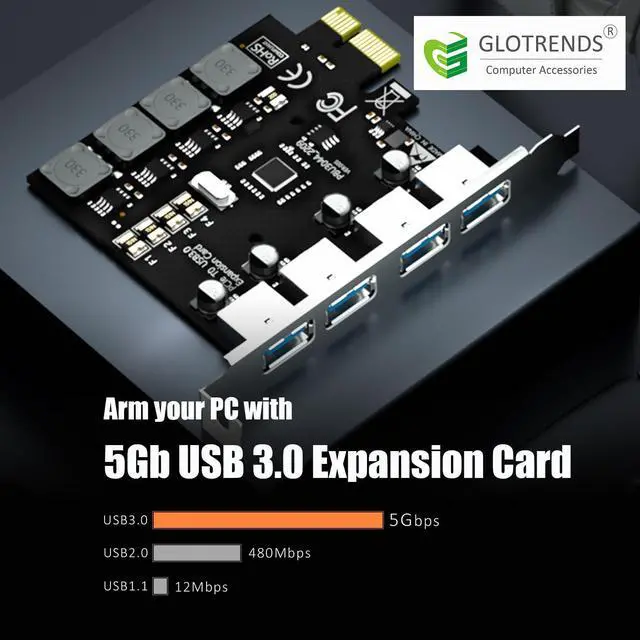

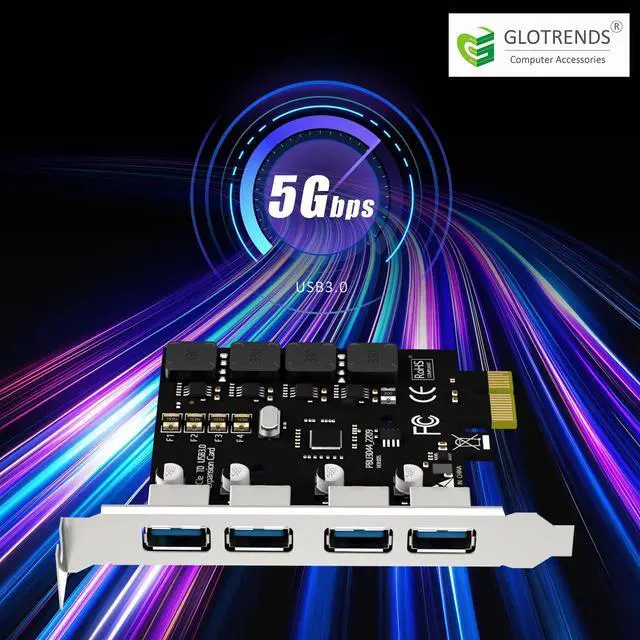

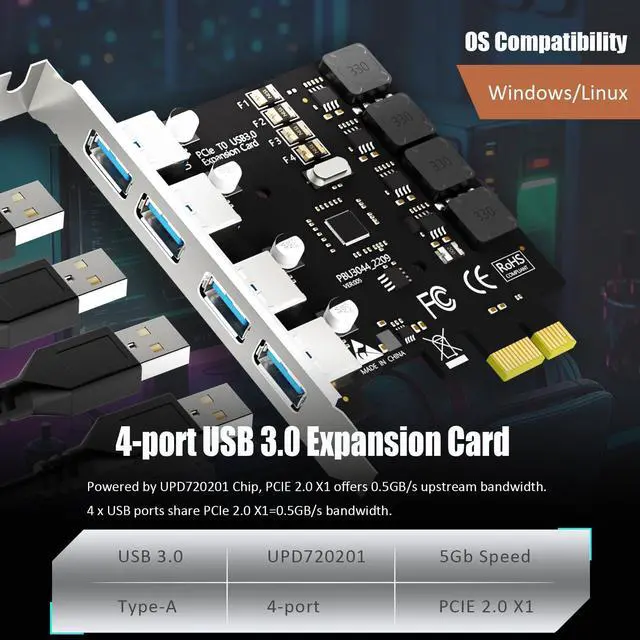

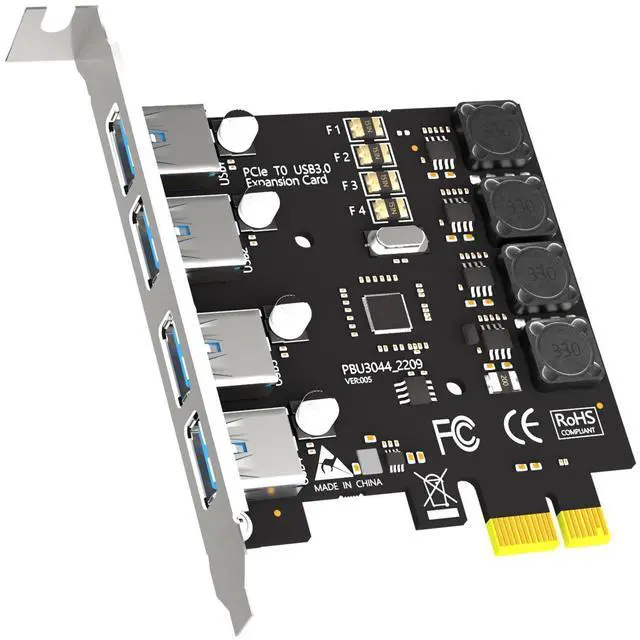

This 4-port USB 3.0 expansion card adds 4 x USB-A ports to desktop PC, server, or NAS via a PCI-Express x1 slot. Powered by NEC720201, the 4 ports share a 5Gbps bandwidth of PCIe 2.0 X1 and are compatible with Intel, AMD, and ARM platforms.

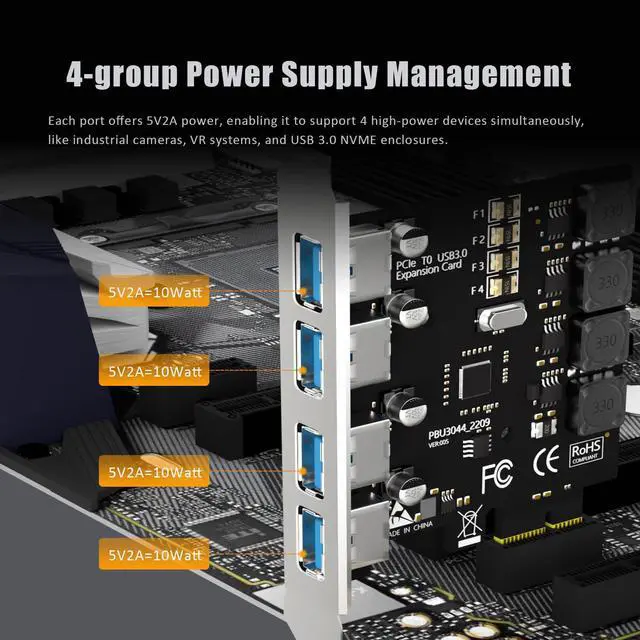

Each port offers 5V2A power (5V/8A 40W in total), enabling it to support 4 high-power devices simultaneously, like industrial cameras, VR systems, and USB 3.0 NVME enclosures. (Note: Not for fast charging, max 5V/0.5A charging only)
Features a dual-layer protection design. Each USB channel has an independent power manager, inductor, fuse, and capacitor. Plus, there's a separate fuse for the entire PCB board.
Plug and play on Windows 11,10,8 and Server 2012,2012R2,2016,2019,2022 and most Linux kernels. Driver is required for Windows XP,Vista,7 and Server 2003,2008,2008R2. (Note: Mac OS not supported)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
U3044 4-Port USB 3.0 5Gbps PCIe Expansion Card for Intel, AMD, and ARM Platform, Compatible with Windows and Linux (Not Support Mac OS)
Additional Features
Installs via PCI-Express X1. Comes with a regular - profile bracket for standard cases, not suitable for slim/compact cases. Self - powered, no need for extra power supply.
Learn more about the Detailed Specifications
Additional Information
First Listed on Newegg
September 11, 2025
There are no reviews yet.
Do you own this product?
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
