Description
Specification:
Condition: 100% Brand New
Item Type: Desktop Reader
Color: Black
Material: ABS
Size: Approx. 107x107x24mm/ 4.2 x 4.2 x 0.9 in
Working Frequency:
CN: 920-925MHz
US: 902-928MHz

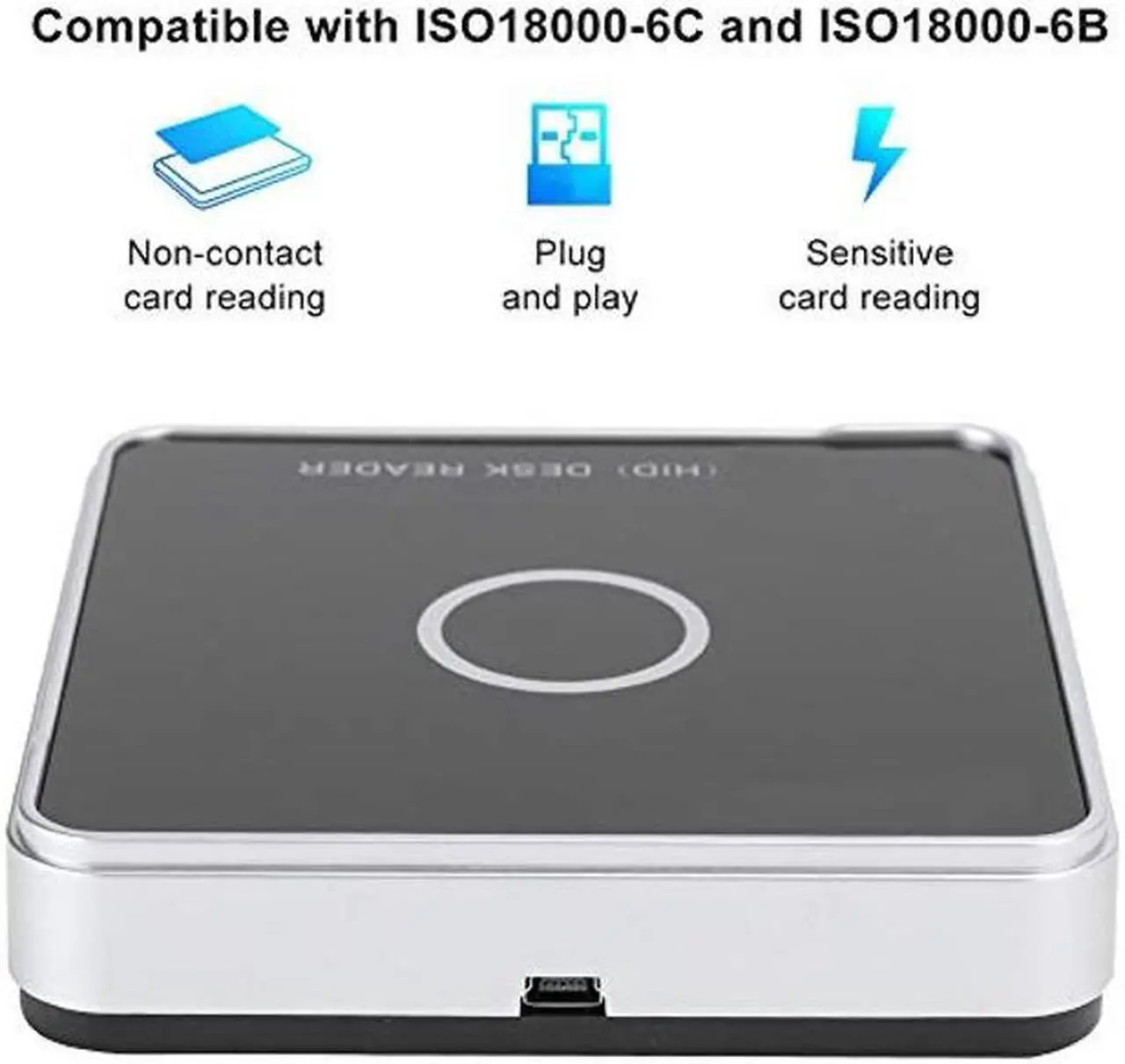

Label Protocol: ISO18000-6C (EPC GEN2), ISO18000-6B
Frequency Hopping Mode: Wide Spectrum Frequency Hopping (FHSS) or Fixed Frequency, which can be set by software

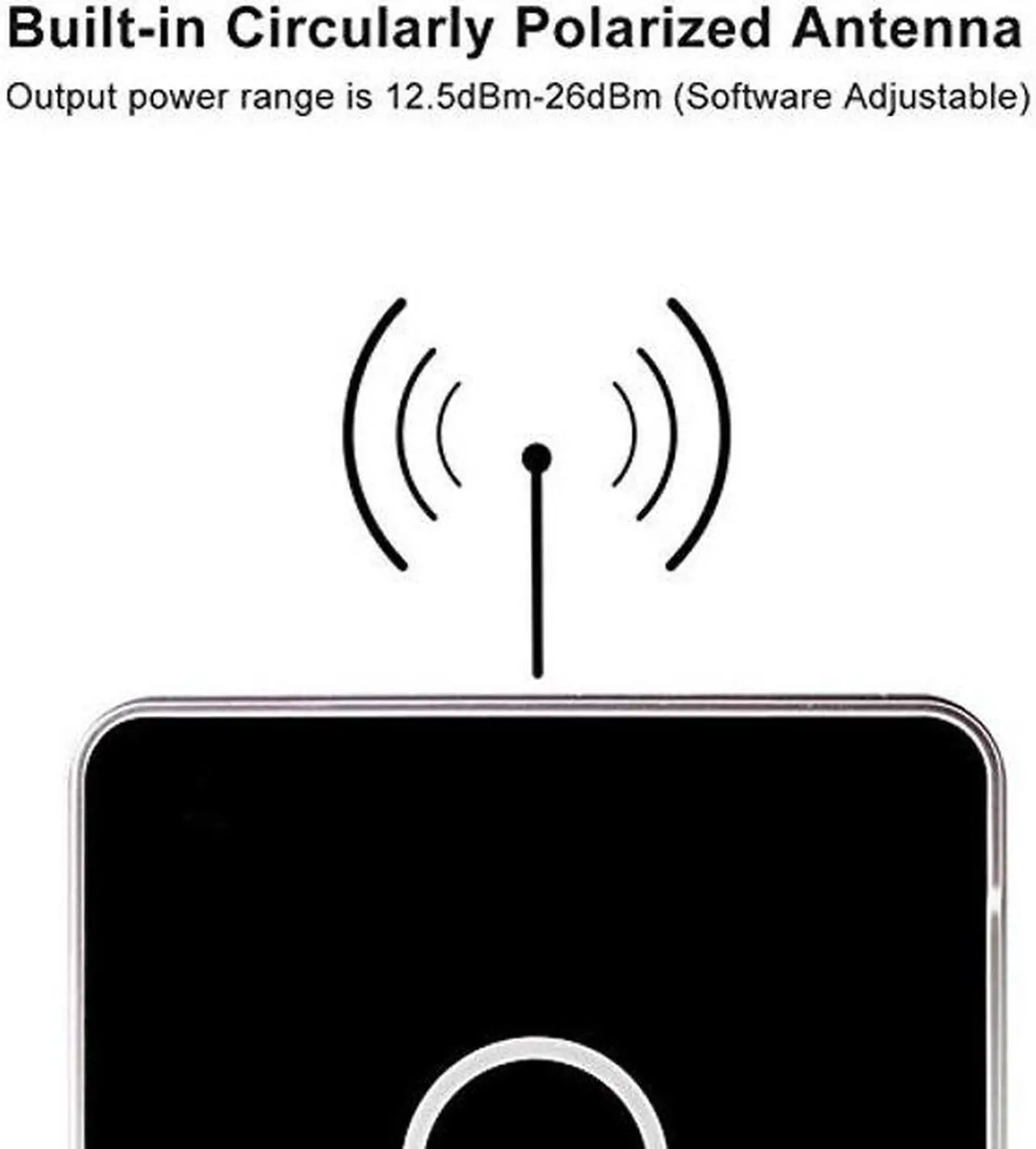

Antenna Parameters: 2dBi Circularly Polarized Antenna (built-in)
Output Power: 12.5 dBm-26dBm (Software Adjustable)
Reader/Writer Distance:

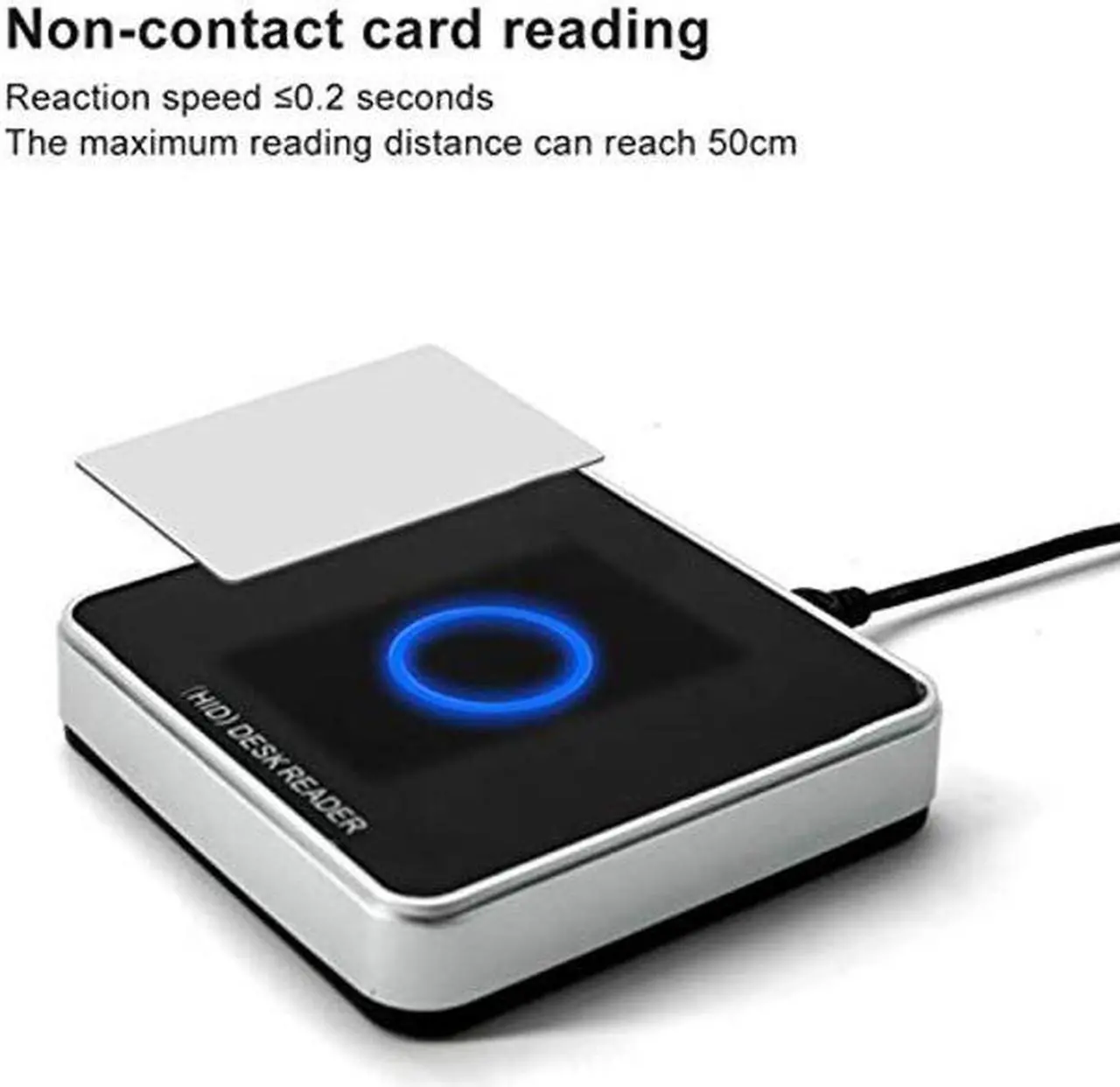

Maximum Distance of Reading Label: Approx. 0.5 m/ 19.7 in(Related to transmission power, antenna type, label type and application environment)
Maximum Distance of Writing Label: Approx. 0.2 m/ 7.9 in(Depending on transmitting power, antenna type, label type and application environment)
Working Mode: Active mode, Passive mode, Response mode (not recommended)
Power Interface: DC+5V
Working Temperature: -20-55
Storage Temperature: -40-85
Communication Interface: USB Virtual Keyboard
Power Adapter: USB Power Supply
RS-232 Signal Wire: Equipped
Power Cable: Equipped
Development Kit: Provide the SDK
Package List:
1 x Desktop Reader 1 x Data Cable
