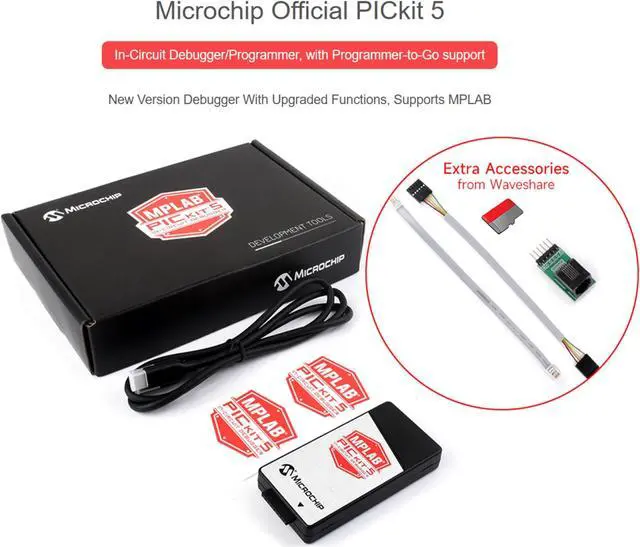

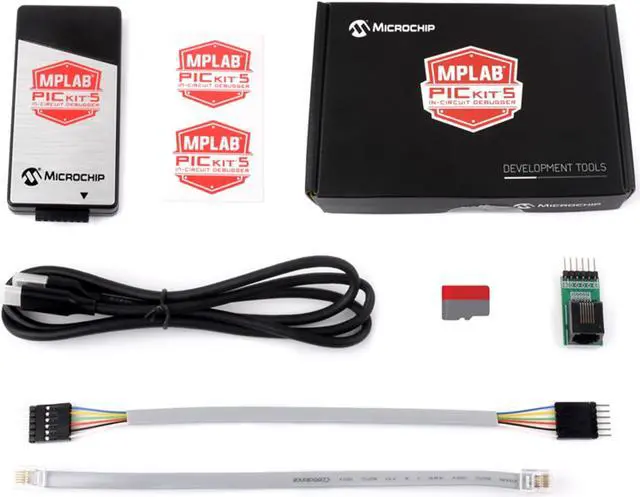

PICkit 5 in-Circuit Debugger/Programmer, Programmer-to-Go Support, Type-C Port, Supports MPLAB, Card Programmer

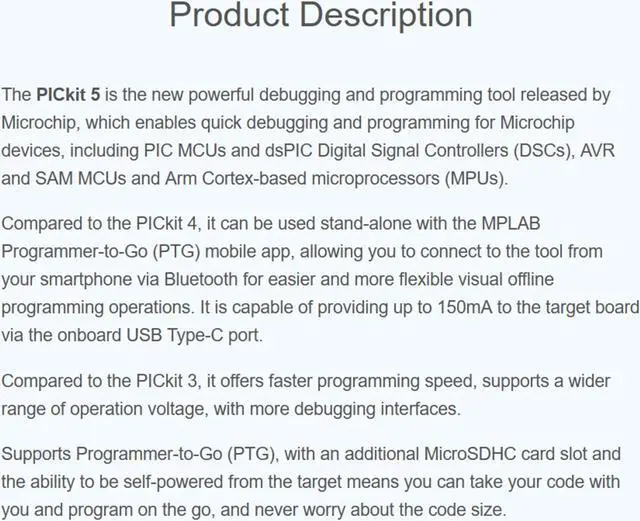

- The PICkit 5 is the new powerful debugging and programming tool released by Microchip, which enables quick debugging and programming for Microchip devices, including PIC MCUs and dsPIC Digital Signal Controllers (DSCs), AVR and SAM MCUs and Arm Cortex-based microprocessors (MPUs).
- Supports Programmer-to-Go (PTG), with an additional MicroSDHC card slot and the ability to be self-powered from the target means you can take your code with you and program on the go, and never worry about the code size.
- Connects to computer via a USB Type-C cable. Powered through USB cable or target and can optionally power target (up to 150 mA). Supports powering from the target board (2.7V~5.5V).
- Onboard 8pin SIL programming connector, supports ICSP, JTAG, SWD, UART VCP. Programs devices using MPLAB X IDE or MPLAB IPE.
- Supports Programmer-To-Go (PTG) to field program devices. Supports MPLAB PTG iOS/Android app used to select and manage PTG program images via Bluetooth.
- Supports Vir
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

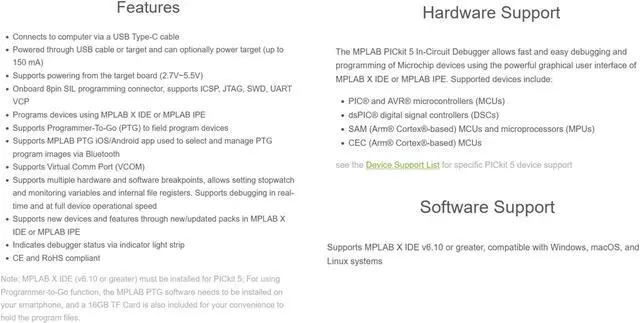

Features
Connects to computer via a USB Type-C cable
Powered through USB cable or target and can optionally power target (up to 150 mA)
Supports powering from the target board ( 2.7V ~ 5.5V )
Onboard 8pin SIL programming connector, supports ICSP, JTAG, SWD, UART VCP
Programs devices using MPLAB X IDE or MPLAB IPE
Supports Programmer-To-Go (PTG) to field program devices
Supports MPLAB PTG iOS/Android app used to select and manage PTG program images via Bluetooth
Supports Virtual Comm Port (VCOM)
Supports multiple hardware and software breakpoints, allows setting stopwatch and monitoring variables and internal file registers. Supports debugging in real-time and at full device operational speed
Supports new devices and features through new/updated packs in MPLAB X IDE or MPLAB IPE
Indicates debugger status via indicator light strip
CE and RoHS compliant
Hardware Support
The MPLAB PICkit 5 In-Circuit Debugger allows fast and easy debugging and programming of Microchip devices using the powerful graphical user interface of MPLAB X IDE or MPLAB IPE.
Supported devices include:
PIC and AVR microcontrollers (MCUs)
dsPIC digital signal controllers (DSCs)
SAM (Arm Cortex-based) MCUs and microprocessors (MPUs)
CEC (Arm Cortex-based) MCUs
Software Support
Supports MPLAB X IDE v 6.10 or greater, compatible with Windows, macOS, and Linux systems

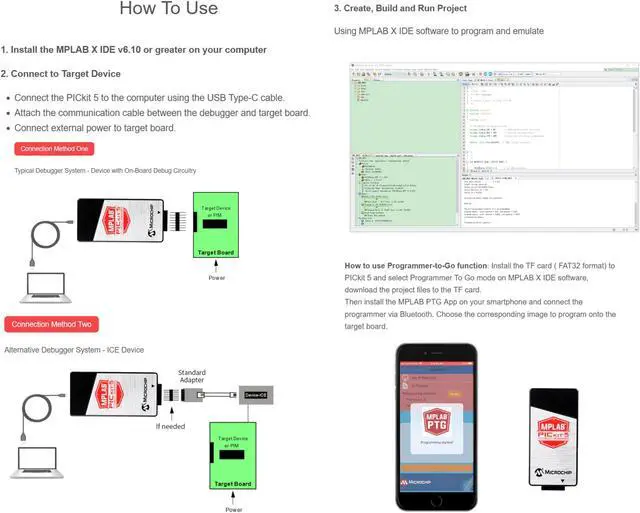

How to Use
1. Install the MPLAB X IDE v 6.10 or greater on your computer
2. Connect to Target Device
Connect the PICkit 5 to the computer using the USB Type-C cable.
Attach the communication cable between the debugger and target board.
Connect external power to target board.
Connects to computer via a USB Type-C cable
Powered through USB cable or target and can optionally power target (up to 150 mA)
Supports powering from the target board ( 2.7V ~ 5.5V )
Onboard 8pin SIL programming connector, supports ICSP, JTAG, SWD, UART VCP
Programs devices using MPLAB X IDE or MPLAB IPE
Supports Programmer-To-Go (PTG) to field program devices
Supports MPLAB PTG iOS/Android app used to select and manage PTG program images via Bluetooth
Supports Virtual Comm Port (VCOM)
Supports multiple hardware and software breakpoints, allows setting stopwatch and monitoring variables and internal file registers. Supports debugging in real-time and at full device operational speed
Supports new devices and features through new/updated packs in MPLAB X IDE or MPLAB IPE
Indicates debugger status via indicator light strip
CE and RoHS compliant
Hardware Support
The MPLAB PICkit 5 In-Circuit Debugger allows fast and easy debugging and programming of Microchip devices using the powerful graphical user interface of MPLAB X IDE or MPLAB IPE.
Supported devices include:
PIC and AVR microcontrollers (MCUs)
dsPIC digital signal controllers (DSCs)
SAM (Arm Cortex-based) MCUs and microprocessors (MPUs)
CEC (Arm Cortex-based) MCUs
Software Support
Supports MPLAB X IDE v 6.10 or greater, compatible with Windows, macOS, and Linux systems
How to Use
1. Install the MPLAB X IDE v 6.10 or greater on your computer
2. Connect to Target Device
Connect the PICkit 5 to the computer using the USB Type-C cable.
Attach the communication cable between the debugger and target board.
Connect external power to target board.
