waveshare 1.5inch RGB OLED Display Module for Raspberry Pi/Jetson Nano/Arduino/STM32, 128x128 Pixels,16-bit High Color (65K Colors) SPI Interface

1.5 inch RGB OLED display module, 128x128 pixels, 16-bit high color, SPI interface

Overview

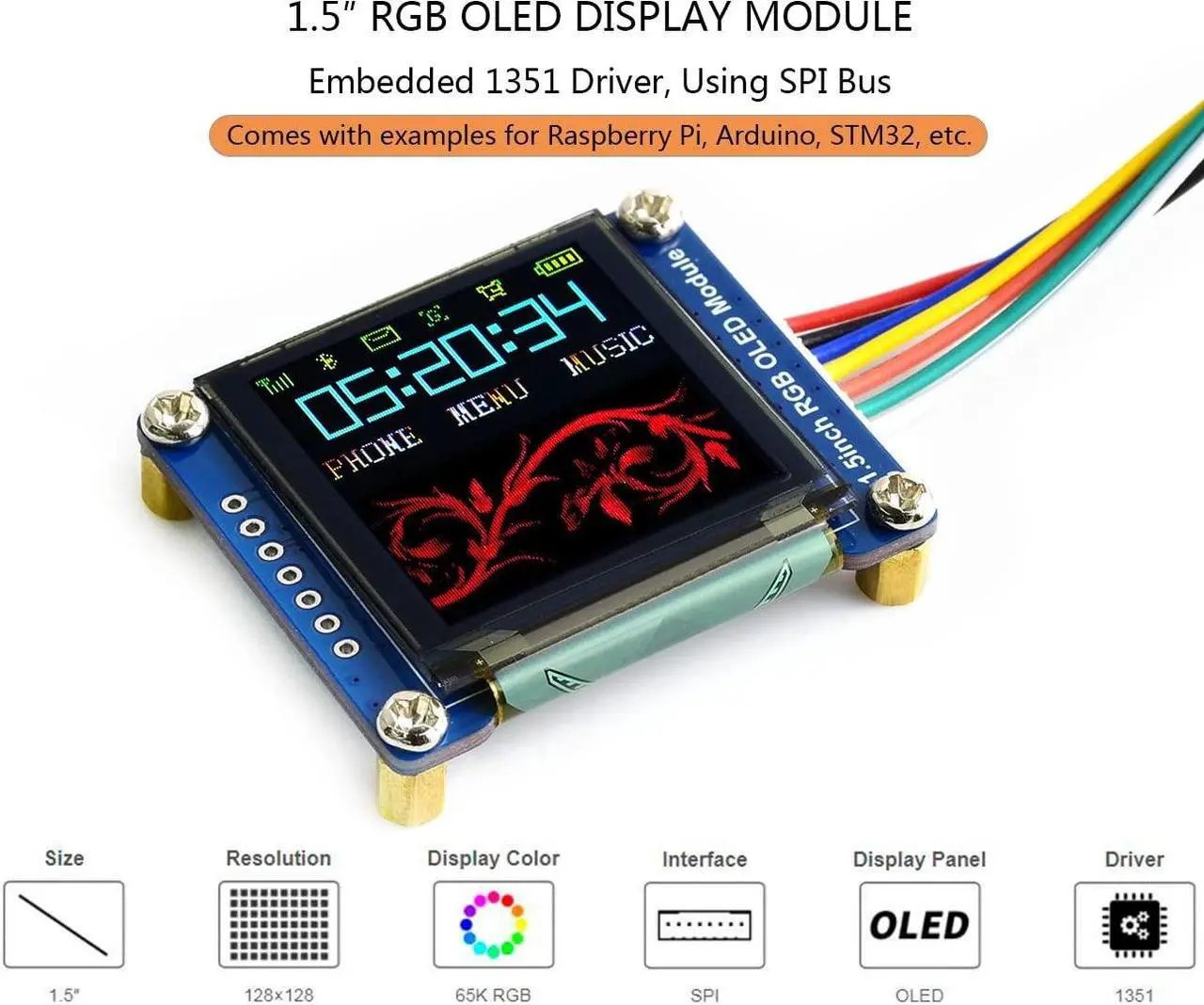

This is a general RGB OLED display Module, 1.5 inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface.

Features
128x128 high resolution, 65K colors, clearly displays colorful images

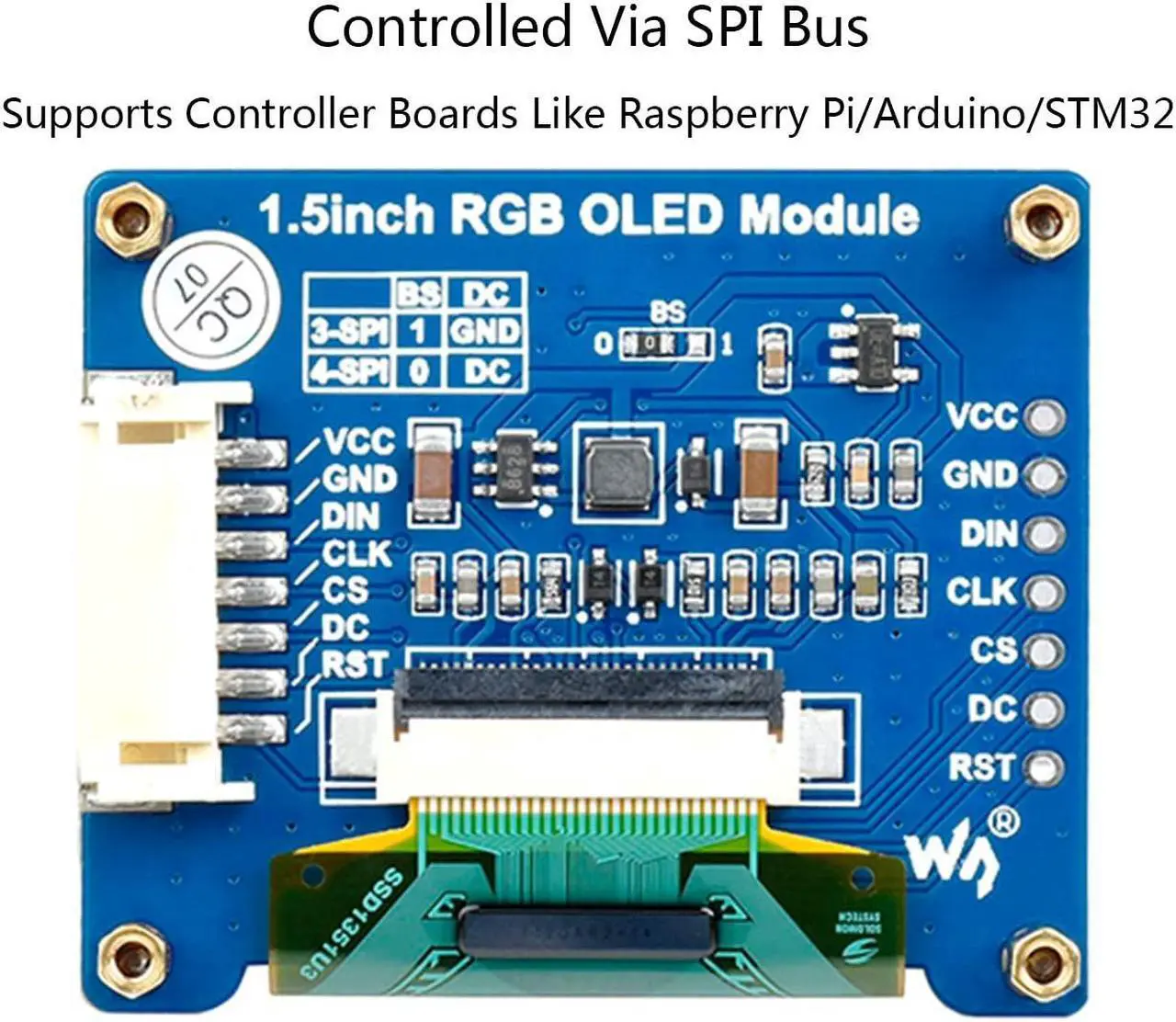

Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

Operating voltage: 3.3V /5V (Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly)
Support interface: 4-wire SPI, 3-wire SPI
Controller: SSD1351
Resolution: 128 (H) RGB x 128 (V)
Dimension: 26.855 (H) x 26.855 (V) mm
Pixel size: 0.045 (H) x 0.194 (V) mm
Display color: 65K color

OLED and its controller
The built-in driver used by this OLED is SSD1351, which is a 128RGB * 128 Dot Matrix OLED/PLED controller with a 128*128*18bit SRAM as a display buffer area, which supports two color depths of 262k and 65k. And supports 8bit 8080 parallel, 8bit 6800 parallel, 3wire-SPI and 4wire-SPI and other communication methods. This module selects 4wire-SPI and 3wire-SPI as the communication method, which reduces the area of the module and saves the IO resources of the controller.

Description

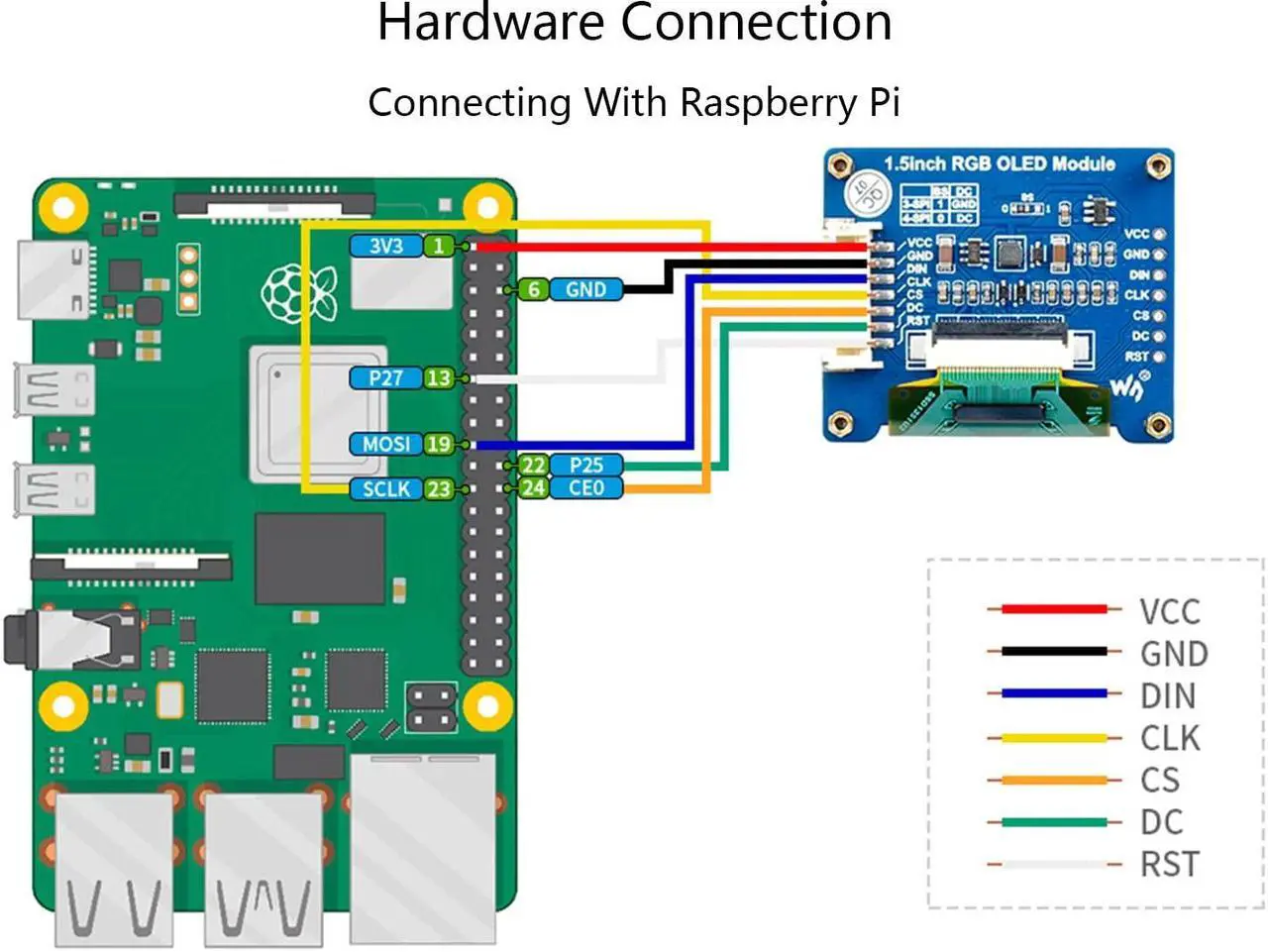

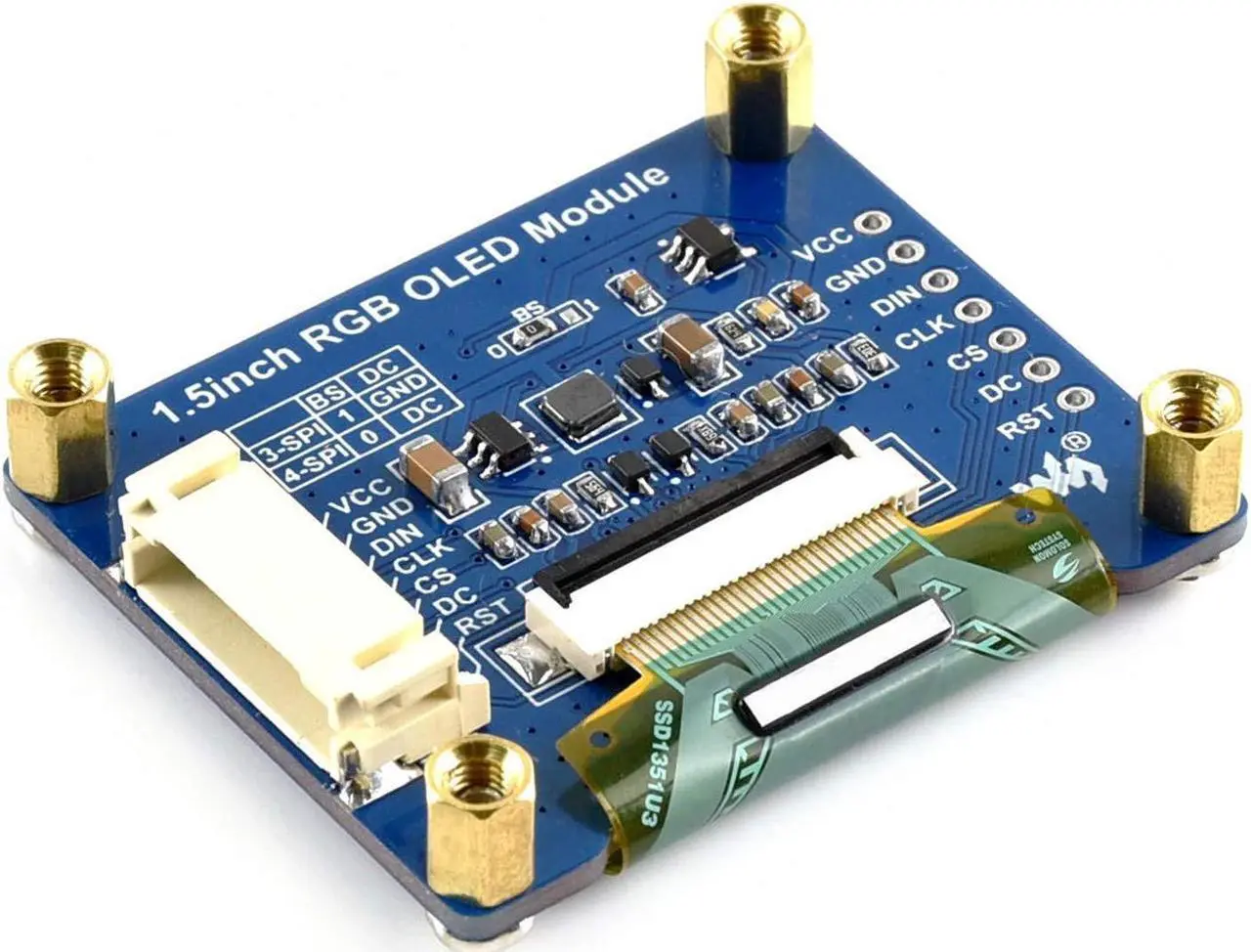

VCC--- 3.3V /5V Power input
GND---Ground
DIN---Data input
SCL---Clock input
CS ---Chip select, active low
DC---Data/command signal selection, low level indicates command, high level indicates data
RST--Reset signal, active low

Online Document/ User Manual: //bit. ly/3TriWqs

Package Content

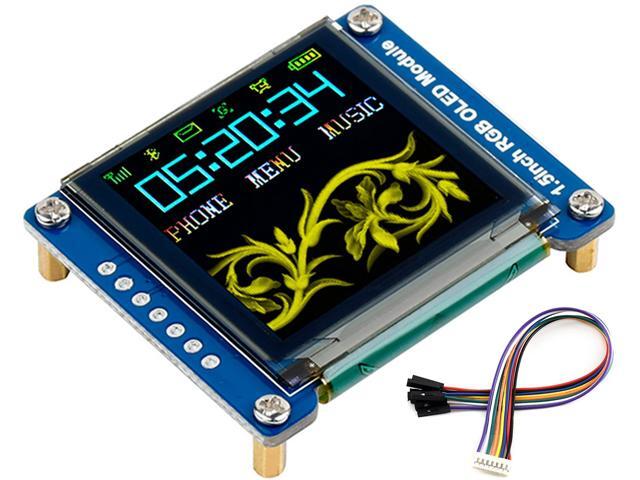

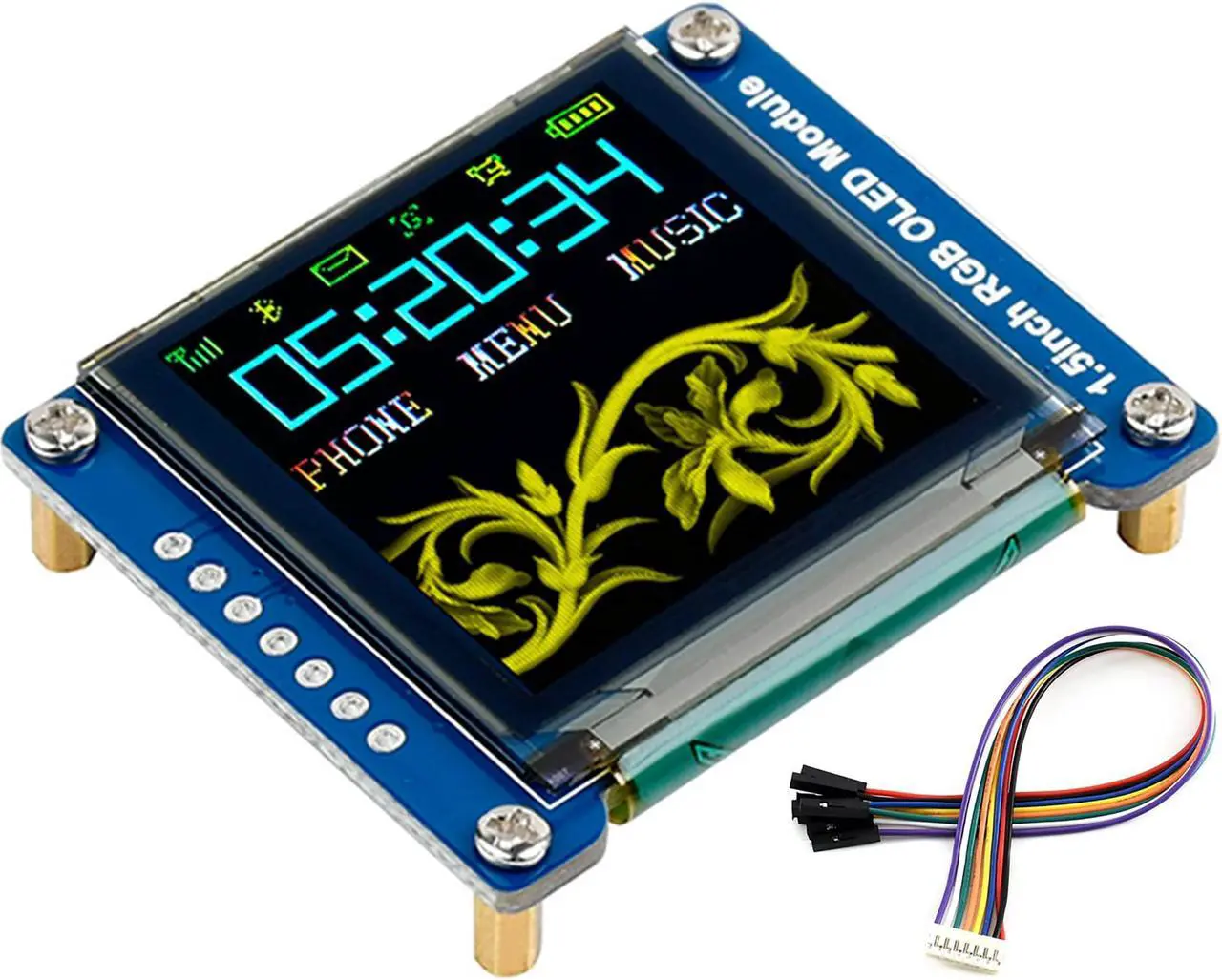

1.5 inch RGB OLED Module x1
PH 2.0 7Pin x1
