Waveshare RM520N-GL 5G HAT with Case Compatible with Raspberry Pi, Quad Antennas LTE-A, Global Band, GNSS Positioning, Support 3GPP 16, 4G/3G

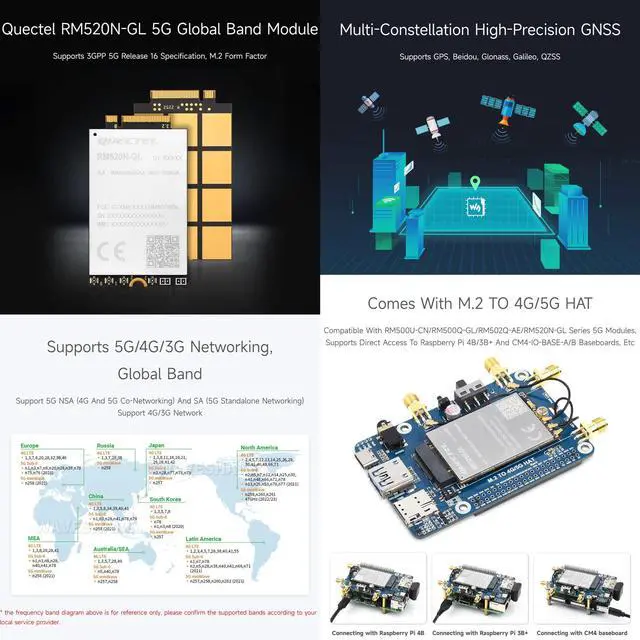

- Comes with the Quectel RM520N-GL 5G Sub-6GHz module, supports various network standards such as 5G/4G/3G and LTE-A, GNSS positioning support. Comes with M.2 TO 4G/5G HAT, compatible with the RM500U-CN/RM500Q-GL/RM502Q-AE/RM520N-GL series 5G modules
- USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano to enable high speed 5G network. Standard M.2 B KEY slot, compatible with SIM7600X/EM06X/SIM82XX/RM5XX series 4G/5G M.2 modules

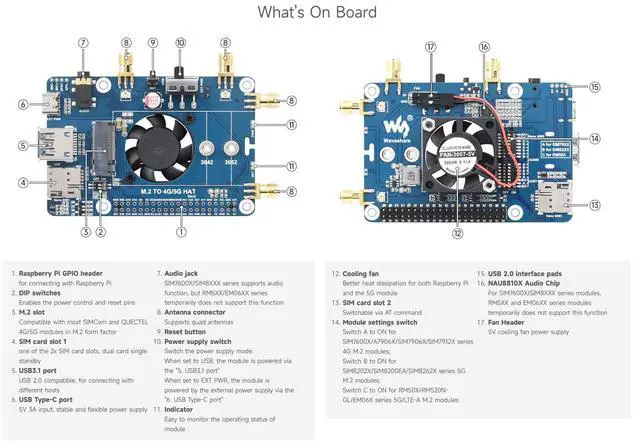

- Onboard control pins, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino. Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable and flexible power supply
- Onboard power supply switch, reset button and LED indicator, easy to turn on/off the module and monitor the operating status. 2x SIM card slot, dual card single standby, switchable via AT command
- High efficiency power supply circuit,
+
+
