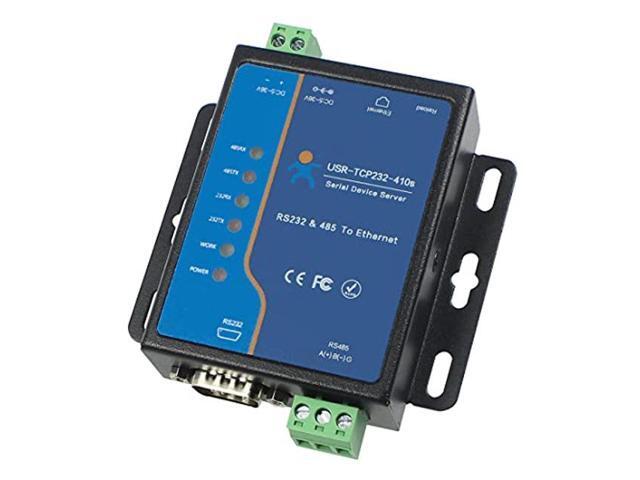

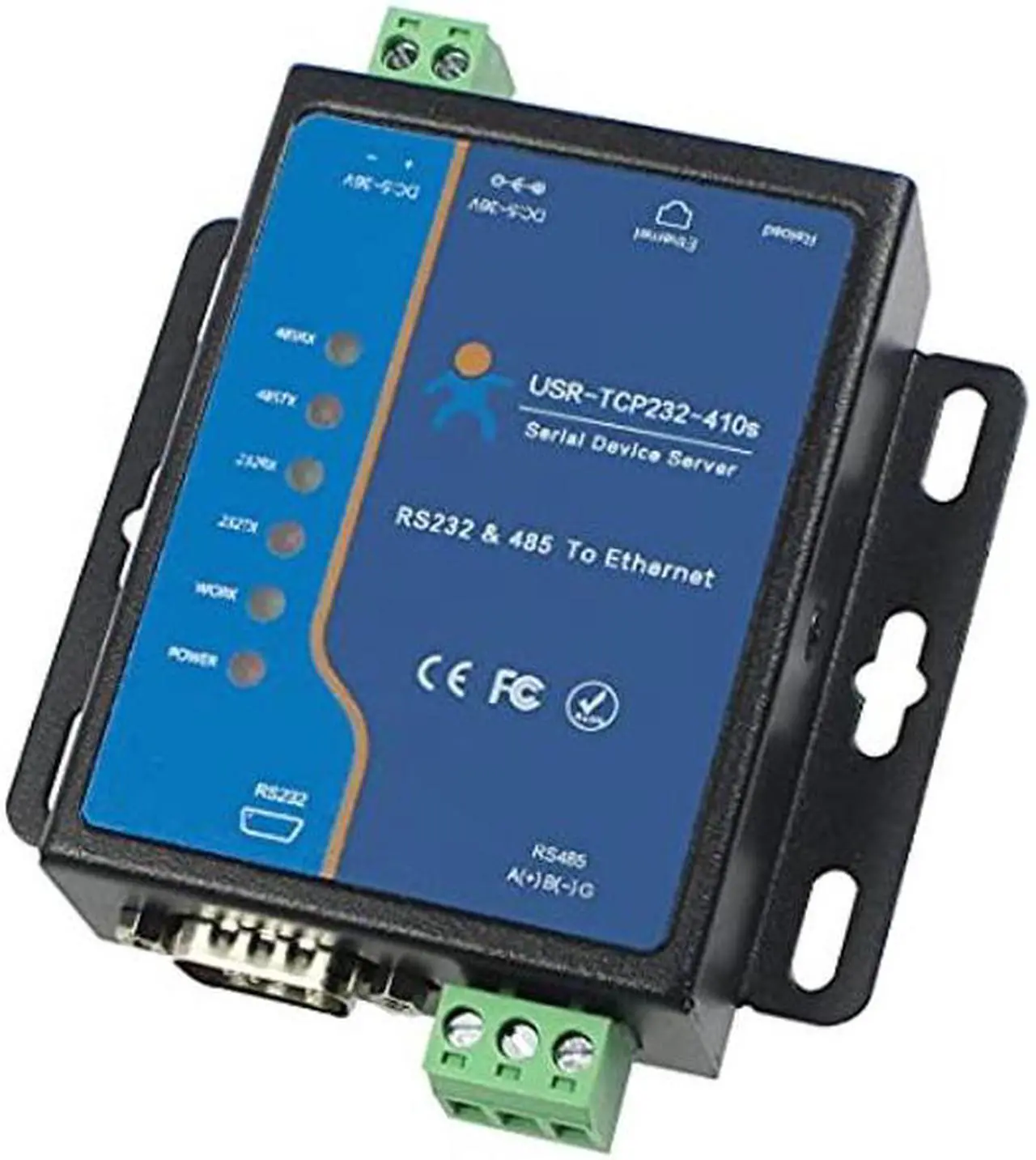

PUSR Usr-Tcp232-410S Server RS232 / RS485 Serial to Ethernet Adapter TCP/IP Converter Supports DHCP/DNS
- Dual Serial Server: Based on the Cortex-M4 solution and integrates the internal TCP / IP protocol stack of the serial server, Supports RS232 and RS485 work at the same time.
- Usr-Tcp232-410S has the function of terminal power supply; Auto-Mdi / Mdix, RJ45 port with 10/100 Mbps.
- Baud Rate: RS-232: 600 bps ~ 230K bps, RS-485: 600 bps ~ 1M bps; Interface Standard: RS-232: DB9 pin type, RS-485: 3 wire (A+, B-, G)

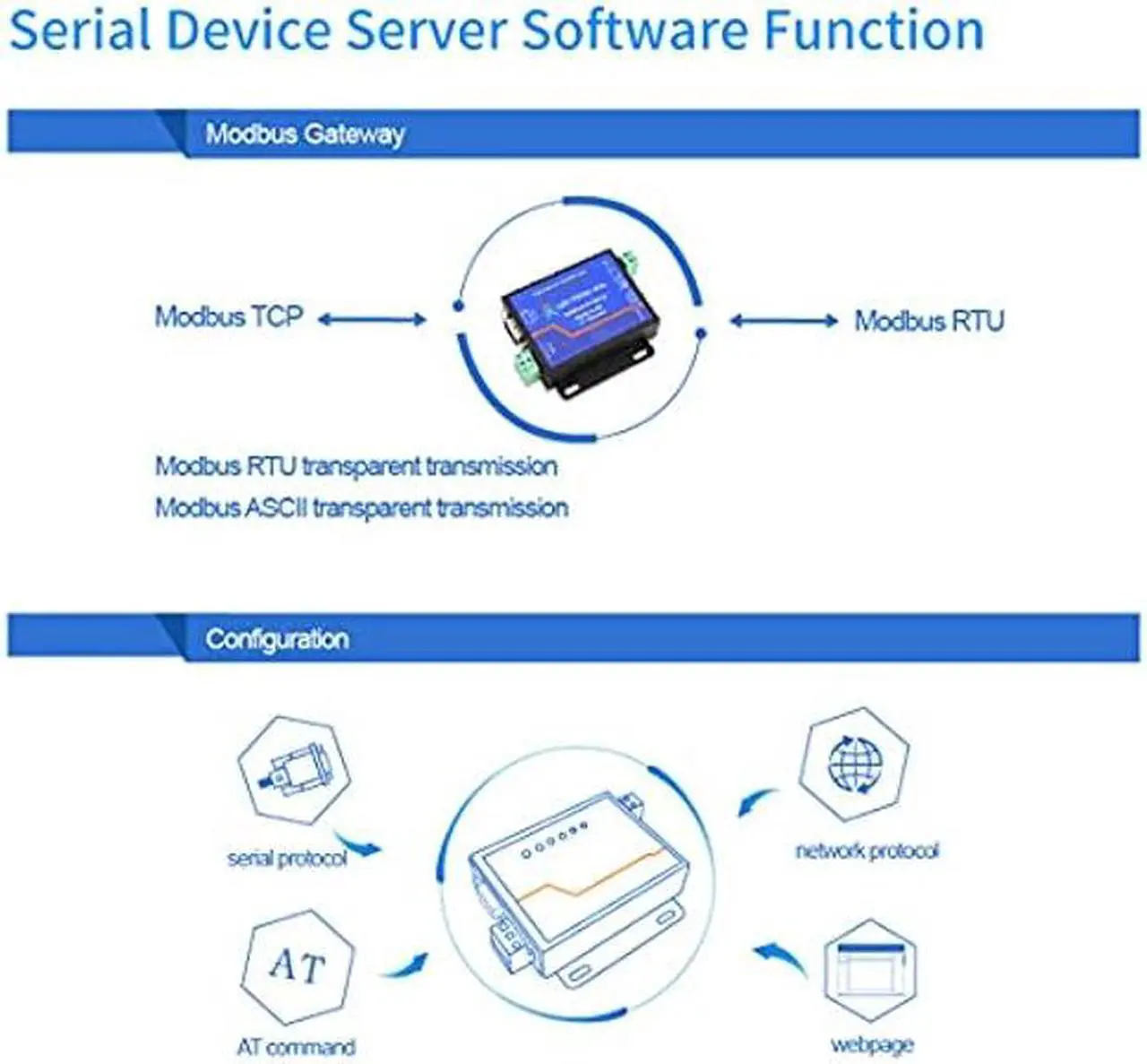

- The global unique mac address purchased from Ieee, the user can define the mac address; Supports Modbus Rtu to Modbus Tcp
- Supports keep-alive and quickly detects dead links; Supports account and password, can be used for site login and network settings; Built-in website, can also customize websites for users.
+
+
Overview
Specs
Reviews
PUSR Usr-Tcp232-410S RS232 / RS485 Serial to Ethernet Adapter TCP/IP Converter Supports DHCP / DNS
Product description
Multiple indicator lights for convenient debugging
Power-Line Terminal for industrial applications
Enable kernel and Tcp / Ip protocol stack
TCP server, TCP client, Udp, Udp server and HTTPD client working mode
Two ports can work independently of each other at the same time
Support the virtual serial connection and provide the appropriate Usr-Vcom software

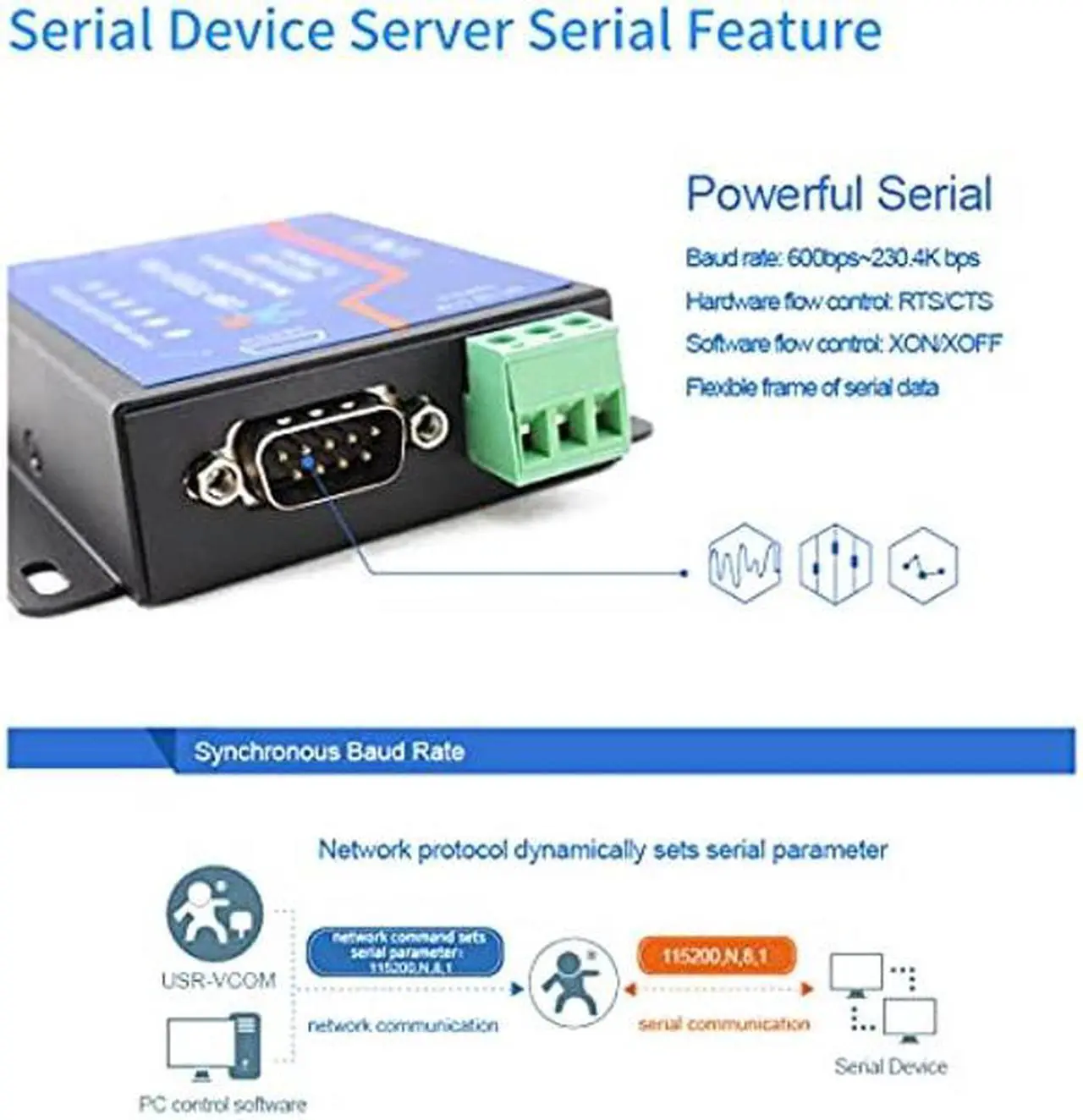

Serial baud rates from 600 bps to 230. 4K bps; Check the Bit of None, Odd, Even, Mark and Space check boxes
DNS and DHCP supported

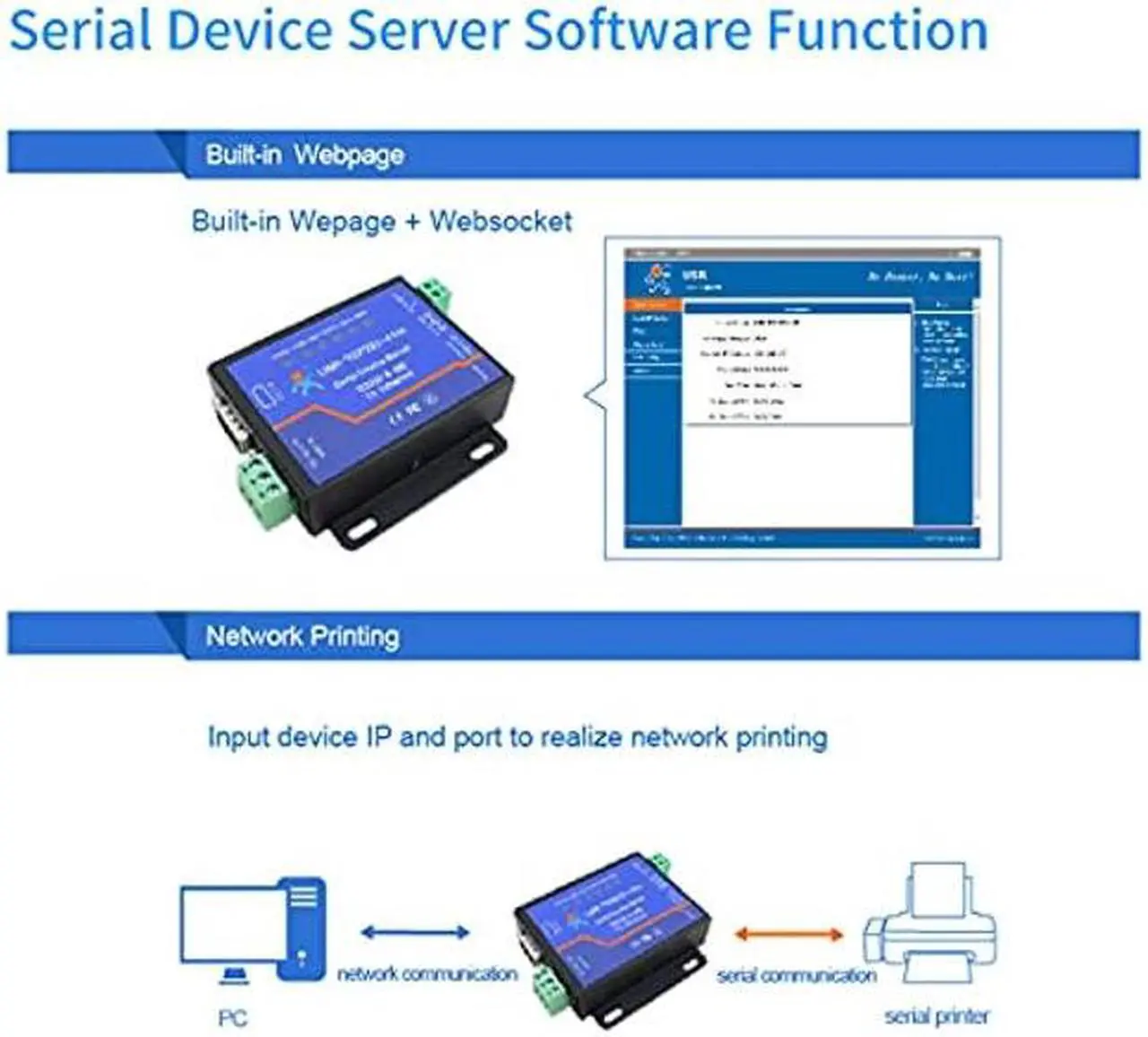

Built-in website; Can also customize web pages for users
Reload Button, a key to restore the default settings
RJ45 with connection / data control light, integrated isolating transformer and electromagnetic 2 kV isolation
The Mac Global Unique Address purchased from Ieee. The user can define the Mac address
Supports firmware upgrade over the network
Supports keep-alive and quickly detects dead links
Supports account and password, can be used for site login and network settings
Supports One Channel Websocket, realizes bidirectional transparent transmission with Bewteen Webpage and Serial 0

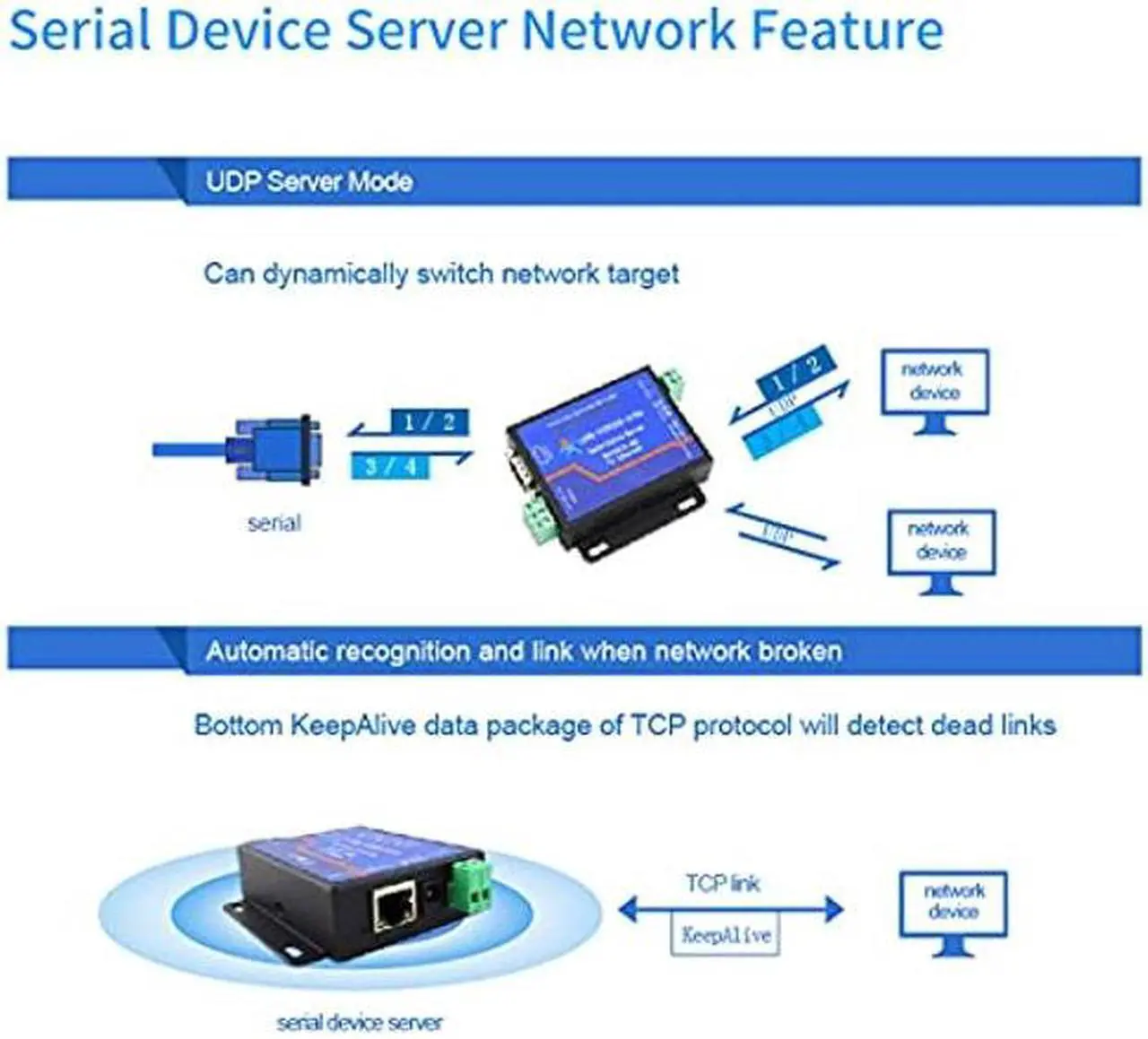

Supports the Udp broadcast function, sends and receives data from all IP addresses in the network.
Package included:
1 x Server with two serial devices,
1 x 5V 1a power supply unit,
1 x Serial cable from socket to socket.
Product description
Multiple indicator lights for convenient debugging
Power-Line Terminal for industrial applications
Enable kernel and Tcp / Ip protocol stack
TCP server, TCP client, Udp, Udp server and HTTPD client working mode
Two ports can work independently of each other at the same time
Support the virtual serial connection and provide the appropriate Usr-Vcom software
Serial baud rates from 600 bps to 230. 4K bps; Check the Bit of None, Odd, Even, Mark and Space check boxes
DNS and DHCP supported
Built-in website; Can also customize web pages for users
Reload Button, a key to restore the default settings
RJ45 with connection / data control light, integrated isolating transformer and electromagnetic 2 kV isolation
The Mac Global Unique Address purchased from Ieee. The user can define the Mac address
Supports firmware upgrade over the network
Supports keep-alive and quickly detects dead links
Supports account and password, can be used for site login and network settings
Supports One Channel Websocket, realizes bidirectional transparent transmission with Bewteen Webpage and Serial 0
Supports the Udp broadcast function, sends and receives data from all IP addresses in the network.
Package included:
1 x Server with two serial devices,
1 x 5V 1a power supply unit,
1 x Serial cable from socket to socket.
