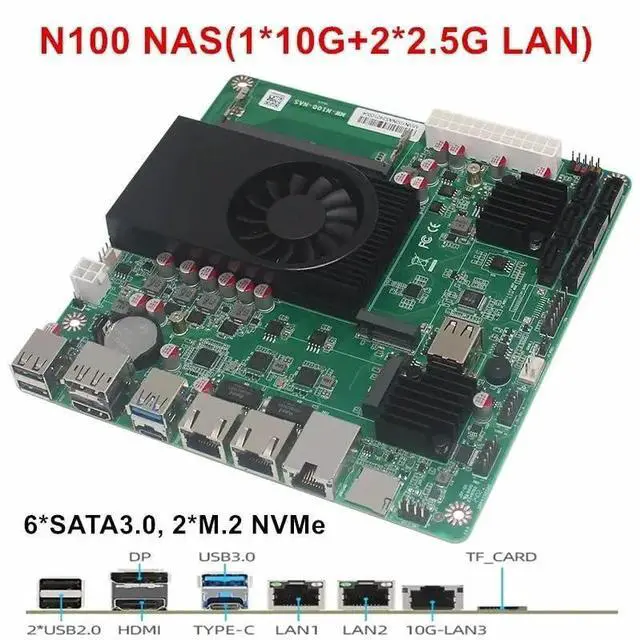

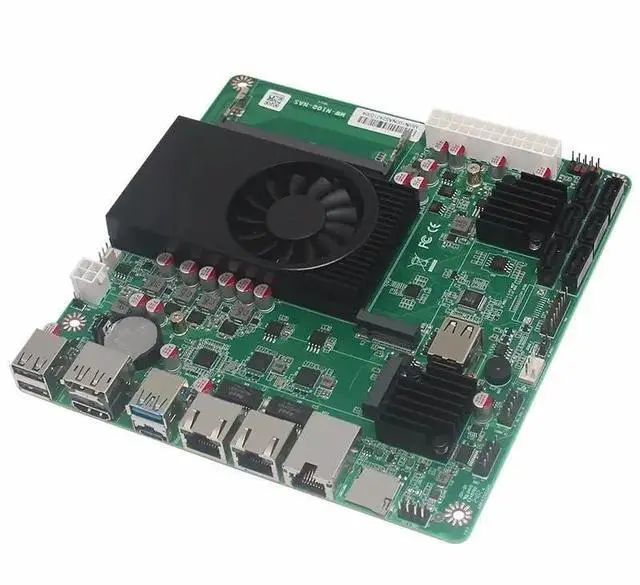

HKUXZR 1 * 10G 2*i226-V 2.5G 3LAN Intel N100 NAS Motherboard 6-Bay 6*SATA3.0 2*M.2 NVMe 1*DDR5 Soft Router ITX Mainboard
- Low power processorIntel Celeron Processor N100: 4 Cores 4 Threads, 6M Cache, up to 3.40 GHz, with Intel UHD Graphics.
- High speed network cardThis NAS motherboard has 3* LAN (2*Intel i226+1*10G) network ports to deliver a secure, stable and fast network connection for professional network security firewall appliance and multimedia use.
- Industrial NAS Motherboard Mini-1TX size: 17.0 cm x 17.0 cm,High-density moisture-proof fiber circuit board Ultrafast Connectivity--2* USB3.0, 2* USB2.0, 2* built-in USB on board for for USB booting of the NAS system. 1* HDMI2.1 and 1* DP1.4b to support dual 4K@60Hz display.
- Storage and Memory1* DDR5 slots, compatible with 4800/5200/5600MHz (non-ECC), RAM supports up to 32GB, 6* SATA3.0 with 6Gbps (SATA1 is native, SATA2-SATA6 is extended by the JMB585 chip) and 2* M.2 NVMe 2280 PCIE3.0x1, stable and ultra-fast transfer speed.Dual 4K Display: This mini-ITX board has HDMI2.0 and DP1.4 ports at 4K@60Hz.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

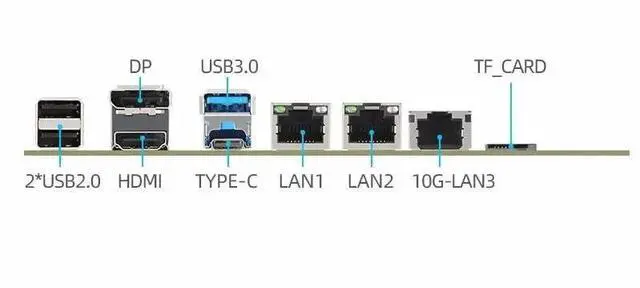

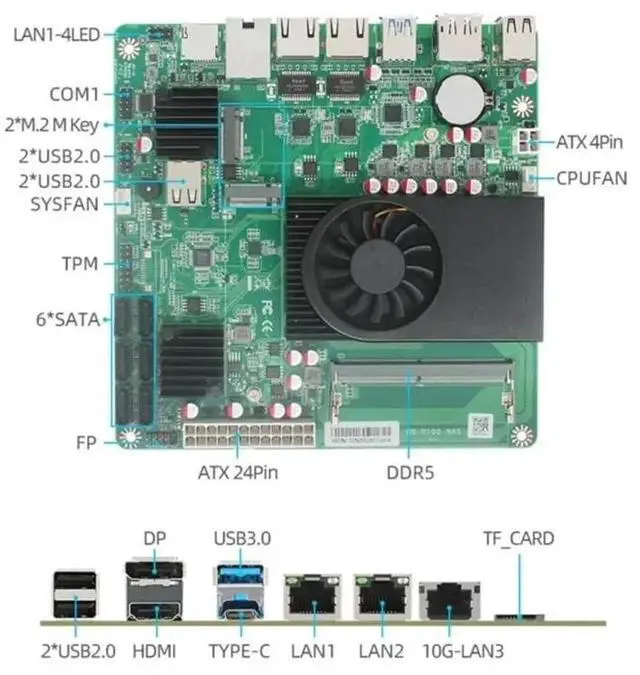

Intel Alder Lake-N N100/N305 CPU Memory 1*DDR5 memory slot, 4800MHz, memory supports up to 32GB Network 3*LAN (2*Intel i226 2.5G +1*10G network port), supports diskless boot, network wake-up Display support 1*HD+1*DP, supports synchronous or asynchronous display Storage device 6*SATA 3.0, 2*M. 2 (NVME) I/O interface 3*LAN (2*Intel i226 2.5G +1*10G network port) 1*HD 1*DP 1*USB 3.0 1*TYPE-C (full function) 2*USB 2.0 1*TF_CARD (TF card) Onboard I/O interface 1*COM 2*USB 2.0 (pin header), 2*USB 2.0 6*SATA 3.0 2*M. 2 (NVME) 1*FP, 1*TPM 1*CPUFAN, 1*SYSFAN Watchdog timer 0-255S, system reset System selection Win10, LINUX Power supply specification ATX 24Pin+4Pin power supply
Temperature Storage temperature: -20 -70
Operating temperature: -0 -60 Size 170mm*170mm
Temperature Storage temperature: -20 -70
Operating temperature: -0 -60 Size 170mm*170mm
