$233.99
Meet Your Seller

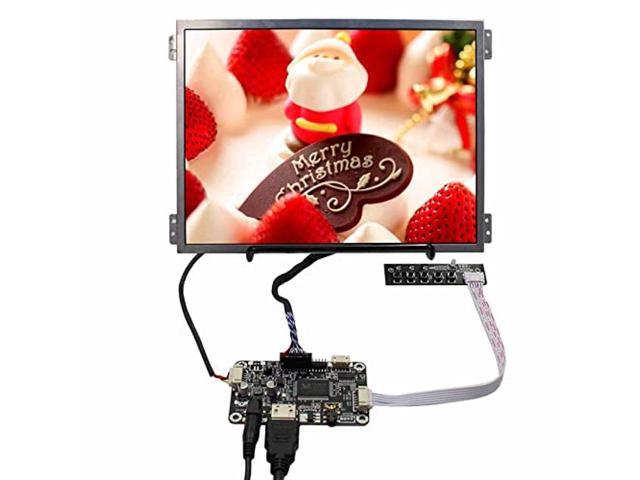

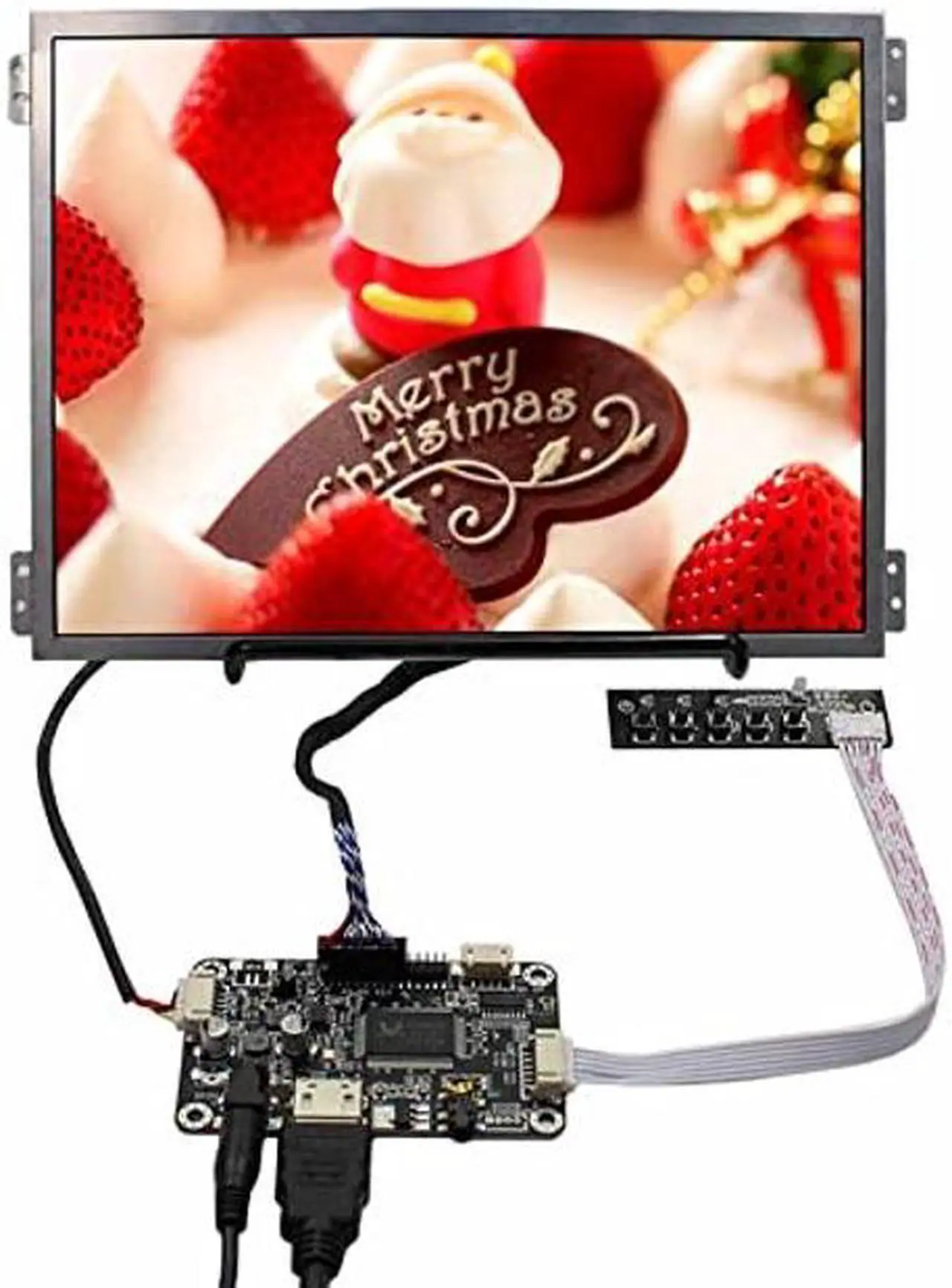

VSDISPLAY 10.4" 10.4 Inch 1024x768 600nit IPS LCD Screen VS104T-004A with HD-MI Audio LCD Controller Board
- 10.4" VS104T-004A 1024X768 LCD Screen: Resolution 1024x768 Outline Size 227.00x175.80x7 (HxVxD) Display Area 210.43 x 157.824 (HxV) Brightness 600 cd/m2 (Typ.) Contrast Ratio 1000:1 (Typ.) (TM) Viewing Angle 80/80/80/80 (Typ.)(CR>=10) [Left / Right / Up / Down]
- HD-MI LCD Board Work for LVDS Interface LCD Screen
- Video Input: HD-MI Audio Input: HD-MI Audio Output: Speaker earphone
- Recommend Power Adapter Spec. Input Power Adapter: 12Vdc More than 2A. (VSDISPLAY Power Adapter, AC 100-240V Input to 12V DC,2A Output ,Power Supply, US Plug...) Come In Standby Model When Not Input Signal Standby Model <1W.
- Packing list: 1xHD-MI Audio LCD Controller Board 1x10.4inch VS104T-004 1024X768 LCD Screen 1x Inverter Board 1x LVDS Cable 1x Keyboard With Cable. (Please Note There is No Power Adapter in The Packing List.)
+
+
Overview
Specs
Reviews
Description

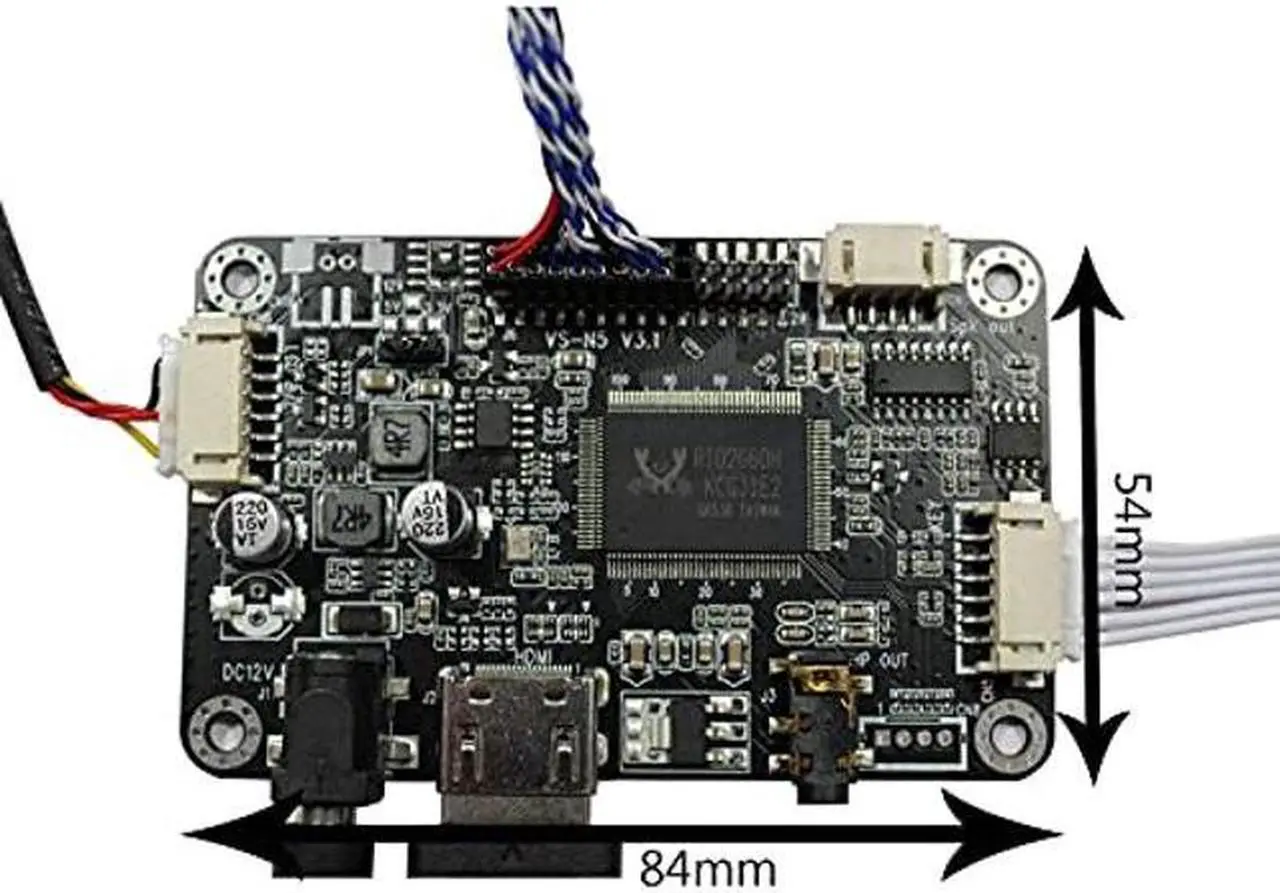

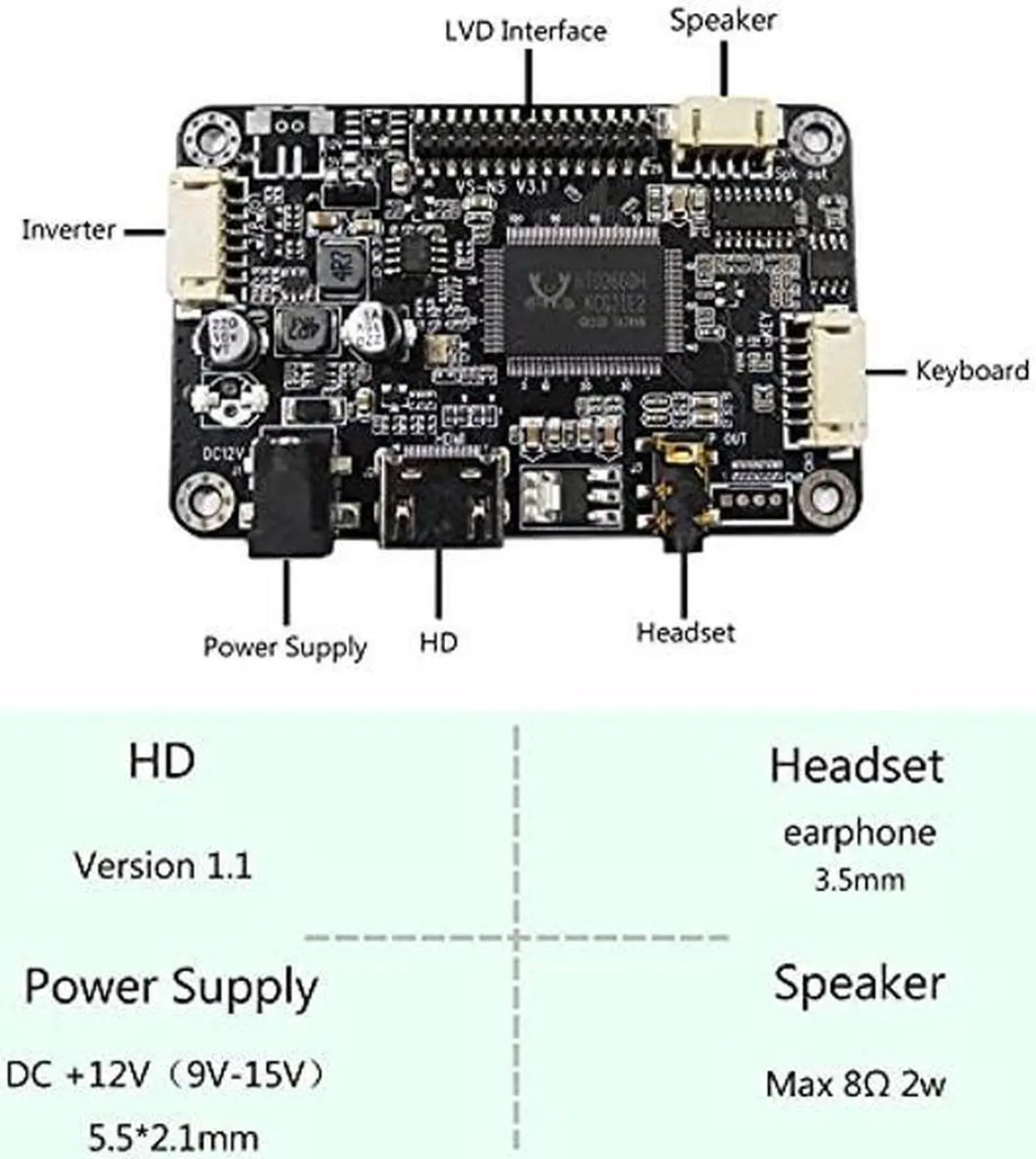

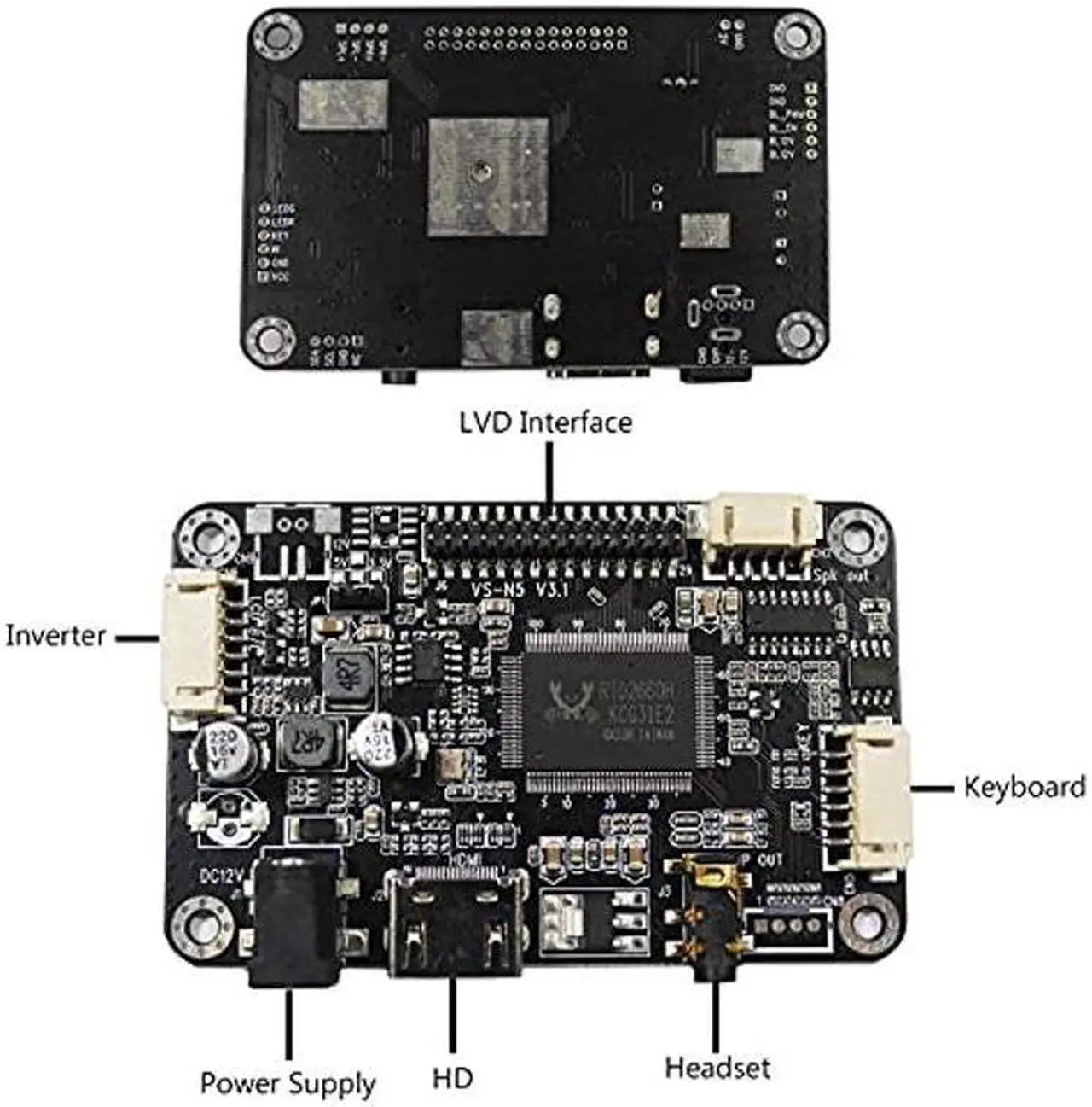

LCD Controller Board:
HD-MI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI
Audio Input: HD-MI
Audio Output: Speaker earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 85mm x 54mm x 14mm
10.4" VS104T-004A 1024X768 LCD Screen:
Display Mode IPS Pro, Normally Black, Transmissive
Resolution 1024x768
Outline Size 227.00 x 175.80 x7 (HxVxD)
Display Area 210.43 x 157.824 (HxV)
Brightness 600 cd/m2 (Typ. )
Contrast Ratio 1000:1 (Typ. ) (TM)
Viewing Angle 80/80/80/80 (Typ. )(CR>=10) [Left / Right / Up / Down]

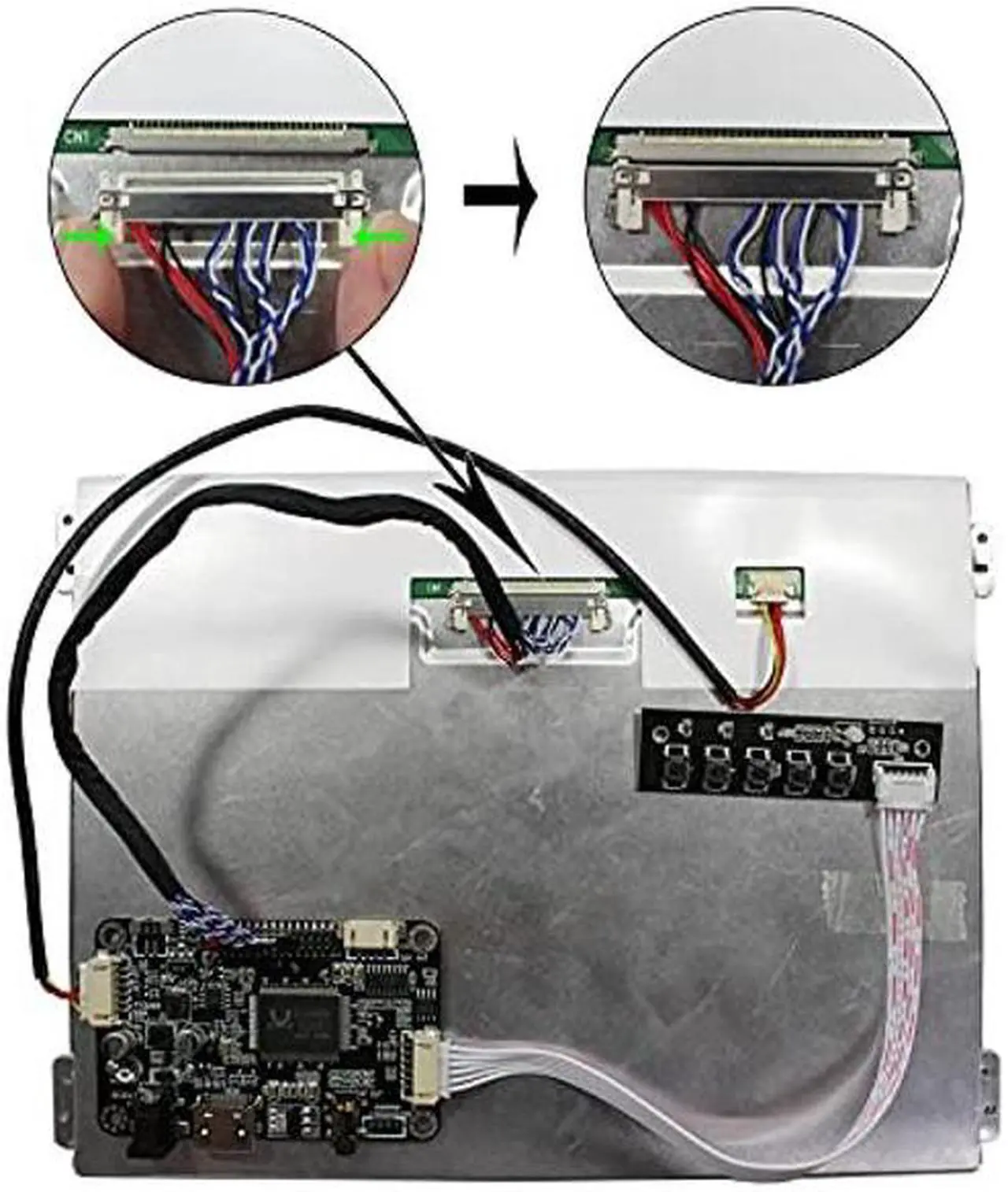

Signal Interface LVDS (1 ch, 8-bit), Connector, 30 pins
Backlight WLED
Input Voltage 3.3V (Typ. )
Packing list:
1xHD-MI Audio LCD Controller Board
1x 10.4 inch VS104T-004 1024X768 LCD Screen
1x Inverter Board
1x LVDS Cable
1x Keyboard With Cable
LCD Controller Board:
HD-MI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI
Audio Input: HD-MI
Audio Output: Speaker earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 85mm x 54mm x 14mm
10.4" VS104T-004A 1024X768 LCD Screen:
Display Mode IPS Pro, Normally Black, Transmissive
Resolution 1024x768
Outline Size 227.00 x 175.80 x7 (HxVxD)
Display Area 210.43 x 157.824 (HxV)
Brightness 600 cd/m2 (Typ. )
Contrast Ratio 1000:1 (Typ. ) (TM)
Viewing Angle 80/80/80/80 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit), Connector, 30 pins
Backlight WLED
Input Voltage 3.3V (Typ. )
Packing list:
1xHD-MI Audio LCD Controller Board
1x 10.4 inch VS104T-004 1024X768 LCD Screen
1x Inverter Board
1x LVDS Cable
1x Keyboard With Cable
