Ingcool 7inch HDMI LCD with Case for Raspberry Pi Capacitive Touchscreen 1024x600 IPS Display Screen Monitor Compatible with Raspberry Pi 4B/3B+/3B/Zero/Jetson Nano Support Windows 10/8.1/8/7

Introduction
7 inch Capacitive Touch Screen LCD (H) with Case and Toughened Glass Cover, 1024x600, HDMI, IPS, Various Devices &Systems Support

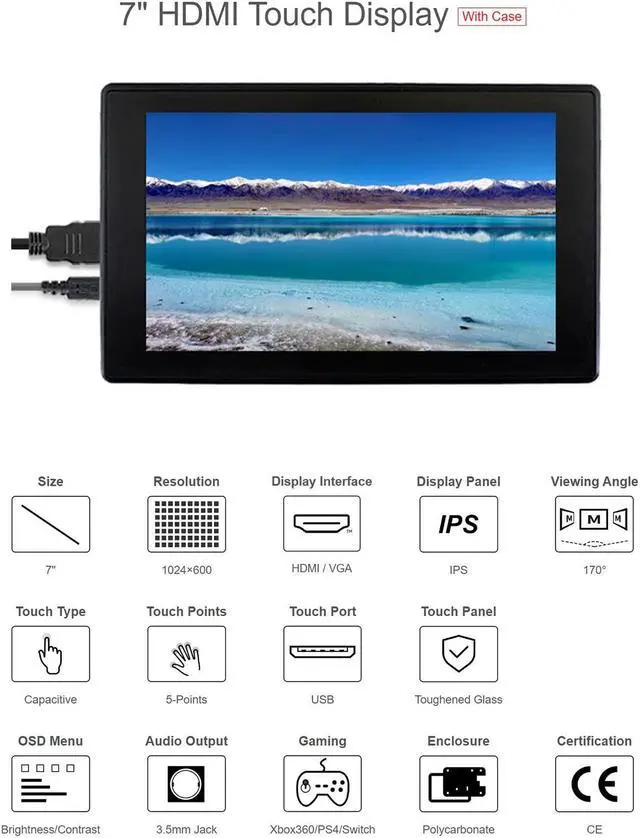

Features
Screen Size: 7 inch
Item Dimensions: 190.5 (W) * 114.6 (H)
High resolution: 1024x600
Display Port: HDMI / VGA
Display Panel: IPS

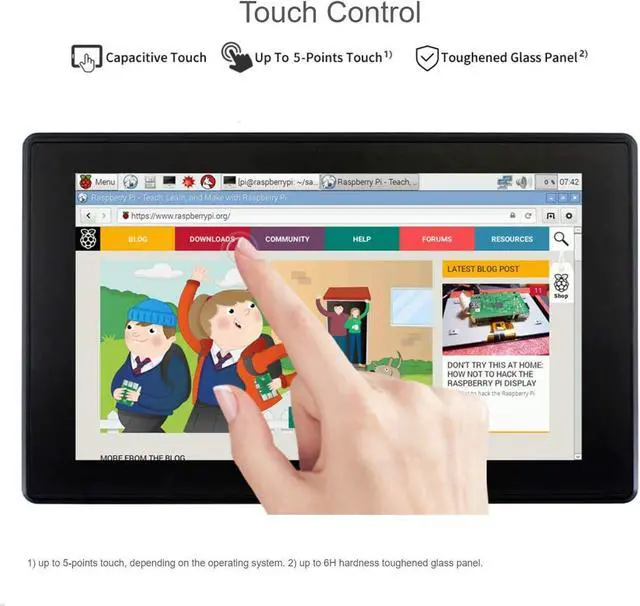

Touch Control: Capacitive touch, up to 5-points touch
Touch Port: USB
Touch Panel: Toughened Glass
OSD Menu: Powermanagement/brightness/contrast adjustment, etc.
Audio Output: 3.5 mm audio jack and supports HDMI audio output

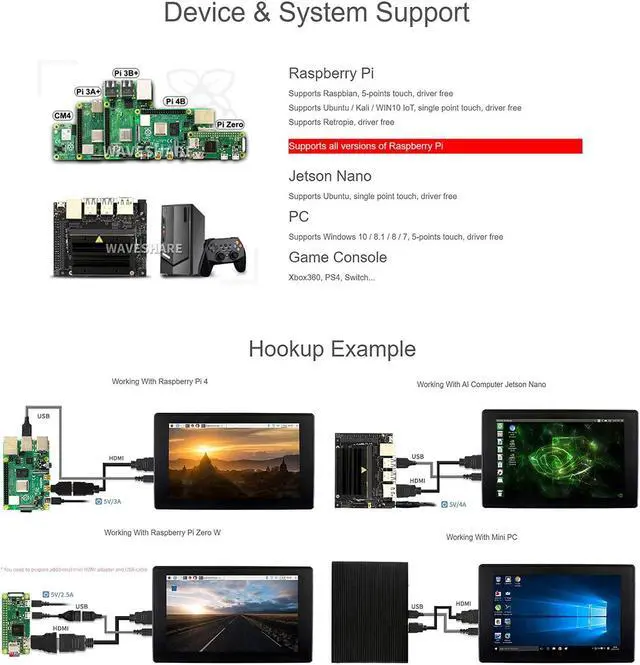

Device & System Support: Raspberry Pi 4B/3 B+ A+ B/2 B/ B+/A+/Zero W/WH, Jetson Nano, Windows 10 / 8.1 / 8 / 7, XBOX360, PS4, Nintendo Switch, etc.

Note

1. When working with PC, Sometimes LCD willflicker because of undersupplying from USB cable of PC, You need to connect anexternal power supply (5V/2A) to DC port. Some of PC cannot support HDMI screenHot Plug. In this case, restart the PC can solve.

2. When working with Raspberry Pi, Pleaseset the resolution of the LCD by yourself, otherwise, the LCD screen will notwork. If you use the LCD with Raspberry Pi 4B, you need to remove linedtoverlay=vc4-fkms-V3D from config. txt file.

3. When working with Jetson Nano Developer Kit, the display willbe auto-recognized, it is plug and play.

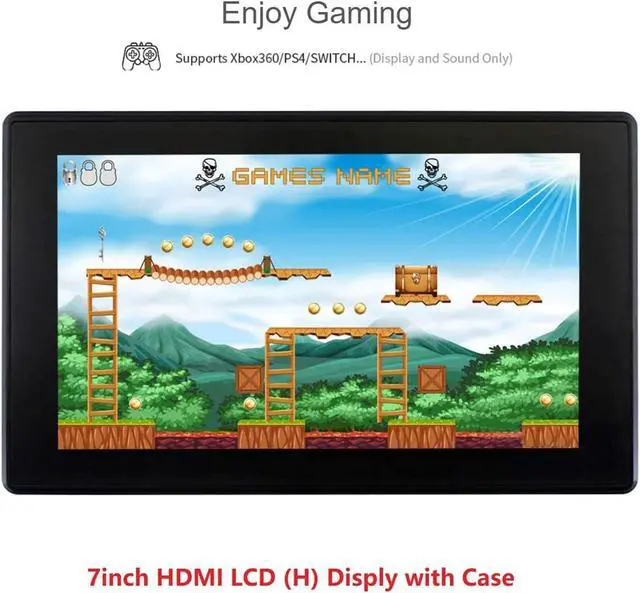

4. When working with game console, Limited bythe game console OS, the touch function is unavailable.

Package Content
1x 7inch HDMI LCD (H) (with case)
1x HDMI cable
1x HDMI to Micro HDMI Adapter
1x USB type A plug to micro B plug cable
1x Quick start sheet

Note
Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
