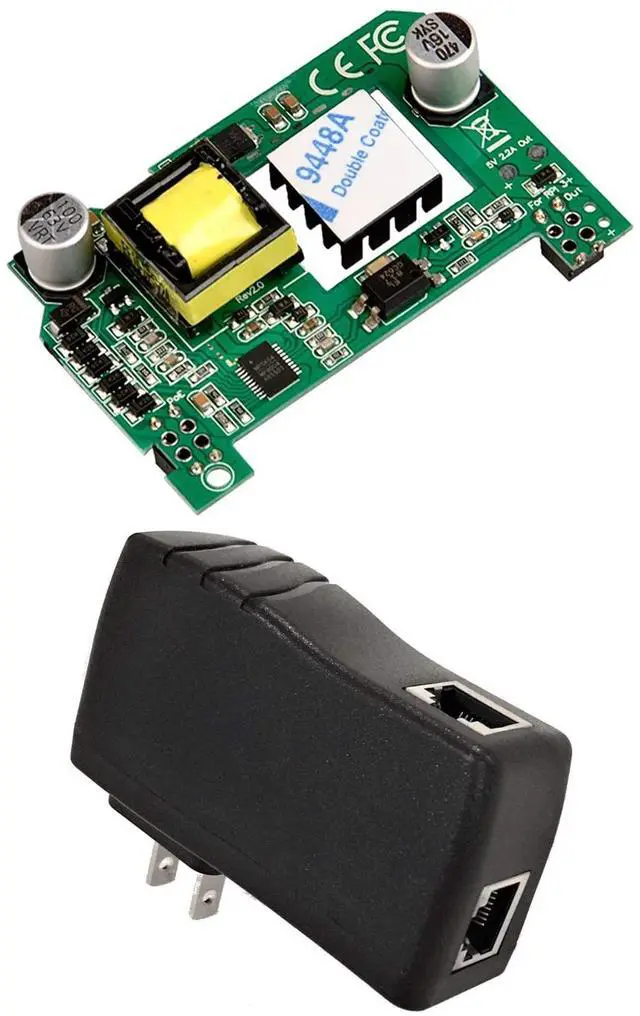

PoE Texas Raspberry Pi PoE Hat and Poe Texas PoE Injector - Single Port Power Over Ethernet Passive PoE Adapter

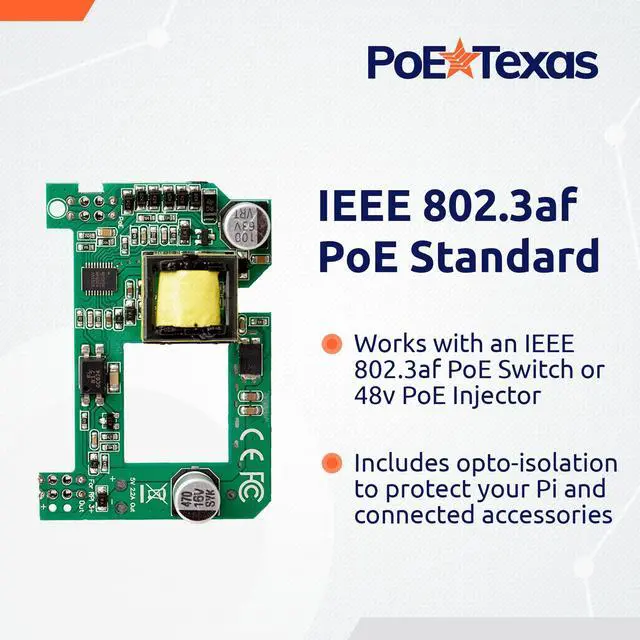

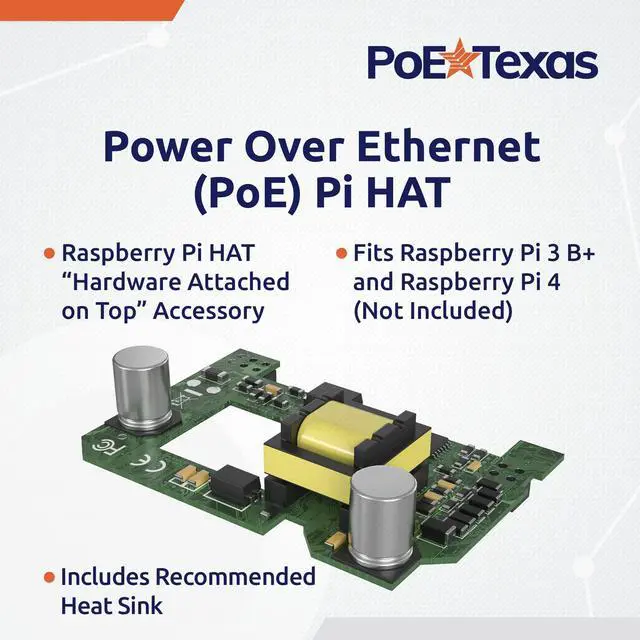

GAF-PIHAT: An IEEE 802.3 af PoE Solution. We have developed a smaller, more efficient Pi-HAT than the official one from Raspberry Pi still with opto-isolation. This PoE HAT works with an IEEE 802.3 af network switch or 48v PoE injector. Fits Raspberry Pi 3 B+ and Raspberry Pi 4 (Not Included). Our design fits inside the Official Pi enclosure case and takes up less of the board space, delivering active Power Over Ethernet (Power + Data) with auto-negotiation. Smaller and more space efficient than the Official Pi-HAT. Fits inside Official Raspberry Pi Enclosure (Not included). Comes with a heat sink. No cooling fan required. Fanless design is slim, sleek, compact, and less bulky.
Extra layer of protection: optocouple isolation with flyback topology to prevent shorting the board, especially for media applications. Provides a regulated 5 volts 2.4 amp with solder pads on top for a DC bus. Increases efficiency above 90% for DC to DC conversion.

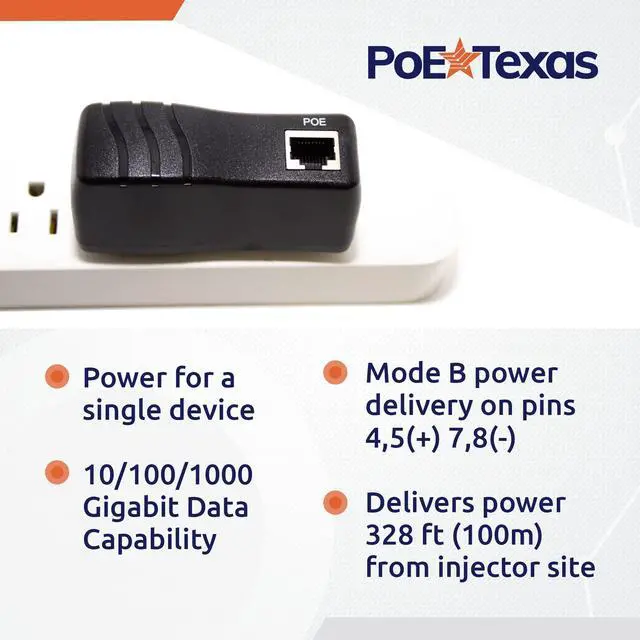

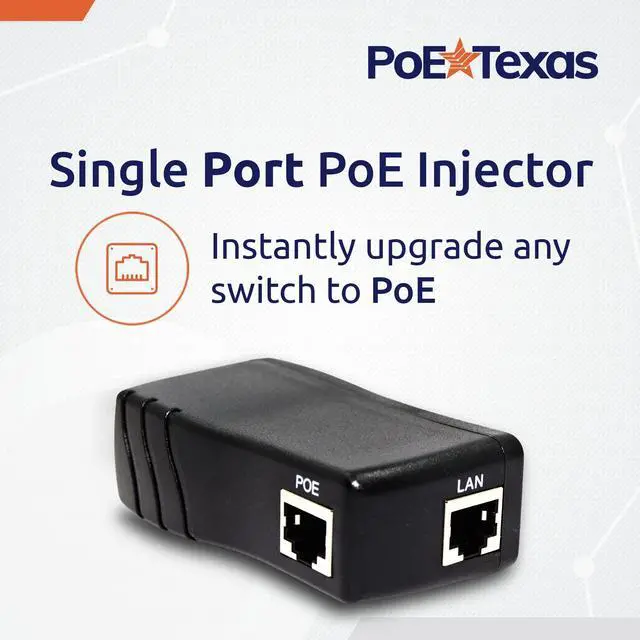

GPOE-1A: Instantly add PoE to your network switch or router. This small, compact mountable PoE injector screws into the wall near an outlet or to the underside of desks, reducing clutter and offering versatility for your setup. Power IP security cameras, VoIP desktop phones, WiFi access points, and other devices that accept passive 802.3 af using a data network cable and this passive Power over Ethernet adapter / single port injector. This midspan injector includes a UL certified 48 volt, 15 watt DC power supply to power devices labeled 802.3 af. Delivers power up to 328 ft from the injector site. Compatible PoE devices must have a wattage of 15w or less. Plug and play. Our single port PoE adapter transmits 10/100/1000 Gigabit data, delivering lightning fast wired speeds with no loss of signal quality via one Data In port and one Data + Power Out port.
