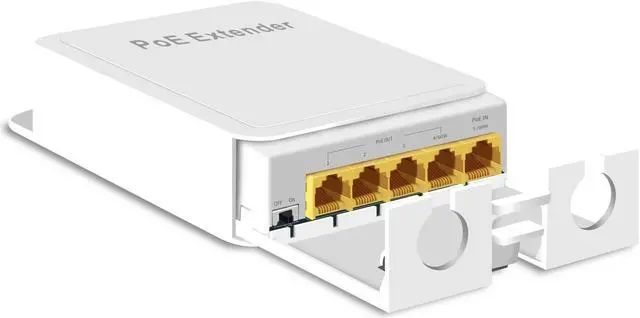

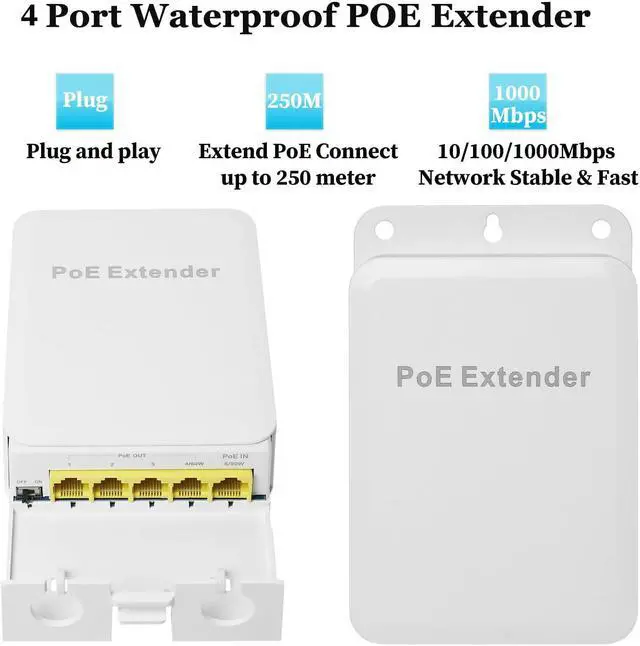

REVODATA 4 Port Outdoor Gigabit PoE Extender, 10/100/1000 Mbps PoE Repeater 100/250 Meter Extend, IEEE802.3af/at/bt Max 60W 4 PoE Output Waterproof for Outdoor, Plug and Play (WPOE6005G)

Note:

1. This Extender is not a PoE Switch, it can not work without powered from PoE Switch/PoE injector/PoE NVR.

2. Please don't place any heavy thing on the PoE extender;

Overview:
4*100/1000mbps POE port to output, 1*100/1000mbps port to input

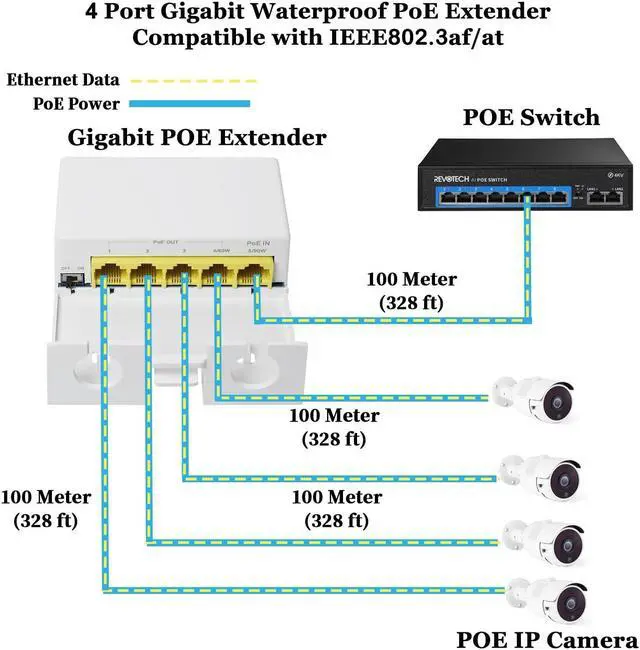

100m Distance and VLAN, IP65

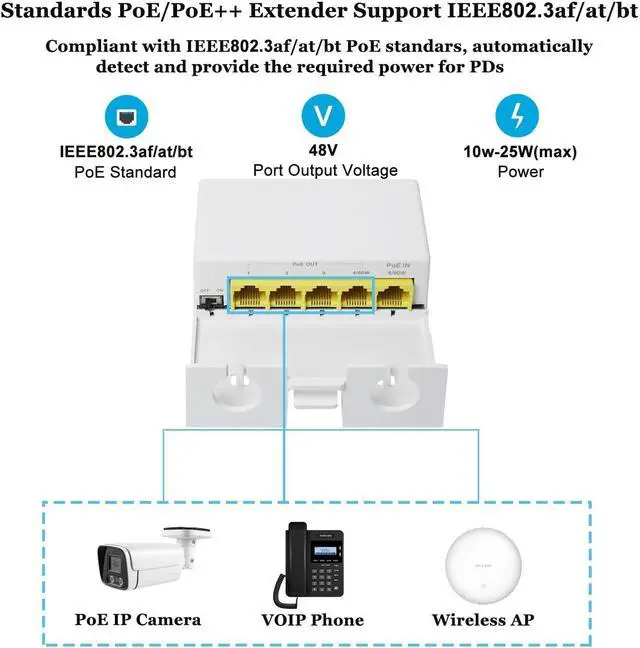

Support IEEE 802.3 af/at/bt

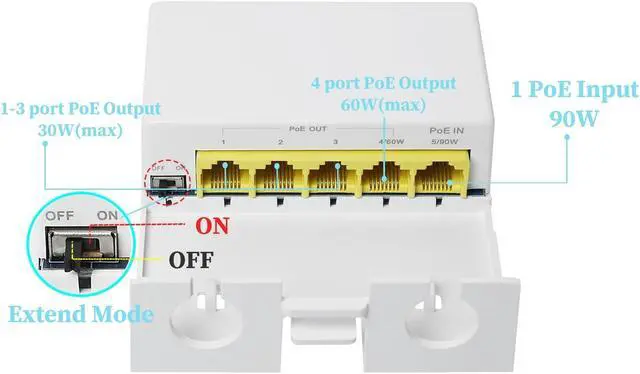

POE In: 44V-57V/90W;
POE Output (1-3): POE 48V, Power: 10w-25W (max)
All port supported by MDI/MDIX auto flip and self negotiation
Supply 4 100/1000Mpbs adaptive high speed forwarding data packet

Specification:
PoE input: 1 RJ45 port
PoE output: 4 RJ45 port
Input power: 90 Watts Max
Output power: 10-25 Watts
Ethernet Rate: 10/100/1000Mbps
Network Medium: Cat5 or better UTP cable (less than 100m)
Repeater Mode: Store and forward
MAC Address Table: 1K
Switching Capacity: 10Gbps
PoE Standard: IEEE 802.3 af/at/bt
Power input Pin: 1/2+3/6- 4/5+7/8
Power output Pin: 1-3 port( 1/2+3/6- ), 4 port ( 1/2+3/6- 4/5+7/8-)
Storage Humidity: 5%~90%, No Condensation
Operating temperature: -1055
Dimension: 98 x 148 x 34mm (L*W*H)
Weight: 150g

Package Contents:
1 x WPOE6005G
