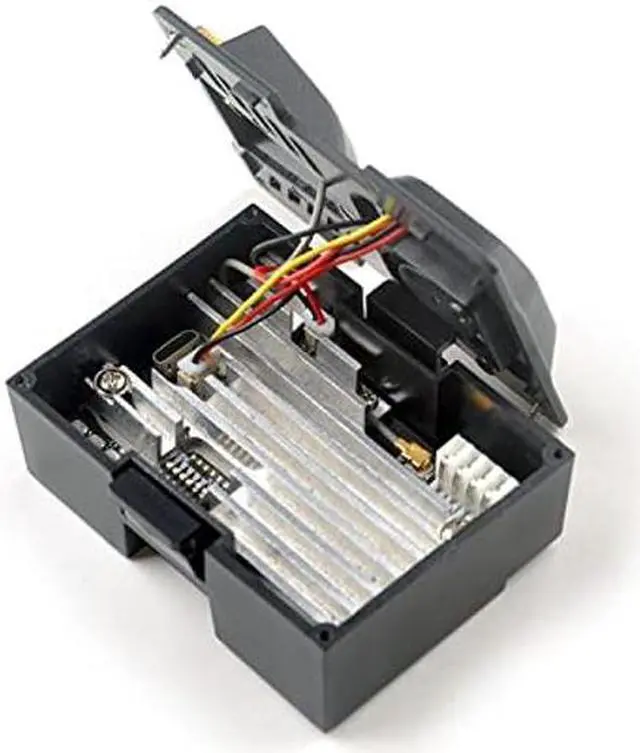

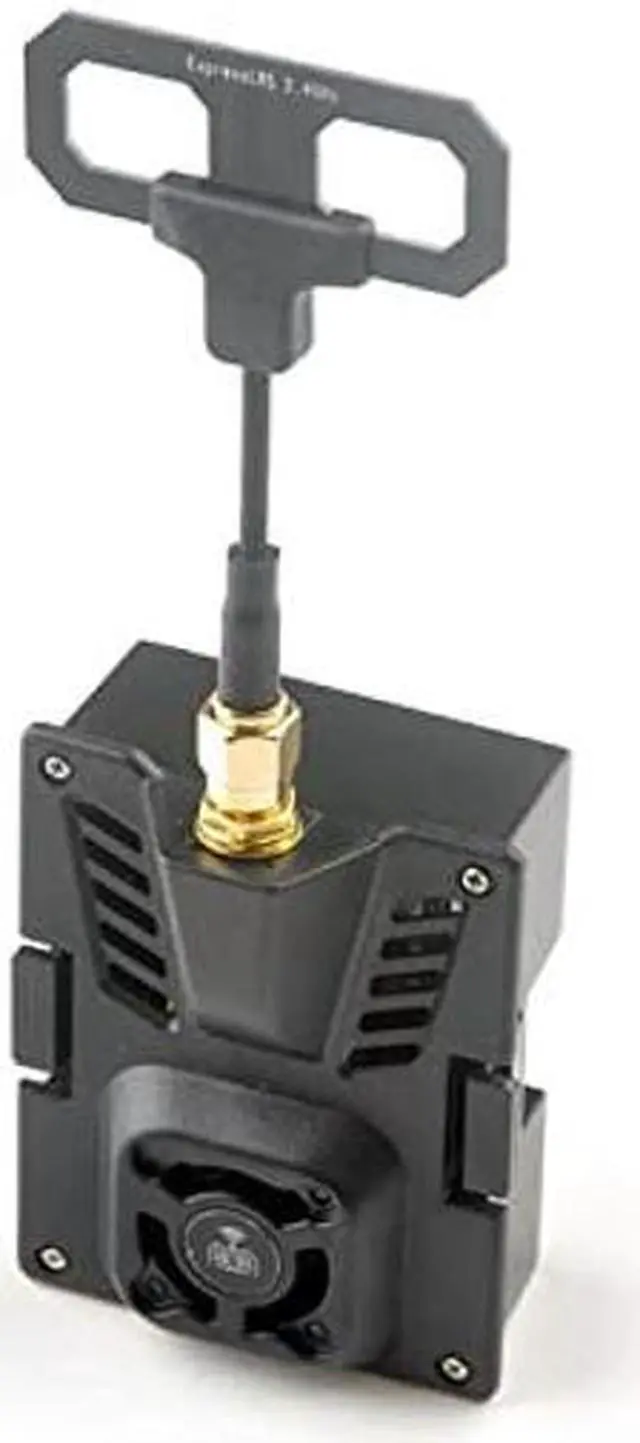

HAPPYMODEL ES24TX Pro ELRS Micro TX Module 2.4G 1000mW with Cooling Fan RGB LED for FPV Drones
- Upgraded Version?This ES24TX Pro Module is the upgraded version of ELRS Micro TX Module, it`s plug and play.
- Upgraded Part: Max output up to 1000mw, reserved Cooling Fan and RGB LED module.
- Application: This Micro TX module support most of the OpenTX radio transmitter that with Micro JR bay.
- Customized Antenna: Happymodel 2.4GHz Moxon antenna, Antenna gain 4.18dBi.
- RF Output Power >30dBm, Receiver Refresh Rate 25Hz - 500Hz, Power Supply Voltage 5V~10V.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Happymodel ES24TX Pro ELRS Micro TX Module 2.4G 1000mW with Cooling Fan RGB LED
The ES24TX Pro Micro ExpressLRS TX module is a upgrade version of ES24TX module.
Max output up to 1000mw, reserved Cooling Fan and RGB LED module.

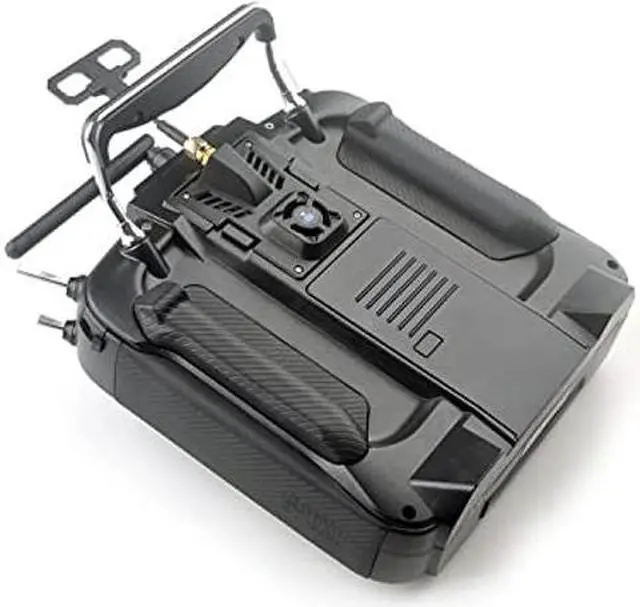

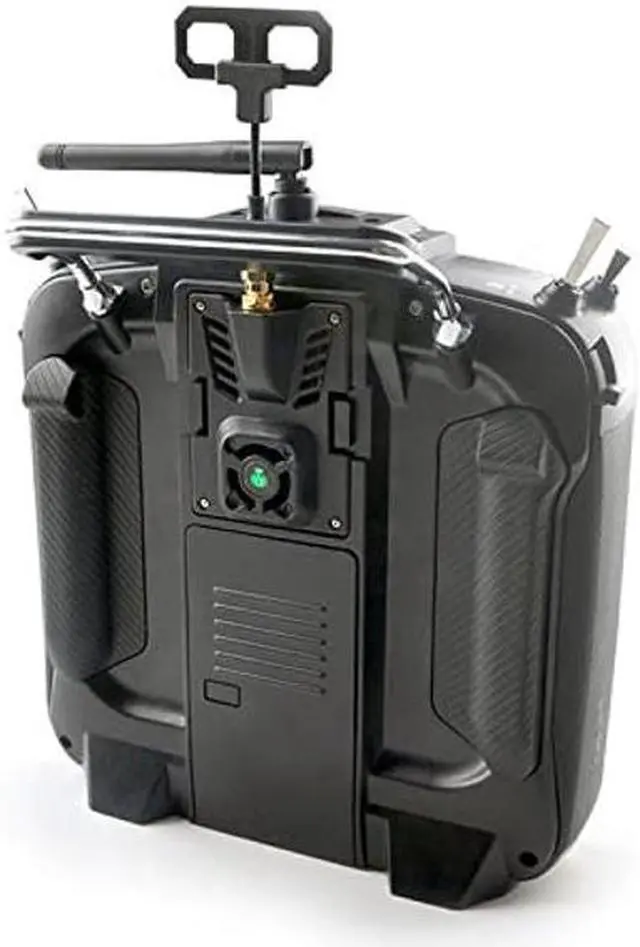

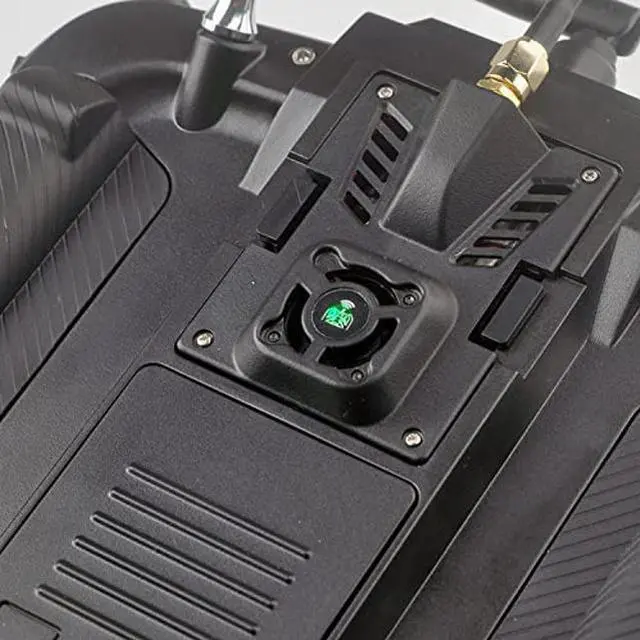

This Micro TX module support most of the OpenTX radio transmitter that with Micro JR bay.
And this time the ES24TX Pro module comes completely assembled before out of factory.
Based on the open source- ExpressLRS, This module is a very popular low latency and high re-flashed rate RF module for RC Airplane and FPV Racing.
Regulatory Domain: ISM2400
MCU: ESP32 (main), ESP8285(aux, as espbackpack)
RF chip: SX1281IMLTRT
JR standard 5pin socket
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
RF Output Power: >30dBm
Power supply voltage: 5v~10v
Weight: 51gram(without antenna?
Dimension: 70mm*49mm* 32.5 mm
Antenna gain: 4.18 dBi
Firmware target: HappyModel_ES24TX_Pro_Series_2400_TX
Package include:
ES24TX Pro Micro TX module *1
Happymodel 2.4GH z Moxon antenna *1
3D Printed mounting box *1
The ES24TX Pro Micro ExpressLRS TX module is a upgrade version of ES24TX module.
Max output up to 1000mw, reserved Cooling Fan and RGB LED module.
This Micro TX module support most of the OpenTX radio transmitter that with Micro JR bay.
And this time the ES24TX Pro module comes completely assembled before out of factory.
Based on the open source- ExpressLRS, This module is a very popular low latency and high re-flashed rate RF module for RC Airplane and FPV Racing.
Specifications
:Regulatory Domain: ISM2400
MCU: ESP32 (main), ESP8285(aux, as espbackpack)
RF chip: SX1281IMLTRT
JR standard 5pin socket
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
RF Output Power: >30dBm
Power supply voltage: 5v~10v
Weight: 51gram(without antenna?
Dimension: 70mm*49mm* 32.5 mm
Antenna gain: 4.18 dBi
Firmware target: HappyModel_ES24TX_Pro_Series_2400_TX
Package include:
ES24TX Pro Micro TX module *1
Happymodel 2.4GH z Moxon antenna *1
3D Printed mounting box *1
