SIENSNET N150/N355 NAS Mini ITX Motherboard, 6xSATA3.0, DDR5, 4x2.5G LAN, HDMI+DP 4K@60Hz, 2xM.2 NVMe, Type-C (N355+Jon Fan)
- Processor Support: Inte 12th gen Twin Lake-N N150 N355 low-power processor, standard 17x17 Nas Mini ITX cpu combo form factor, compatible with market 115X series radiators
- Storage Interfaces: Dual M.2 NVMe x1 signal (PCIe3.0) 2280 size, 6 SATA3.0 onboard (JMB585 chip) 6Gbps high-speed hard disk interface; 1 PCIe x1 slot, supports expansion card (shares signal with the second M.2)
- Networking: 4 x Inte i226-V 2.5G Four network ports chips for high-speed network connectivity
- Memory: 1xSO-DIMM DDR5 4800 memory slot compatible with 5200/5600MHz, DDR5 support for faster performance and improved
- Featured 6 bay nas board: 1 Realtek-ALC897 two-in-one 3.5mm audio interface; 1 HDMI2.1+1 DP1.4b supports dual display 4K@60Hz; 1 USB3.0+2 USB2.0+1 USB-C 2.0 signal
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

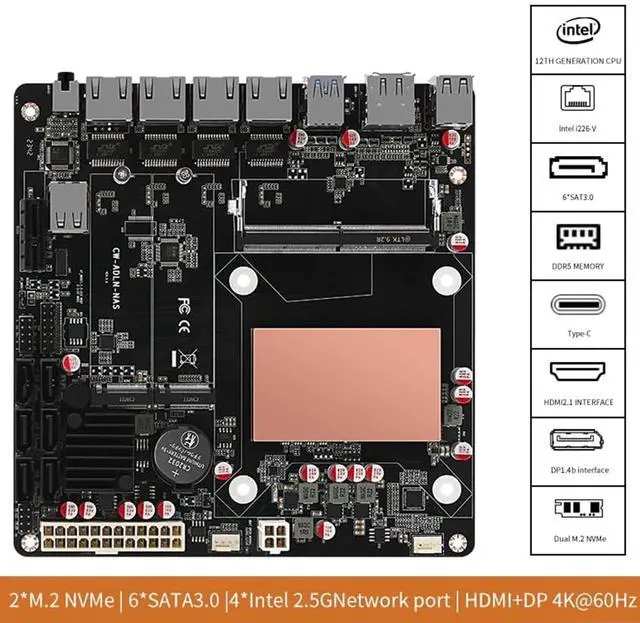

Motherboard core features
Inte 12th Generation Twin Lake-N low-power processor
Standard 17x 17 Mini-ITX form factor compatible with market 115x series radiators
Dual M. 2 NVMe x1 signal (PCle 3.0 ) 2280 size
6 SATA 3.0 onboard (JMB585 chip) 6Gbps high-speed hard disk interfaces
4 Inte i226-V 2.5G network card chips
1 SO-DIMM DDR5 4800 memory slot compatible with 5200/5600MHz
HDMI 2.1 +DP 1.4 b supports dual display 4K@60Hz
1 USB 3.0 +2 USB 2.0 +1 USB-C 2.0 signal
1 Realtek-ALC897 2-in-1 3.5 mm audio interface
1 PCle x1 slot supports expansion cards (shares signal with the second M. 2)
Motherboard features: Matte black PCB
Processor: High-density moisture-free fiber 8-layer circuit board
Memory: full protection (supports all USB, audio sources, network interfaces)
Processor:
Inte Twin Lake-N N150 4 (Threads: 4) 6M Cache, Up to 3.6 GHZ
Intl Twin Lake-N I3-N355 8 (Threads: 8) 6M Cache, Up to 3.9 GHz
Memory:
Support notebook DDR5 memory technology
1*SO-DIMM DDR5 memory slot
Compatible with DDR5 4300/5200/5600MHz
Maximum capacity of a single memory: 32GB
TDP: 9-15W
Storage:
6xSATA 3.0 6Gb/s interface
SATAI is native (2-6SATA interface is expanded by JMB585)
2*M. 2 NVMe x1 signal 1* (2280)
Network card: 4*Inte i226-V 2.5G RJ45 network port
Graphics card:
N150 integrated Inte super calibrated graphics card; 24EU
i3-N355 integrated Inte UHD graphics; 32EU
HDMI 2.1 interface supports 4K@60Hz
DP 1.4 b interface supports 4K@60Hz
Onboard interface:
1*FPANEL pin
1*TPM pin (compatible with 14-pin SPl ASUS TPM module)
1*USB 2.0 pin
1*CPU_FAN CPU fan 4pin socket (with temperature control)
1*SYS_FAN system fan 4pin socket (with temperature control)
1*24+4 ATX power interface
1*USB 2.0 socket (double-layer USB)
1*PCle x1 socket (the signal is shared with the second M. 2, choose one of the two)

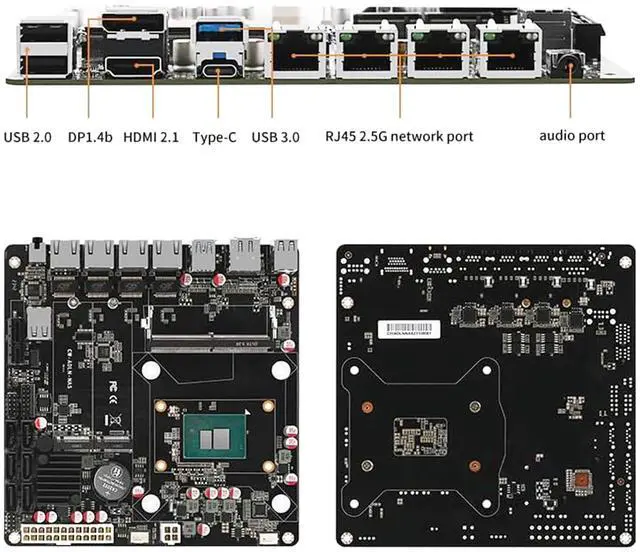

IO panel:
2*USB 2.0
1*USB 3.0
1*Type-C ( 2.0 rate)
1*HDMI
1*DP
4*RJ45 2.5G network port
1*AUDIO two-in-one 3.5 mm audio interface
Structure:
MINI-ITX specifications; 6.7 -in x 6.7 -in, 17.0 cm x 17.0 cm
All solid capacitor design
Operating system:
Compatible with Microsoft@Windows 10/11 64-bit
Compatible with Linux
Only supports UEFI mode
Inte 12th Generation Twin Lake-N low-power processor
Standard 17x 17 Mini-ITX form factor compatible with market 115x series radiators
Dual M. 2 NVMe x1 signal (PCle 3.0 ) 2280 size
6 SATA 3.0 onboard (JMB585 chip) 6Gbps high-speed hard disk interfaces
4 Inte i226-V 2.5G network card chips
1 SO-DIMM DDR5 4800 memory slot compatible with 5200/5600MHz
HDMI 2.1 +DP 1.4 b supports dual display 4K@60Hz
1 USB 3.0 +2 USB 2.0 +1 USB-C 2.0 signal
1 Realtek-ALC897 2-in-1 3.5 mm audio interface
1 PCle x1 slot supports expansion cards (shares signal with the second M. 2)
Specifications
Motherboard features: Matte black PCB
Processor: High-density moisture-free fiber 8-layer circuit board
Memory: full protection (supports all USB, audio sources, network interfaces)
Processor:
Inte Twin Lake-N N150 4 (Threads: 4) 6M Cache, Up to 3.6 GHZ
Intl Twin Lake-N I3-N355 8 (Threads: 8) 6M Cache, Up to 3.9 GHz
Memory:
Support notebook DDR5 memory technology
1*SO-DIMM DDR5 memory slot
Compatible with DDR5 4300/5200/5600MHz
Maximum capacity of a single memory: 32GB
TDP: 9-15W
Storage:
6xSATA 3.0 6Gb/s interface
SATAI is native (2-6SATA interface is expanded by JMB585)
2*M. 2 NVMe x1 signal 1* (2280)
Network card: 4*Inte i226-V 2.5G RJ45 network port
Graphics card:
N150 integrated Inte super calibrated graphics card; 24EU
i3-N355 integrated Inte UHD graphics; 32EU
HDMI 2.1 interface supports 4K@60Hz
DP 1.4 b interface supports 4K@60Hz
Onboard interface:
1*FPANEL pin
1*TPM pin (compatible with 14-pin SPl ASUS TPM module)
1*USB 2.0 pin
1*CPU_FAN CPU fan 4pin socket (with temperature control)
1*SYS_FAN system fan 4pin socket (with temperature control)
1*24+4 ATX power interface
1*USB 2.0 socket (double-layer USB)
1*PCle x1 socket (the signal is shared with the second M. 2, choose one of the two)
IO panel:
2*USB 2.0
1*USB 3.0
1*Type-C ( 2.0 rate)
1*HDMI
1*DP
4*RJ45 2.5G network port
1*AUDIO two-in-one 3.5 mm audio interface
Structure:
MINI-ITX specifications; 6.7 -in x 6.7 -in, 17.0 cm x 17.0 cm
All solid capacitor design
Operating system:
Compatible with Microsoft@Windows 10/11 64-bit
Compatible with Linux
Only supports UEFI mode
