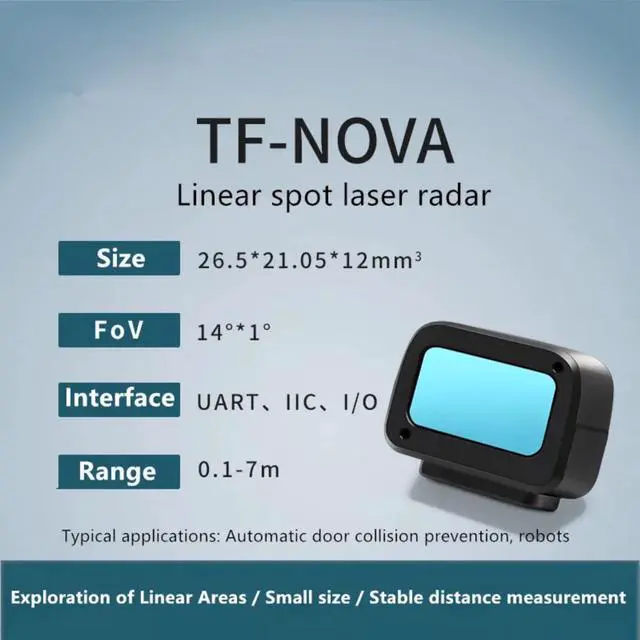

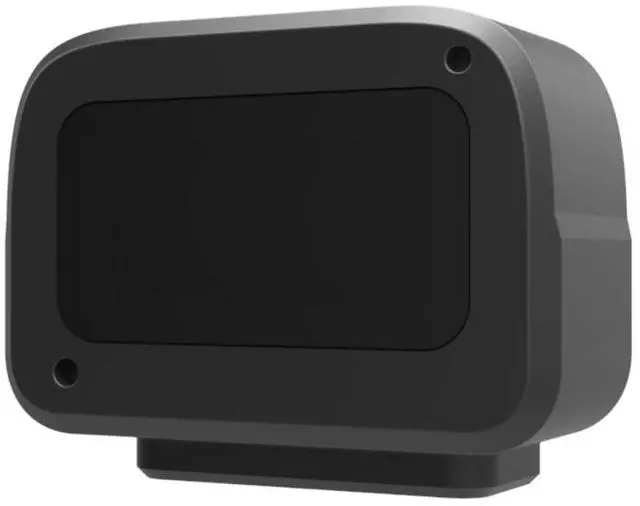

youyeetoo TF-NOVA Lidar Sensor - Compact Size Linear Spot Laser Radar Range 0.1-7M Outdoor Indoor Stable Detection Supports UART, IIC, I/O

NOTICE 14deg and 1deg are theoretic values. Because the manufacturing error and the installing error exist, there is divergence between actual and theoretic values. The measurement range is measured when all light spots are placed on the target board, at 25. Changes in conditions may cause variations in the measurement results. The accuracy is measured under the condition of 25, Oklux, and 10% reflectance background board, and changes in conditions may cause changes in the measurement results. Features Compact structure Lightweight Low-power consumption Cost-effective
Applications Assisted Focusing Elevator projection Intrusion detection Level measurement

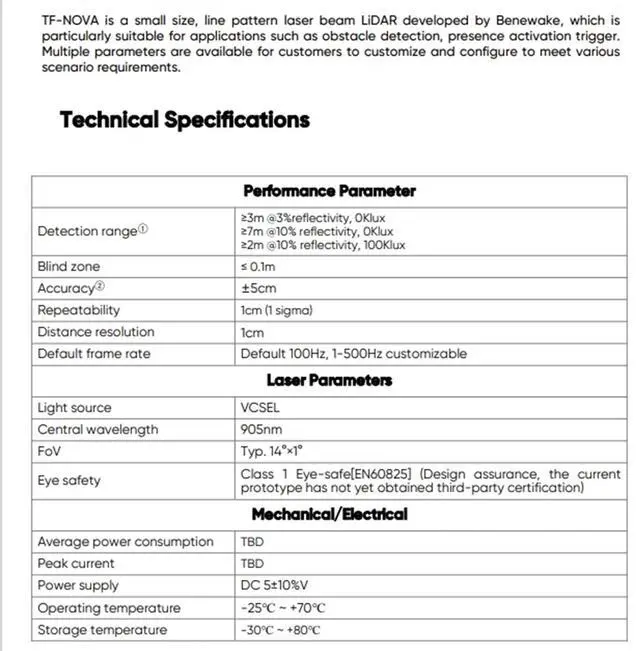

Performance Parameters

Detection Range >=3m @ 3% reflectivity, 0Klux >=7m @ 10% reflectivity, 0Klux >=2m @ 10% reflectivity, 100Klux Blind Zone <= 0.1m Accuracy +-3cm @ 0.1-4m Repeatability 1cm (1 sigma) Distance Resolution 1cm Default Frame Rate Default 100Hz, 1-500Hz customizable Laser Parameters

Light Source VCSEL Central Wavelength 905nm Field of View (FoV) Typ. 14deg x 1deg
Communication Protocol

Communication Interface UART, IIC, I/O Baud Rate Default 115200
Data Bit: 8
Stop Bit: 1
