Extended Temperature Range 10G SFP+ to SFP+ Fiber to Fiber Media Converter - DIN Rail - 10G OEO 3R Transparent Repeater - 2 x Open SFP+ Slots - Supports 10GB SFP+ or 1GB SFP's - Without Transceivers

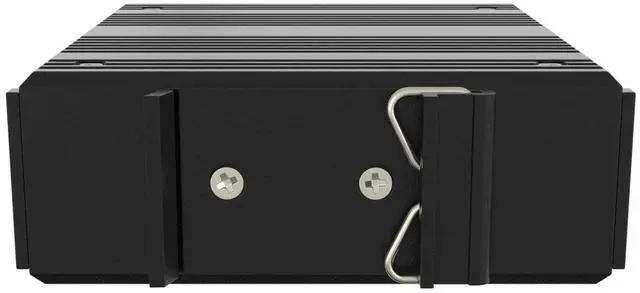

- Extended Operating Temperature Range -40°C to +85°C (-40°F to 104°F) & DIN rail support
- Durable & Reliable 3R OEO 10G Re-amplification, Re-shaping And Re-timing Device - Signal Repeater, Converter and Extender all in the same box!

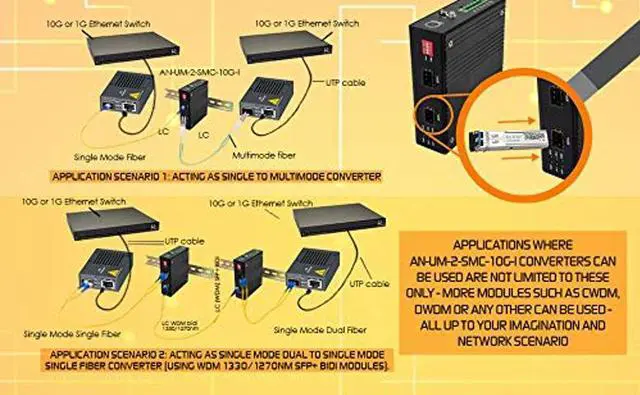

- Use it as a Single to Multimode Media Converter - 2 X standard open SFP+/SFP slots for any type of SFP+ modules
- Use it for converting & matching wavelengths when interconnecting third party 10Gbps or 1Gbps network devices - i.e. 850 nm to 1300/1310 nm, 1310 nm to 1550 nm, even DWDM and CDWM wavelengths are supported. Just find the correct and matching SFPs for both slots!
- Wide range of protocols supported: 10G Ethernet, 10G WAN (10Gbps), 10G LAN (10.31Gbps), 8.5G Fiber Channel, 10G LAN with 255/237 FEC coding (11.09Gbps) and more!
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
10G Extended Temperature Range SFP+ to SFP+ fiber to fiber converter with DIN rail mount support is a fiber-to-fiber type 10Gbps device that acts not only as fiber optic media converter or as a fiber optic repeater for long-haul transmission, but is an all in one solution to get 10GE fiber network to be Re-Amplificated, Re-Shaped and Re-Timed.
3R Repeater / Extender / Media converter for all your 10G fiber network mode & wavelength conversion needs.

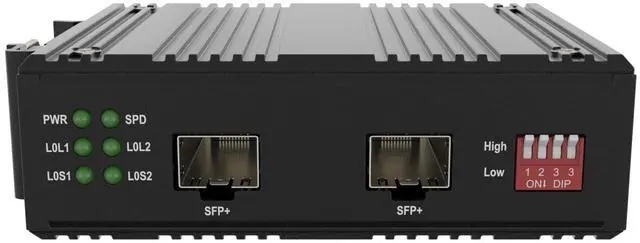

More than that - unit supports not only 10G SFP+ type modules - but, also 1G ( 1.25G ) standard MSA compliant SFP transceivers are supported - just select the mode using the dip switch on the front panel!
It is commonly used in network backbones (SAN, LAN, MAN, WAN). Supports various protocols such as SDH / SONET STM-64 / OC-192, 10G Fiber Channel, 10G Ethernet, etc. can be used in a telecommunications room, R&D lab, data center, etc. Supports any standard SFP+ 10G or 1G modules with 850nm, 1310nm / 1550nm / CWDM / DWDM optical wavelength conversion.
Product features Jumbo frames support Transparent signal transmission and low latency The rate supports 8.5G bps~ 11.7G bps or also 1.25G (selectable by dip switch)
Supports OEO 3R functions: signal amplification and regeneration, waveform shaping, clock retiming Easy installation - Plug & Play
Wide Range Protocol Support 8.5G Fiber Channel SONET OC-192, SDH STM-64 ( 9.95G bps) 10G WAN (10Gbps) 10G LAN ( 10.31G bps) OTN OTU-2 (G. 709) ( 10.70G bps) 10G LAN with 255/237 FEC coding ( 11.09G bps) 10G Fiber Channel ( 11.32G bps) 10G POS
Technical Parameters Transmission rate: 8.5G b/s- 11.7G b/s
Interface Type: SFP+ standard slot

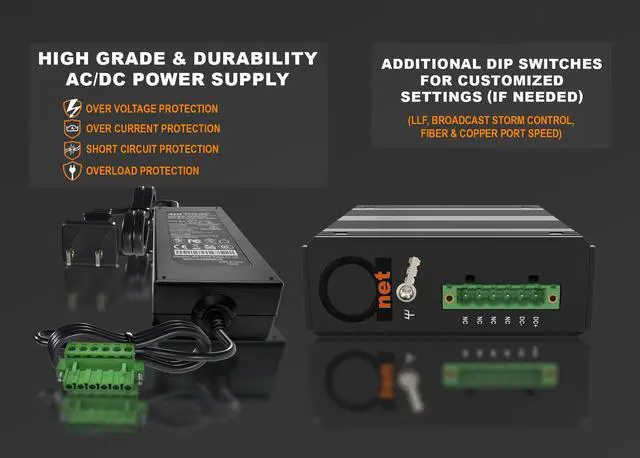

Power supply input voltage: DC 12V~48V (AC adapter comes in set)
Power consumption: 4W
Operating temperature: -40°C to +85°C (-40°F to 104°F) Size 110mm (L) * 104.5 (W) *35mm
3R Repeater / Extender / Media converter for all your 10G fiber network mode & wavelength conversion needs.
More than that - unit supports not only 10G SFP+ type modules - but, also 1G ( 1.25G ) standard MSA compliant SFP transceivers are supported - just select the mode using the dip switch on the front panel!
It is commonly used in network backbones (SAN, LAN, MAN, WAN). Supports various protocols such as SDH / SONET STM-64 / OC-192, 10G Fiber Channel, 10G Ethernet, etc. can be used in a telecommunications room, R&D lab, data center, etc. Supports any standard SFP+ 10G or 1G modules with 850nm, 1310nm / 1550nm / CWDM / DWDM optical wavelength conversion.
Product features Jumbo frames support Transparent signal transmission and low latency The rate supports 8.5G bps~ 11.7G bps or also 1.25G (selectable by dip switch)
Supports OEO 3R functions: signal amplification and regeneration, waveform shaping, clock retiming Easy installation - Plug & Play
Wide Range Protocol Support 8.5G Fiber Channel SONET OC-192, SDH STM-64 ( 9.95G bps) 10G WAN (10Gbps) 10G LAN ( 10.31G bps) OTN OTU-2 (G. 709) ( 10.70G bps) 10G LAN with 255/237 FEC coding ( 11.09G bps) 10G Fiber Channel ( 11.32G bps) 10G POS
Technical Parameters Transmission rate: 8.5G b/s- 11.7G b/s
Interface Type: SFP+ standard slot
Power supply input voltage: DC 12V~48V (AC adapter comes in set)
Power consumption: 4W
Operating temperature: -40°C to +85°C (-40°F to 104°F) Size 110mm (L) * 104.5 (W) *35mm
