ICTOLTOL SETCTOP Proxmark3 EASY3.0 NFC RFID Reader Writer Develop Suit Kits proxmark 3 SDK for RFID NFC Card Copier Clone Crack ID IC

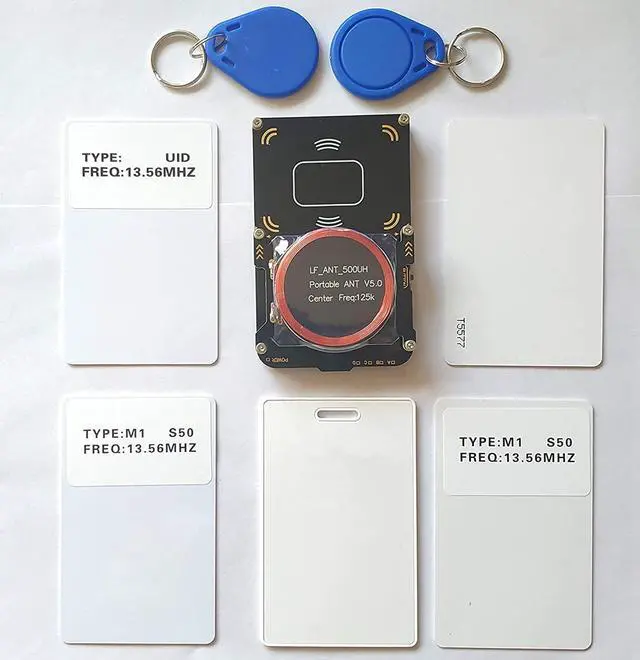

- firmware software question please contact us,Package include: 1.Proxmark3 ( HF ANT WITH BOARD)* 1PCS 2.LF ANT *1PCS 3.UID Changeable card *1PCS 4.Card * 1PCS 5.S50 changeable card*2PCS 6.T5577 card * 1PCS 7.S50 Keyfob*2PCS
- Product Description: - The Proxmark3 is a research and development tool. It has not been evaluated for compliance with regulations governing transmission and reception of radio signals. You are responsible for using this product in compliance with your local laws. - The priginal chips,Brand components and capacitance resistance,the antenna accrucy matching,SMT sticking machine.
- Compared with PM3 RD V2.0 improvement: - Built-in high-frequency antenna, antenna depth matching, eliminate blind spots, read the whole card data flowing without interruption. - Increase Parse the secret key rate , the size of the card takes all. - Sniffing data, complete stable, low error rate.
- - The low frequency antenna to improve the signal to noise ratio, the higher
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
High Frequency Silent mode: - Silent sniffer data communication between the M1 S50 card and card reader, analytical secret key. - Silent sniffing 14443A Class B card reader with a complete communications data. - Reader device can be used for debugging and behavior analysis.
Low Frequency Operating card mode: - Read ID, H-ID, T55XX, Indala and other low-frequency card. - By T55XX card write ID / H-ID / Indala, turned into three cards. Low Frequency Analog card mode - Enter ID / H-ID card, analog to the specified card type. - Analog modulation schemes specified data cards and ASK / FSK / PSK Low

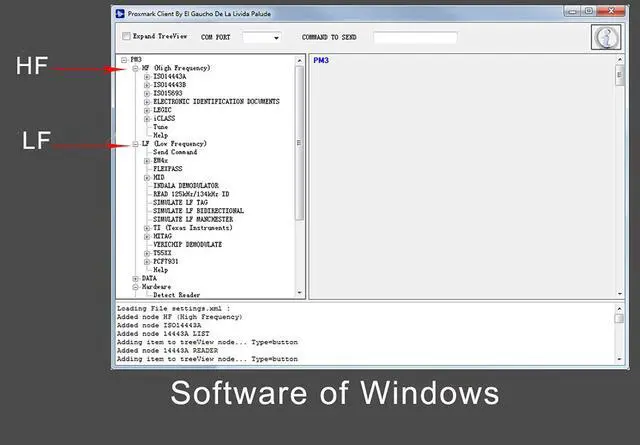

Frequency Silent Mode: - Silently sniff data between the card and the reader (less, not tested) - Compatible with all official firmware, according to need to brush any version. - According to your preference, you can use the official "Command Line" or "Proxmark Tool. exe" to operate (Low frequency antenna installed on the right side) #

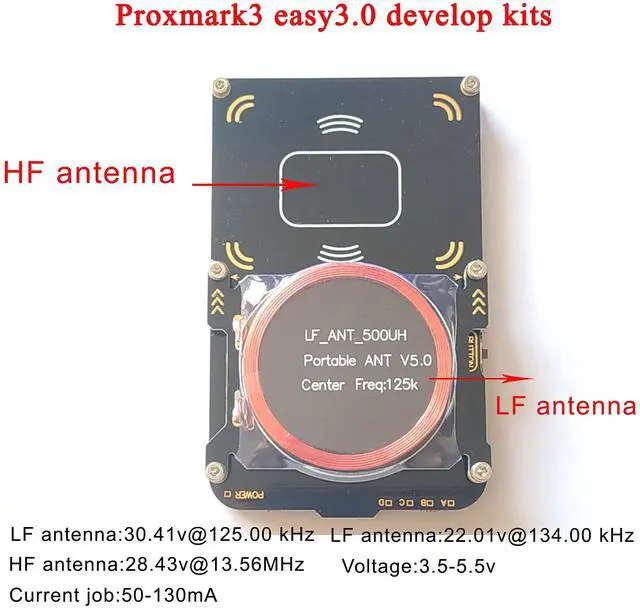

LF antenna: 26.84 V @ 125.00 kHz #
LF antenna: 20.31V @ 134.00 kHz #
HF antenna: 22.43V @ 13.56 MHz (Low frequency antenna installed on the left) #
LF antenna: 28.86 V @ 125.00 kHz #
LF antenna: 24.48 V @ 134.00 kHz #
HF antenna: 25.13 V @ 13.56 MHz -
Operating voltage: 3.5 - 5.5V -
Current job: 50-130mA
Length and width dimensions: 54mm * 86.6 mm
The thickness: 6.2 mm (thinnest) 9.8 mm (plus screw) 15.8 (plus low frequency antenna)
Low Frequency Operating card mode: - Read ID, H-ID, T55XX, Indala and other low-frequency card. - By T55XX card write ID / H-ID / Indala, turned into three cards. Low Frequency Analog card mode - Enter ID / H-ID card, analog to the specified card type. - Analog modulation schemes specified data cards and ASK / FSK / PSK Low
Frequency Silent Mode: - Silently sniff data between the card and the reader (less, not tested) - Compatible with all official firmware, according to need to brush any version. - According to your preference, you can use the official "Command Line" or "Proxmark Tool. exe" to operate (Low frequency antenna installed on the right side) #
LF antenna: 26.84 V @ 125.00 kHz #
LF antenna: 20.31V @ 134.00 kHz #
HF antenna: 22.43V @ 13.56 MHz (Low frequency antenna installed on the left) #
LF antenna: 28.86 V @ 125.00 kHz #
LF antenna: 24.48 V @ 134.00 kHz #
HF antenna: 25.13 V @ 13.56 MHz -
Operating voltage: 3.5 - 5.5V -
Current job: 50-130mA
Length and width dimensions: 54mm * 86.6 mm
The thickness: 6.2 mm (thinnest) 9.8 mm (plus screw) 15.8 (plus low frequency antenna)
