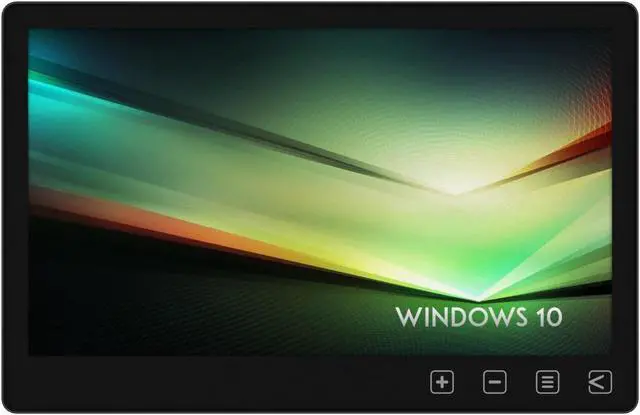

Gechic 11.6" T111A Industrial Touch Monitor, HDMI, USB-C Built-in Gain IC Long Transmission,VESA Mount,10-Finger high Immunity Touch,True-Flat Touchscreen for Embedded Device POS/Kiosk/Automation
- SMALL TOUCH MONITOR IDEAL FOR SMALL MACHINES: 11.6", 1080P Full HD, 16:9 Wide-Viewing-Angle Panel with HDMI, USB Type-C inputs
- SENSITIVE PROJECTIVE CAPACITIVE TOUCH SCREEN: supports 10-finger multi-touch and Windows 10/11 touch gestures for perfect digital interactioneliver touch signals through USB port, and support Windows 11/10 plug & play, 10-points multi-touch recognition without installing any drivers

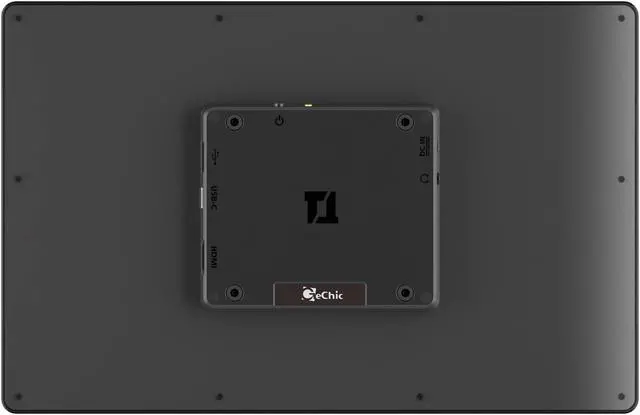

- FLEXIBLE MOUNTING TO VESA 75 WALLMOUNT & MONITOR ARM: Including VESA 75 screw holes in its compact and slim body, which allows the monitor to fit any space and meet the requirements of installing to machine and mount securely to any kinds of stands
- TRUE-FLAT TOUCHSCREEN GLASS PERFECTLY FOR EMBEDDED DEVICE: When building a touchscreen machine or equipment, the monitor can be perfectly integrated into the hardware design to build a one-body formed appearance
- INUDSTRY-LEADING DUAL VIDEO INTERFACES: Adopting HDMI-A and USB Types on the I/O block at the back of the
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
GeChic T111A Touchscreen
Monitor
Panel: 11.6 ( 16:9 ) wide
Active Area: 256.32 mm* 144.18 mm (WxH)
Pixel Pitch: 0.134 mm (H) * 0.134 mm (V)
Resolution: 1920 x 1080
Color Depth: 16.7M
Colors Brightness: 300 (cd/m²) (Typical)
Contrast: 1000:1 (Typical)
Viewing Angle: 170° (H) /170° (V) (CR>10)
Response Time (GTG): 15 (ms) (Typical)
Touchscreen: Projective capacitive Touch Glass, 10 detections
Screen Surface Hardness: Screen Surface 7H, Screen Thickness 1.1 mm Touch Input Finger or stylus( Diameter of Touch Point 6.0 mm)
HDMI Video Display: 1920x1080P(50Hz/ 59.94H z/60Hz); 1280x720P(50Hz/ 59.94H z/60Hz); 720x480P( 59.94H z/60Hz); 640x480P( 59.94H z/60H
Supported Resolutions: 1920*1080 (60Hz); 1600*900 (60Hz); 1440*900 (60Hz); 1366*768 (60Hz); 1280*1024 (60Hz); 1280*960 (60Hz); 1280*800 (60Hz); 1280*768 (60Hz); 1280*720 (60Hz); 1024*768 (60Hz)
Video Input: HDMI-A(HDMI v 1.4 )*1, USB Type-C(DP 1.2 )*1
Audio Output: Earphone jack 3.5 mm mini jack*1 (Support Analog 3.5 mm
AUX) Speaker: No
Rating Power: 12V--- 0.6A
Connectivity: HDMI-IN *1, USB-A *1, USB-C *1
VESA wall mount: VESA75 (75mm x 75mm)
Cabinet Colors:
Front: Black, Back: Black Dimension (W*H*D) 279.7 mm* 181.1 mm* 20.45 mm
Net Weight: 780g (Monitor) 434g (T1S1 Stand) 290g (Cover)
Accessories in Package: HDMI-A Video Cable( 1.5 m)*1, USB-A to USB-C Power and Touch Signal Cable( 1.5 m)*1, USB Type-C Video Cable (1m) *1, 12V-2A AC-DC Power Adapter*1,
Monitor Stand (T1S1): Wal l-mount plate*1; Stand plate*2; A Screw(M4x 6.5 mm)*6; B Screw (M4x11mm) *2; Rubber*12
Optional Accessories: USB Type-C Video Cable (2m) *1, USB-A (male) to USB-A (female) Extension Cable( 1.5 m)*1, Monitor
Stand (T1S2) Certification: BSMI, CE, UKCA, FCC, RCM, VCCI, CB, RoHS
Monitor
Specifications
:Panel: 11.6 ( 16:9 ) wide
Active Area: 256.32 mm* 144.18 mm (WxH)
Pixel Pitch: 0.134 mm (H) * 0.134 mm (V)
Resolution: 1920 x 1080
Color Depth: 16.7M
Colors Brightness: 300 (cd/m²) (Typical)
Contrast: 1000:1 (Typical)
Viewing Angle: 170° (H) /170° (V) (CR>10)
Response Time (GTG): 15 (ms) (Typical)
Touchscreen: Projective capacitive Touch Glass, 10 detections
Screen Surface Hardness: Screen Surface 7H, Screen Thickness 1.1 mm Touch Input Finger or stylus( Diameter of Touch Point 6.0 mm)
HDMI Video Display: 1920x1080P(50Hz/ 59.94H z/60Hz); 1280x720P(50Hz/ 59.94H z/60Hz); 720x480P( 59.94H z/60Hz); 640x480P( 59.94H z/60H
Supported Resolutions: 1920*1080 (60Hz); 1600*900 (60Hz); 1440*900 (60Hz); 1366*768 (60Hz); 1280*1024 (60Hz); 1280*960 (60Hz); 1280*800 (60Hz); 1280*768 (60Hz); 1280*720 (60Hz); 1024*768 (60Hz)
Video Input: HDMI-A(HDMI v 1.4 )*1, USB Type-C(DP 1.2 )*1
Audio Output: Earphone jack 3.5 mm mini jack*1 (Support Analog 3.5 mm
AUX) Speaker: No
Rating Power: 12V--- 0.6A
Connectivity: HDMI-IN *1, USB-A *1, USB-C *1
VESA wall mount: VESA75 (75mm x 75mm)
Cabinet Colors:
Front: Black, Back: Black Dimension (W*H*D) 279.7 mm* 181.1 mm* 20.45 mm
Net Weight: 780g (Monitor) 434g (T1S1 Stand) 290g (Cover)
Accessories in Package: HDMI-A Video Cable( 1.5 m)*1, USB-A to USB-C Power and Touch Signal Cable( 1.5 m)*1, USB Type-C Video Cable (1m) *1, 12V-2A AC-DC Power Adapter*1,
Monitor Stand (T1S1): Wal l-mount plate*1; Stand plate*2; A Screw(M4x 6.5 mm)*6; B Screw (M4x11mm) *2; Rubber*12
Optional Accessories: USB Type-C Video Cable (2m) *1, USB-A (male) to USB-A (female) Extension Cable( 1.5 m)*1, Monitor
Stand (T1S2) Certification: BSMI, CE, UKCA, FCC, RCM, VCCI, CB, RoHS
