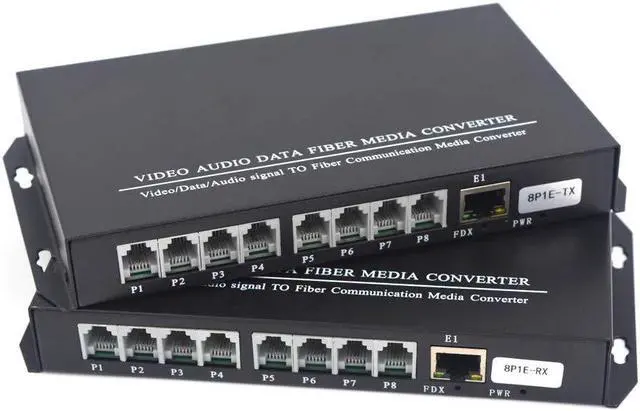

Wekuant POTS Telephones and Ethernet Over Fiber Optic Extenders, Universal Singlemode Fiber up to 20Km(12.4 mi) and Multimode 500m(0.31 mi) A Pair (8 Tel+10/100M Ethernet,SC)

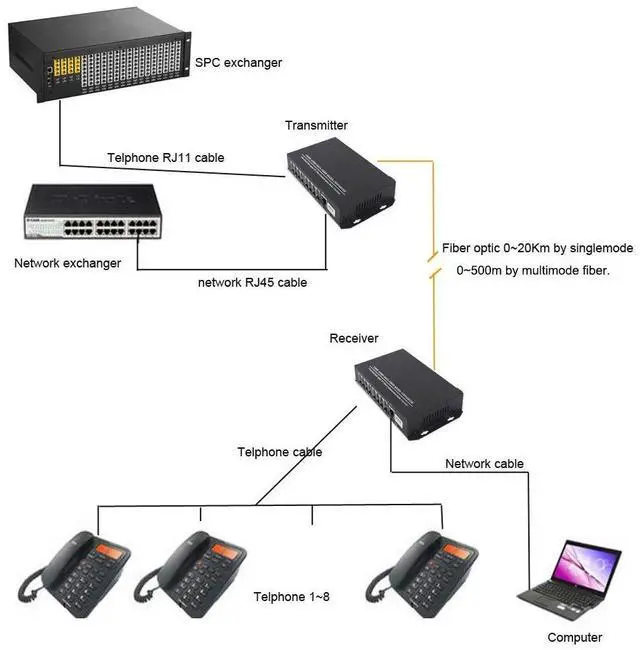

- Extend PCM Voice Telephones and Network signal: 8 Independent telephone lines + 1 Ethernet (10/100 Mbit/s) port through same fiber optic cable to far end. Suitable for Both Fiber Types (Single-mode and multimode). Single-mode fiber for a long distance up to 20 km(12.4 miles), Multimode fiber for a distance up to 500m(0.31 miles)
- Support Called id, Ring and Fax function, No Delay Transmission and Protocol Support: Unlike VoIP products - these converters transmit signals directly over fiber cables, thus offering NO DELAYS, plus support for fax and legacy applications that is not supported by VoIP lines
- With our Telephone over Fiber extender you can get faster speeds, less signal degradation, longer distance data transfer, better reliability, and more flexibility. Using a fiber optic cable can decrease costs over time because of the durability and reliability of the fiber cables. Fiber optic cables carry a low rate of bit error due to the fiber being highly resistant to el
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Phone RJ11 port specifications:
1.
Voice coding: PCM coding, 64Kbps per voice
2.
Crosstalk attenuation: >=65dB
3.
Balanced noise: <=63.7dBmop
4.
Insertion loss: -3 +- 0.75 dB
5.
Frequency characteristics: 300 to 3400 Hz (- 0.6 to +3 dB)
6.
Relay port (FXO): connected to the switch
7.
Two-wire AC input impedance: 200+680// 0.1 O (three components)
8.
Ringing voltage: 35 ~ 150V
9.
Ringing frequency: 17~60HZ
10.
Return loss: 20 db
11.
User Interface (FXS): Connect to the user's telephone
12.
Two-wire AC input impedance: 200+680// 0.1 O (three components)
13.
User line loop resistance: less than 1KO (including phone)
14.
Ringing voltage peak-to-peak value: 110~150V
15.
Ringing frequency: 22~28HZ
16.
Feed voltage: 28V
17.
Feed current: 20~50mA;
18.
Return loss: 20 db
19.
Bell flow: AC90 plus or minus 15V
Ethernet RJ45 port specifications:
1.
Rate: 10/100 Mbps, full duplex, half duplex fully adaptive
2.
Protocol: Support IEEE 802.3, IEEE 802.1Q (VLAN)
3.
Physical interface: RJ45, support AUTO-MDIX (cross line straight line adaptive)
Power supply:
1. Working voltage AC100~240V, DC5V/2A.
2. With US power supply adapter
Package include:
1x Telephone over fiber Transmitter
1x Telephone over fiber Receiver
1x 3M SC/SC fiber patch cord.
2 x External power supply adapters
1 x Manual
Phone RJ11 port specifications:
1.
Voice coding: PCM coding, 64Kbps per voice
2.
Crosstalk attenuation: >=65dB
3.
Balanced noise: <=63.7dBmop
4.
Insertion loss: -3 +- 0.75 dB
5.
Frequency characteristics: 300 to 3400 Hz (- 0.6 to +3 dB)
6.
Relay port (FXO): connected to the switch
7.
Two-wire AC input impedance: 200+680// 0.1 O (three components)
8.
Ringing voltage: 35 ~ 150V
9.
Ringing frequency: 17~60HZ
10.
Return loss: 20 db
11.
User Interface (FXS): Connect to the user's telephone
12.
Two-wire AC input impedance: 200+680// 0.1 O (three components)
13.
User line loop resistance: less than 1KO (including phone)
14.
Ringing voltage peak-to-peak value: 110~150V
15.
Ringing frequency: 22~28HZ
16.
Feed voltage: 28V
17.
Feed current: 20~50mA;
18.
Return loss: 20 db
19.
Bell flow: AC90 plus or minus 15V
Ethernet RJ45 port specifications:
1.
Rate: 10/100 Mbps, full duplex, half duplex fully adaptive
2.
Protocol: Support IEEE 802.3, IEEE 802.1Q (VLAN)
3.
Physical interface: RJ45, support AUTO-MDIX (cross line straight line adaptive)
Power supply:
1. Working voltage AC100~240V, DC5V/2A.
2. With US power supply adapter
Package include:
1x Telephone over fiber Transmitter
1x Telephone over fiber Receiver
1x 3M SC/SC fiber patch cord.
2 x External power supply adapters
1 x Manual
