$53.99
Meet Your Seller

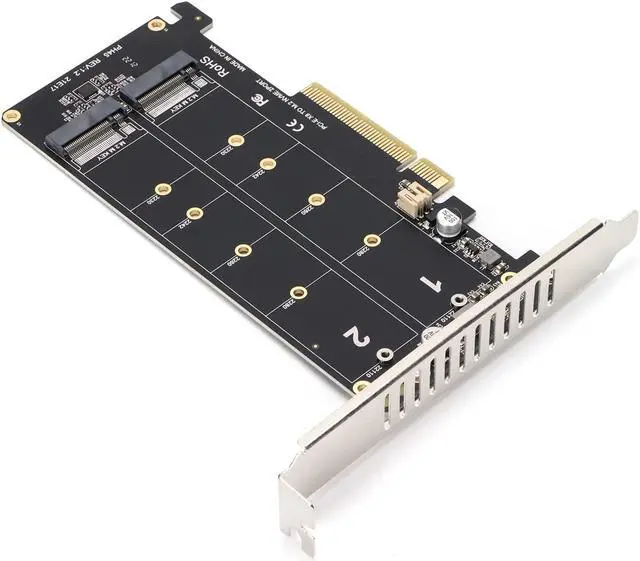

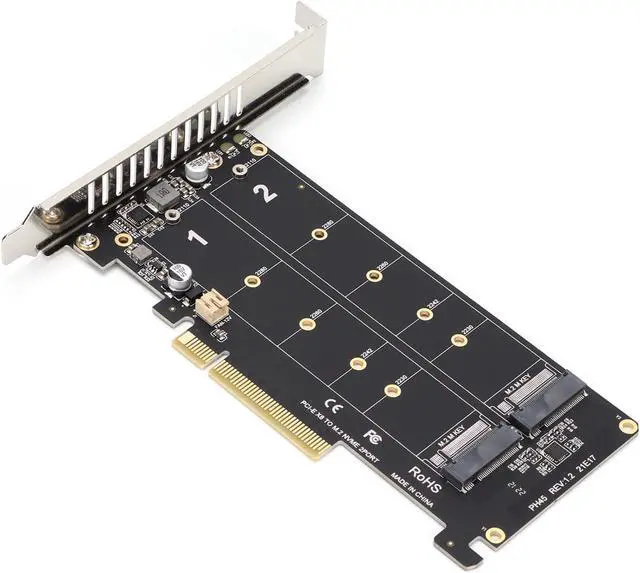

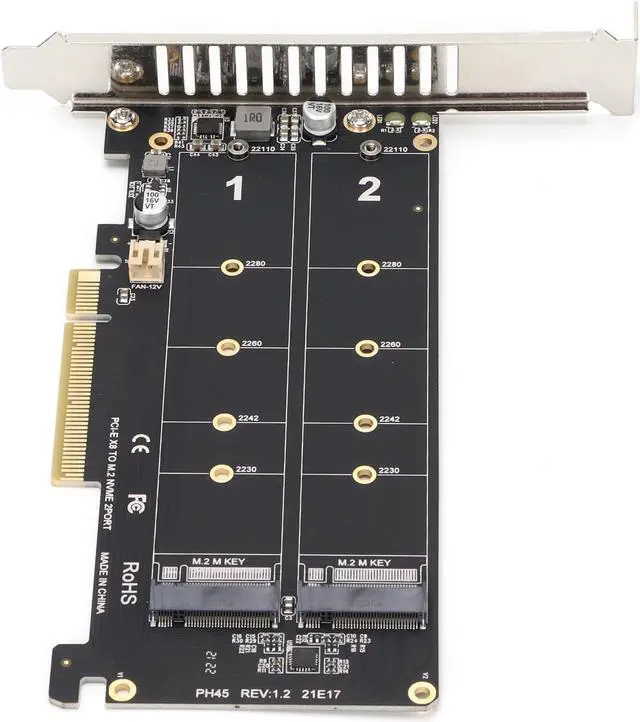

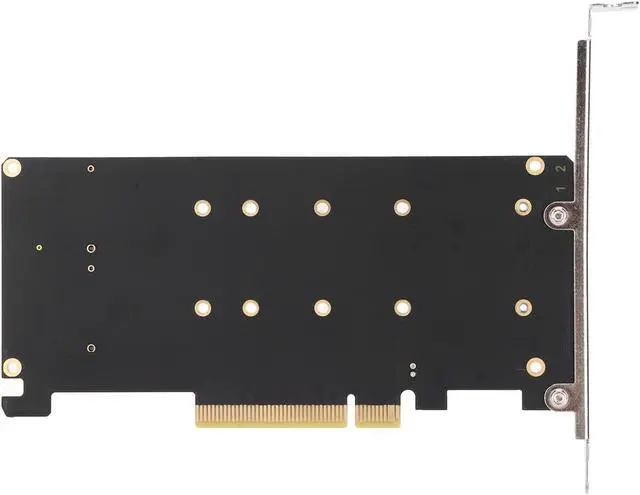

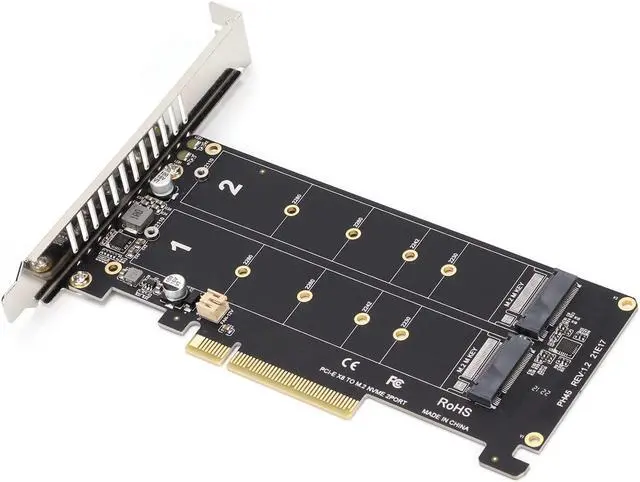

M.2 NVME PCIE Adapter Card, 2 x 32Gbps Full Speed PCIE 3.0 PCIE 4.0 X16 Expansion Card, M.2 SSD PCIE X8 M Key Hard Drive Converter Reader Express Adapter(ph45)
- Expansion CardPCIE to NVME expansion card, supports PCIE 3.0, PCIE 4.0 standard transmission speed, and supports 2 X4 full channel full speed NVME SSD and M.2 PCIE interface device, Support M Key hard disk.
- High Speed Dual disk Adapter CardDesktop PC SSD expansion card, high-speed dual disk adapter card. This adapter card has 2 expansion cards, which can simultaneously expand 2 x 32Gbps full-speed signals, is a professional computer accessory.
- Computer PartsOur nvme pcie adapter can further improve the performance of the hard disk, so that the computer performance can be fully utilized in the fields of design, video, etc, pcie m.2 adapter, plug and play, easy to install. PCIE to NVME dual-slot m.2 M Key SSD to PCIE X8 adapter card expansion card.
- More High EfficiencyThe PCIE X8 interface adopts thickening technology, which makes the contact better and the transmission speed more stable. Has an upgraded M.2 hard disk interface, which can speed up the game star
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
How to
Use:
1.
Motherboard support:
The motherboard supports PCIE split function, which can be set to PCIE X4X4X4 or 4X4 mode. The motherboard supports PCIE RAID function. For ASUS motherboard supports the function of HyperM. 2X16 expansion card. Different motherboards have different PCIE split channels. Some motherboards PCIE RAID is X8+. X4+X4, this motherboard 4bit M. 2 card can only support 3 M. 2 SSDs or devices, and 2bit M. 2 card can only support 1 M. 2 SSD or device. If you need to use this product normally, please select the motherboard correctly. Many motherboards share PCIE channels. Make sure that the motherboard can support the function of PCIE splitting. If you cannot recognize that many M. 2 SSDs or devices, please remove or replace other PCIE devices, such as graphics cards, expansion cards, and onboard NVME SSDs.
Server motherboards, X299 and X399 motherboards have split function
Specification:
Item Type: Adapter Card
Model: PH45
Support Hard Disk: M Key Hard Disk
Speed: 2 x 32Gbps
Package List:
1 x Adapter Card2 x Nuts
3 x Screws
1 x Screwdriver
Use:
1.
Motherboard support:
The motherboard supports PCIE split function, which can be set to PCIE X4X4X4 or 4X4 mode. The motherboard supports PCIE RAID function. For ASUS motherboard supports the function of HyperM. 2X16 expansion card. Different motherboards have different PCIE split channels. Some motherboards PCIE RAID is X8+. X4+X4, this motherboard 4bit M. 2 card can only support 3 M. 2 SSDs or devices, and 2bit M. 2 card can only support 1 M. 2 SSD or device. If you need to use this product normally, please select the motherboard correctly. Many motherboards share PCIE channels. Make sure that the motherboard can support the function of PCIE splitting. If you cannot recognize that many M. 2 SSDs or devices, please remove or replace other PCIE devices, such as graphics cards, expansion cards, and onboard NVME SSDs.
Server motherboards, X299 and X399 motherboards have split function
Specification:
Item Type: Adapter Card
Model: PH45
Support Hard Disk: M Key Hard Disk
Speed: 2 x 32Gbps
Package List:
1 x Adapter Card2 x Nuts
3 x Screws
1 x Screwdriver
