$379.99
Meet Your Seller
ZHIANN Micro Firewall Appliance, Inter J6413 Fanless Firewall Mini PC, 5 Inter 2.5Gbe I226-V Ports, Support AES-NI Soft Router PC VPN OPNsense Proxmox, 8GB RAM 128GB SSD
- CPU: Intel Celeron J6413 Quad Core Processor, 4 Threads, 1.5M Cache, up to 3.00 GHz
- Memory & Storage: 2xDDR4 SODIMM ram slot (Compatible: 2400/2666/3200MHz); Support two storage, 1xm.2 NVMe(PCLe3.0x1) and 1x2.5''SATA3.0 SSD/HDD

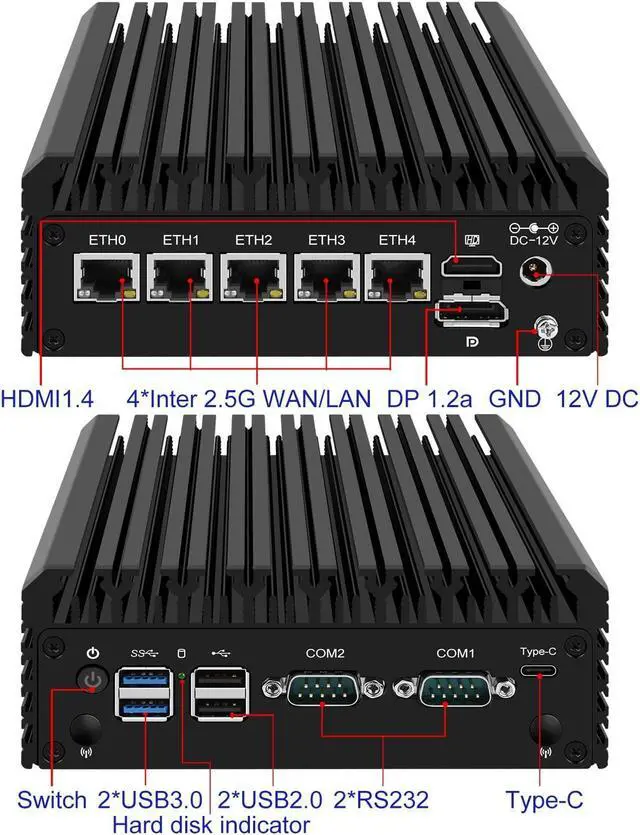

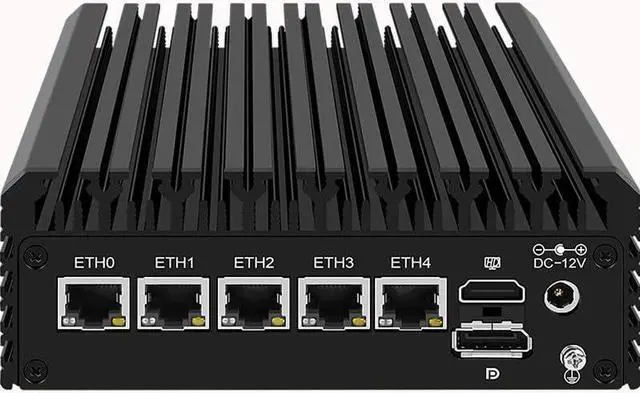

- PORTS: 5xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 2xDB9 RS232 COM, 1xHDMI1.4, 1xDP1.2a, 1xType-C, 3x4K UHD video display
- Compatibility: No OS pre-installed. All hardware tested with Windows, untangle, Proxmox, opnsense and other popular open-source software solutions. Supports AES-NI hardware
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Features
1. Based on Intel Celeron Elkhart Lake quad-core low-power platform.
2. 5 Intel i226-V 2.5G NICs.
3. 2 SO-DIMM DDR4 3200MHz (2400/2666 compatible) Max 64G, 1*M. 2 NVMe (PCle 3.0 X1) interface compatible with 2242/2280 size.
4. 2*SATA 3.0 ports with 4pin power supply Compatible with 2.5 / 3.5" hard drives.
5. 1 full-height MINIPCle slot, change the resistance can support mSATA hard drive.
6. HDMI 1.4 +DP 1.2 a+Type-C(display/data), support for 3 display outputs.
7. 2 RS232 (DB9 pin) interface, can be customized to change the material to support 1 RS485, onboard a small 4PIN 12V temperature-controlled fan seat reserved for a set of TPM row pin. (Temperature controlled fan not included)
8. ETH4 network port can be customized Layout into a group of USB 2.0 so that the machine has 6 USB, the whole machine fanless passive cooling, zero noise, low power consumption TDP only 10W.
Package List
1xMini PC
1xPower Adapter
1xPower Cord
1xSATA Cable
1xScrews Bag
1. Based on Intel Celeron Elkhart Lake quad-core low-power platform.
2. 5 Intel i226-V 2.5G NICs.
3. 2 SO-DIMM DDR4 3200MHz (2400/2666 compatible) Max 64G, 1*M. 2 NVMe (PCle 3.0 X1) interface compatible with 2242/2280 size.
4. 2*SATA 3.0 ports with 4pin power supply Compatible with 2.5 / 3.5" hard drives.
5. 1 full-height MINIPCle slot, change the resistance can support mSATA hard drive.
6. HDMI 1.4 +DP 1.2 a+Type-C(display/data), support for 3 display outputs.
7. 2 RS232 (DB9 pin) interface, can be customized to change the material to support 1 RS485, onboard a small 4PIN 12V temperature-controlled fan seat reserved for a set of TPM row pin. (Temperature controlled fan not included)
8. ETH4 network port can be customized Layout into a group of USB 2.0 so that the machine has 6 USB, the whole machine fanless passive cooling, zero noise, low power consumption TDP only 10W.
Package List
1xMini PC
1xPower Adapter
1xPower Cord
1xSATA Cable
1xScrews Bag
