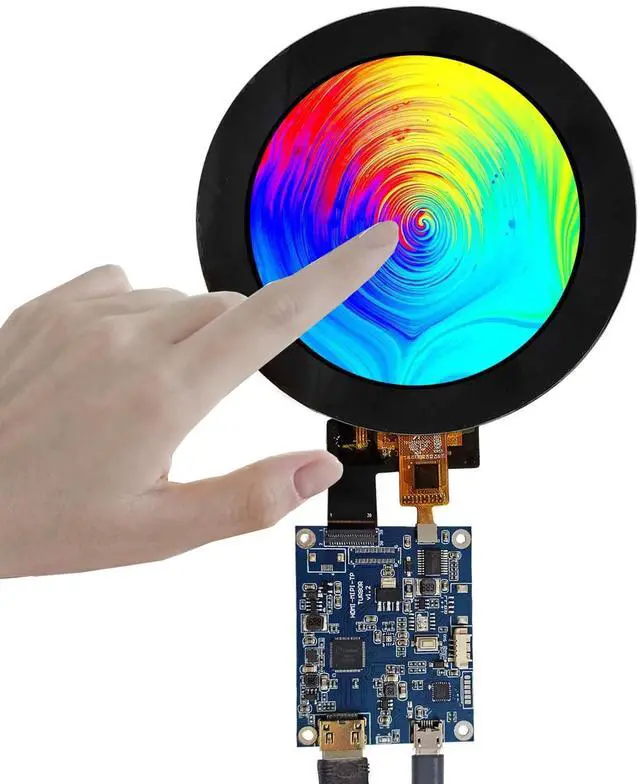

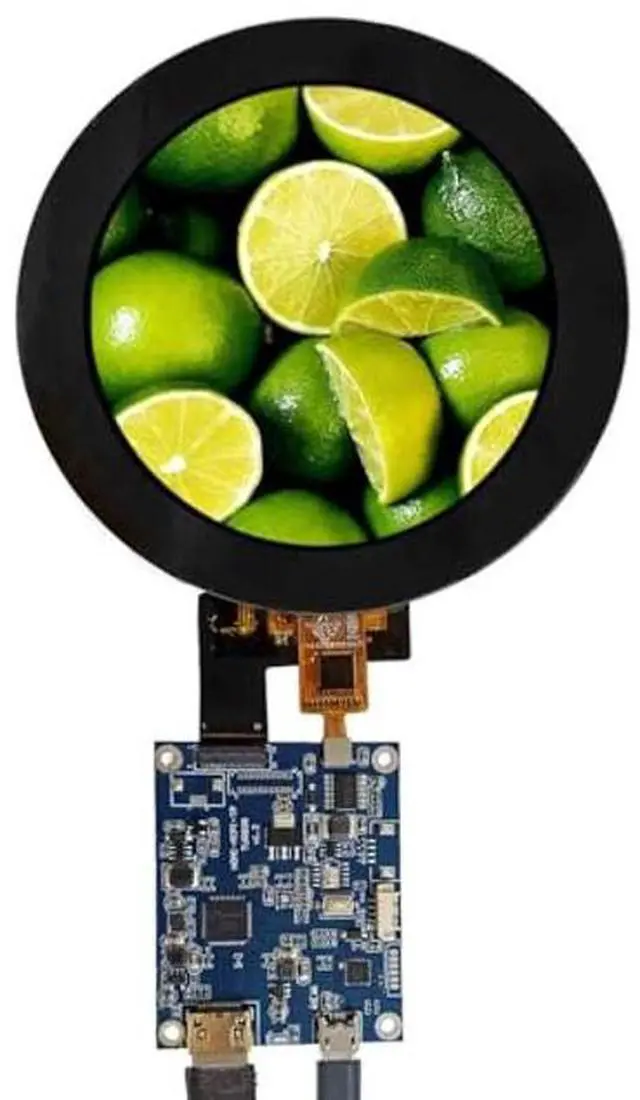

FanyiTek 3.4 inch 800x800 IPS MIPI 330nit Round LCD Touch Screen and 39 pins Controller Board
- [(Round MIPI screen)] 3.4" 800x800 cirle display,IPS full viewing angle,outline size:94.9x96.95x2.3(WxHxD)mm,display area:87.6x 87.6(WxH)mm,330nit high brightness ,WLED backlight ,input voltage: 2.8V .
- [(Controller board)] Video input :port ,board size: 50mm x 35mm x 5mm,pls use it in insulated environment.
- [(Capacitive Touch sensor panel)] The design of touch panel makes the operation more convenient, No button damage issue for after long time use.
- [(Input Power)] 5Vdc More than 1A,Pls prepare it seperately .

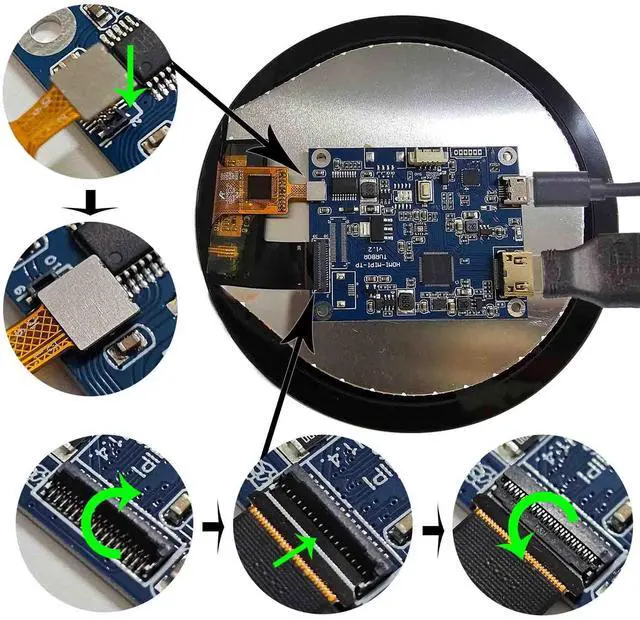

- [(Plug and play)] Connecting cables and ports according to link picture details ,Power on and enter signal cable ,the touch screen can work well after powering.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

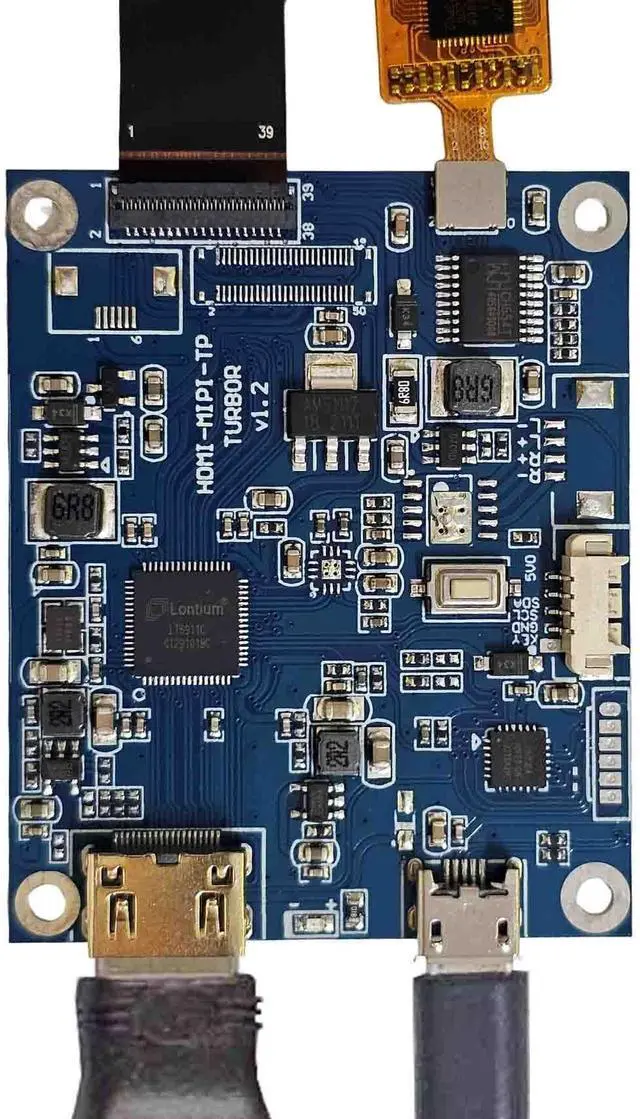

LCD Controller Board:
Input Power Adapter: USB 5V More than 1A.
Come In Standby Model When Not Input Signal
Board Size: 50mm x 35mm x 5mm
3.4" VS34003C39 800X800 Capacitive Touch LCD Screen:
Display Mode IPS, Normally White, Transmissive
Resolution 800 (RGB) x800
Outline Size 104.4 x 104.4 x4 (WxHxD) mm
Display Area 87.6 x 87.6 (WxH) mm
Brightness 330 cd/m2 (Typ. )
Contrast Ratio 300:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface Mipi, 39 pins
Backlight WLED
Input Voltage 2.8V (Typ. )

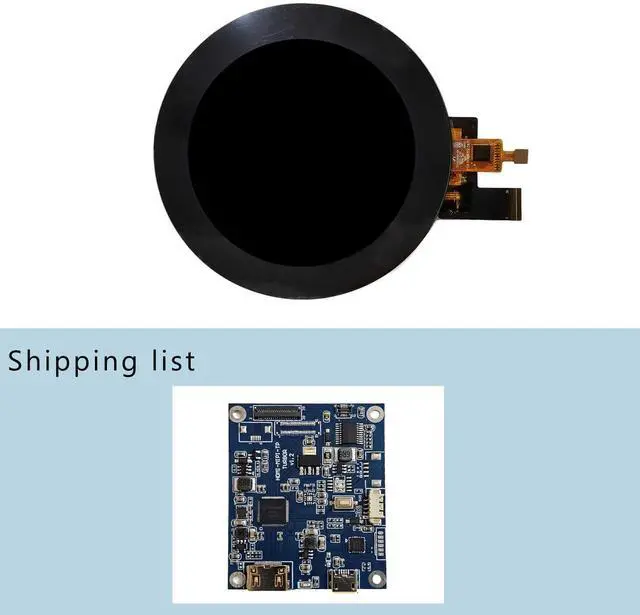

Packing list:
1x LCD Board
1x 3.4 inch VS34003C39 800x800 Capacitive Touch LCD Screen
Input Power Adapter: USB 5V More than 1A.
Come In Standby Model When Not Input Signal
Board Size: 50mm x 35mm x 5mm
3.4" VS34003C39 800X800 Capacitive Touch LCD Screen:
Display Mode IPS, Normally White, Transmissive
Resolution 800 (RGB) x800
Outline Size 104.4 x 104.4 x4 (WxHxD) mm
Display Area 87.6 x 87.6 (WxH) mm
Brightness 330 cd/m2 (Typ. )
Contrast Ratio 300:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface Mipi, 39 pins
Backlight WLED
Input Voltage 2.8V (Typ. )
Packing list:
1x LCD Board
1x 3.4 inch VS34003C39 800x800 Capacitive Touch LCD Screen
