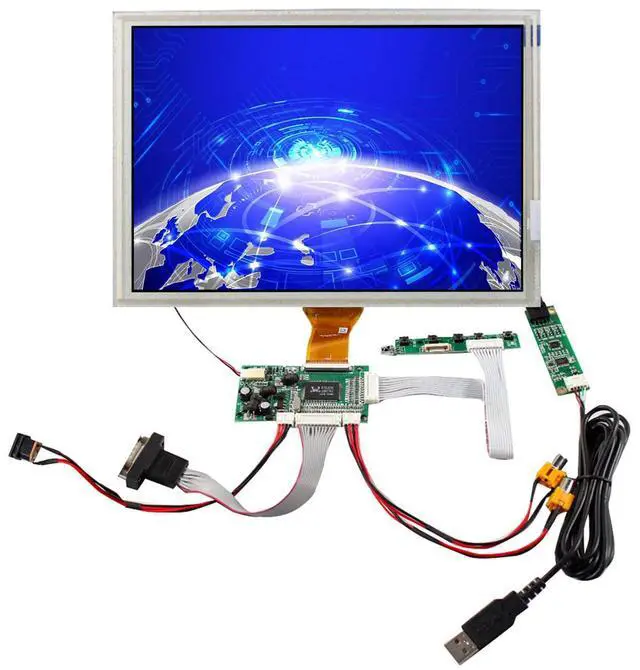

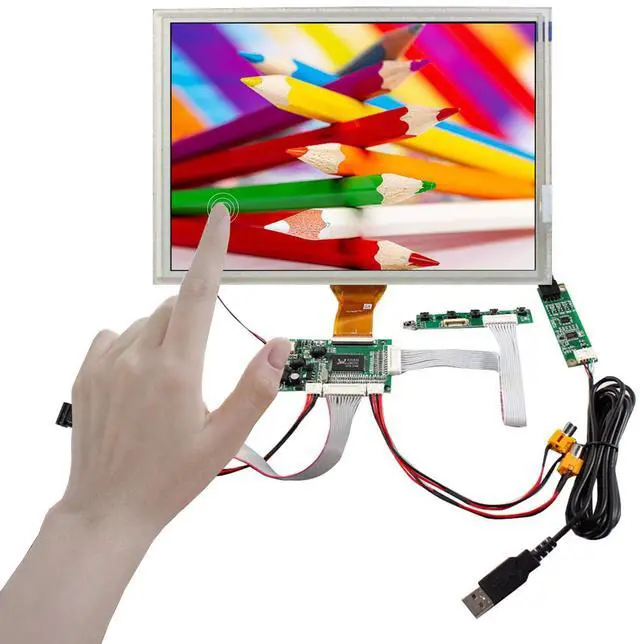

FanyiTek 8" EJ080NA-05A 800X600 TTL LCD Screen with 4-Wire Resistive Touch Panel and VGA 2AV Controller Board 50pins
- Screen Advantage8" EJ080NA-05A 800X600 4:3 aspect ratio 250nit TFT LCD Screen,Outline Size 183 × 141×5.9 (H×V×D)mm,Display Area 162 × 121.5 (H×V)mm,Contrast Ratio 500:1,Signal Interface Parallel RGB (1 ch, 6/8-bit) , 50 pins , FPC,Backlight WLED,Input Voltage 3.3V.
- LCD Driver BoardVideo Input: VGA AV1 AV2,Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V,Pls use it in insulated environment.
- Input Power12V DC 2A ,port size :5.5x2.1mm.Pls prepare the power adapter by yourself.

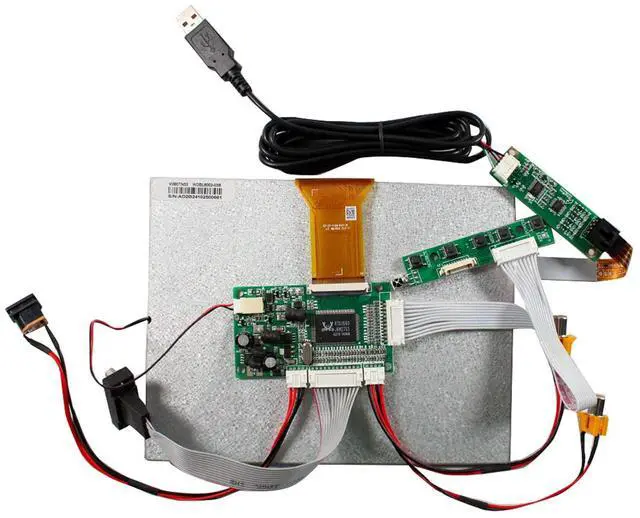

- Plug and playConnecting cables and ports according to link picture details ,Power on and enter signal cable ,the screen can work well after powering.
- Packing lists1× VGA+2AV LCD Controller Board VS-TY50-V1,1× 8inch EJ080NA-05A 800X600 LCD With 4-Wire Resistive Touch Panel,1× Power Supply Converter Cable,1× VGA Converter Cable,1× AV Converter Cable,1× USB Controller Card,1× USB Touch Cable,1× Extend Touch Cable,1× Keyboard With Cable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

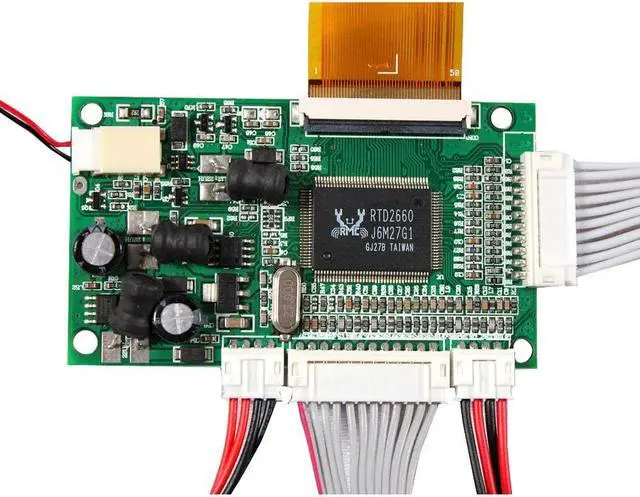

LCD Controller Board:
Input Power Adapter: 12Vdc 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 77mm x 45mm x 12mm
8" EJ080NA-05A 800X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800 (RGB) ×600
Outline Size 183 × 141× 5.9 (H×V×D)mm
Display Area 162 × 121.5 (H×V) mm
Brightness 250 cd/m² (Typ. )
Contrast Ratio 500:1 (Typ. ) (TM)
Viewing Angle 70/70/50/70 (Typ. ) (CR10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 6/8-bit), 50 pins, FPC
Backlight WLED
Input Voltage 3.3V (Typ. )

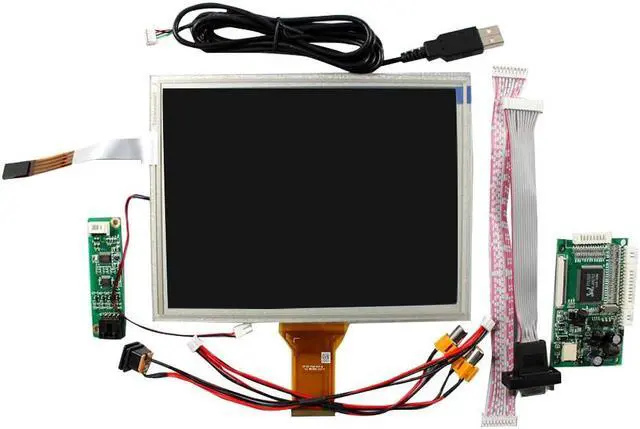

Packing list:
1× VGA+2AV LCD Controller Board VS-TY50-V1
1× 8inch EJ080NA-05A 800X600 LCD With 4-Wire Resistive Touch Panel
1× USB Controller Card
1× USB Touch Cable
1x DC Converter cable
1x AV Cconverter cable
1× Keyboard With
Input Power Adapter: 12Vdc 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 77mm x 45mm x 12mm
8" EJ080NA-05A 800X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800 (RGB) ×600
Outline Size 183 × 141× 5.9 (H×V×D)mm
Display Area 162 × 121.5 (H×V) mm
Brightness 250 cd/m² (Typ. )
Contrast Ratio 500:1 (Typ. ) (TM)
Viewing Angle 70/70/50/70 (Typ. ) (CR10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 6/8-bit), 50 pins, FPC
Backlight WLED
Input Voltage 3.3V (Typ. )
Packing list:
1× VGA+2AV LCD Controller Board VS-TY50-V1
1× 8inch EJ080NA-05A 800X600 LCD With 4-Wire Resistive Touch Panel
1× USB Controller Card
1× USB Touch Cable
1x DC Converter cable
1x AV Cconverter cable
1× Keyboard With
