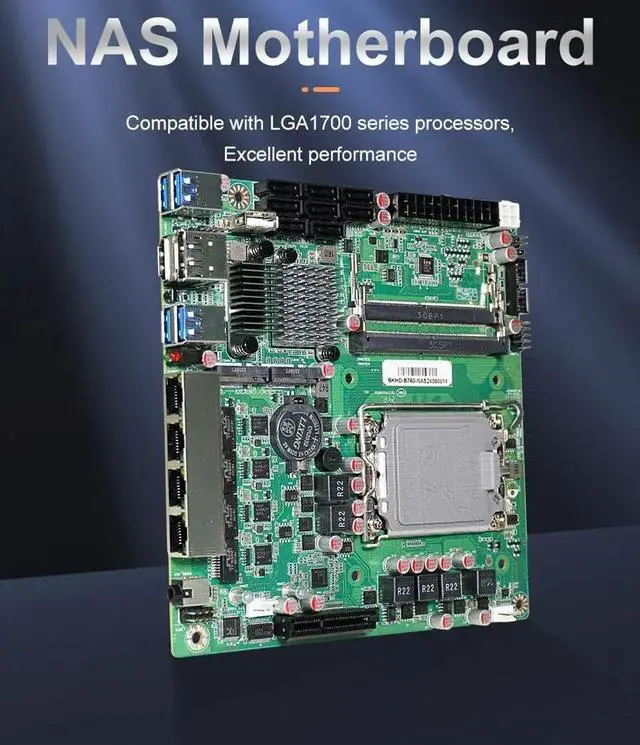

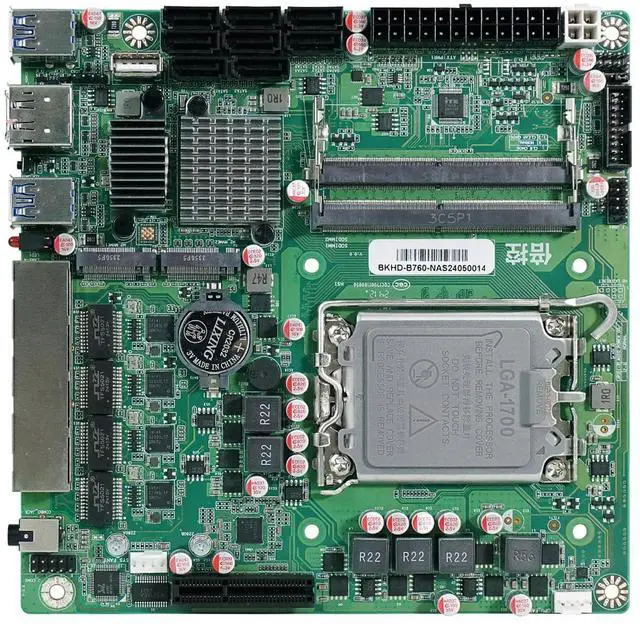

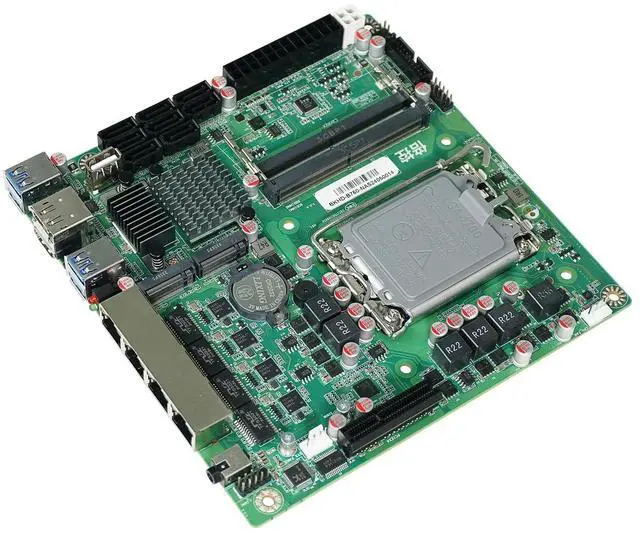

HKUXZR B760 NAS Motherboard is Suitable for Processor 12/13/14 Generation CPU |2X M.2 NVMe|8X SATA3.0|4X Intel 2.5G Network Port 17 * 17cm Soft Router ITX Mainboard
- LGA1700 Socket: B760 6-Bay NAS board is compatible with Intel Core i3/i5/i7 12th/13th/14th Gen. desktop processors, and we recommend the T-Series desktop processors, which are more energy efficient. It's 6.7" x 6.7" mini-ITX form factor, basic TDP is 65W, up to 125W, and it supports Windows 10/11, Linux ,Suitable for 115X fan
- Industrial NAS Motherboard Mini-1TX size: 17.0 cm x 17.0 cm,High-density moisture-proof fiber circuit board Ultrafast Connectivity--2* USB3.0, 2* USB2.0, 2* built-in USB on board for for USB booting of the NAS system. 1* HDMI2.1 and 1* DP1.4b to support dual 4K@60Hz display.
- Storage and Memory1* DDR5 slots, compatible with 4800/5200/5600MHz (non-ECC), RAM supports up to 32GB, 8* SATA3.0 with 6Gb and 2* M.2 NVMe 2280 PCIE3.0x1, stable and ultra-fast transfer speed.Dual 4K Display: This mini-ITX board has HDMI2.0 and DP1.4 ports at 4K@60Hz.
- NOTE: The motherboard requires both 24PIN + 4PIN power connections to power up. It will take a few minu
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1. Must work with a good radiator
2. Must connect 24pins+4pins ATX 12V power suppy at the same time to power on.
3. Every new motherboard was tested with radiator totally before shipping, that is why copper plate seems to get traces of thermal grease.
4. Intel i226-V is a new network card, suggest to install newest version of following systems with supportable kernel: pfSense-CE 2.7, OPNsense 23. x, pfSense Plus, OpenWrt, ESXi, Proxmox 8. x, CentOS etc. Please make clear before buying.
CPU: support 12th/13th/14th LGA1700
CPU Chipset: B760
BIOS: AMI 128Mb BIOS, ACPI supported, Supports Power on startup
Memory: 2*DDR5 SO-DIMM 5600MHz, up to 96GB
SSD: 2*M. 2 NVME. 8*SATA, 6Gb/s, RAID 0 15 10
Network: 4* I226 2.5G
RJ45 Display: 1*DP, 1*HD
Audio: ALC897 chip, Line out Mic two-in-one interface
USB: 4*USB 3.2 Gen2, 2*USB 3.2 Gen1 3*USB 2.0 +1*encrypted
USB Serial port: 1*COM RS232
Expansion interface: 1*PCIEX4 slot
TPM: TPM 2.0 hardware encryption (optional)
Power supply: ATX 24PIN+4PIN ATX power supply
Board size: MINI-ITX (170*170mm) Suitable for 115X fan
2. Must connect 24pins+4pins ATX 12V power suppy at the same time to power on.
3. Every new motherboard was tested with radiator totally before shipping, that is why copper plate seems to get traces of thermal grease.
4. Intel i226-V is a new network card, suggest to install newest version of following systems with supportable kernel: pfSense-CE 2.7, OPNsense 23. x, pfSense Plus, OpenWrt, ESXi, Proxmox 8. x, CentOS etc. Please make clear before buying.
CPU: support 12th/13th/14th LGA1700
CPU Chipset: B760
BIOS: AMI 128Mb BIOS, ACPI supported, Supports Power on startup
Memory: 2*DDR5 SO-DIMM 5600MHz, up to 96GB
SSD: 2*M. 2 NVME. 8*SATA, 6Gb/s, RAID 0 15 10
Network: 4* I226 2.5G
RJ45 Display: 1*DP, 1*HD
Audio: ALC897 chip, Line out Mic two-in-one interface
USB: 4*USB 3.2 Gen2, 2*USB 3.2 Gen1 3*USB 2.0 +1*encrypted
USB Serial port: 1*COM RS232
Expansion interface: 1*PCIEX4 slot
TPM: TPM 2.0 hardware encryption (optional)
Power supply: ATX 24PIN+4PIN ATX power supply
Board size: MINI-ITX (170*170mm) Suitable for 115X fan
