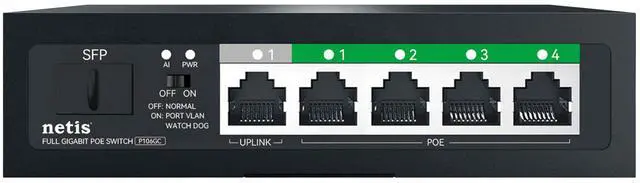

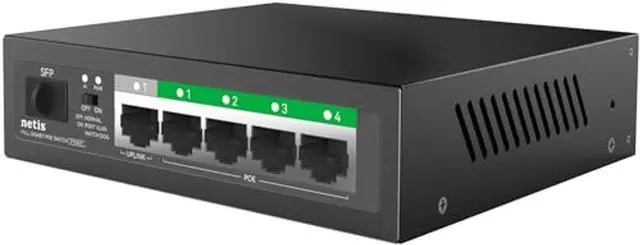

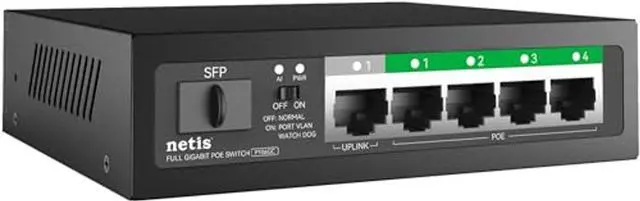

Netis P106GC Uplink POE Switch; 1x 10/100/1000Mbps RJ45 Port, 1xSFP Port, and 4 PoE Function; 12Gbps Wwitching Fabric Capacity/Backplane Bandwidth; Supports 2K MAC Address Table; Plug and Play, Black

Netis P106GC Uplink POE Switch; 1x 10/100/1000Mbps RJ45 Port, 1xSFP Port, and 4 PoE Function; 12Gbps Wwitching Fabric Capacity/Backplane Bandwidth; Supports 2K MAC Address Table; Plug and Play

Key Features:
- 1x 10/100/1000Mbps RJ45 ports and 1xSFP port, 4 PoE function
- Follow IEEE 802.3 Ethernet and IEEE 802.3 u Fast Ethernet Protocol
- Power supply: built-in 60W
- Supports PoE IEEE 802. 3at/af compliant Powered Device (PD)
- IEEE 802.3 x flow control for Full Duplex mode and backpressure for Half Duplex mode
- All ports support Auto MDI/MDI-X function
- 12Gbps switching fabric capacity/backplane bandwidth
- Supports 2K MAC address table, MAC address auto-learning & auto-aging
- Support MAC address auto-learning & auto-aging
- Support Normal Mode/Port VLAN + Watch Dog Mode
- Plug and Play

Specifications

:
- Interface: 4x 10/100/1000M POE Ports (Data /Power), 1x 10/100/1000M uplink RJ45 Ports (Data), 1x SFP Slot (Data)
- LED:
PWR: Lighting - The device is powered on normally, AI: Lighting - The intelligent mode is enabled, Port: Lighting - Port link is normal, and Blinking - Data in transit
- Mode: Normal mode, Port VLAN + Watch Dog Mode
- VLAN: Yes
- Switching Capacity: 12G
- MAC Address Table Size: 2K
- Jumbo Frame: 2048 byte
- Data Transfer Rate:
Ethernet: 10Mbps(Half-duplex and Full-duplex), Fast
Ethernet: 100Mbps(Half-duplex and Full-duplex), Ports compatible with
Gigabit: 1000Mbps(Full-duplex)
- Overall Dimensions (LxWxH): 4.92 x 4.52 x 1.33 inches
