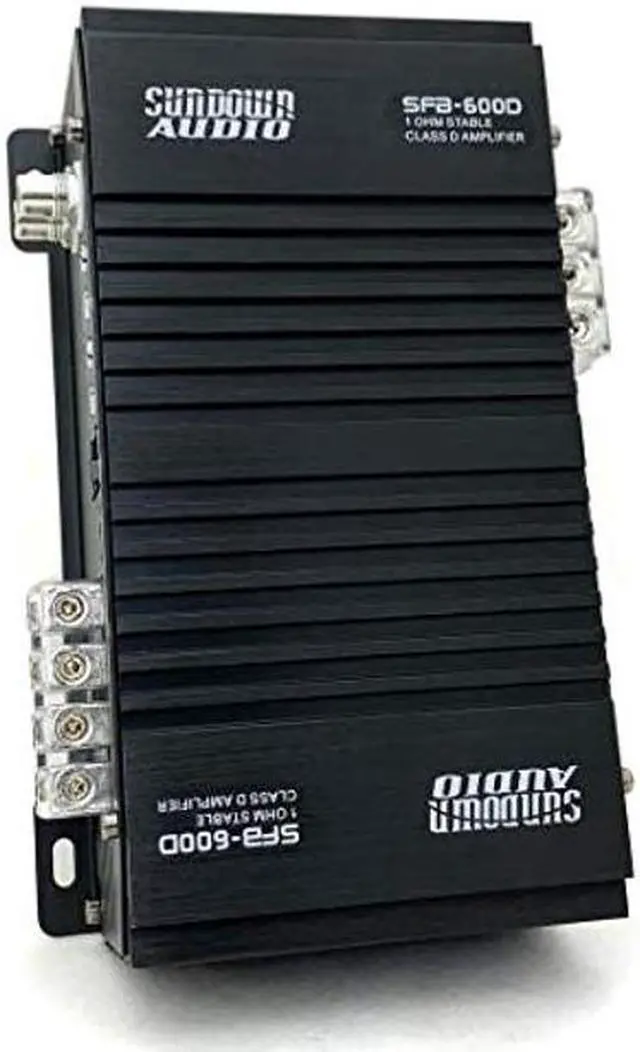

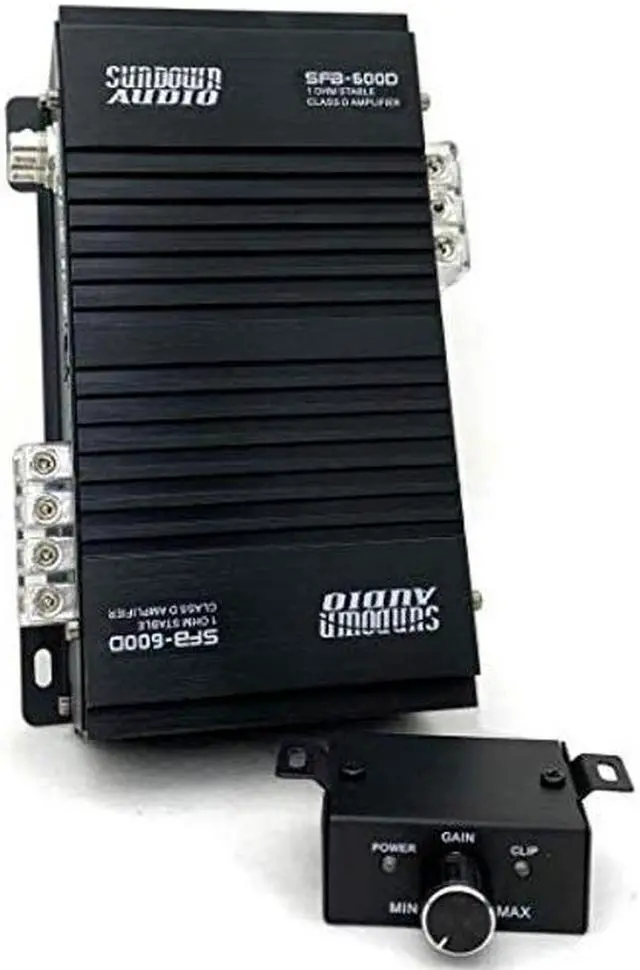

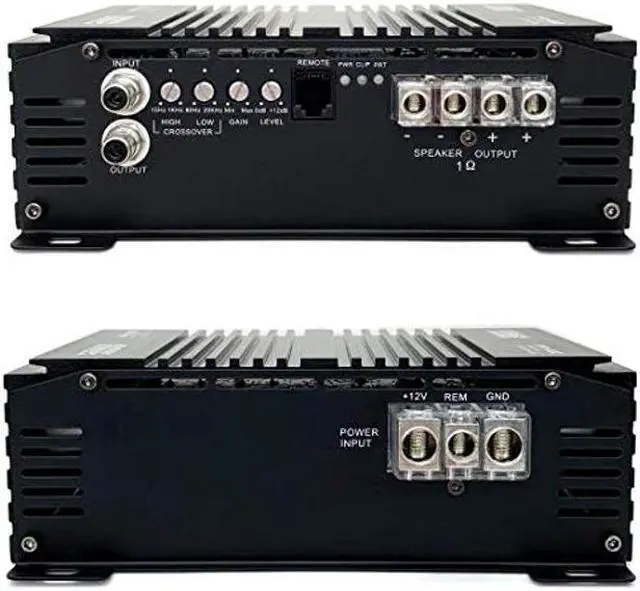

Sundown Audio SFB-600D Class-D Monoblock Amplifier

SFB-600D ^^ Sundown Audio Class D Monoblock Amplifier

FEATURES:
Digital Class-D Mono Block Amplifier
Dual MOS-FET PWM Power Supply
1 Ohm Stable Load
12 dB/Octave Variable Low Pass Filter
12 dB/Octave Variable High Pass Filter
9 dB/Octave Variable Bass Boost
4 Way Protection Ciruit (Thermal, Voltage, Speaker Short, DC Offset)

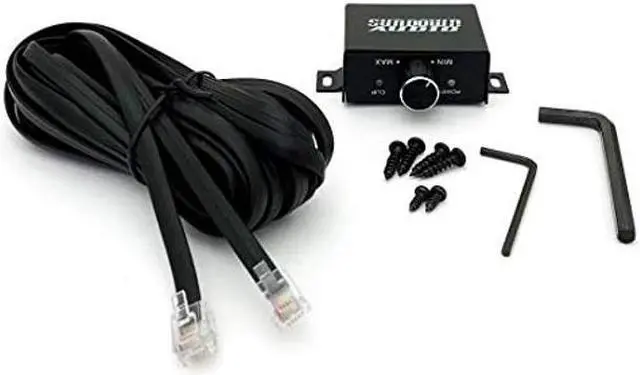

Wired Remote Control with Clipping Indicator

SPECIFICATIONS (Tested @ 14.4 v):
1 ohm Mono RMS - 600W
2 ohm Mono RMS - 350W
4 ohm Mono RMS - 250W
Recommended Fuse Rating - 60A
Low Pass Filter (Variable) - 80Hz-20kHz
High Pass Filter (Variable) - 15Hz-1kHz
Bass Boost @ 50Hz - 0-12dB
Input Sensitivity - 5V Max
S/N Ratio - 86dB
Working Voltage - 10.5 v- 15.5 v
Dimensions (inch) - 7.25 x 5.00 x 2.50
