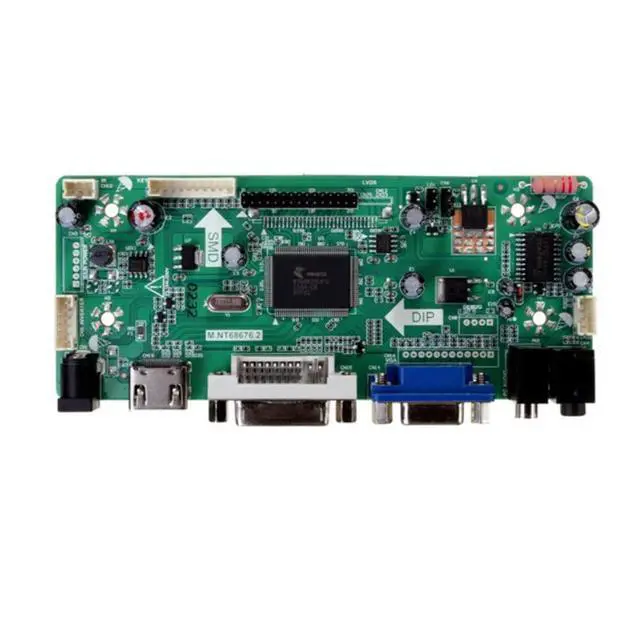

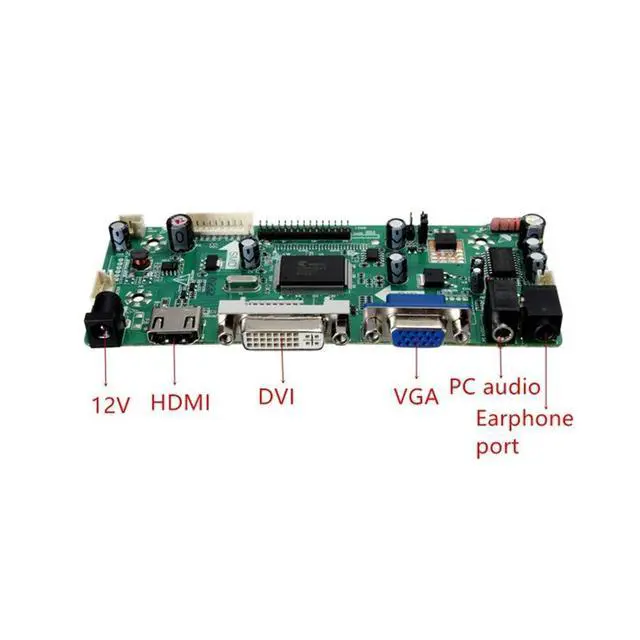

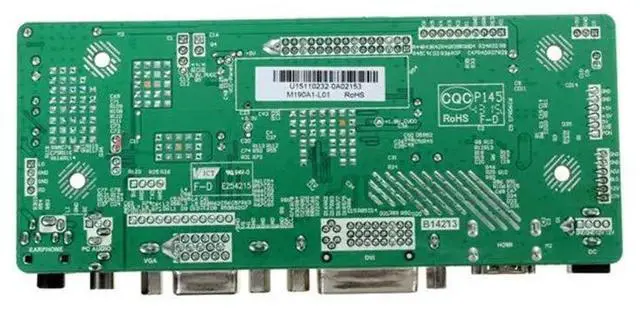

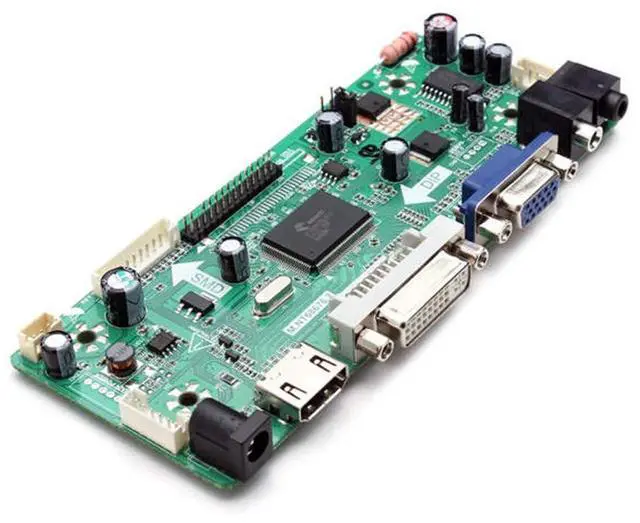

Taidacent Universal LVDS Controller Board 10-65 Inch LCD Screen HDMI DVI VGA to LVDS Driver Board DIY Notebook Display Kit (Single Drive Board)
- CHIPSET: NT68676(UFG)
- MARKET AREA :Asia-Pacific
- OSD LANGUAGE: Simplified chinese, Traditional chIese, English, French, German, Italian, Spanish, Portuguese, Japanese, Korean (optional)
- KEY FUNCTION : POWER, MENU, VOL+, VOL-, ADJUST/EXIT
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
CHIPSET: NT68676UFG
MARKET AREA: Asia-Pacific
OSD LANGUAGE
Simplified chineseTradtional chIeseEnglishFrenchGermanItalianSpanishPortugueseJapaneseKoreanoptional
PANEL
Panel Type: LED/LCD
Panel Interface: Single/Dual LVDS8bit
Max Resolution: 2048×1152
PC-RGB: Format up to 2048×1152@60Hz
HDMI: 480i480P576i, 576p, 720p 1080i, 1080p
AUDIO INPUT
PC Audio: Earphone input 0.2 ~ 2.0
AUDIO OUTPUT
Frequency Responses: 100Hz15KHz @±3dB(1KHz, OdB reference signal)
Max Output power: 2x1W (8) THD+N <10%@1KHz (Power Supply:12V, Audio Input:0.5V)
POWER
Requirement: 12V DC/12V (built) /12V, 5V (built in) /12V, 5V, 5VSB (built in)
To Panel: 3.3V /5V/12V
Management: Standby Power Consumption <0.5W(Board Only)
KEY FUNCTION: POWER, MENU, VOL+, VOL-, ADJUST/EXIT
MARKET AREA: Asia-Pacific
OSD LANGUAGE
Simplified chineseTradtional chIeseEnglishFrenchGermanItalianSpanishPortugueseJapaneseKoreanoptional
PANEL
Panel Type: LED/LCD
Panel Interface: Single/Dual LVDS8bit
Max Resolution: 2048×1152
PC-RGB: Format up to 2048×1152@60Hz
HDMI: 480i480P576i, 576p, 720p 1080i, 1080p
AUDIO INPUT
PC Audio: Earphone input 0.2 ~ 2.0
AUDIO OUTPUT
Frequency Responses: 100Hz15KHz @±3dB(1KHz, OdB reference signal)
Max Output power: 2x1W (8) THD+N <10%@1KHz (Power Supply:12V, Audio Input:0.5V)
POWER
Requirement: 12V DC/12V (built) /12V, 5V (built in) /12V, 5V, 5VSB (built in)
To Panel: 3.3V /5V/12V
Management: Standby Power Consumption <0.5W(Board Only)
KEY FUNCTION: POWER, MENU, VOL+, VOL-, ADJUST/EXIT
