PCI Express Gen. 3 interface
Support Serial ATA Revision 3.0 and backward compatible
Provide 5 standard Serial ATA 7-Pin connection terminals
Supports Serial-ATA (SATA) Gen III 6Gb/s hard drives, and is backward compatible with SATA I/II
Supports connection of SATA I/II/III hard drives and CD burners
Support IDE/AHCI mode
LED status indicator. The blue light is always on when the device is connected, and the blue light flashes when the data is read. Monitor the working status of the device at any time

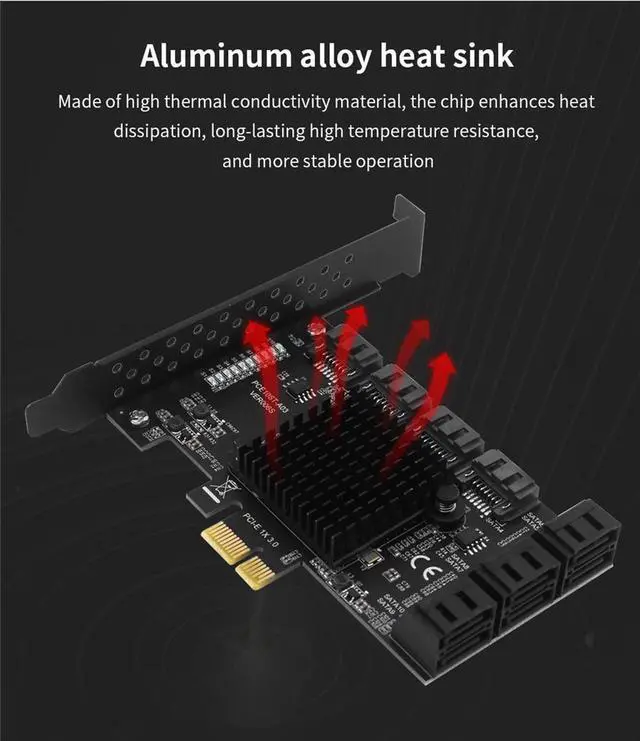

Aluminum alloy heat sink. Made of high thermal conductivity material, the heat dissipation effect is better and more stable, the chip strengthens the heat dissipation, and the high temperature resistance is more stable.

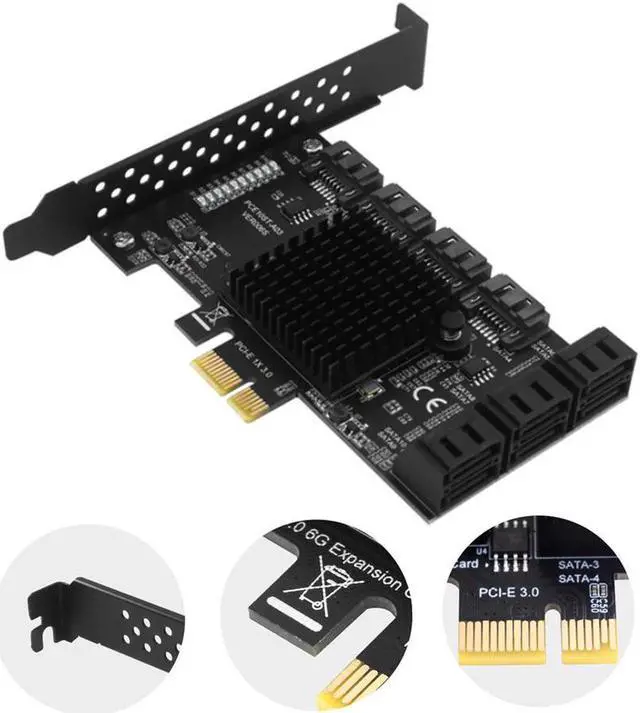

Product name: PCI-E 1X to 10 port SATA 3.0 expansion card
Product color: Black

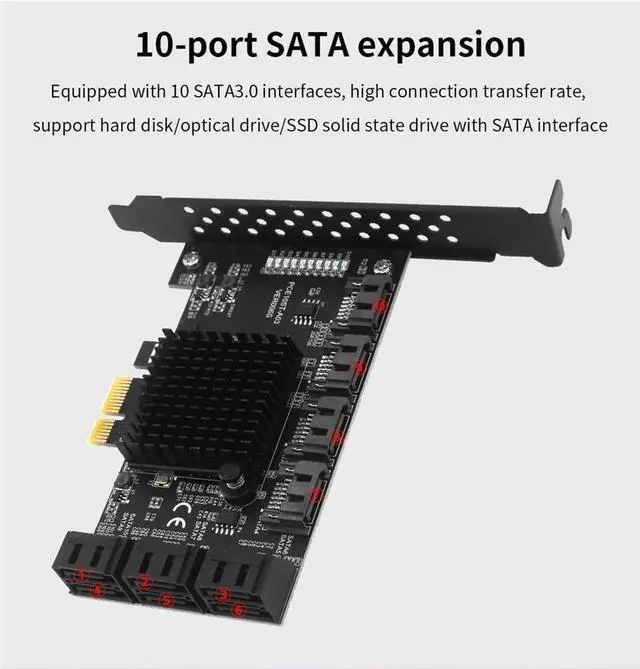

Expansion interface: 10 SATA 3.0 interfaces (optional)
Built-in interface: PCI-E 1X
Support hard disk: SATA interface hard disk
Support system: MacOS; Windows 7/8/ 10
Installation method: in-line PCI-E card slot

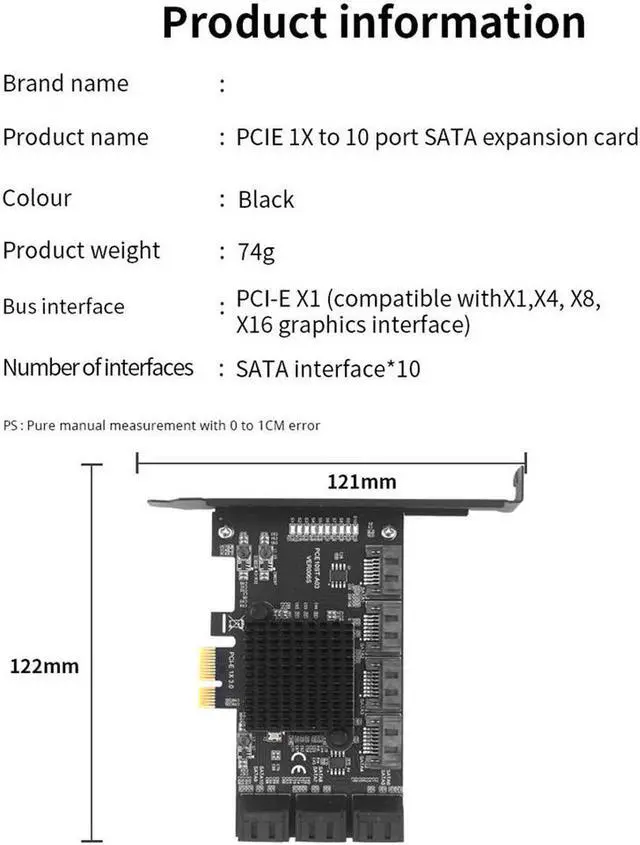

Product size: 10 ports: 120x102x30mm
Product weight: 10 ports: 65 g
System requirement:
There is an available PCI Express 1X slotsWindows 7 32/64-bit/XP/Vista/WIN7/WIN8/WIN10/LINUX
