Product Name: Water Cooling Radiator
Product Specifications
:
- Fin density: 18 lines per inch
- Color: Black; Product Weight: 500g
- Type: Water Cooling; Material: Aluminum
- Mouth: 9.5 (D) mm; Model Number: 240mm;
- Longer Screw Size: 31 x 3 mm / 1.2 '' x 0.12 '' (L*D);

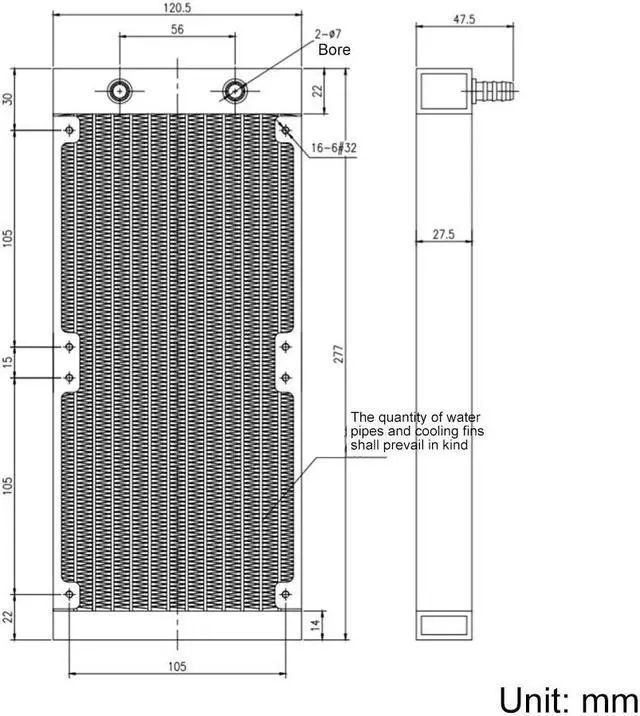

- Size: 275 x 120 x 58 mm / 10.1 '' x 4.7 '' x 2.28 '' (L*W*H);
- Tube Quantity: 12;
Fit ID Tube Inner Diameter: 8 -12mm / 0.3 '' - 0.5 ''
- Fit ID Tube Outer Diameter: 9.5 mm / 0.37 '';
Shorter Screw Size: 7 x 3 mm / 0.3 '' x 0.12 '' (L*D)

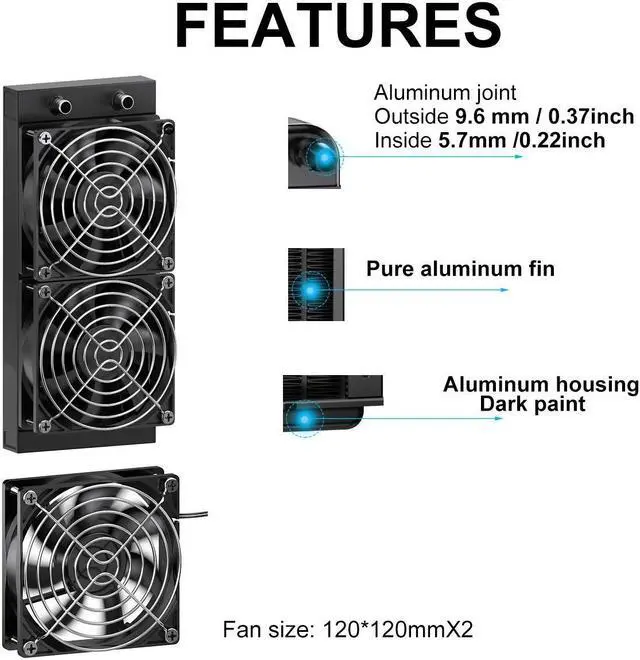

Product Features:
- Pure aluminum fins
- Parts brazing seal as a whole
- Surface treatment: Dark paint
- Joint: disposable stainless steel-band
- The sealing process: vacuum aluminum brazing
- Item Type: Computer Radiator Water Cooling Cooler; Material: Metal
- Can be installed 120mm fan, mounting
hole size: 109.5D × 109.5W mm
Optimized for high performance at low cost, No weak welds nor leakage.
Suitable for computer CPU cooling, industrial frequency conversion driver, laser head cooling, air conditioning evaporator and industrial control cabinet cooling.

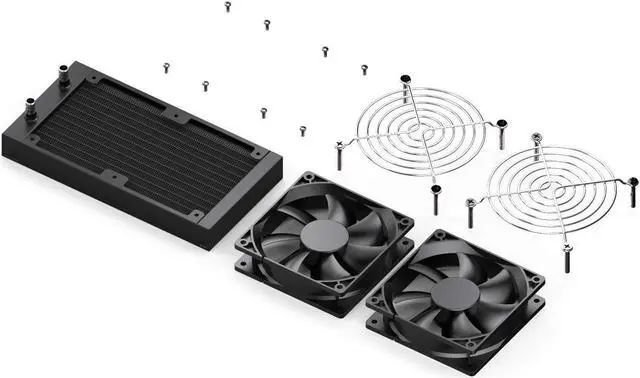

Package Included:
1 x Aluminum Heat Exchanger High speed fan
NOTE: Screw holes below is channel pipe, so make sure not to use long screw, will top leaking.
