Deal4GO AX200NGW 1650X 802.11ax 2.4Gbps Wi-Fi 6 M.2 NGFF Wireless WiFi Adapter w/Bluetooth 5.1 for Dell Alienware 13 R2 R3 15 R2/R3/R4 17 R3/R4/R5 AX200 0TKNXX TKNXX

The Wireless-AC AX200 adapter supports Bluetooth+ 5 and 2x2 802.11 ac Wi-Fi including wave features such as 160MHz channels, delivering up to 2.4G bps and downlink MU-MIMO. These new features deliver a significant increase in user speeds in dense deployments, supporting fast downloads and long battery life compared to legacy 802.11 ac devices. Combined with Core processors and exceptional Intel wireless innovations, the Wireless-AC AX200 can provide Gigabit download speed and dramatically improve your connected experience at home, work, or on the go.

Module is 22x30mm and should only be used in Laptops with an M. 2 connector and a standard Key A or E socket. It WILL NOT work in the M. 2 slot in a Desktop.

Specifications

Model: AX200NGW/1650X
Connector interface: M. 2 2230
System Interface Type: PCIe, USB
Antenna connector: IPEX 4 / iPX 4 Connector
Wireless data rate:
- 5GHz up to 1730Mbps (You router must support 802.11AX )
- 2.4GH z up to 574Mbps (160MHz)
Max speed: If your router support 802.11AX, the max speed up to 2.4G bps
Streams: 2X2
Bluetooth: Bluetooth 5.1
Antenna Diversity: Supported
MU-MIMO: Yes
Frequency: Dual Band 2.4 /5GHz
IEEE WLAN Standard: IEEE 802.11 a/b/g/n/ac, 802.11 d, 802.11 e, 802.11 h, 802.11 i, 802.11 w, 802.11 r, 802.11 k, 802.11 v
Wi-Fi CERTIFIED*: 802.11 ax
Operating Systems: Windows 10 32/64-bit (NOt support Windows 7/8/ 8.1 )
Dimension (H x W x D): 22 x 30 x 2.4 mm, 12 x 16 x 1.65 mm

Package Includes:

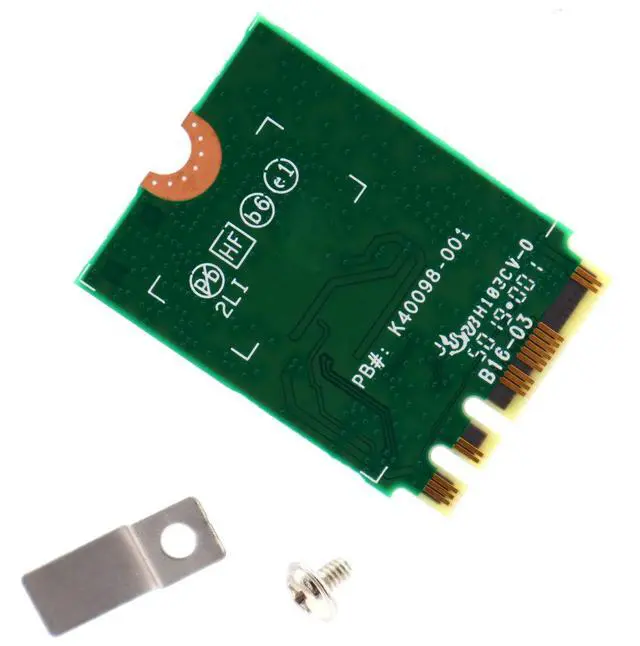

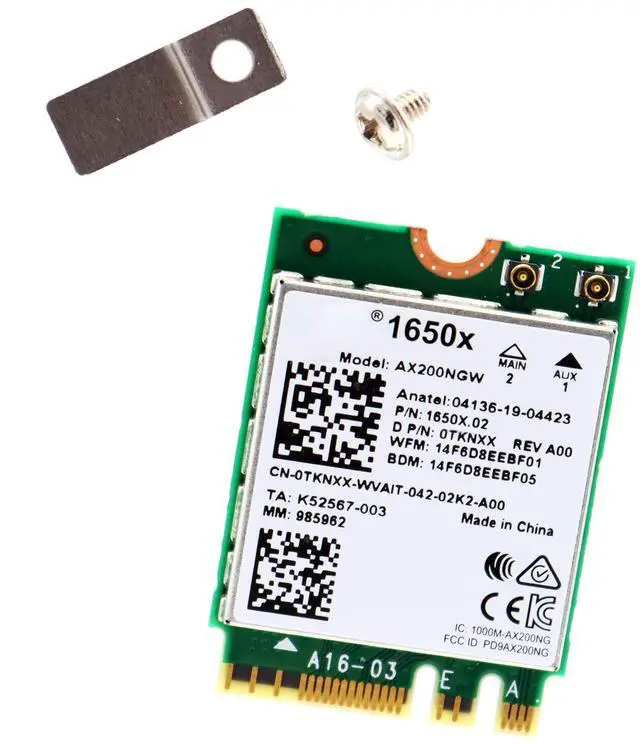

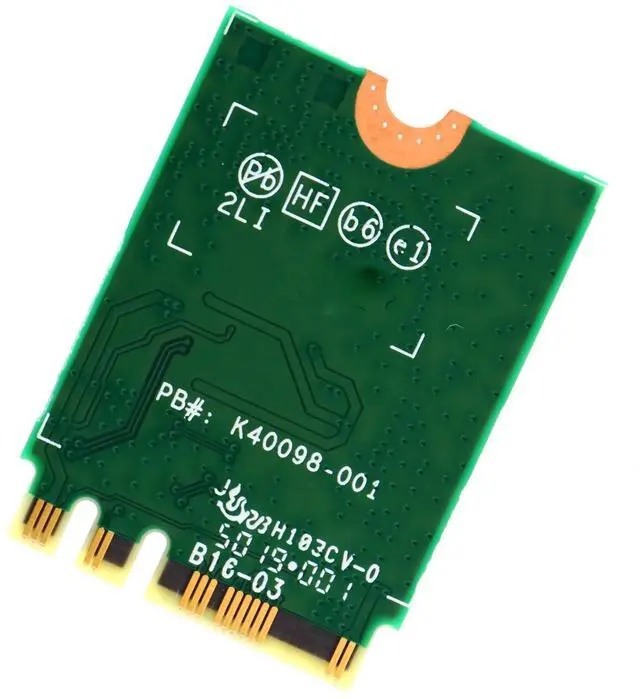

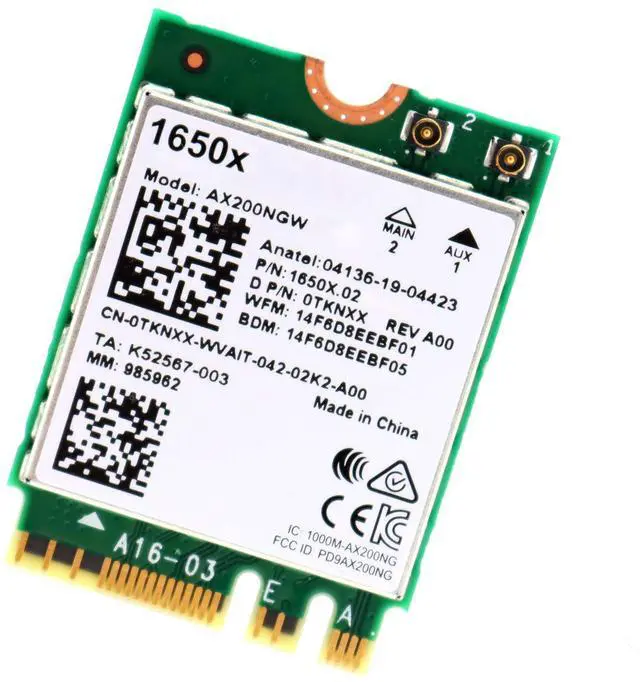

1x 1650X M. 2 NGFF WiFi Card
1x Screws
1x Holder Bracket
