Industrial USB Extender 4-Port Hub; Extends 250 ft (76m) for Low-Speed OR 165ft (50m) for high-Speed Devices Over CAT 5e/6 Cables; Supports up to 480Mbps; Plug-and-Play; No Drivers Needed

Supports low, full and high speed data rates: 1.5M bps, 12Mbps, and 480Mbps
Plug and play (hot-pluggable), no software drivers required
Product Description

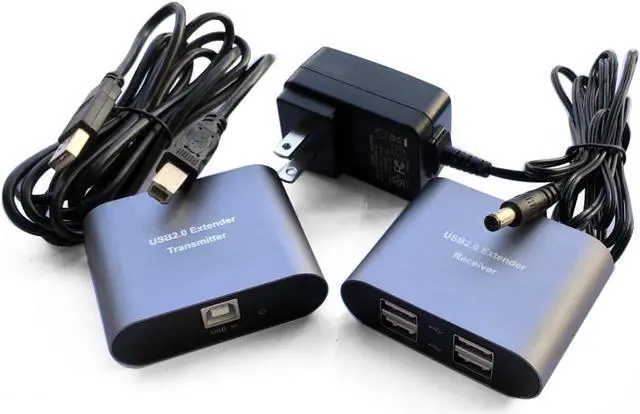

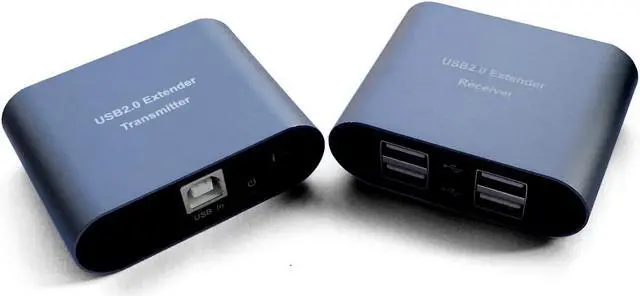

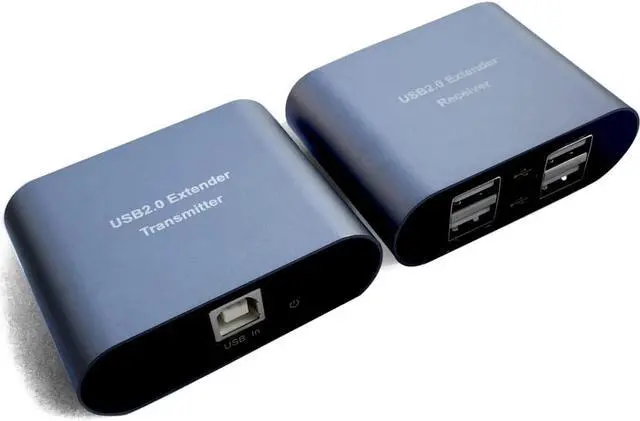

Industrial USB Extender Hub (4-Port)

Model: USB-RPT-2H

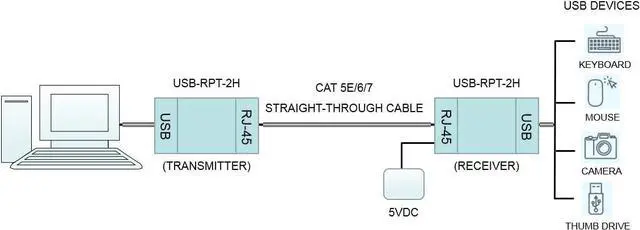

The USB-RPT-2H is a rugged, industrial-grade USB 2.0 extender hub that can be used to extend USB 2.0 / 1.1 s distance to up to 250ft (76m) for low-speed devices such as USB mouse and keyboards, and 165ft (50m) for high-speed devices such as USB cameras, microphones, and printers. The USB-RPT-2H works in pair (one transmitter and one 4-port receiver hub) to extend the USB 2.0 / 1.1 s distance over single CAT 5e/6/7 cable and it supports data rates up to 480Mbps (USB 2.0 specifications); the unit supports plug-and-play (hot-pluggable) and it requires no software drivers; thus making it an ideal solution for connecting USB devices that exceed the distance limitation of 16ft (5m).

The USB-RPT-2H is ideal for a wide range of USB devices, such as USB mouse, USB keyboards, USB game controllers, USB monitors, USB printers, USB scanners, USB hard drives, USB audio devices, and USB cameras.

Features

Industrial-grade with aluminum casing

Extend USB 2.0 / 1.1 's distance over single CAT 5e/6/7 cable

Up to 250ft or 76m for low-speed devices, and 165ft or 50m for high-speed devices

Supports 4 USB 2.0 ports at the receiver end

Low,
full and high speed data rates: 1.5M bps, 12Mbps, and 480Mbps

Supports a wide range of USB devices

Provides 16kV (air) and 8kV (contact) ESD protection

Operating temperature: -4ºF to 158ºF (-20ºC to 70ºC)

SPECIFICATIONS
