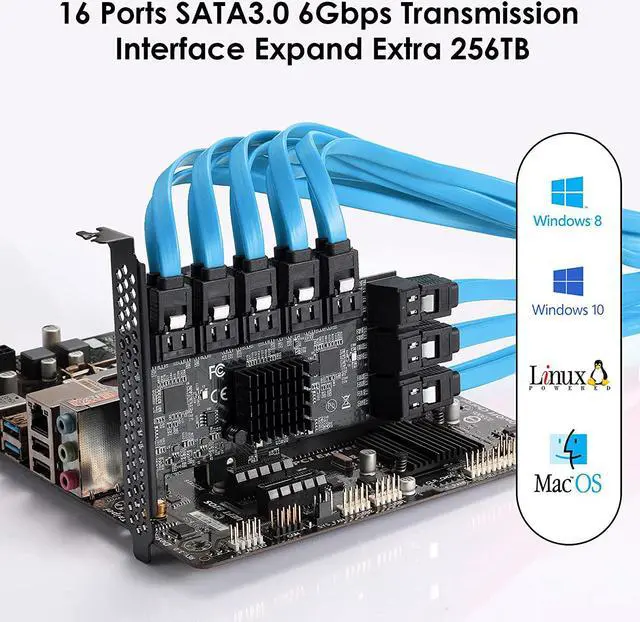

6 Gbit/s PCIe SATA 3.0 Card PCIe SATA 16 Ports PCIe SATA Controller Expansion Card Bootable as System Hard Disk Suitable for All PCIE Slots JBM575 and ASM1064

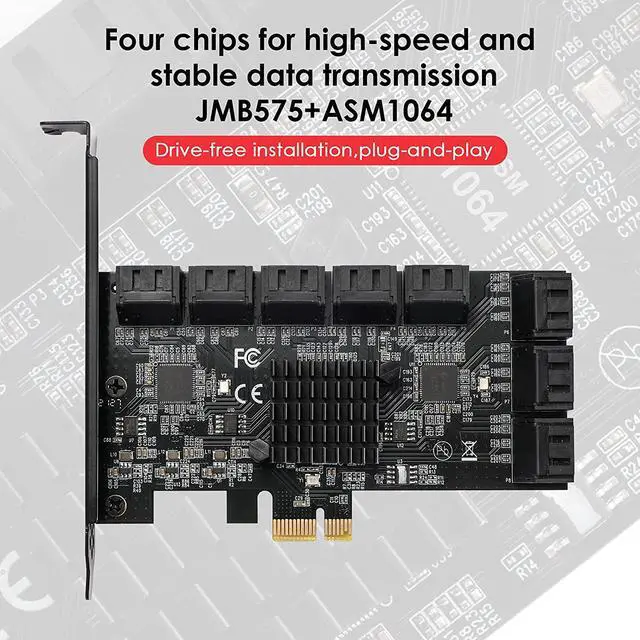

Chipset: With the chipset 3 x JMB575 and 1 x ASM1166, improve this card more stable and compatible

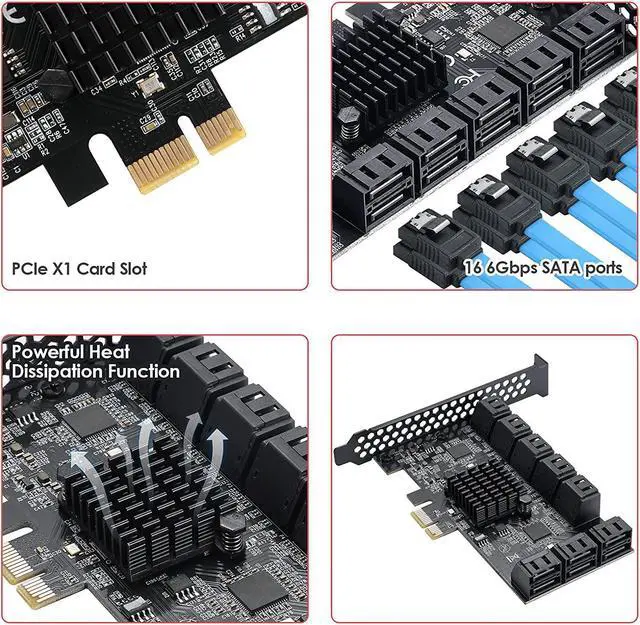

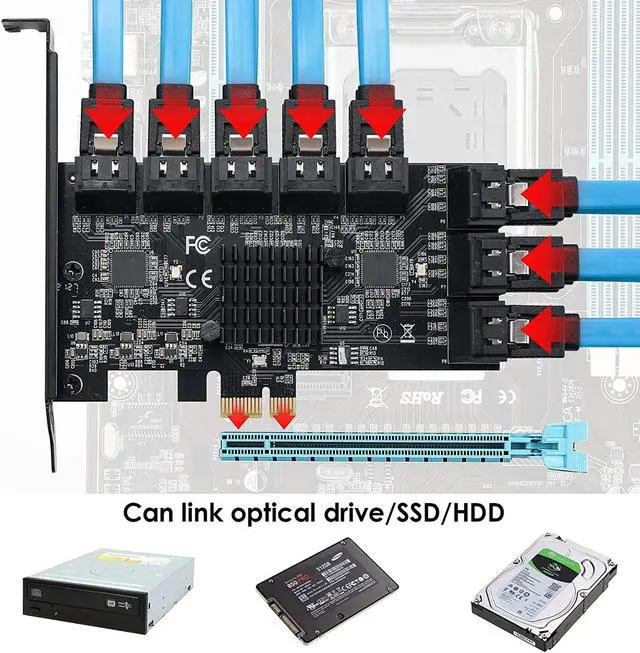

Easy to install: PCIe to SATA 3.0 host controller card with a low profile bracket, can be used in PCIe X1, X4, X8, X16 card slots and is compatible with most market compatible chassis sizes
Specifications:
Complies with Serial ATA 3.0 specification, backward compatible with SATA2.0 or SATA1.0 Follows PCI Express v3.0 specification and backward compatible with PCI Express v2.0 or 1.0 Native support command queue NCQ Supports FIS based on port multiplier switch or command switch; Supports hot swap
Product name: 16 port SATA 3.0 expansion card
Product interface: PCI E 1X
Support system: Windows 8, Windows10, ubuntu, Mac10.14.6 Speed
Description information:
1. The best effect can be achieved with the SATA3.0 data cable; We recommend using this SATA 3.0 card in the PCIE3.0 slot for maximum speed
2. The SATA mode should be changed to AHCI, although some motherboards have PCIE version 2.0, but BOIS does not open the high speed transfer mode high speed mode Gen2 by default, it needs to be opened manually
3. V1.0 PCI E mode only 200 to 250M i.e. only 200 to 250 at full load, if only one is connected, it can go to 400M+
4. PCI E V2.0 mode only 350 to 400M or less, if one SSD is connected, it can reach 400M/so more; Different configurations of computers and SATA SSDs have different speeds; If all ports are used at the same time, the speed will slow down

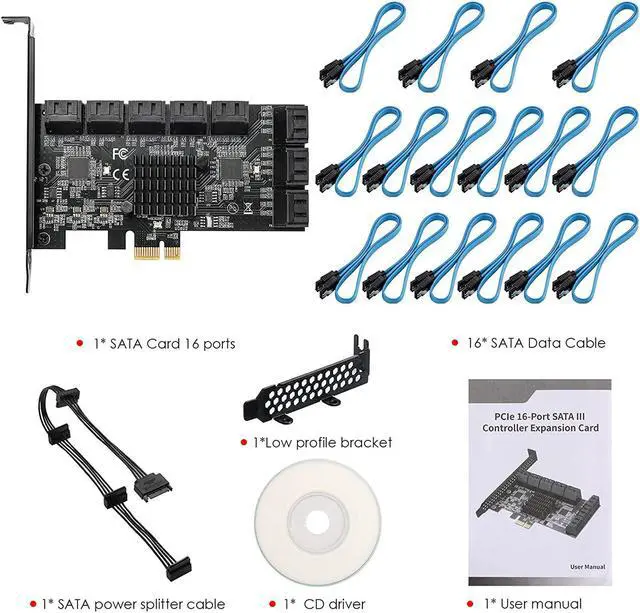

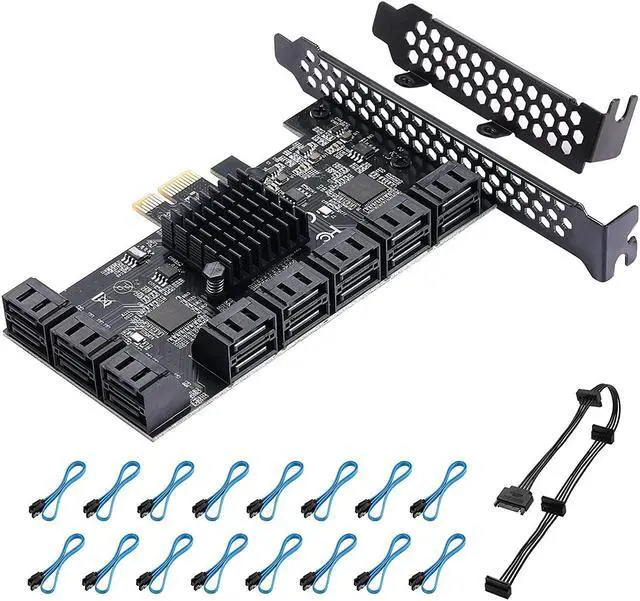

Package list:
1 x Low profile bracket
1 x PCIe X1 to 16SATA 3.0 card
1 x CD
1 x Product manual
1 x SATA splitter adapter cable, 1 to 4 SATA connectors
16 x SATA cables
