youyeetoo CM3588 Plus NAS Kit Up to 32GB RAM, 2.5GbE, 4xM.2 2280 PCle 3.0 for Network Attached Storage Home Cloud - RK3588 ARM OMV (32G+64G,with NAS Carrier Board)

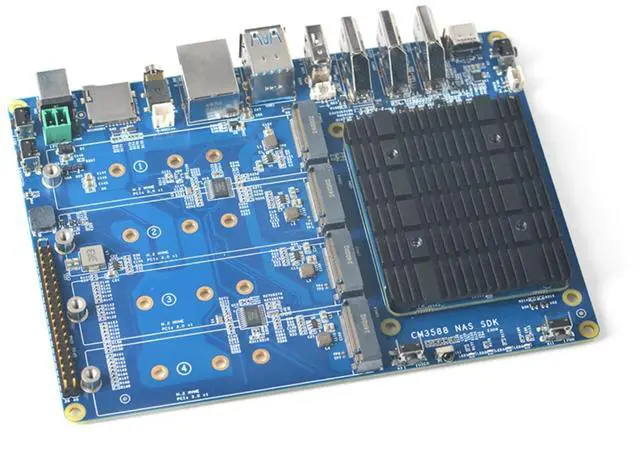

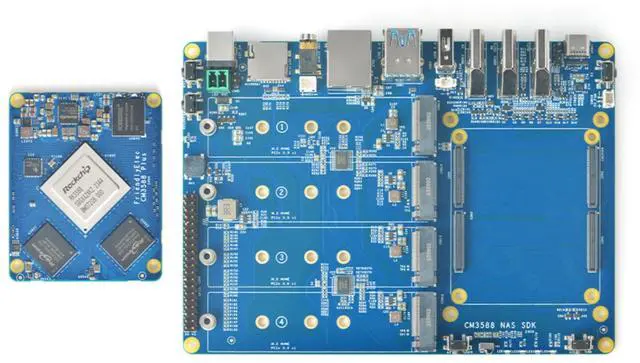

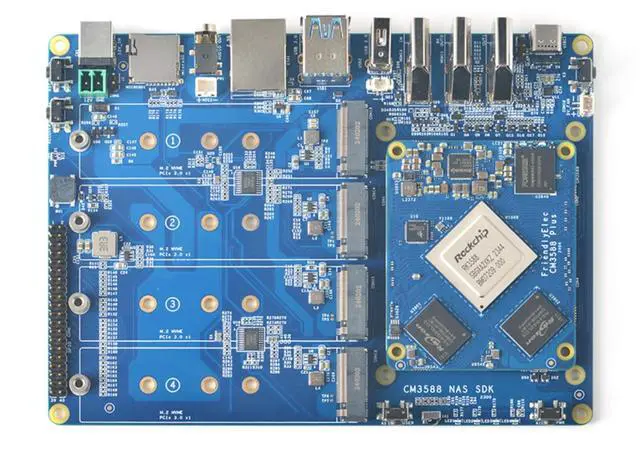

- The CM3588 NAS Kit is a carrier board designed based on the https://wiki.friendlyelec.com/wiki/index.php/CM3588 core module. It includes 4x M.2 Key M PCIe 3.0 x1 slots, 2x USB3.0 Type-A ports, 1x USB3.0 Type-C interface with DP support, dual HDMI OUT ports, and one HDMI IN port, and a 2.5Gbps Ethernet interface.
- [Package Content] 1x CM3588 Plus NAS Kit (Power not included) or 1x CM3588 Plus Computer Module CM board
- [High-Performance Computing Module] The CM3588 Plus is a high-performance ARM computing module developed by the FriendlyElec team, featuring the Rockchip RK3588 as the main control processor.
- [Ample Memory and Storage] Equipped with 16/32GB LPDDR5 memory and 64/256GB eMMC flash storage, providing substantial data processing and storage capabilities.
- [Rich Interfaces and Expandability] It includes four 100-pin board-to-board connectors for extensive peripheral and expansion interface support, featuring dual HDMI-Out and one HDMI-In interface and support
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description

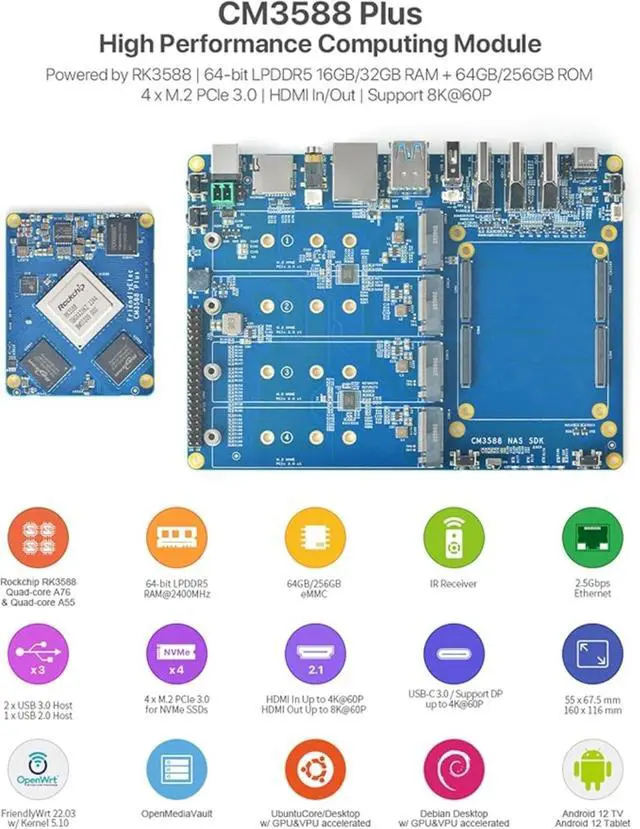

The CM3588 Plus is a high-performance ARM computer module developed by FriendlyElec, designed to deliver advanced computational capabilities for various applications. The Rockchip RK3588 processor powers it. The module comes with a generous amount of memory, featuring either 16GB or 32GB of LPDDR5 RAM and it includes storage options of 64GB or 256GB eMMC flash.
Key Features:
SoC: Rockchip
RK3588 CPU: Quad-core ARM Cortex-A76(up to 2.4GH z) and quad-core Cortex-A55 CPU (up to 1.8GH z)
GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan 1.2
VPU: 8K@60fps H. 265 and VP9 decoder, 8K@30fps H. 264 decoder, 4K@60fps AV1 decoder, 8K@30fps H. 264 and H. 265 encoder
NPU: 6TOPs, supports
INT4/INT8/INT16/FP16 RAM: 64-bit 4GB/8GB/16GB LPDDR4X up to 2133MHz, 32GB LPDDR5 up to 2400MHz
Flash: 0GB/64GB/256GB eMMC, at HS400 mode 1 x microSD interface, support up to SDR104 mode 1 x On-board PCIe 2.5G ethernet controller (RTL8125B)
Tech Support: youyeetoo Discord or forum. youyeetoo. com
Communication and customized consulting:
am2 @ youyeetoo DOT com
The CM3588 Plus is a high-performance ARM computer module developed by FriendlyElec, designed to deliver advanced computational capabilities for various applications. The Rockchip RK3588 processor powers it. The module comes with a generous amount of memory, featuring either 16GB or 32GB of LPDDR5 RAM and it includes storage options of 64GB or 256GB eMMC flash.
Key Features:
SoC: Rockchip
RK3588 CPU: Quad-core ARM Cortex-A76(up to 2.4GH z) and quad-core Cortex-A55 CPU (up to 1.8GH z)
GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan 1.2
VPU: 8K@60fps H. 265 and VP9 decoder, 8K@30fps H. 264 decoder, 4K@60fps AV1 decoder, 8K@30fps H. 264 and H. 265 encoder
NPU: 6TOPs, supports
INT4/INT8/INT16/FP16 RAM: 64-bit 4GB/8GB/16GB LPDDR4X up to 2133MHz, 32GB LPDDR5 up to 2400MHz
Flash: 0GB/64GB/256GB eMMC, at HS400 mode 1 x microSD interface, support up to SDR104 mode 1 x On-board PCIe 2.5G ethernet controller (RTL8125B)
Tech Support: youyeetoo Discord or forum. youyeetoo. com
Communication and customized consulting:
am2 @ youyeetoo DOT com
